Product Information Packet
JPM3313T
10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Part Detail
Revision: S Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 37WGS131 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 37G539 Layout: 37LYG539 Poles: 04 Created Date: 10-05-2006 Base: RG Eff. Date: 03-08-2016 Leads: 9#14
Specs
Catalog Number: JPM3313T Enclosure: ODP Frame: 215JP Frame Material: Steel Output @ Frequency: 10.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: RG Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater Insulation Class: B Inverter Code: Not Inverter KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3733M Mounting Arrangement: F1 Power Factor: 78 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Tapped & Key Rodent Screen: Included
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Current @ Voltage: 13.400 A @ 460.0 V
26.800 A @ 230.0 V
29.000 A @ 208.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Nameplate NP1256L
CAT.NO. JPM3313T
SPEC. 37G539S131H1
HP 10
VOLTS 208-230/460
AMP 29-26.8/13.4 RPM 1765
FRAME 215JP HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS B
NEMA-NOM-EFF 89.5 PF 78
RATING 40C AMB-CONT
CC 010A USABLE AT 208V DE 6309 ODE 6206
ENCL OPSB SN
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Parts List
Part Number Description Quantity SA149188 SA 37G539S131H1 1.000 EA RA138125 RA 37G539S131H1 1.000 EA HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA 37CB3000SP CONDUIT BOX, CAST, W/1.089/1.100 CAST LE 1.000 EA 51XW2520A10 .25-20 X .62, TAPTITE II, HEX WSHR SLTD 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 37FE3200A15 FR ENDPLATE MACH 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA1104A01 RODENT SCREEN 37 FRAME 206 BRG FRONT END 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 37PE3401A11 PUEP 309 BRG W/METAL SLINGER, GRS & RELI 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA1222 RODENT SCREEN - 37 C-FACE MOTORS 4.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA 10XN2520A36 1/4-20X 2 1/4 HEX HD X 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA 36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Parts List (continued)
Part Number Description Quantity 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HA2009A02 SLINGER MODEL 37 PUMP MOTORS-2.75 DIA. A 1.000 EA 80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA HW2501E21 KEY, 1/4 SQ X 2.375 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.028 GA HA3104A14 THRUBOLT- 5/16-18 X12.125(OHIO) 2.000 EA HA3104A39 THRUBOLT-5/16-18 X 12.250 2.000 EA 37AD2001A01 BAFFLE PLATE, PLASTIC 0.63" WIDTH 2.000 EA LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA PK3085X FOAM SHAFT SUPPORT PRECUT 4-1/4 X 6-3/4 1.000 EA
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
AC Induction Motor Performance Data
Record # 52458 - Typical performance - not guaranteed values
Winding: 37WGS131-R014 Type: 3734M Enclosure: OPSB
Nameplate Data
400 V, 50 Hz:
High Voltage Connection Rated Output (HP) 10 Full Load Torque 35.81 LB-FT Volts 200/400 Start Configuration direct on line Full Load Amps 31/15.5 Breakdown Torque 100 LB-FT R.P.M. 1450 Pull-up Torque 66.89 LB-FT Hz 50 Phase 3 Locked-rotor Torque 74.74 LB-FT NEMA Design Code B KVA Code H Starting Current 98.6 A Service Factor (S.F.) 1 No-load Current 7.88 A NEMA Nom. Eff. 87.5 Power Factor 79 LinelineRes.@25ºC 1.14Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 59°C
Locked-rotor Power Factor 44
Rotor inertia 0.836 LB-FT2
Load Characteristics 400 V, 50 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 37 59 72 78 82 83 Efficiency 82.7 88.5 89.2 88.7 87.5 85.9 Speed 1490 1483 1473 1464 1454 1441 Line amperes 8.4 10.07 12.47 15.45 18.71 22.52
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Performance Graph at 400V, 50Hz, 10.0HP Typical performance - Not guaranteed values
Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F

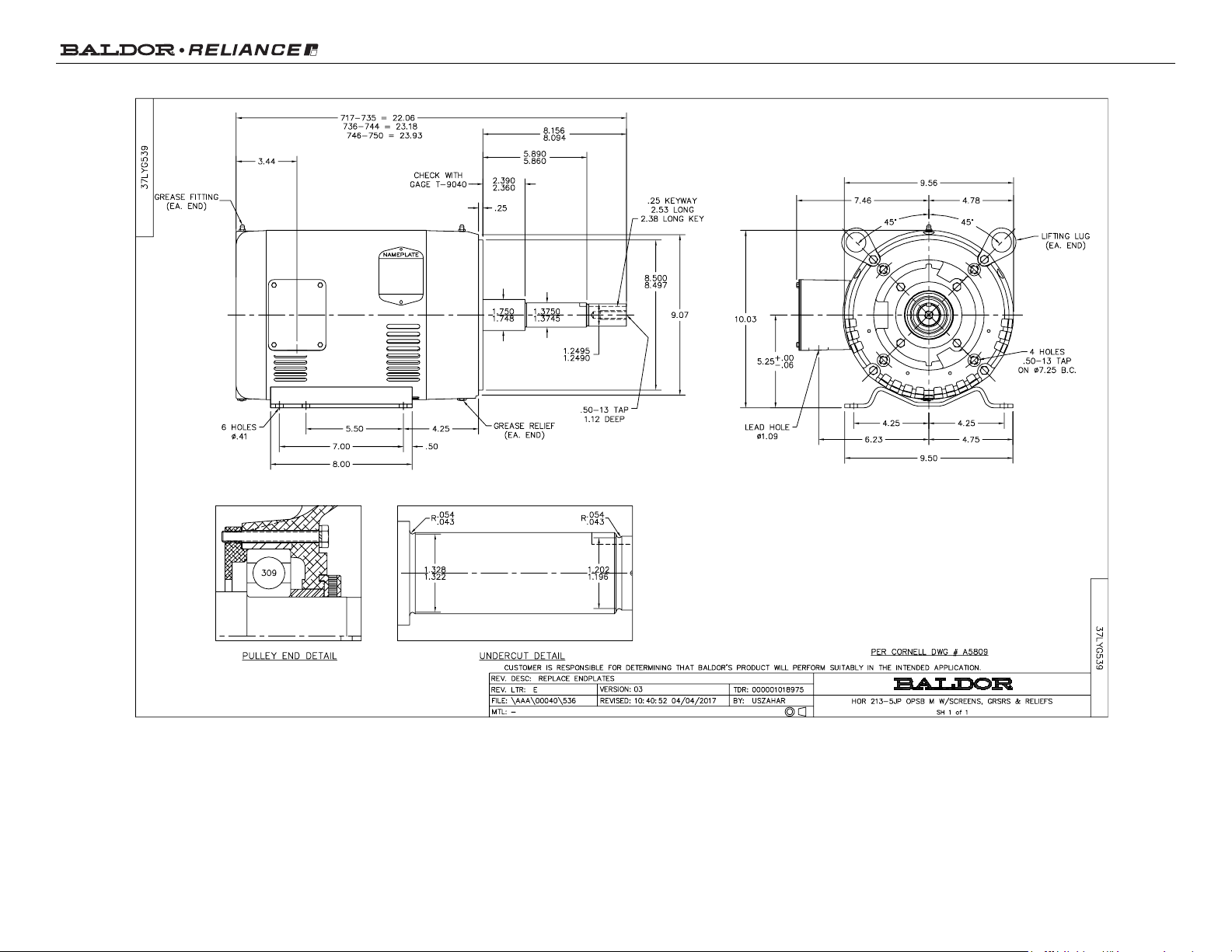

Product Information Packet: JPM3313T - 10HP,1760RPM,3PH,60HZ,215JP,3733M,OPSB,F
Page 10 of 10
