Product Information Packet
JPM3211T
3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Part Detail
Revision: F Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGP741 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35U344 Layout: 35LYU344 Poles: 04 Created Date: 06-18-2010
Base: RG Eff. Date: 03-08-2016 Leads: 9#18
Specs
Catalog Number: JPM3211T
Enclosure: OPSB
Frame: 182JP
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3536M
Mounting Arrangement: F1
Power Factor: 80
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Current @ Voltage: 4.100 A @ 460.0 V
8.200 A @ 230.0 V
8.900 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Nameplate NP1256L
CAT.NO. JPM3211T
SPEC. 35U344P741H1
HP 3
VOLTS 208-230/460
AMP 8.9-8.2/4.1
RPM 1745
FRAME 182JP HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS F
NEMA-NOM-EFF 86.5 PF 80
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6207 ODE 6203
ENCL OPSB SN
Page 4 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Parts List
Part Number Description Quantity
SA198883 SA 35U344P741H1 1.000 EA
RA186238 RA 35U344P741H1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3209A00 FREP ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HA1100A03 SCREEN, RODENT 1.000 EA
51XN1032A04 10-32 X 0.25 HX WS SL SR 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP1402A25 PUEP OPEN 207 BRG,T'SLEVE,SCRNS,METAL SL 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HA1102A08 RODENT SCREEN 35 OPEN FACE MTD 1.000 EA
51XT1032A04 10-32X1/4 HX WA SL SR TYT (F/S) 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
10XN2520A28 1/4-20X 1 3/4 HEX HD 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HA2009A01 36-4613 SL ANOD. ALUM (STER 1.000 EA
80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA
HW2501D16 KEY, 3/16 SQ X 1.750 1.000 EA
Page 5 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Parts List (continued)
Part Number Description Quantity
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
HA3100A20 THRUBOLT 10-32 X 9.812 4.000 EA
35AD2005A01 BAFFLE PLATE,MOD 35-SLTD BAND MTRS GL.F. 2.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
G7PA1000 PKG GRP, PRINT PK1034A06 1.000 EA
PK3085X FOAM SHAFT SUPPORT PRECUT 4-1/4 X 6-3/4 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
AC Induction Motor Performance Data
Record # 36560 - Typical performance - not guaranteed values
Winding: 35WGP741-R002 Type: 3536M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 3 Full Load Torque 9.07 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 8.9-8.2/4.1 Breakdown Torque 34.3 LB-FT
R.P.M. 1745 Pull-up Torque 19.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 26.3 LB-FT
NEMA Design Code B KVA Code K Starting Current 31.5 A
Service Factor (S.F.) 1.15 No-load Current 2.04 A
NEMA Nom. Eff. 86.5 Power Factor 80 LinelineRes.@25ºC 5.35Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C
S.F. Amps Temp. Rise @ S.F. Load 65°C
Locked-rotor Power Factor 47
Rotor inertia 0.213 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 40 62 74 80 83 85 82
Efficiency 78.7 85.6 87.2 86.5 85.3 83.2 85.8
Speed 1787 1774 1760 1745 1728 1709 1735
Line amperes 2.26 2.72 3.35 4.08 5 5.98 4.63
Page 7 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1

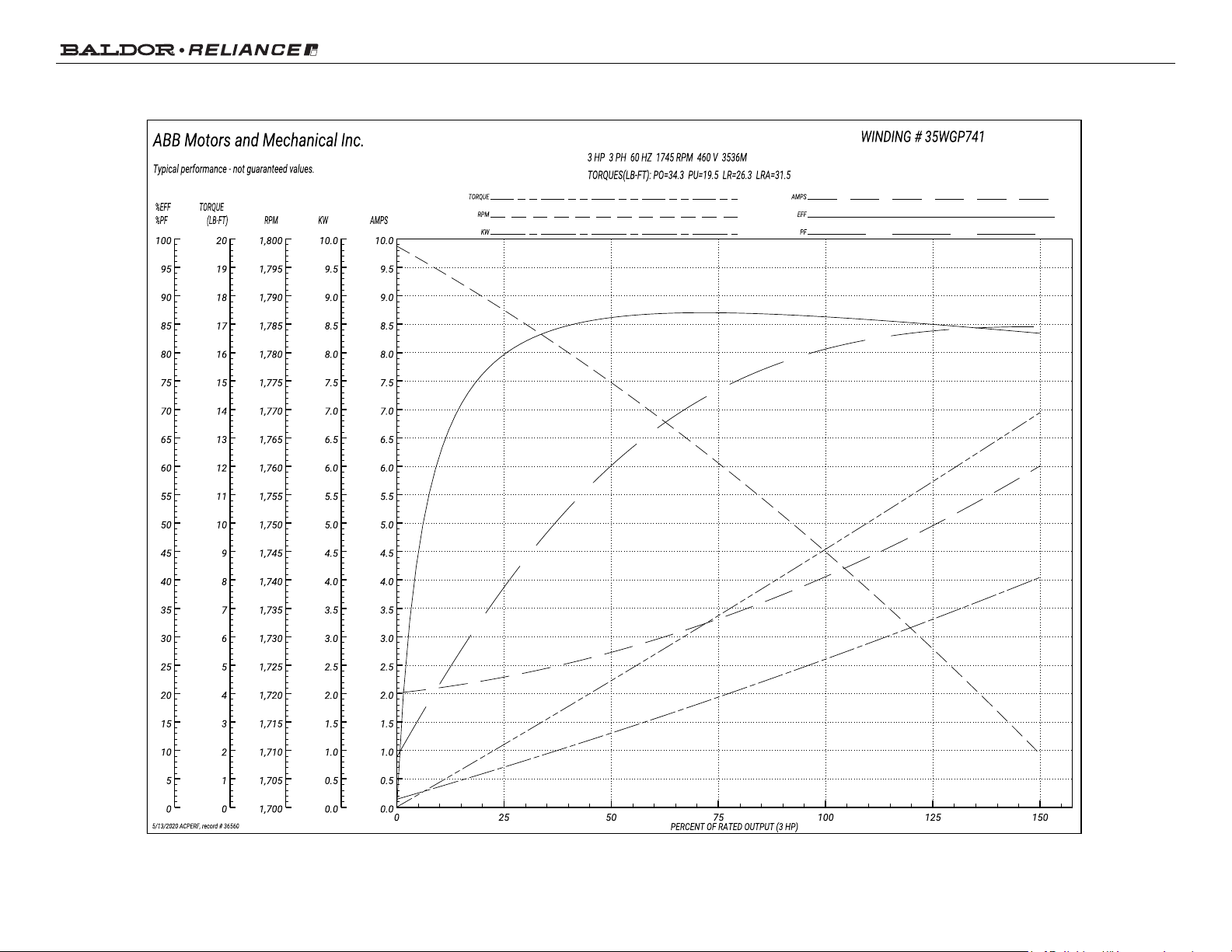

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Page 9 of 10
Product Information Packet: JPM3211T - 3HP,1745RPM,3PH,60HZ,182JP,3536M,OPSB,F1
Page 10 of 10
