Product Information Packet
JPM2538T
40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Part Detail
Revision: W Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 39WGW857 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 39P023 Layout: 39LYP023 Poles: 02 Created Date:
Base: RG Eff. Date: 03-08-2016 Leads: 9#8
Specs
Catalog Number: JPM2538T
Enclosure: ODP
Frame: 286JP
Output @ Frequency: 40.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: RG
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 45.000 A @ 460.0 V
90.000 A @ 230.0 V
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 8 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3946M
Mounting Arrangement: F1
Power Factor: 91
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included
Shaft Extension Location: Pulley End
99.200 A @ 208.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Page 3 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Nameplate NP1256L
CAT.NO. JPM2538T
SPEC. 39P023W857H1
HP 40
VOLTS 230/460
AMP 90/45
RPM 3500
FRAME 286JP HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS B
NEMA-NOM-EFF 91.7 PF 91
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 99.2
DE 6312 ODE 6208
ENCL OPSB SN
Page 4 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Parts List
Part Number Description Quantity
SA057053 SA 39P023W857H1 1.000 EA
RA051574 RA 39P023W857H1 1.000 EA
HW3201A01 1/2-13 EYEBOLT 1.000 EA
09CB2800A01 ADAPTER MACH FOR 10CB3000 1.000 EA
19XW3118A08 .31-18 X .50 HEX WASHER HEAD TAPTITE II 2.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 2.000 EA
10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA
51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA
39EP3200A01SP FR/PU ENDPLATE, MACH 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
HA1101A01 RODENT SCREEN, 39 MTR 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
39EP1404A03 FACE MTD.EP MACH. 284-6 OPEN 1.000 EA
HA1221 RODENT SCREEN 39EP1404 4.000 EA
HW3207A04 CABLE TIE 5 5/8 X .14" BLACK 8.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
HA2009A03 SLINGER, ALUMINUM, (AUTO)ANODIZED ALUM 1.000 EA
80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
Page 5 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Parts List (continued)
Part Number Description Quantity
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
HW2501E18 KEY, 1/4 SQ X 2.000 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
19XW3118A12 .31-18 X .75 HEX WASHER HEAD TAPTITE II 4.000 EA
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.030 LB
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.050 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
39AD2002B01 BAFFLE PLATE 39 OPEN, SLOTTED BAND MTRS 1.000 EA
39AD2002B01 BAFFLE PLATE 39 OPEN, SLOTTED BAND MTRS 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
HA3113A05 THRUBOLT 3/8 - 16 X 17.250 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0181 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
42PA1032 PACKAGING GROUP PK1030A06 1.000 EA
Page 6 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
AC Induction Motor Performance Data
Record # 12968 - Typical performance - not guaranteed values
Winding: 39WGW857-R001 Type: 3946M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 40 Full Load Torque 60 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 90/45 Breakdown Torque 201 LB-FT
R.P.M. 3500 Pull-up Torque 90.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 107 LB-FT
NEMA Design Code B KVA Code G Starting Current 310 A
Service Factor (S.F.) 1.15 No-load Current 11.46 A
NEMA Nom. Eff. 91.7 Power Factor 91 LinelineRes.@25ºC 0.2392Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 57°C
S.F. Amps Temp. Rise @ S.F. Load 75°C
Locked-rotor Power Factor 28
Rotor inertia 1.17 LB-FT2
Load Characteristics 460 V, 60 Hz, 40 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 66 84 89 91 91 91 91
Efficiency 90.6 93 92.8 91.9 90.6 89 91.2
Speed 3577 3554 3529 3502 3472 3439 3485
Line amperes 15.69 24.03 34 44.9 56.8 70.6 52
Page 7 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Performance Graph at 460V, 60Hz, 40.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB

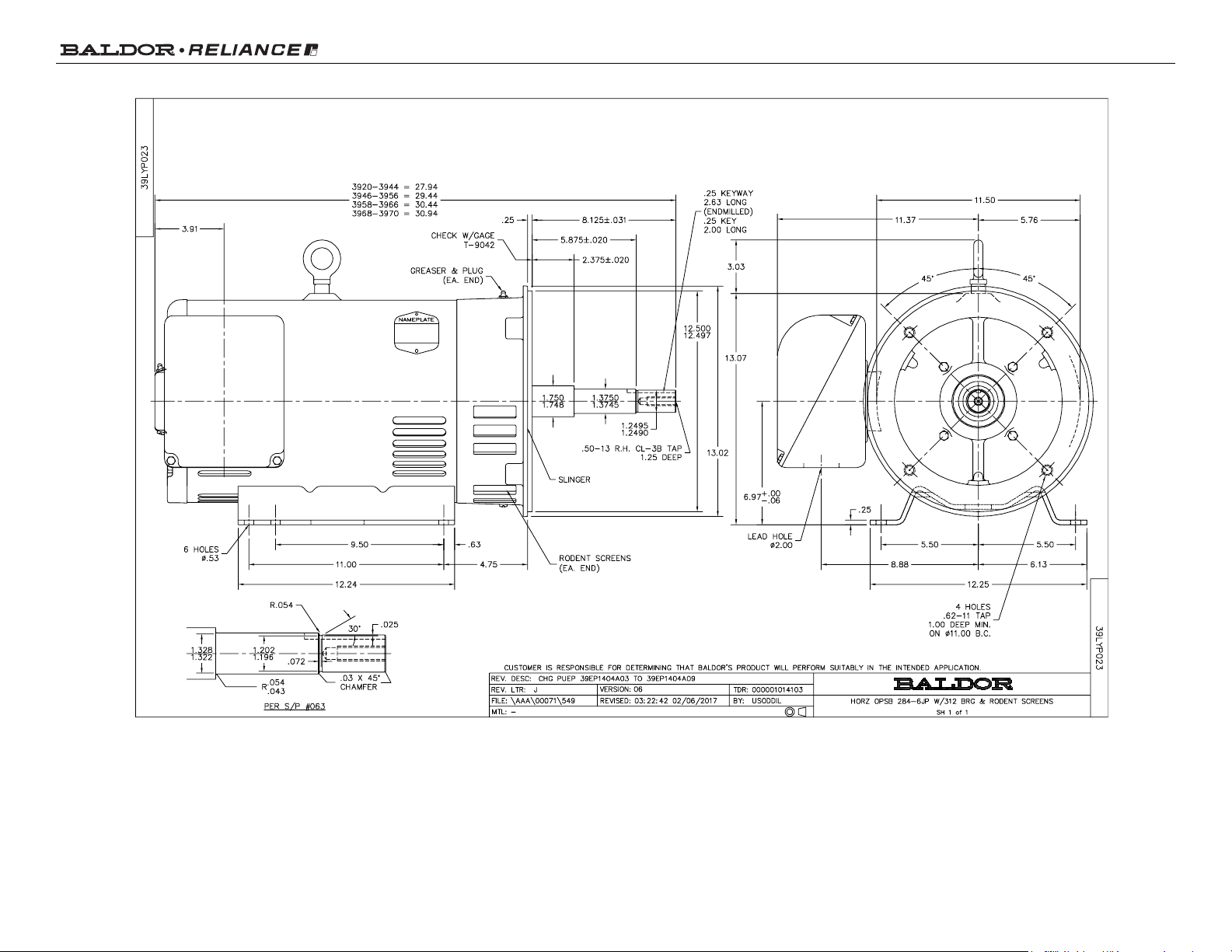

Page 9 of 10
Product Information Packet: JPM2538T - 40HP,3500RPM,3PH,60HZ,286JP,3946M,OPSB
Page 10 of 10
