Product Information Packet
JPL1406T
3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Part Detail
Revision: AG Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 36WG0115 CD Diagram: CD0001 Mfg Plant: Mech. Spec: 36E771 Layout: 36LYE771 Poles: 02 Created Date: Base: RG Eff. Date: 04-08-2019 Leads: 4#14 A PH,2#16 B PH
Specs
Catalog Number: JPL1406T Enclosure: OPEN Frame: 182JP Frame Material: Steel Output @ Frequency: 3.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: F Inverter Code: Not Inverter KVA Code: G Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 4 @ 14 AWG, A PH Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3628L Mounting Arrangement: F1 Power Factor: 88 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Tapped & Key Rodent Screen: Included Shaft Extension Location: Pulley End
Current @ Voltage: 14.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
14.700 A @ 208.0 V
28.000 A @ 115.0 V Design Code: L Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Nameplate NP1256L
CAT.NO. JPL1406T
SPEC. 36E771-115
HP 3
VOLTS 115/230
AMP 28/14 RPM 3450
FRAME 182JP HZ 60 PH 1
SER.F. 1.15 CODE G DES L CLASS F
NEMA-NOM-EFF 78 PF 88
RATING 40C AMB-CONT
CC USABLE AT 208V 14.7 DE 6207 ODE 6205
ENCL OPEN SN
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Parts List
Part Number Description Quantity SA034721 SA 36E771-115 1.000 EA RA030749 RA 36E771-115 1.000 EA EC1850A06SP ELEC CAP 115V 2.0 X 4.3 X 1.000 EA 36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA 51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 36EP3204D00 MASTER ODE,205 BRG,GRSR,RLF 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HA1103A08 RODENT SCREEN, 36 FRAME, OPEN, FRONT END 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA SP1008A01 BAFFLE, MODEL 36 & 37 1.000 EA 13XF0832A08 8-32 X.50 PAN HD,SLTD, TYPE F SCREW, ZIN 2.000 EA 35CB4802A02SP CAPACITOR COVER, STAMPED X 1.000 EA 51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA 36EP1402A16 SPL.FACE MTD.EP.36 FR-OPEN-207 BRG/GREAS 1.000 EA 36AD2000 AIR BAFFLE 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA1102A07 RODENT SCREEN 36 OPEN FACE 2.000 EA 51XT1032A04 10-32X1/4 HX WA SL SR TYT (F/S) 4.000 EA HW1000A25 1/4 SAE FLAT WASHER (FS) 4.000 EA
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Parts List (continued)
Part Number Description Quantity 14XN2520A26 1/4-20X1 5/8 RD HD SLTD X 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA 36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HA2009A01 36-4613 SL ANOD. ALUM (STER 1.000 EA 80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA WD1000A15 3-520132-2 AMP FLAG (4M/RL NON-CANC/NON- 2.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA SP5172A09 37 TYPE L TORQ STAT SWITCH LEAD ASSEMBLY 1.000 EA HA3101A25 THRUBOLT 1/4-20 X 11.000 OHIO ROD 4.000 EA LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA G7PA1000 PKG GRP, PRINT PK1034A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
AC Induction Motor Performance Data
Record # 61423 - Typical performance - not guaranteed values
Winding: 36WG0115-R007 Type: 3628L Enclosure: OPEN
Nameplate Data
115 V, 60 Hz:
Low Voltage Connection Rated Output (HP) 3 Full Load Torque 4.6 LB-FT Volts 115/230 Start Configuration direct on line Full Load Amps 28/14 Breakdown Torque 10.5 LB-FT R.P.M. 3450 Pull-up Torque 7.5 LB-FT Hz 60 Phase 1 Locked-rotor Torque 8.3 LB-FT NEMA Design Code L KVA Code G Starting Current 148 A Service Factor (S.F.) 1.15 No-load Current 10.7 A
NEMA Nom. Eff. 78 Power Factor 88 LinelineRes.@25ºC
0.178ΩAPh
0.907ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 56°C S.F. Amps Temp. Rise @ S.F. Load 69°C
Locked-rotor Power Factor 80.5
Rotor inertia 0.126 LB-FT2
Load Characteristics 115 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 66 81 87 90 89 88 89 Efficiency 58.1 70.7 74.6 75.2 73.9 70.9 74.4 Speed 3557 3522 3484 3439 3385 3314 3407 Line amperes 13.2 17.4 22.8 29 36.4 45.4 33.4
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1

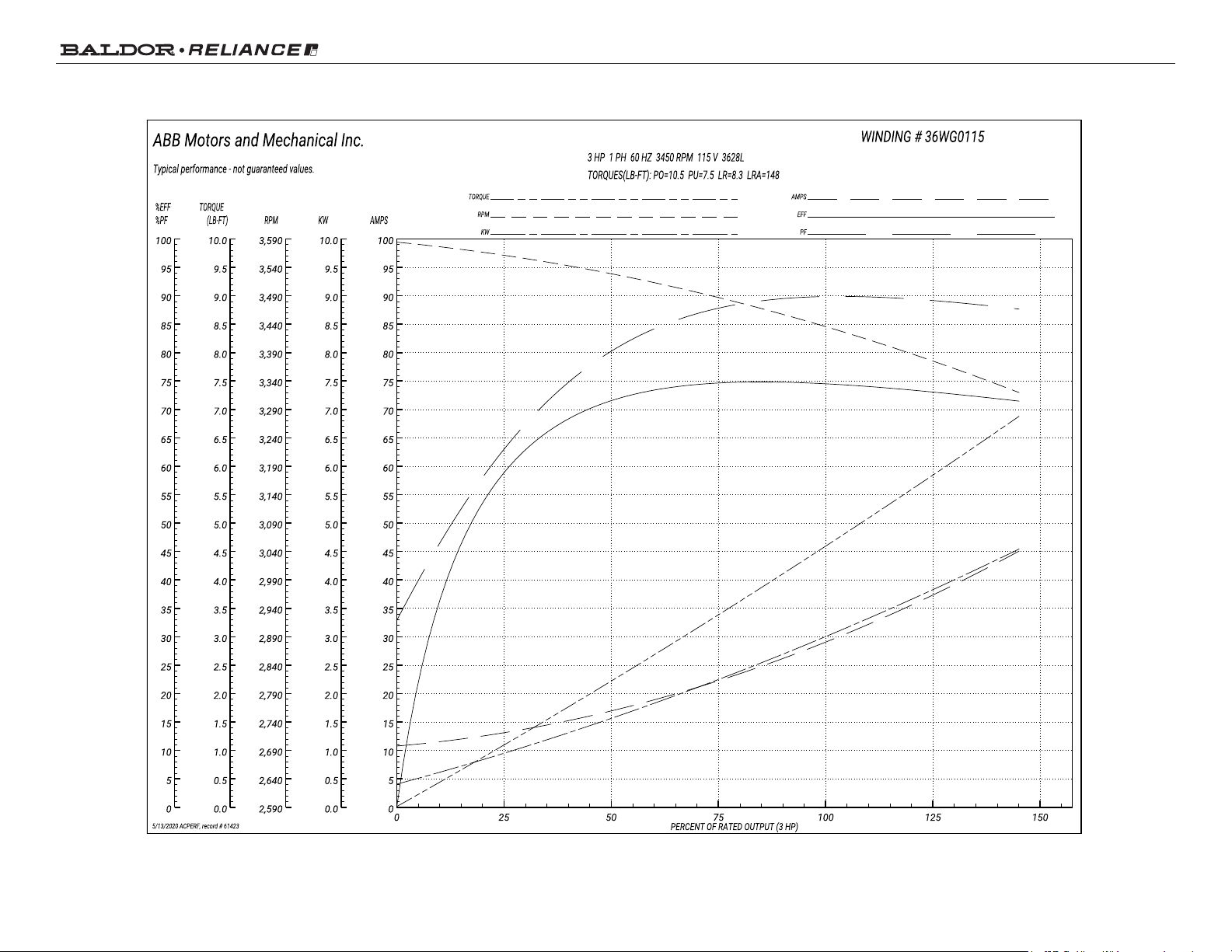

Performance Graph at 115V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Product Information Packet: JPL1406T - 3HP,3450RPM,1PH,60HZ,182JP,3628L,OPEN,F1
Page 10 of 10
