Baldor JMWDM3558T Product Information Sheet

Product Information Packet

JMWDM3558T

2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

Part Detail

Revision: E Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGN917 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35SS629 Layout: 35LYSS629 Poles: 04 Created Date: 02-03-2014
Base: RG Eff. Date: 03-08-2016 Leads: 9#18

Specs

Catalog Number: JMWDM3558T
Enclosure: TEFC
Frame: 145JM
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ

230.0 V @ 60 HZ

460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR

CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: RG
Bearing Grease Type: Polyrex EM (-20F +300F)

Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3524M
Mounting Arrangement: F1
Power Factor: 72
Product Family: Wash Down
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None

Blower: None

Shaft Extension Location: Pulley End

Page 2 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

Current @ Voltage: 3.100 A @ 460.0 V

6.200 A @ 230.0 V

6.700 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None

Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None

Page 3 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

Nameplate NP1496L

CAT.NO. JMWDM3558T

SPEC. 35SS629N917H1

HP 2

VOLTS 208-230/460

AMP 6.7-6.2/3.1
RPM 1750

FRAME 145JM HZ 60 PH 3

SER.F. 1.15 CODE L DES B CLASS F

NEMA-NOM-EFF 84 PF 72

RATING 40C AMB-CONT

CC 010A USABLE AT 208V
DE 6206 ODE 6203

ENCL TEFC SN

Page 4 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

Parts List

Part Number Description Quantity
SA276118 SA 35SS629N917H1 1.000 EA
RA262683 RA 35SS629N917H1 1.000 EA
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3010A01W 35 CB .75 NPT @ 6:00, WHITE EPOXY 1.000 EA
35GS1039 05 MOLDED GASKET W/LIP, 1.12 LEAD HOLE, 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
HA5027A01 HA4066A01 T-DRAIN X2 BAGGED 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122B00W FREP TEFC,"O" DRILLS,NO GRSR, MACH.WHITE 1.000 EA
HW4032A01 BLACK DRAIN PLUG FOR WASH DOWN MOTORS 3.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3401T07MW PU EP FOR SEAL W/"O" DRILLS & NO GRS, W/ 1.000 EA
HW4600B50 SEAL 1.156 X 1.874 X 0.250 SINGLE LIP DB 1.000 EA
HW4032A01 BLACK DRAIN PLUG FOR WASH DOWN MOTORS 3.000 EA
10XN1032S16 10-32X1 HEX HEAD S STEEL 2.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A32SP IEC FH NO GRSR W/3 HOLES - PRIMED 1.000 EA
11XW1032S06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 3.000 EA
HW4600B39SP V-RING SLINGER 0.550 X 0.790 X .18 VITON 1.000 EA
HW4600B36SP V-RING SLINGER 1.188 X 1.690 X .24 VITON 1.000 EA
35CB4522 35 LIPPED CB LID PRIMED 1.000 EA
35GS1030A02 35 GS FOR CB LID - WHITE NEOPRENE 1.000 EA
59XW0832S07 TAPTITE II,HEX WSHR UNSLTD SER,410 S.S., 4.000 EA

Page 5 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

Parts List (continued)

Part Number Description Quantity
HW2502D13 SS KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT
LB1164 LABEL,WARNING AND DRAIN 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1025Z02 ACTIVATOR WILKOFAST 060.02HF 0.010 GA
MG1025W01 WILKOFAST, 781.01, SIGNAL WHITE #9003 0.017 GA
HA3100S07 THRUBOLT 10-32 X 8.375 SS 4.000 EA
LC0005 CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
NP1496L SS WD UL CSA CC 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA

Page 6 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

AC Induction Motor Performance Data

Record # 44492 - Typical performance - not guaranteed values

Winding: 35WGN917-R001 Type: 3524M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection
Rated Output (HP) 2 Full Load Torque 5.99 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 6.7-6.2/3.1 Breakdown Torque 23.5 LB-FT
R.P.M. 1750 Pull-up Torque 14.4 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 18.5 LB-FT
NEMA Design Code B KVA Code L Starting Current 23.5 A
Service Factor (S.F.) 1.15 No-load Current 1.97 A
NEMA Nom. Eff. 84 Power Factor 72 LinelineRes.@25ºC 7.97Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 72°C
S.F. Amps Temp. Rise @ S.F. Load 84°C

Locked-rotor Power Factor 53

Rotor inertia 0.142 LB-FT2

Load Characteristics 460 V, 60 Hz, 2 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 32 51 64 73 79 83 77
Efficiency 70.8 80.7 83.7 84.3 83.9 82.6 84.1
Speed 1790 1778 1766 1753 1738 1722 1744
Line amperes 2.05 2.26 2.61 3.03 3.52 4.11 3.32

Page 7 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

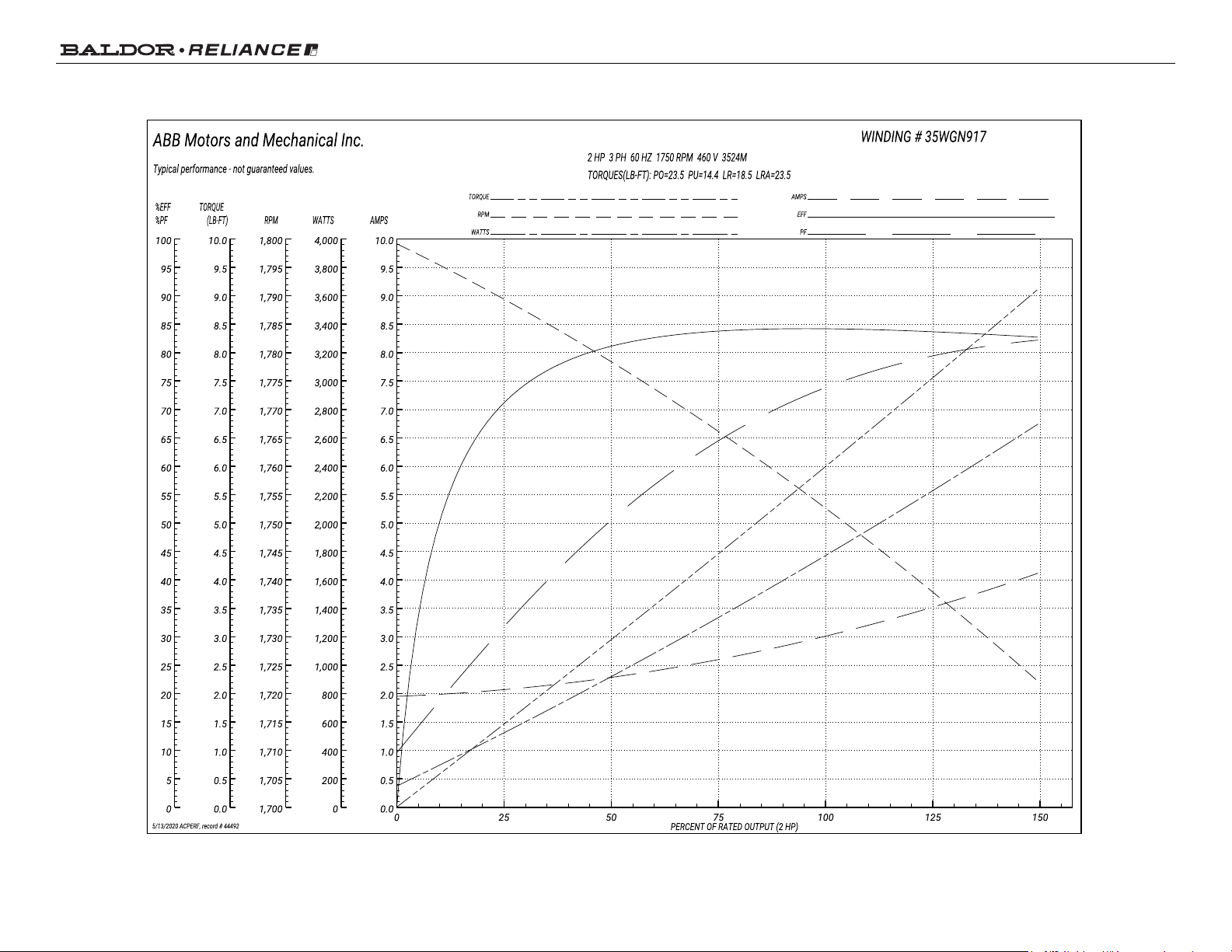

Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values

Page 8 of 10

Product Information Packet: JMWDM3558T - 2HP,1750RPM,3PH,60HZ,145JM,3524M,TEFC,F1

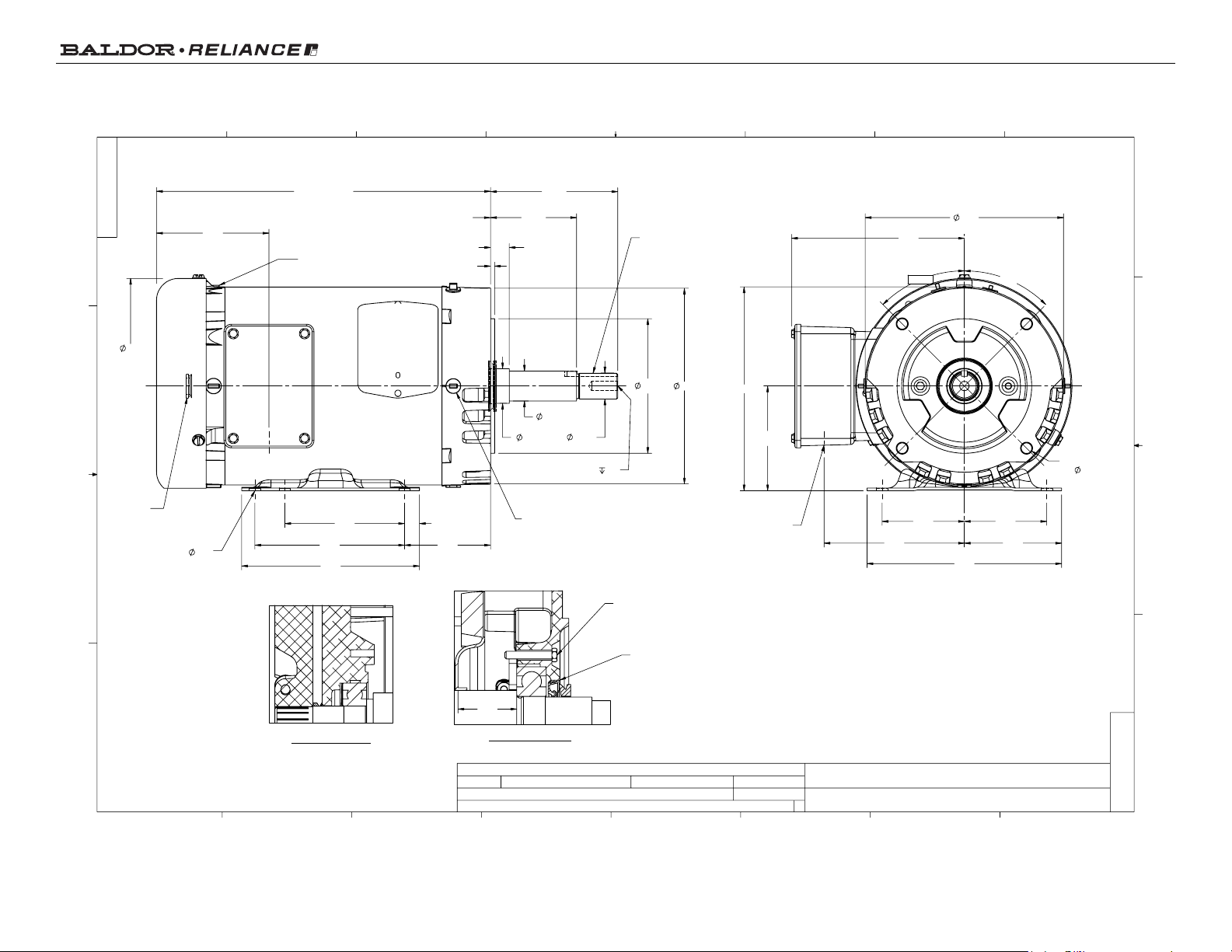

1.156

1.154

1.0000
.9995

.8745
.8740

.640
.610

2.890

2.860

4.281

4.219

4.00

2.88 5.00

.50

3.76

7.19

510-528 = 11.16
529-535 = 12.04
536-546 = 13.41

5.94

(4) .125" NPT HOLES

3 W/PLUGS
@ 3, 9, & 1:00
(FRONT END)

.13

4.500

4.497

6.54

(4) "O" HOLES

3 W/PLUGS
@ 3, 9, & 11:00
(PULLEY END)

FORSHEDA

SLINGER

(EACH END)

6X

.38

3/8-16 UNC

.88

CHECK W/GAGE

T-9038

.19 KEY

1.38 LONG

NAMEPLATE

2.75 2.75

4.69 3.25

6.50

3.50

3.44

6.81

5.77

6.63

4X

3/8-16 UNC

ON

5.88 B.C.

45°

45°

LEAD HOLE

3/4 NPT

1.25

PULLEY END DETAIL

APPLY COAT OF
SEALER UNDER BRG
RET SCREW HEADS

APPLY COAT OF
SEALER TO HOUSING
BEFORE PRESSING
SEAL IN

FRONT END DETAIL

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

35LYSS629

B

STD HORZ 143-5JM TEFC 35M WD W/.75 NPT LEAD HOLE

SH 1 of 1

REV. DESC

REV

BY

REVISED

MODEL NO.

VERSION

TDR

REF

35LYSS629

FLIP SEAL

ENWINB0

G

08 33 53 03/14/2019

-

000001102605

07

35LYSS629

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION

BALDOR - RELIANCE

®

Page 9 of 10
