Product Information Packet
JMM4108T
30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
Part Detail
Revision: N Status: INA/A Change #: Proprietary: No

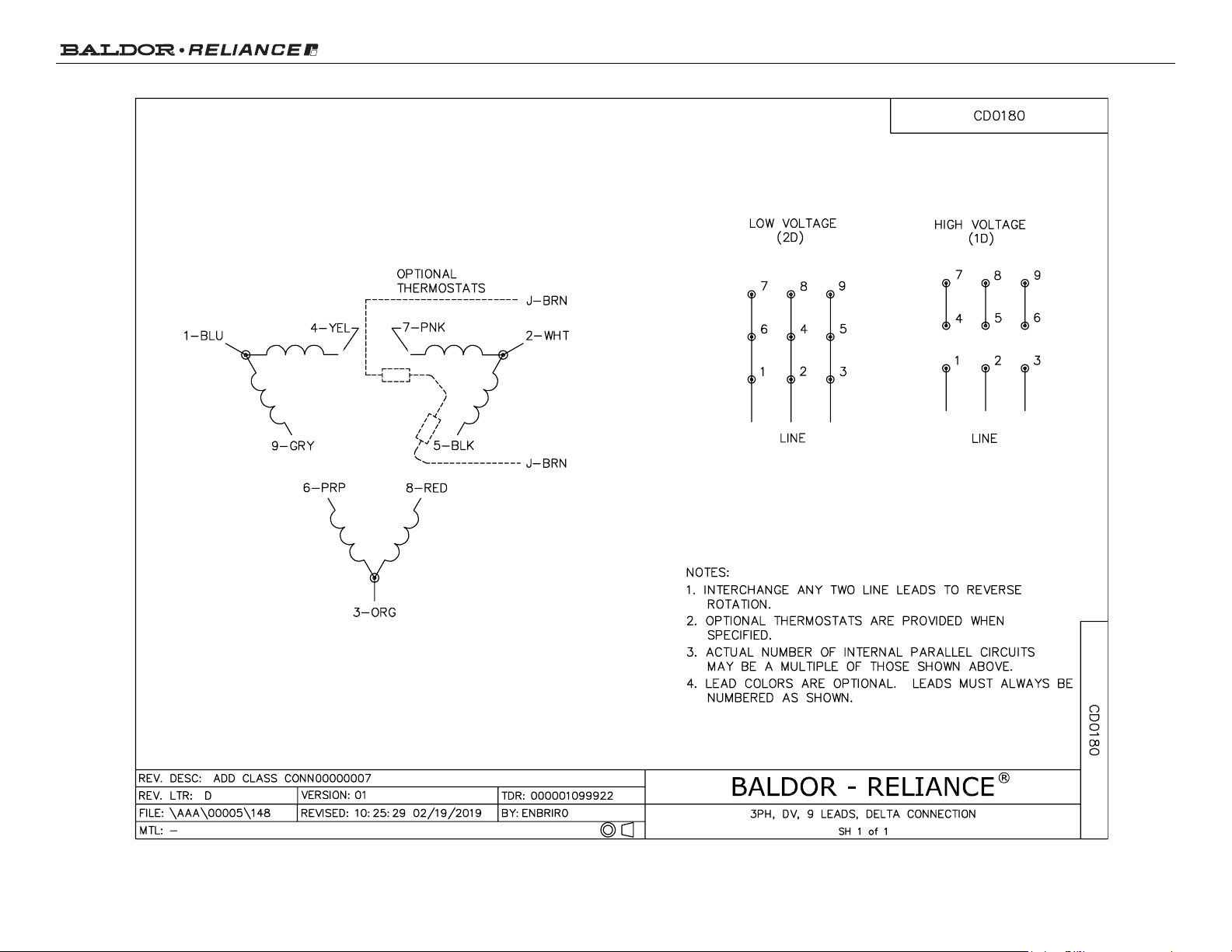

Type: AC Elec. Spec: 09WGY353 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 09F823 Layout: 09LYF823 Poles: 02 Created Date: 09-20-2006
Base: RG Eff. Date: 03-08-2016 Leads: 9#10
Specs
Catalog Number: JMM4108T
Enclosure: TEFC
Frame: 286JM
Frame Material: Iron
Output @ Frequency: 30.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 10 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0954M
Mounting Arrangement: F1
Power Factor: 92
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 34.000 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
68.000 A @ 230.0 V
74.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
Nameplate NP1256L
CAT.NO. JMM4108T
SPEC. 09F823Y353
HP 30
VOLTS 230/460
AMP 68/34
RPM 3510
FRAME 286JM HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS F
NEMA-NOM-EFF 91 PF 92
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 74
DE 6312 ODE 6208
ENCL TEFC SN
Page 4 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
Parts List
Part Number Description Quantity
SA149370 SA 09F823Y353 1.000 EA
RA138297 RA 09F823Y353 1.000 EA
09FN3001D01SP EXTERNAL FAN, PLASTIC 1.000 EA
HW1002A63 0ASHER, 5/8 HI-COLLAR SPRLCKWASHER 1.000 EA
10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA
12GS1000 GASKET 1.000 EA
10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
09EP1316A01 PUEP, MACH 284-6JM, 312 BRG. 1.000 EA
HA1005A06 SLINGER, OD 3.62, ID 2.15 1.000 EA
WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
09EP1100A14SP ENDPLATE, MACH 1.000 EA
XY3816A12 3/8-16 FINISHED NUT 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
09FH1000 FAN COVER,CAST W/E-COAT 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 2.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA
10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
HA3159A08 THRUBOLT- .38-16 X 20.00 LONG STUD 4.000 EA
XY3816A12 3/8-16 FINISHED NUT 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
Page 5 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
Parts List (continued)
Part Number Description Quantity
HA2081A05 SPACER TUBE, 309 FAN HSG, 2.00 LONG 4.000 EA
XY3816A12 3/8-16 FINISHED NUT 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HW2501E21 KEY, 1/4 SQ X 2.375 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.050 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0181 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
40PA1005 PACKAGING GROUP, 09 STD 1.000 EA
Page 6 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
AC Induction Motor Performance Data
Record # 1968 - Typical performance - not guaranteed values
Winding: 09WGY353-R001 Type: 0954M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 30 Full Load Torque 44.8 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 68/34 Breakdown Torque 202 LB-FT
R.P.M. 3510 Pull-up Torque 68.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 96.8 LB-FT
NEMA Design Code A KVA Code J Starting Current 280 A
Service Factor (S.F.) 1.15 No-load Current 9.13 A
NEMA Nom. Eff. 91 Power Factor 92 LinelineRes.@25ºC 0.236Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 78°C
S.F. Amps Temp. Rise @ S.F. Load 94°C
Locked-rotor Power Factor 27
Rotor inertia 1.38 LB-FT2
Load Characteristics 460 V, 60 Hz, 30 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 66 84 90 92 92 92 92
Efficiency 86 90.7 91.4 91.1 90.4 89.3 90.7
Speed 3579 3558 3537 3516 3493 3468 3502
Line amperes 12.28 18.42 25.69 33.7 42.1 51.3 38.7
Page 7 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F

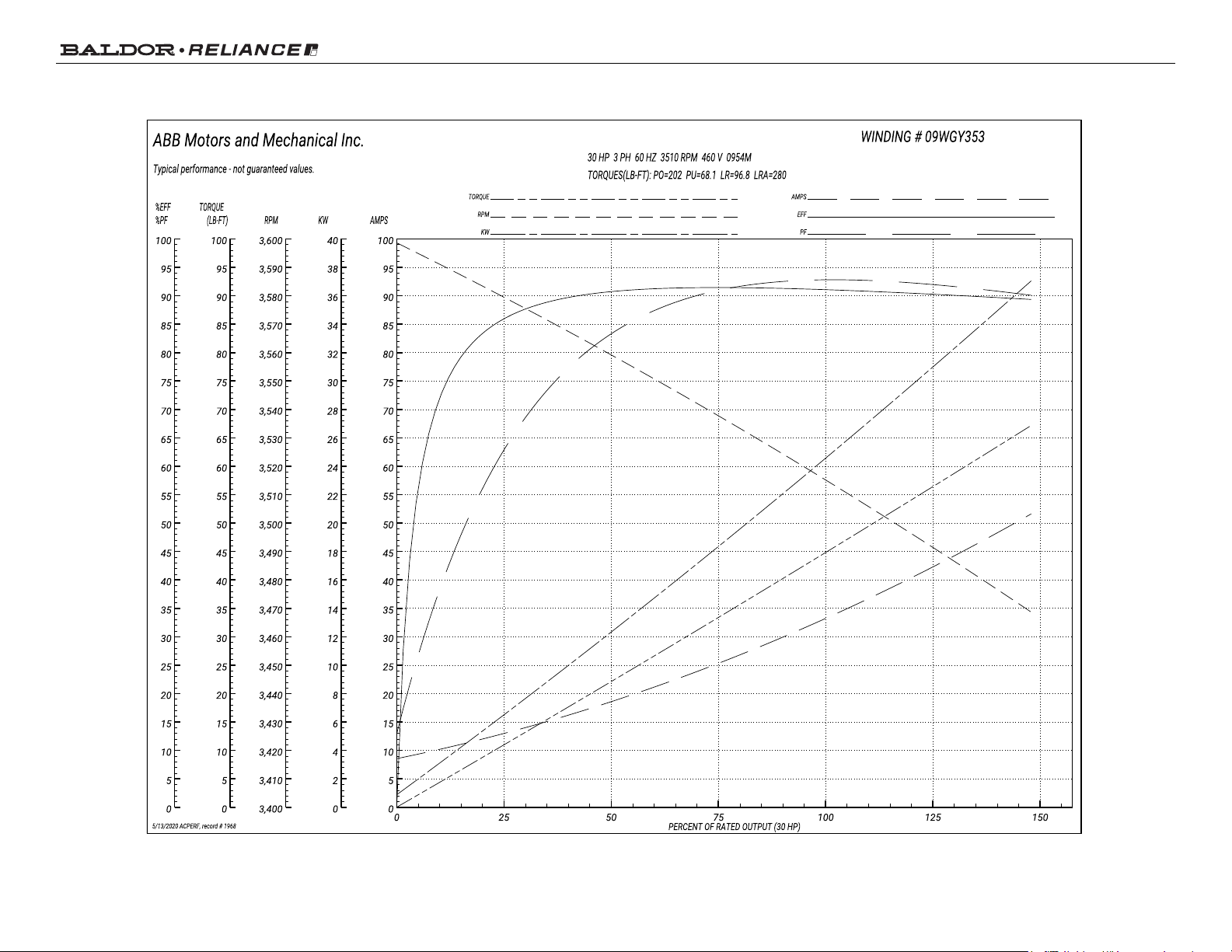

Performance Graph at 460V, 60Hz, 30.0HP Typical performance - Not guaranteed values
Page 8 of 11
Product Information Packet: JMM4108T - 30HP,3510RPM,3PH,60HZ,286JM,0954M,TEFC,F
R
054
043
R
054
043
1 328
1 322
1 202
1 196
UNDERCUT DETAIL
11 39
27 14
5 248± 031
25
2 999± 015
623± 020
CHECK W/GAUGE
T-9041
12 500
12 497
13 11
1 750
1 748
1 3750
1 3745
1 2495
1 2490
9 50
9 50
11 00
92
4 75
12 84
NAMEPLATE
NAMEPLATE
50-13
CL 2B TAP
1 25 DEEP
25 KEYWAY
2 63 LONG
25 KEY
2 38 LONG
SLINGER
8 HOLES
Ø 53
AUTO DRAIN
(EA END)
(932-954) = 2 POLE
(932-964) = 4 6 8 POLE
7 00
6 94
13 63
5 50 5 50
9 66 6 38
12 75
12 21 6 63
13 63
45° 45°
2 73
LEAD HOLE
Ø2 00
4 HOLES
62-11 TAP
1 00 DEEP MIN
ON Ø11 00 B C
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
09LYF823
B
HORZ TEFC 284-6JM
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
09LYF823
LOAD DRAWING TO SOLIDWORKS
ENALEM0
G
01 16 35 02/11/2020
-
000001132140
07
09LYF823
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 9 of 11
