Product Information Packet
JMM3610T-5
3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Part Detail
Revision: D Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGT053 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 36H017 Layout: 36LYH017 Poles: 02 Created Date: 08-07-2008
Base: RG Eff. Date: 03-08-2016 Leads: 3#16
Specs
Catalog Number: JMM3610T-5
Enclosure: TEFC
Frame: 182JM
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: RG
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 2.800 A @ 575.0 V
Design Code: B
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3623M
Mounting Arrangement: F1
Power Factor: 93
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: Shaft Slinger
Page 2 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Nameplate NP1256L
CAT.NO. JMM3610T-5
SPEC. 36H017T053G1
HP 3
VOLTS 575
AMP 2.8
RPM 3500
FRAME 182JM HZ 60 PH 3
SER.F. 1.15 CODE L DES B CLASS B
NEMA-NOM-EFF 85.5 PF 93
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6207 ODE 6205
ENCL TEFC SN
Page 4 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Parts List
Part Number Description Quantity
SA177354 SA 36H017T053G1 1.000 EA
RA165399 RA 36H017T053G1 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3104A04 FR ENDPLATE, FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36PE3405T03 PUEP ASSEMBLY FOR ROUTING PURPOSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
10XN2520A24 1/4-20X 1 1/2 HEX HD X 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
36FH4009A103 IEC FH GREASER W/PRIMER 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
37GS1001SP GASKET, CONDUIT BOX LID, .06 THICK LEXID 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HA1005A07 SLINGER, OD 2.25, ID 1.344, 307 BRG 1.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
Page 5 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
35FN3002A04SP EXFN, PLASTIC, 6.376 OD, .906 ID W/KEY 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA
HA3101A23 THRUBOLT 1/4-20 X 9.625 DEMBY 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
AC Induction Motor Performance Data
Record # 36929 - Typical performance - not guaranteed values
Winding: 36WGT053-R003 Type: 3623M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 3 Full Load Torque 4.5 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 2.8 Breakdown Torque 21.2 LB-FT
R.P.M. 3500 Pull-up Torque 11.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 15.1 LB-FT
NEMA Design Code B KVA Code L Starting Current 28.7 A
Service Factor (S.F.) 1.15 No-load Current 0.975 A
NEMA Nom. Eff. 85.5 Power Factor 93 LinelineRes.@25ºC 6.39Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 44°C
S.F. Amps Temp. Rise @ S.F. Load 51°C
Locked-rotor Power Factor 47
Rotor inertia 0.103 LB-FT2
Load Characteristics 575 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 61 79 87 92 93 91 93
Efficiency 77.5 84.7 86.6 86.9 86.2 84.9 86.5
Speed 3569 3544 3516 3487 3455 3418 3468
Line amperes 1.21 1.69 2.25 2.81 3.45 4.25 3.19
Page 7 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Performance Graph at 575V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10

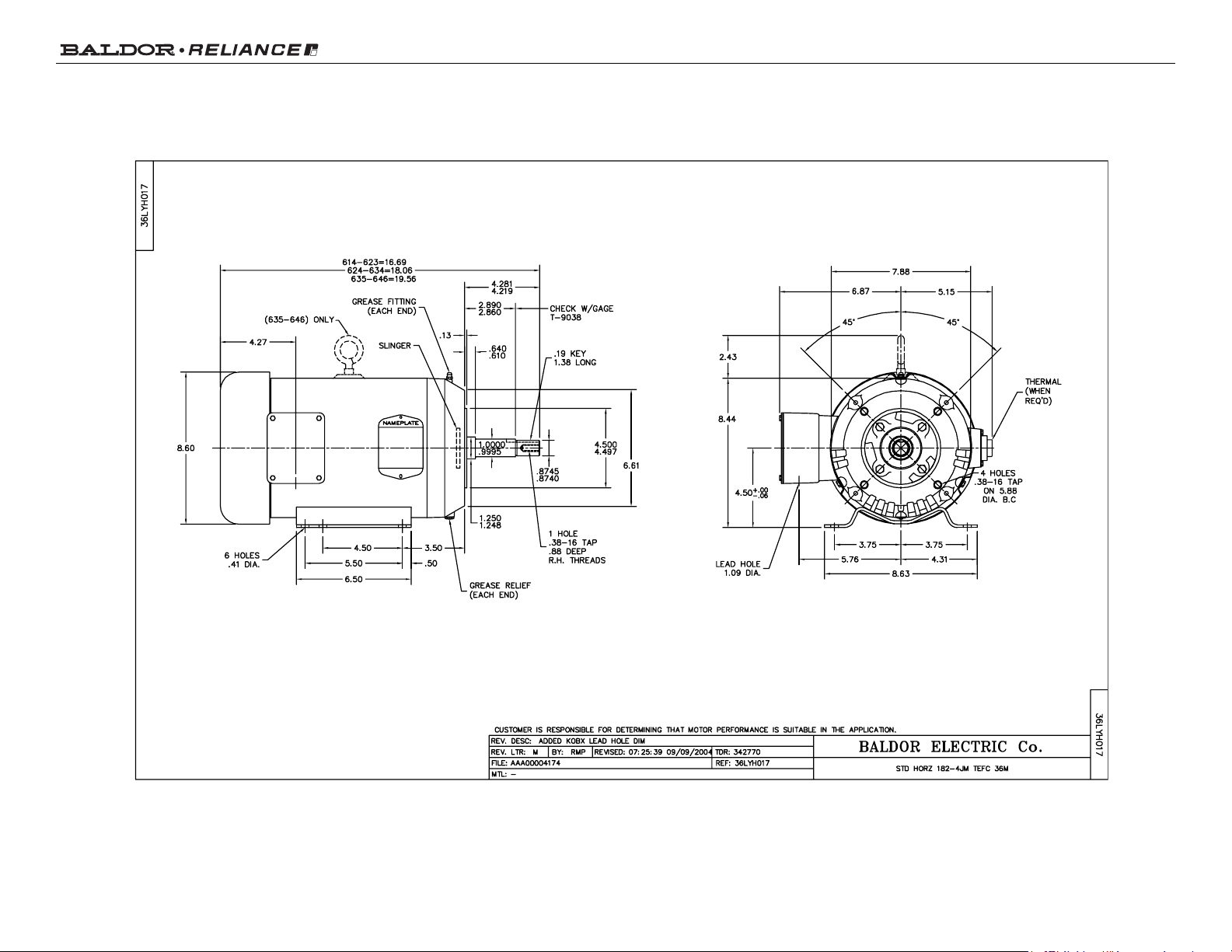

Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Page 9 of 10
Product Information Packet: JMM3610T-5 - 3HP,3500RPM,3PH,60HZ,182JM,3623M,TEFC,F1
Page 10 of 10
