Product Information Packet
JMM3610T
3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Part Detail
Revision: H Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGL051 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35MM205 Layout: 35LYMM205 Poles: 02 Created Date: 11-25-2014
Base: RG Eff. Date: 01-21-2019 Leads: 9#18
Specs
Catalog Number: JMM3610T
Enclosure: TEFC
Frame: 182JM
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3528M
Mounting Arrangement: F1
Power Factor: 89
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Current @ Voltage: 3.800 A @ 460.0 V
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
7.600 A @ 230.0 V
8.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Nameplate NP1256L
CAT.NO. JMM3610TX
SPEC. 35MM205L051H1
HP 3
VOLTS 230/460
AMP 7.6/3.8
RPM 3450
FRAME 182JM HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS F
NEMA-NOM-EFF 85.5 PF 89
RATING 40C AMB-CONT
CC USABLE AT 208V 8
DE 6207 ODE 6203
ENCL TEFC SN
NOT FOR USE IN USA
Page 4 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Parts List
Part Number Description Quantity
SA290394 SA 35MM205L051H1 1.000 EA
RA276549 RA 35MM205L051H1 1.000 EA
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122A00 MASTER ODE,203 BRG,.683SH,#26 DRN,GRSR,F 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3305A02 PUEP, 56C 207 BRG, W/GRS 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A28 1/4-20X 1 3/4 HEX HD 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
35GS1030 35 GS FOR CB LID - LEXIDE 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HA1005A07 SLINGER, OD 2.25, ID 1.344, 307 BRG 1.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
Page 5 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
HA3100A18 THRUBOLT 10-32 X 9.250 4.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
35PA1007 PKG GRP, PRINT PK1034A06 1.000 EA
Page 6 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
AC Induction Motor Performance Data
Record # 47376 - Typical performance - not guaranteed values
Winding: 35WGL051-R001 Type: 3528M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 3 Full Load Torque 4.65 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 7.6/3.8 Breakdown Torque 18.7 LB-FT
R.P.M. 3450 Pull-up Torque 12.2 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 17.3 LB-FT
NEMA Design Code B KVA Code K Starting Current 32 A
Service Factor (S.F.) 1.15 No-load Current 1.36 A
NEMA Nom. Eff. 85.5 Power Factor 89 LinelineRes.@25ºC 4.7021Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 65°C
S.F. Amps Temp. Rise @ S.F. Load 81°C
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 55 76 85 89 92 93 91
Efficiency 82.1 87 87.4 86.2 84.6 82.2 85.2
Speed 3566.3 3535 3499.4 3457.2 3415.1 3364.7 3432
Line amperes 1.63 2.16 2.88 3.74 4.57 5.58 4.24
Page 7 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1

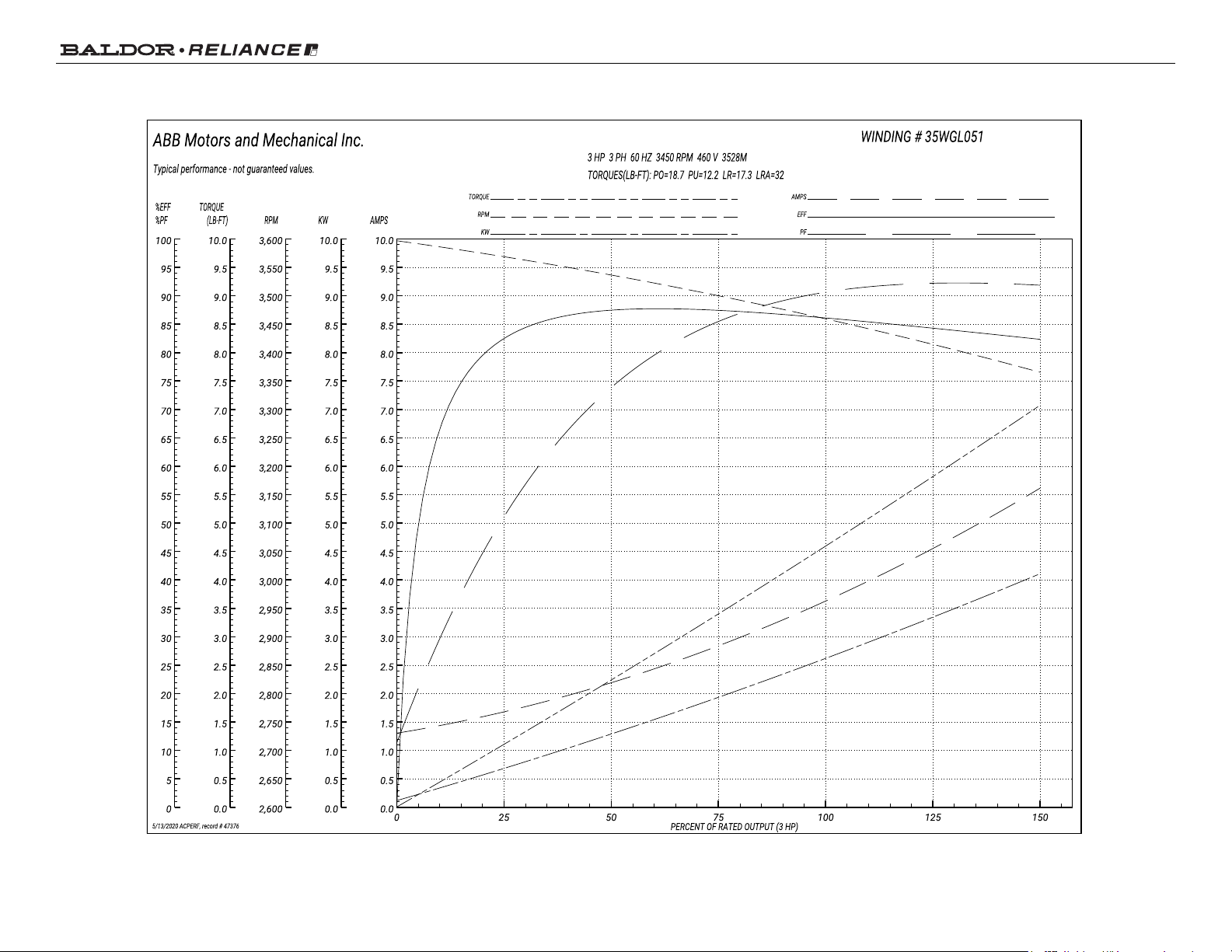

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Page 9 of 10
Product Information Packet: JMM3610T - 3HP,3450RPM,3PH,60HZ,182JM,3528M,TEFC,F1
Page 10 of 10
