Product Information Packet
GALCO INDUSTR ELEC
JMM3312T
10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Copyright © All product information within this document is subject to Baldor Electric Company copyright © protection, unless otherwise noted.
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Prod. Type: 3726M Elec. Spec: 37WGR288 CD Diagram: CD0005

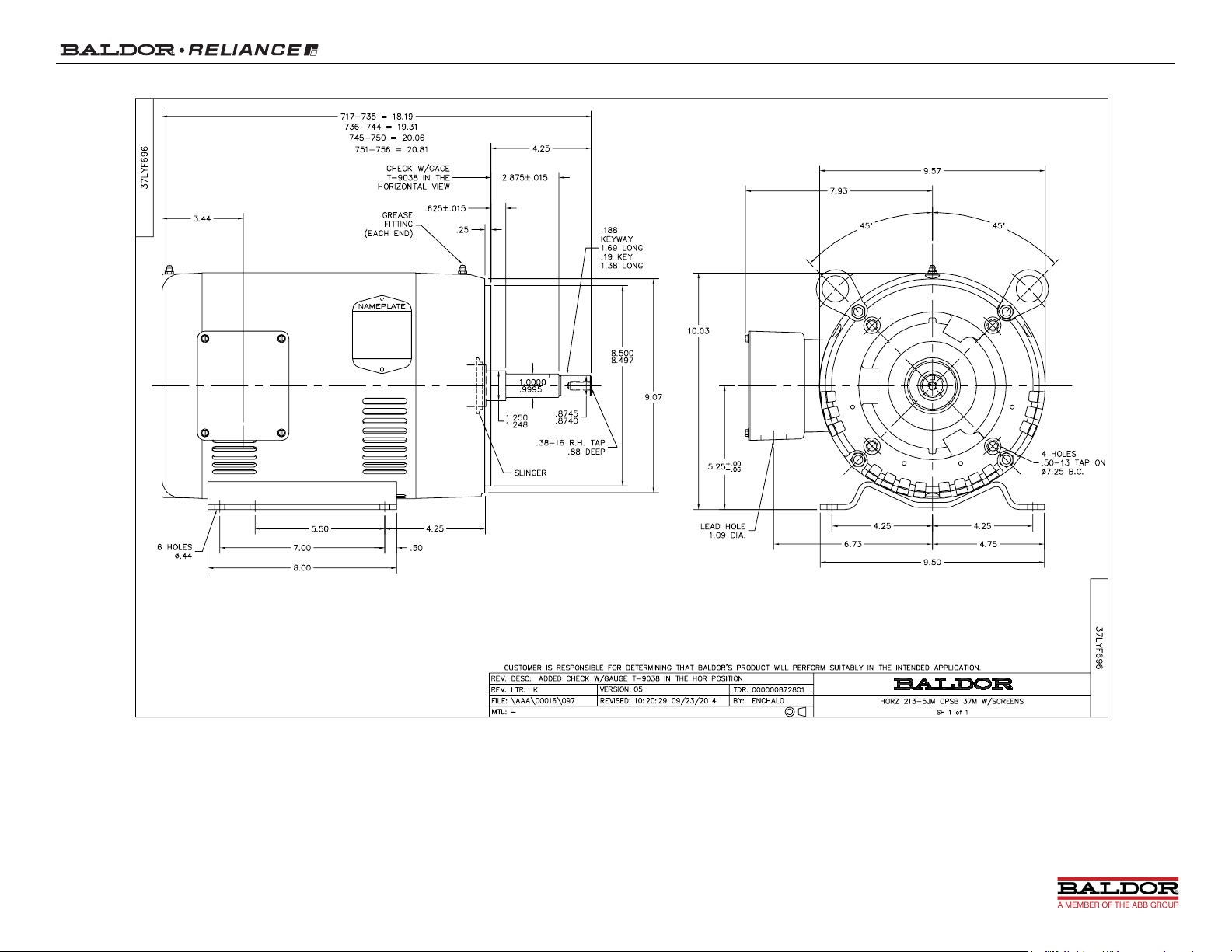

Enclosure: OPSB Mfg Plant: Mech. Spec: 37F696 Layout: 37LYF696
Frame: 213JM Mounting: F1 Poles: 02 Created Date: 06-20-2012
Base: RG Rotation: R Insulation: F Eff. Date: 06-24-2015
Leads: 9#14 Replaced By:
Literature: Elec. Diagram:
Page 2 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Nameplate NP1256L
CAT.NO. JMM3312T
SPEC. 37F696R288H1
HP 10
VOLTS 208-230/460
AMP 26-24.8/12.4
RPM 3500
FRAME 213JM HZ 60 PH 3
SER.F. 1.15 CODE H DES B CLASS F
NEMA-NOM-EFF 88.5 PF 84
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6309 ODE 6206
ENCL OPSB SN
Page 3 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Parts List
Part Number Description Quantity
SA246628 SA 37F696R288H1 1.000 EA
RA233520 RA 37F696R288H1 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME (AUTOP 2.000 EA
37CB3004 37 CB CASTING W/1.09 LEAD HOLE @ 6:00 1.000 EA
51XW2520A10 .25-20 X .62, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
37FE3200A01 FR ENDPLATE, FOR ROUTING PURPOSES 1.000 EA
HA1104A01 RODENT SCREEN 37 FRAME 206 BRG FRONT END 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 2.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP3401A04 PUEP OPEN 309 BRG NO BAFFLE 1.000 EA
HA1222 RODENT SCREEN - 37 C-FACE MOTORS 4.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 2.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A36 1/4-20X 2 1/4 HEX HD X 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW4600A73 SEAL 1.748 X 2.375 X 0.250 FACE SEALING 1.000 EA
HW2501D13SP KEY, 3/16 SQ X 1.375 1.000 EA
Page 4 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Parts List (continued)
Part Number Description Quantity
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A75 GREASE, POLYREX EM EXXON (USe 4824-15A) 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 0.028 GA
HA3104A39 THRUBOLT-5/16-18 X 12.250 4.000 EA
37AD2001B01 BAFFLE PLATE, STAMPED DELTA 2.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 11/14 1.000 EA
Page 5 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
AC Induction Motor Performance Data
Record # 38795 - Typical performance - not guaranteed values
Winding: 37WGR288-R001 Type: 3726M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 10 Full Load Torque 15 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 26-24.4/12.2 Breakdown Torque 55 LB-FT
R.P.M. 3475 Pull-up Torque 23.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 30.4 LB-FT
NEMA Design Code B KVA Code H Starting Current 81.5 A
Service Factor (S.F.) 1.15 No-load Current 5.42 A
NEMA Nom. Eff. 88.5 Power Factor 84 LinelineRes.@25ºC 0.98595Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 40°C
S.F. Amps Temp. Rise @ S.F. Load 49°C
Rotor inertia 0.237 LB-FT2
Load Characteristics 460 V, 60 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 46 69 79 84 86 88 85
Efficiency 83.6 89.2 90.2 89.9 88.9 87.6 89.3
Speed 3579.3 3555.1 3530.2 3502.2 3470.9 3437 3483
Line amperes 6.07 7.67 9.85 12.4 15.2 18.3 14.1
Page 6 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Performance Graph at 460V, 60Hz, 10.0HP Typical performance - Not guaranteed values
Page 7 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Page 8 of 9
Product Information Packet: JMM3312T - 10HP,3500RPM,3PH,60HZ,213JM,3726M,OPSB,F
Page 9 of 9
