Product Information Packet
JMM3311T-5
7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Part Detail
Revision: F Status: INA/A Change #: Proprietary: No

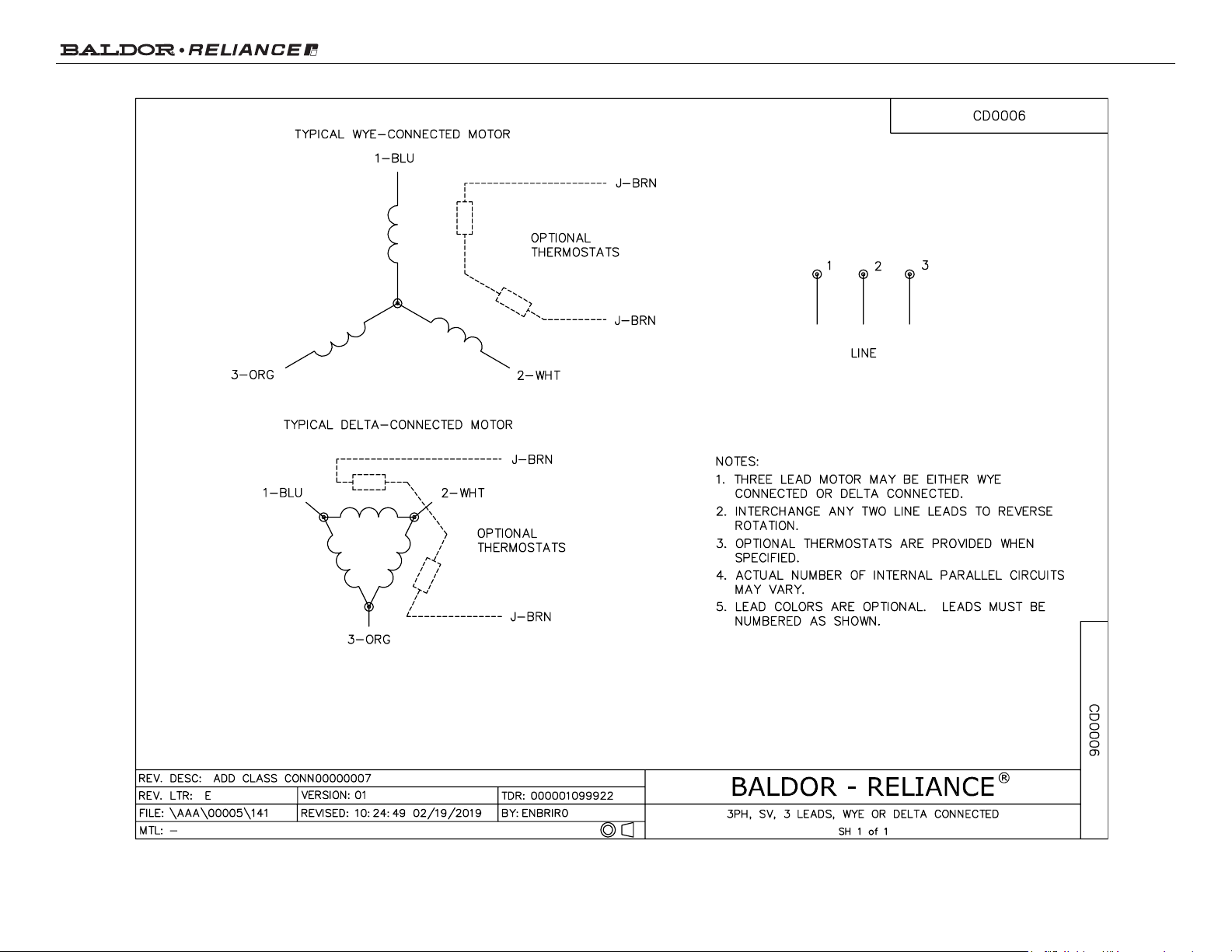

Type: AC Elec. Spec: 36WGS954 CD Diagram: CD0006 Mfg Plant:

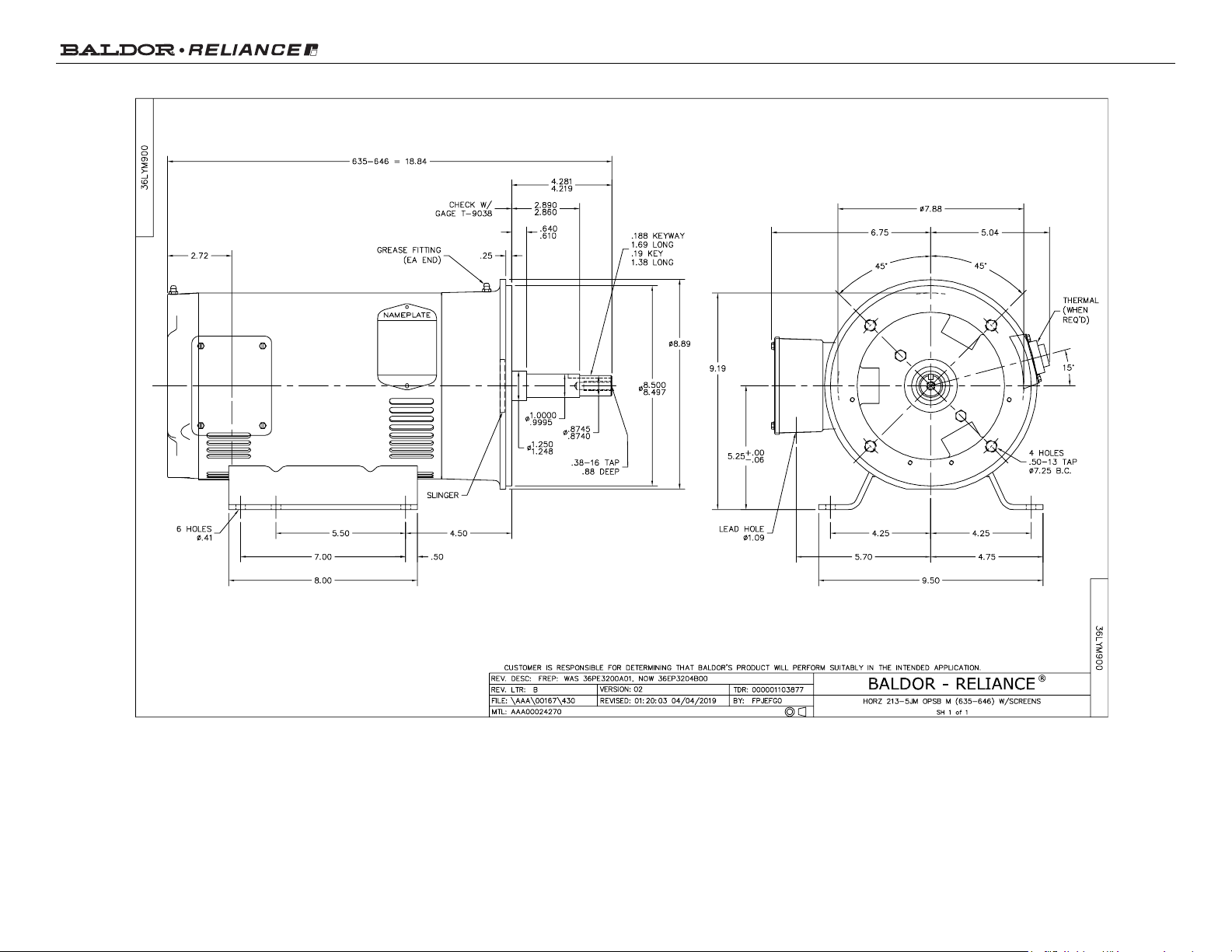

Mech. Spec: 36M900 Layout: 36LYM900 Poles: 04 Created Date: 06-04-2012
Base: RG Eff. Date: 03-08-2016 Leads: 3#16
Specs
Catalog Number: JMM3311T-5
Enclosure: OPSB
Frame: 213JM
Frame Material: Steel
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 7.900 A @ 575.0 V
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3644M
Mounting Arrangement: F1
Power Factor: 80
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Design Code: A
Shaft Rotation: Reversible
Page 2 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Nameplate NP1256L
CAT.NO. JMM3311T-5
SPEC. 36M900S954H1
HP 7.5
VOLTS 575
AMP 7.9
RPM 1750
FRAME 213JM HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS F
NEMA-NOM-EFF 88.5 PF 80
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6205
ENCL OPSB SN
Page 4 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Parts List
Part Number Description Quantity
SA245810 SA 36M900S954H1 1.000 EA
RA232696 RA 36M900S954H1 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
36EP3204B00 FR ENDPLATE, ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
HA1103A08 RODENT SCREEN, 36 FRAME, OPEN, FRONT END 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
36EP1409A04 EP 182-4TC OPEN 36 (307 BRG)GRSR & RELIE 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A32 1/4 X 2 HEX HEAD CAP SCR,GRADE 2 2.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA
HA1102A09 RODENT SCREEN 36 OPEN FAC 2.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
HA3101A28 THRUBOLT 1/4-20 X 12.500 OHIO ROD 4.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HA1005A07 SLINGER, OD 2.25, ID 1.344, 307 BRG 1.000 EA
HW2509D13 316 SS KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
Page 5 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Parts List (continued)
Part Number Description Quantity
36AD2004A01 BAFFLE PLATE,MOD 36-SLTD BAND MTRS DELTA 2.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
AC Induction Motor Performance Data
Record # 38667 - Typical performance - not guaranteed values
Winding: 36WGS954-R001 Type: 3644M Enclosure: OPSB
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 7.5 Full Load Torque 22.6 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 7.9 Breakdown Torque 75.7 LB-FT
R.P.M. 1750 Pull-up Torque 42.7 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 51.7 LB-FT
NEMA Design Code A KVA Code J Starting Current 57 A
Service Factor (S.F.) 1.15 No-load Current 3.83 A
NEMA Nom. Eff. 88.5 Power Factor 80 LinelineRes.@25ºC 2.75Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 65°C
S.F. Amps Temp. Rise @ S.F. Load 80°C
Load Characteristics 575 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 39 62 73 80 83 84 82
Efficiency 83.6 89.1 89.1 88.7 87.1 85.3 87.7
Speed 1789 1776 1763 1748 1732 1713 1738
Line amperes 4.2 5.12 6.45 7.91 9.69 11.7 8.98
Page 7 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB

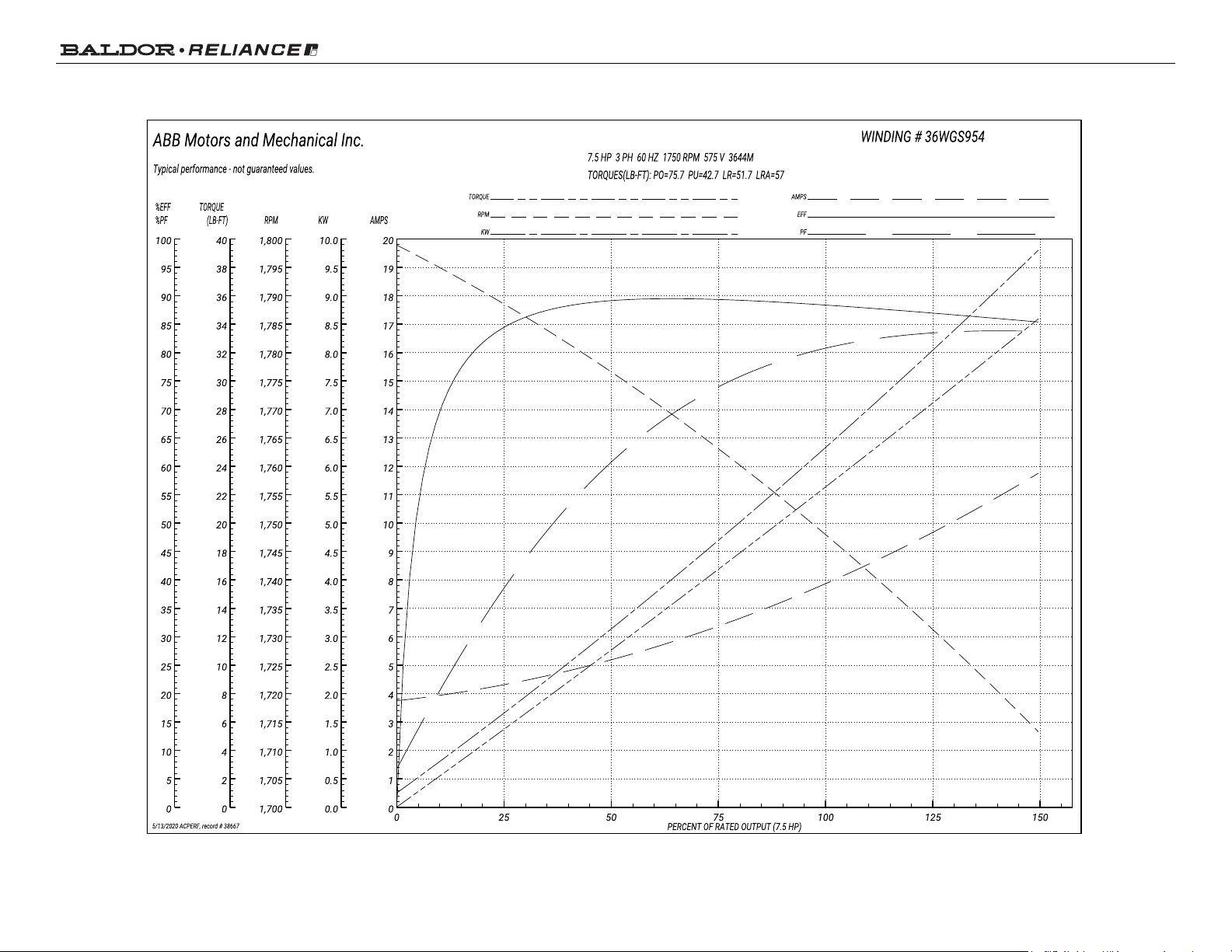

Performance Graph at 575V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Page 9 of 10
Product Information Packet: JMM3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213JM,3644M,OPSB
Page 10 of 10
