Product Information Packet
JMM2333T
15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Part Detail
Revision: G Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 07WGX739 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 07H300 Layout: 07LYH300 Poles: 04 Created Date: 06-22-2010
Base: RG Eff. Date: 03-08-2016 Leads: 9#12
Specs
Catalog Number: JMM2333T
Enclosure: TEFC
Frame: 254JM
Frame Material: Iron
Output @ Frequency: 15.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0756M
Mounting Arrangement: F1
Power Factor: 83
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Current @ Voltage: 18.500 A @ 460.0 V
37.000 A @ 230.0 V
40.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Nameplate NP1256L
CAT.NO. JMM2333T
SPEC. 07H300X739H1
HP 15
VOLTS 208-230/460
AMP 40-37/18.5
RPM 1760
FRAME 254JM HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS F
NEMA-NOM-EFF 91 PF 83
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6309 ODE 6307
ENCL TEFC SN
Page 4 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Parts List
Part Number Description Quantity
SA199215 SA 07H300X739H1 1.000 EA
RA186553 RA 07H300X739H1 1.000 EA
37FN3002B01 EXFN, PLASTIC, 7.50 OD, 1.155 ID 1.000 EA
HW3201A01 1/2-13 EYEBOLT 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
37PE1101A03 FR/PU ENDPLATE, MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
07EP1306A02 ENDPLATE, MACH, W/TIGHT SLEEVE 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A36 1/4-20X 2 1/4 HEX HD X 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
07FH4007SP PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HW4600B67 V-RING SLINGER 1.770 X 2.170 X .28 VITON 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
Page 5 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Parts List (continued)
Part Number Description Quantity
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
HW2501E22 KEY, 1/4 SQ X 2.500 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.036 GA
HA3104A18 THRUBOLT- 5/16-18 X14.000 4.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA
10XL3807A32 3/8 X 2" LAG SCREW TDR #49106 2.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
AC Induction Motor Performance Data
Record # 20291 - Typical performance - not guaranteed values
Winding: 07WGX739-R001 Type: 0756M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 15 Full Load Torque 44.6 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 40-37/18.5 Breakdown Torque 167.1 LB-FT
R.P.M. 1760 Pull-up Torque 71.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 101.3 LB-FT
NEMA Design Code A KVA Code J Starting Current 147.3 A
Service Factor (S.F.) 1.15 No-load Current 7.39 A
NEMA Nom. Eff. 91 Power Factor 83 LinelineRes.@25ºC 0.618Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 65°C
S.F. Amps Temp. Rise @ S.F. Load 83°C
Locked-rotor Power Factor 35
Rotor inertia 1.38 LB-FT2
Load Characteristics 460 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 47 68 78 83 84 85 84
Efficiency 87.6 91.6 92.1 91.6 90.6 89.3 91
Speed 1791 1783 1775 1765 1755 1743 1759
Line amperes 8.47 11.1 14.5 18.6 22.9 27.7 21.2
Page 7 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F

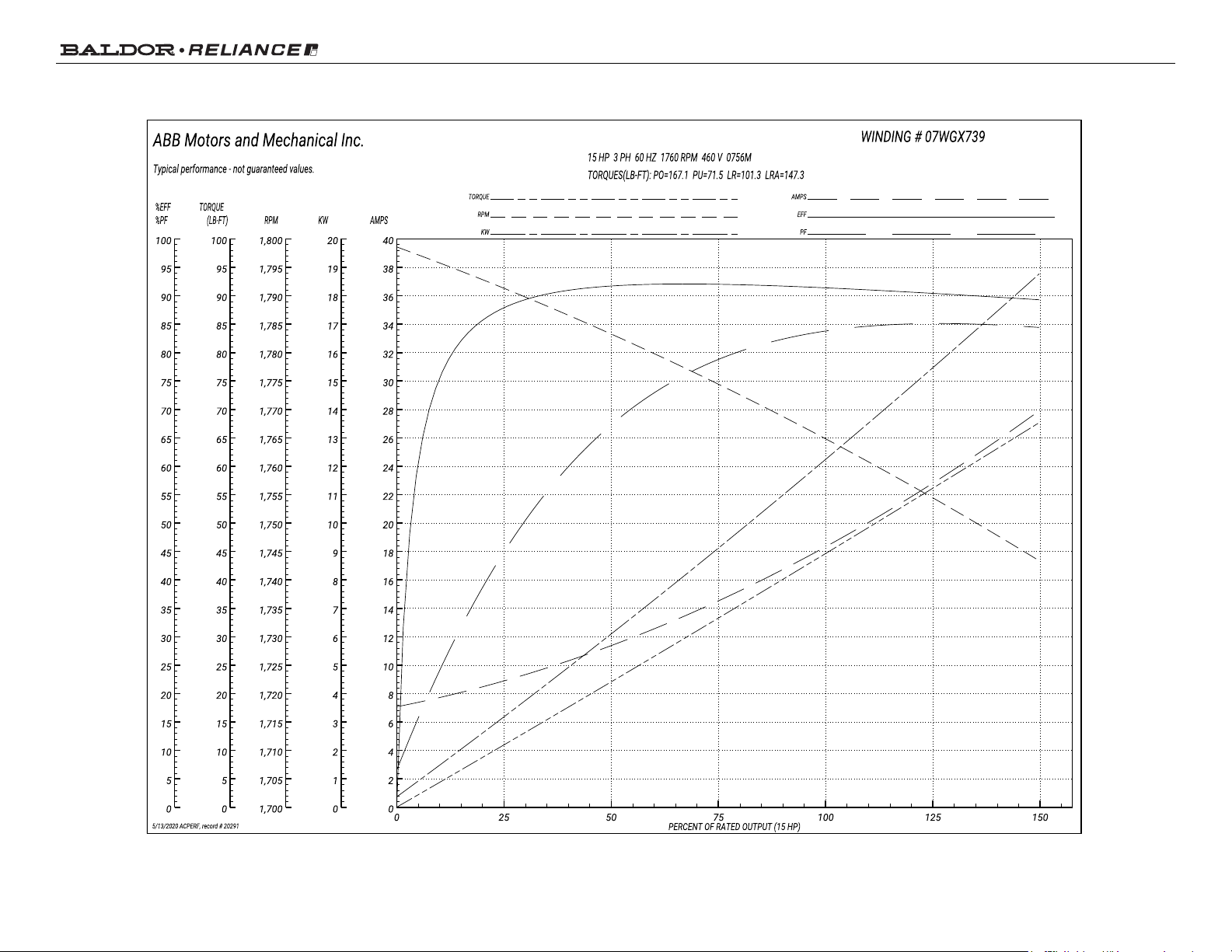

Performance Graph at 460V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Page 9 of 10
Product Information Packet: JMM2333T - 15HP,1760RPM,3PH,60HZ,254JM,0756M,TEFC,F
Page 10 of 10
