Product Information Packet
JML3606T
3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Part Detail
Revision: W Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WG0201 CD Diagram: CD0001 Mfg Plant:
Mech. Spec: 36H016 Layout: 36LYH016 Poles: 02 Created Date:
Base: RG Eff. Date: 02-21-2020 Leads: 4#14 A PH,2#16 B PH
Specs
Catalog Number: JML3606T
Enclosure: TEFC
Frame: 182JM
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 4 @ 14 AWG, A PH
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3634L
Mounting Arrangement: F1
Power Factor: 87
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 14.500 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
15.000 A @ 208.0 V
29.000 A @ 115.0 V
Design Code: L
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Nameplate NP1256L
CAT.NO. JML3606T
SPEC. 36H16-201
HP 3
VOLTS 115/230
AMP 29/14.5
RPM 3450
FRAME 182JM HZ 60 PH 1
SER.F. 1.15 CODE G DES L CLASS F
NEMA-NOM-EFF 76 PF 87
RATING 40C AMB-CONT
CC USABLE AT 208V 15
DE 6207 ODE 6205
ENCL TEFC SN
Page 4 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Parts List
Part Number Description Quantity
SA036194 SA 36H16-201 1.000 EA
RA032220 RA 36H16-201 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3104A01 FREP MACH ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
13XF0832A08 8-32 X.50 PAN HD,SLTD, TYPE F SCREW, ZIN 2.000 EA
35CB4802A02SP CAPACITOR COVER, STAMPED X 1.000 EA
35GS3001A02 GASKET, CA.COVER, 5.38 LONG .06 CS301 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP3405T01 PUEP ENCL 207 BRG T'SLV,GRSR,DRAIN 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A24 1/4-20X 1 1/2 HEX HD X 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
36FH4009A102 IEC FH GREASER PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
37GS1001SP GASKET, CONDUIT BOX LID, .06 THICK LEXID 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
Page 5 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Parts List (continued)
Part Number Description Quantity
HA1005A07 SLINGER, OD 2.25, ID 1.344, 307 BRG 1.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
WD1000A15 3-520132-2 AMP FLAG (4M/RL NON-CANC/NON- 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA
EC1850A06SP ELEC CAP 115V 2.0 X 4.3 X 1.000 EA
HA3101A25 THRUBOLT 1/4-20 X 11.000 OHIO ROD 4.000 EA
35FN3002A04SP EXFN, PLASTIC, 6.376 OD, .906 ID W/KEY 1.000 EA
SP5172A09 37 TYPE L TORQ STAT SWITCH LEAD ASSEMBLY 1.000 EA
LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
AC Induction Motor Performance Data
Record # 29181 - Typical performance - not guaranteed values
Winding: 36WG0201-R001 Type: 3634L Enclosure: TEFC
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 3 Full Load Torque 4.5 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 29/14.5 Breakdown Torque 14 LB-FT
R.P.M. 3450 Pull-up Torque 8 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 10 LB-FT
NEMA Design Code L KVA Code G Starting Current 86 A
Service Factor (S.F.) 1.15 No-load Current 5.5 A
NEMA Nom. Eff. 76 Power Factor 87 LinelineRes.@25ºC
0.588ΩAPh
0.896ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 80°C
S.F. Amps Temp. Rise @ S.F. Load 95°C
Load Characteristics 230 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 70 83 88 91 92 92 92
Efficiency 61 71 73.5 76 75 73 75.4
Speed 3558 3526 3496 3457 3407 3356 3427
Line amperes 7 9 11.5 14.5 18 21.8 16.6
Page 7 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1

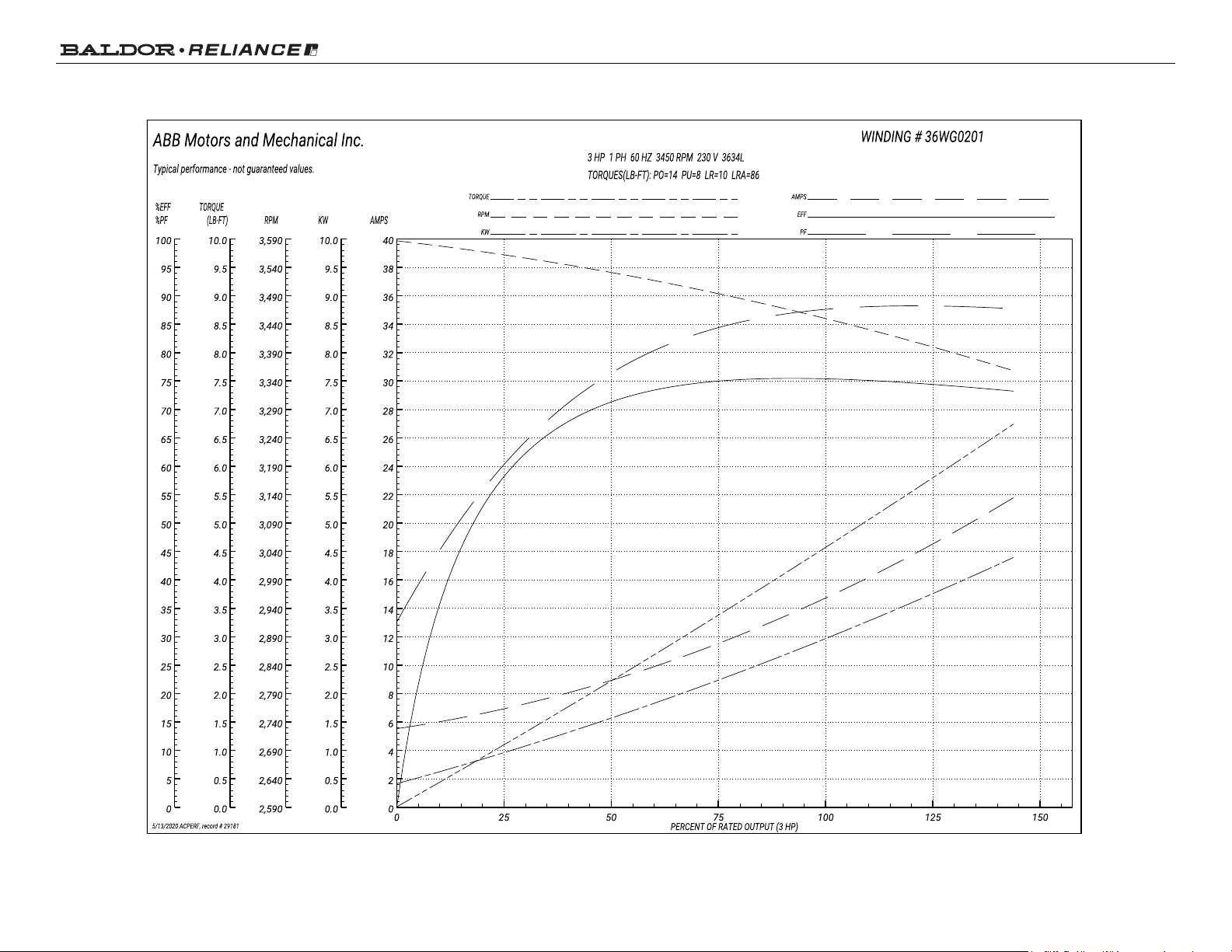

Performance Graph at 230V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Page 9 of 10
Product Information Packet: JML3606T - 3HP,3450RPM,1PH,60HZ,182JM,3634L,TEFC,F1
Page 10 of 10
