JMEWDM3713T
Product Information Sheet
16 pgs562.16 Kb0

Baldor JMEWDM3713T Product Information Sheet

Download
Product Information Packet
JMEWDM3713T
15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Part Detail
Revision: J Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 37WGR228 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 37N673 Layout: 37LYN673 Poles: 02 Created Date: 04-10-2015 Base: RG Eff. Date: 01-15-2020 Leads: 9#14
Specs
Catalog Number: JMEWDM3713T Enclosure: TEFC Frame: 215JM Frame Material: Steel Output @ Frequency: 15.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA EEV
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F Inverter Code: Inverter Ready KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3752M Mounting Arrangement: F1 Power Factor: 89 Product Family: Wash Down Pulley End Bearing Type: Sealed Bearing Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Current @ Voltage: 17.000 A @ 460.0 V
34.000 A @ 230.0 V
36.800 A @ 208.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Nameplate NP1669L
CAT.NO. JMEWDM3713T
SPEC. 37N673R228G1
HP 15
VOLTS 230/460
AMP 34/17 RPM 3500
FRAME 215JM HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS F
NEMA-NOM-EFF 91 PF 89
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 36.8 DE 6307 ODE 6206
ENCL TEFC SN
BLANK 10:1CT, 20:1VT, 1.00SF
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Parts List
Part Number Description Quantity SA299079 SA 37N673R228G1 1.000 EA RA286059 RA 37N673R228G1 1.000 EA 37FN3002B01 EXFN, PLASTIC, 7.50 OD, 1.155 ID 1.000 EA HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA 37CB3005A04W CASTING W/.75 NPT@6(MACH WHITE) 1.000 EA 37GS1025 37 MOLDED GASKET W/LIP, LEAD SEAL 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 37EP3101A94MW FRONT TEFC L&M 206 BRG W/O GRSR (WHITE) 1.000 EA HW4032A01 BLACK DRAIN PLUG FOR WASH DOWN MOTORS 3.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 37EP3300A23MW WHITE EPOXY EP MACH COMPL 1.000 EA HW4032A01 BLACK DRAIN PLUG FOR WASH DOWN MOTORS 3.000 EA HW4600B51 SEAL 1.375 X 2.125 X 0.313 SINGLE LIP DB 1.000 EA 10XN2520S30 1/4-20 X 1 7/8 HEX HEAD SS 4.000 EA XY3118S12 5/16-18 HEX NUT, STAINLESS STEEL 4.000 EA 07FH4011 WASHDOWN IEC FH W/PRIMED 1.000 EA 11XW1032S06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 3.000 EA HW4600B74 V-RING SLINGER 1.125 X 1.445 X .24 VITON 1.000 EA HW4600B31SP V-RING SLINGER 1.438 X 1.758 X .24 VITON 1.000 EA 37CB4512 CONDUIT BOX LID FOR WASHDOWN 37 FRAME 1.000 EA 37GS1008A02 37 GS FOR CB LID - WHITE NEOPRENE 1.000 EA 59XW0832S07 TAPTITE II,HEX WSHR UNSLTD SER,410 S.S., 4.000 EA HA3104S18 THRUBOLT 5/16-18X14 SS 4.000 EA
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Parts List (continued)
Part Number Description Quantity HW2502D13 SS KEY, 3/16 SQ X 1.375 1.000 EA HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT MJ5001A02 732 CL SEALANT 3 OZ DIXIE BEARING 289100 0.001 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1164 LABEL,WARNING AND DRAIN 1.000 EA HA5027A01 HA4066A01 T-DRAIN X2 BAGGED 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1025Z02 ACTIVATOR WILKOFAST 060.02HF 0.010 GA MG1025W01 WILKOFAST, 781.01, SIGNAL WHITE #9003 0.028 GA LC0181 CONNECTION LABEL 1.000 EA NP1669L SS WD SUPER-E UL CSA-EEV PREM REV MTG 1.000 EA 37PA1039 PALLET PACK GRP, PRINT PK1026A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 53380 - Typical performance - not guaranteed values
Winding: 37WGR228-R023 Type: 3752M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 22.12 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 103 LB-FT R.P.M. 3500 Pull-up Torque 40.16 LB-FT Hz 60 Phase 3 Locked-rotor Torque 57.59 LB-FT NEMA Design Code A KVA Code J Starting Current 150 A Service Factor (S.F.) 1.15 No-load Current 5.55 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.47Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 68°C S.F. Amps Temp. Rise @ S.F. Load 79°C
Locked-rotor Power Factor 30.9
Rotor inertia 0.474 LB-FT2
Load Characteristics 460 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 78 85 89 90 90 89 Efficiency 86.8 91 91.9 91.4 90.8 89.8 91.3 Speed 3579 3557 3534 3500 3484 3456 3495 Line amperes 6.7 9.57 13.19 17.03 21.12 25.61 19.5
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Performance Graph at 460V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 57899 - Typical performance - not guaranteed values
Winding: 37WGR228-R023 Type: 3752M Enclosure: TEFC
Nameplate Data
230 V, 60 Hz:
Low Voltage Connection Rated Output (HP) 15 Full Load Torque 22.1 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 104 LB-FT R.P.M. 3500 Pull-up Torque 40.3 LB-FT Hz 60 Phase 3 Locked-rotor Torque 57.8 LB-FT NEMA Design Code A KVA Code J Starting Current 300 A Service Factor (S.F.) 1.15 No-load Current 11.1 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.111Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 67°C S.F. Amps Temp. Rise @ S.F. Load 82°C
Locked-rotor Power Factor 30.3
Rotor inertia 0.474 LB-FT2
Load Characteristics 230 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 77 85 89 90 90 90 Efficiency 86.8 91.1 92 91.8 91 90 91.3 Speed 3579 3558 3534 3510 3485 3456 3495 Line amperes 13.4 19.1 26.4 34 42.2 51.2 38.9
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Performance Graph at 230V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 10 of 16
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 70097 - Typical performance - not guaranteed values
Winding: 37WGR228-RXXX Type: 3752M Enclosure: TEFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 17.68 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 98.71 LB-FT R.P.M. 3500 Pull-up Torque 42.31 LB-FT Hz 60 Phase 3 Locked-rotor Torque 60.68 LB-FT NEMA Design Code A KVA Code J Starting Current 146 A Service Factor (S.F.) 1.15 No-load Current 5.43 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.47Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 52°C S.F. Amps Temp. Rise @ S.F. Load 63°C
Locked-rotor Power Factor 34.6
Rotor inertia 0.474 LB-FT2
Load Characteristics 380 V, 50 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 51 73 82 87 89 90 88 Efficiency 81.7 88 89.8 89.9 89.6 88.9 89.7 Speed 2982 2964 2945 2918 2905 2883 2910 Line amperes 6.27 8.45 11.29 14.27 17.46 20.98 16.2
Page 11 of 16
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F

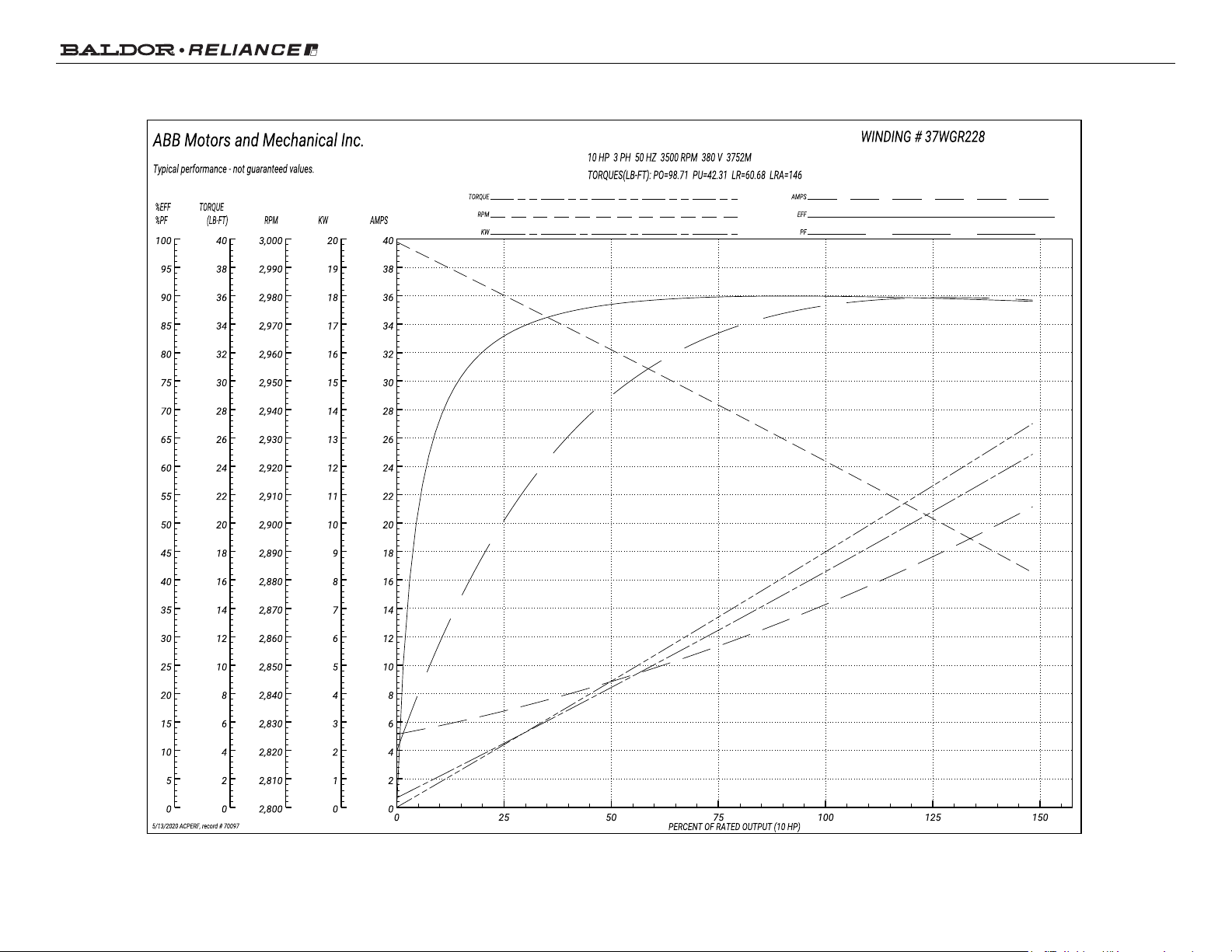

Performance Graph at 380V, 50Hz, 10.0HP Typical performance - Not guaranteed values
Page 12 of 16
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 73419 - Typical performance - not guaranteed values
Winding: 37WGR228-RXXX Type: 3752M Enclosure: TEFC
Nameplate Data
480 V, 60 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 22.12 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 113 LB-FT R.P.M. 3500 Pull-up Torque 44.76 LB-FT Hz 60 Phase 3 Locked-rotor Torque 64.18 LB-FT NEMA Design Code A KVA Code J Starting Current 159 A Service Factor (S.F.) 1.15 No-load Current 6.32 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.47Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 67°C S.F. Amps Temp. Rise @ S.F. Load 83°C
Locked-rotor Power Factor 31.2
Rotor inertia 0.474 LB-FT2
Load Characteristics 480 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 50 72 82 86 88 89 87 Efficiency 86.2 90.7 91.8 91.5 90.9 90.1 91.1 Speed 3580 3560 3538 3506 3491 3465 3497 Line amperes 7.28 9.85 13.18 16.77 20.58 24.75 19.1
Page 13 of 16
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Performance Graph at 480V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 14 of 16
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Page 15 of 16
Product Information Packet: JMEWDM3713T - 15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Page 16 of 16
