Product Information Packet
JL1301A
.33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Part Detail
Revision: Q Status: PRD/A Change #: Proprietary: No

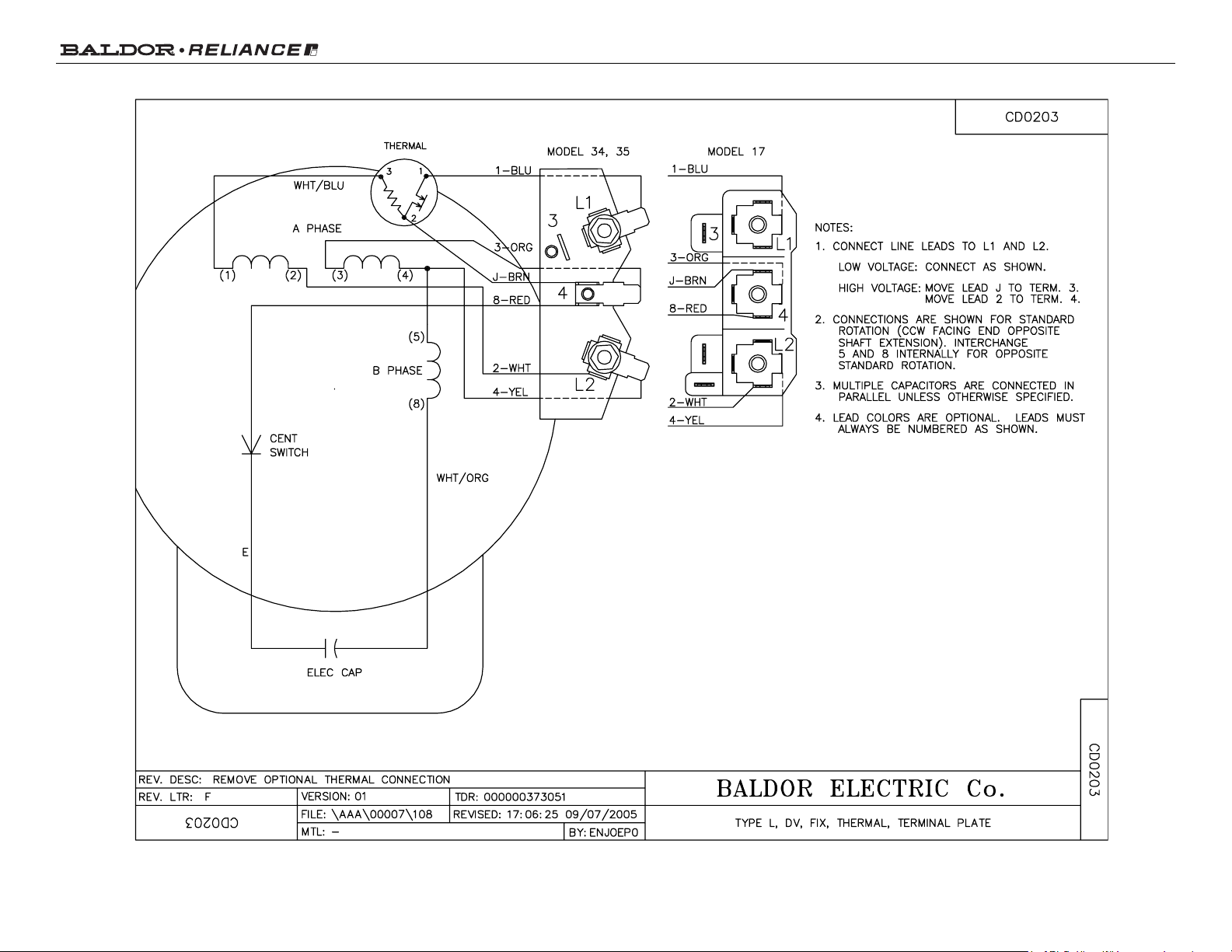

Type: AC Elec. Spec: 34WG5599 CD Diagram: CD0203 Mfg Plant:
Mech. Spec: 34F036 Layout: 34LYF036 Poles: 04 Created Date:
Base: N Eff. Date: 08-23-2018 Leads: 6#18
Specs
Catalog Number: JL1301A
Enclosure: OPEN
Frame: 56J
Frame Material: Steel
Output @ Frequency: .330 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Terminal Panel Or Lead Hole
Motor Lead Termination: Flying Leads
Motor Type: 3414L
Mounting Arrangement: F1
Power Factor: 60
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Ext Thread
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Current @ Voltage: 3.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
3.600 A @ 208.0 V
6.000 A @ 115.0 V
Design Code: N
Drip Cover: Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Terminal Panel
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Shaft Rotation: Fixed Opposite Standard
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: Automatic Thermal Overload
Winding Thermal 1 Location: SB
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Nameplate NP1257L
CAT.NO. JL1301A
SPEC. 34F036-5599
HP .33
VOLTS 115/230
AMP 6/3
RPM 1725
FRAME 56J HZ 60 PH 1
SER.F. 1.35 CODE L DES N CL B
NEMA-NOM-EFF 60 PF 60
RATING 40C AMB-CONT
CC USABLE AT 208V 3.6
DE 6203 ODE 6203
ENCL OPEN SN
SFA 6.8/3.4
Page 4 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Parts List
Part Number Description Quantity
SA018286 SA 34F036-5599 1.000 EA
RA014436 RA 34F036-5599 1.000 EA
EC1189A02SP 61B2D120189NNBA ELEC CAP, 189-227MFD, 12 1.000 EA
34EP3202A02 FR ENDPLATE, MACH 1.000 EA
11XW0832G06 #8-32 X 3/8, TAPTITE II, HEX WSHR SLTD 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 3.000 EA
WD4100A01 DP-875 HEYCO PLUG OR 62MP0875 MICRO PLAS 1.000 EA
NS2500A01 INSULATOR, AUTO THER PROT 1.000 EA
34CB4800SP CAPACITOR COVER, STAMPED PRIMED 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
34EP3401A01SP PU ENDPLATE, MACH 1.000 EA
34AD2000 BAFFLE PLATE, STAMPED 1.000 EA
60XW0632A06 6-32 X 3/8 TORX HEAD SCREW TAPTITE II 4.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
34FH4500A02P DRIPCOVER, MODEL 34 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
34CB4501SP TERMINAL BOX LID, STAMPED X (PLATED) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
RM1010A01 35-968-1 VINYL CLS 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.014 GA
LB1009N LABEL,ROTATION DIRECTION (ON ROLLS) 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
SP5068A01 34L TERM PANEL STAT SWITCH #E-6" 1.000 EA
Page 5 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Parts List (continued)
Part Number Description Quantity
HA3100A14 THRUBOLT 10-32 X 7.875 4.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1118 LABEL,WARNING (ROLL LABEL) 1.000 EA
LC0546 CONNECTION LABEL 1.000 EA
NP1257L ALUM UL CSA CC THERMAL REV MTG 1.000 EA
35PA1000 PKG GRP, PRINT PK1008A06 1.000 EA
PK3083 STYROFOAM PACKING CRADLE 1.000 EA
PK3088 MICROFOAM, 8"X"8 PERF. SHEETS 5,400/RL 1.000 EA
Page 6 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
AC Induction Motor Performance Data
Record # 6787 - Typical performance - not guaranteed values
Winding: 34WG5599-R001 Type: 3414L Enclosure: OPEN
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) .33 Full Load Torque 1 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 6/3 Breakdown Torque 2.95 LB-FT
R.P.M. 1725 Pull-up Torque 2.55 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 3.6 LB-FT
NEMA Design Code N KVA Code L Starting Current 13 A
Service Factor (S.F.) 1.35 No-load Current 2.6 A
NEMA Nom. Eff. 60 Power Factor 60 LinelineRes.@25ºC
6.32ΩAPh
4.93ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C
S.F. Amps 6.8/3.4 Temp. Rise @ S.F. Load 53°C
Load Characteristics 230 V, 60 Hz, 0.33 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 31 41 51 60 66 72 70
Efficiency 34 49 56 60 62 63 63
Speed 1783 1765 1745 1730 1710 1680 1695
Line amperes 2.6 2.7 2.8 3 3.3 3.7 3.4
Page 7 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Performance Graph at 230V, 60Hz, 0.33HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Page 9 of 10
Product Information Packet: JL1301A - .33HP,1725RPM,1PH,60HZ,56J,3414L,OPEN,F1
Page 10 of 10
