Product Information Packet
IDVSWDM3546T
1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
Part Detail
Revision: P Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGP560 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35SS642 Layout: 35LYSS642 Poles: 04 Created Date: 12-23-2009
Base: N Eff. Date: 08-09-2018 Leads: 9#18
Specs
Catalog Number: IDVSWDM3546T
Enclosure: TENV
Frame: 143TC
Frame Material: Stainless Steel
Output @ Frequency: 1.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: H
Inverter Code: Inverter Duty
KVA Code: M
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3524M
Mounting Arrangement: F1
Power Factor: 76
Product Family: Wash Down Paint Free
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 1.450 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
2.900 A @ 230.0 V
3.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
Nameplate NP1608L
CAT NO IDVSWDM3546T
SPEC. 35SS642P560G1
FRAME 143TC HP 1 TE
VOLTS 230/460
MAG CUR 1.8/.9 FLA 2.9/1.45
RPM 1745 RPM MAX 6000
HZ 60 PH 3 CLASS H
SER.F. 1.00 DES B SL HZ 1.7
NEMA-NOM-EFF 85.5 WK2 0.142
BLWR V PH HZ A
RATING 40C AMB-CONT
DE BRG 6205 ODE BRG 6203
CC 010A SN
Page 4 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
Parts List
Part Number Description Quantity
SA189097 SA 35SS642P560G1 1.000 EA
RA176816 RA 35SS642P560G1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB5001A21 CONDUIT BOX KIT, FOR SUPER II WASHDOWN 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122D00U MASTER ODE,203 BRG,.125NPT DRNS(BALL BUR 1.000 EA
HW4500A33 1/8 NPT STAINLESS,HOLO-KROME #13002,PRES 3.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3307E00U MASTER DE,205 BRG,1.623SH,.125NPT DRNS,C 1.000 EA
HW4500A33 1/8 NPT STAINLESS,HOLO-KROME #13002,PRES 3.000 EA
HW4606A02 JM CLIPPER/SEAL (LWE-0938-1624-AL23) 1.000 EA
12XN1032S20 10-32 X 1-1/4 HEX M.S. , STAINLESS STEEL 2.000 EA
HA1049A01 DUBO LOK WASHER SIZE 10 (NYLON LOCK SEAL 2.000 EA
HA1049A01 DUBO LOK WASHER SIZE 10 (NYLON LOCK SEAL 4.000 EA
HW2502D13 SS KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
MJ5001A02 732 CL SEALANT 3 OZ DIXIE BEARING 289100 0.001 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1164 LABEL,WARNING AND DRAIN 1.000 EA
HA5027A02 HA4054 T-DRAIN X2 BAGGED WITH LABEL 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HA3100S24 THRUBOLT 8.625 LENGTH 1.250 TH LENGTH SS 4.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
NP1608L SS WD INV UL CSA CC REV MTG 1.000 EA
Page 5 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
Parts List (continued)
Part Number Description Quantity
35PA1066 PKG GRP, PRINT PK1008A06 1.000 EA
PK3082 STYROFOAM CRADLE 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
AC Induction Motor Performance Data
Record # 64666 - Typical performance - not guaranteed values
Winding: 35WGP560-R026 Type: 3524M Enclosure: TENV
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1 Full Load Torque 3.02 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 2.9/1.45 Breakdown Torque 14.3 LB-FT
R.P.M. 1745 Pull-up Torque 8.76 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 10.3 LB-FT
NEMA Design Code B KVA Code M Starting Current 13.5 A
Service Factor (S.F.) 1 No-load Current 0.89 A
NEMA Nom. Eff. 85.5 Power Factor 76 LinelineRes.@25ºC 14.8Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 85°C
Locked-rotor Power Factor 61.4
Rotor inertia 0.142 LB-FT2
Load Characteristics 460 V, 60 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 33 53 67 76 81 85
Efficiency 74.4 82.8 85.1 85.2 84.6 82.6
Speed 1784 1774 1760 1744 1731 1698
Line amperes 0.935 1.05 1.22 1.45 1.7 1.99
Page 7 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
Performance Graph at 460V, 60Hz, 1.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: IDVSWDM3546T - 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1
13
6 49
2 12
8750
8745
4 500
4 497
2 59
510-520 = 11 12
521-528 = 12 12
529-535 = 12 99
536-546 = 14 37
13

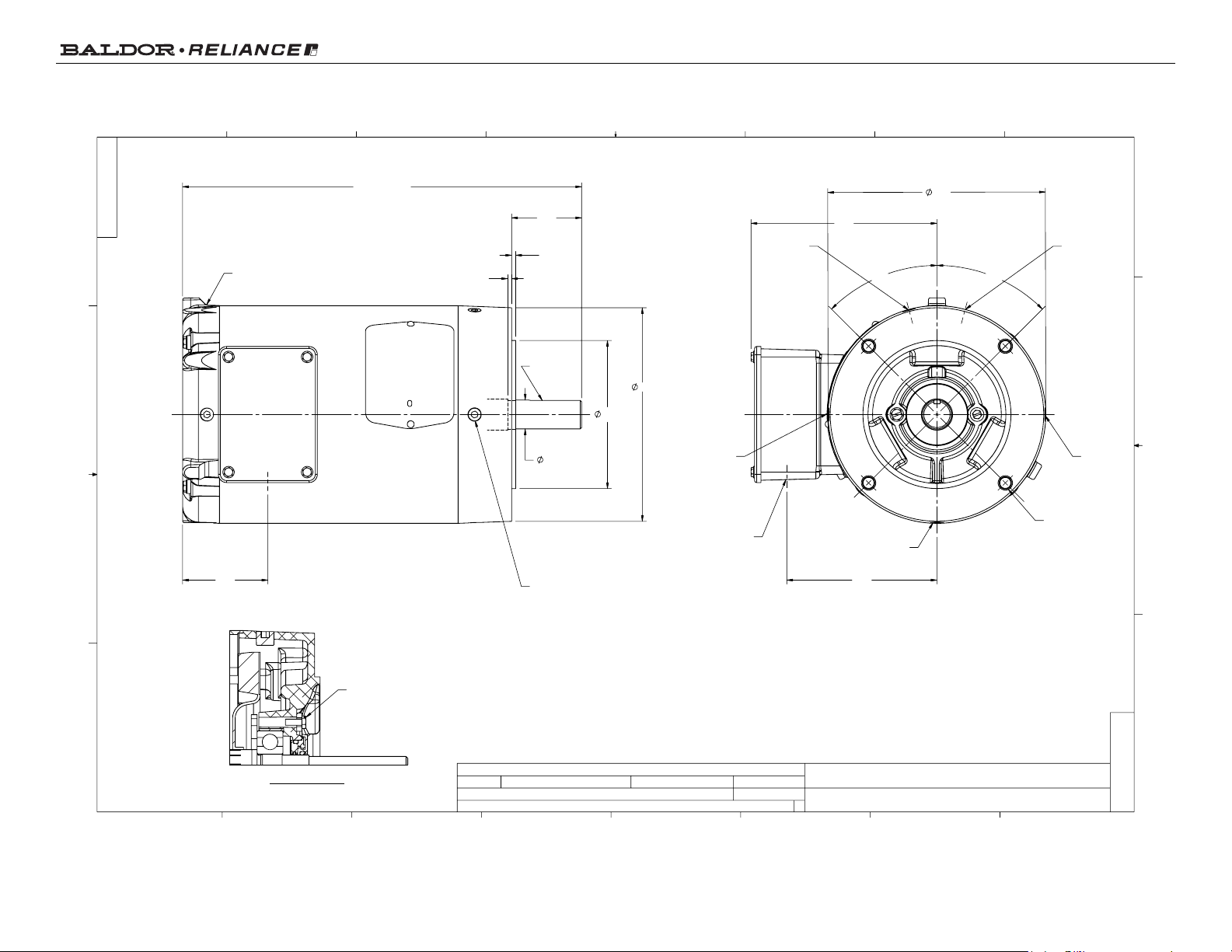

NAMEPLATE
(4) 125 NPT HOLES
3 W/PLUGS
@ 3 9 & 1:00
(FRONT END)
19 KEY
1 38 LONG
(4) 125 NPT HOLES
3 W/PLUGS
@ 3 9 & 11:00
(PULLEY END)
4 56
5 65
6 61
45°
45°
4X
38-16 TAP
ON Ø5 88 B C
DRAIN HOLE
(EA END)
LEAD HOLE
75 N P T
DRAIN PLUG
(EA END)
DRAIN PLUG
(EA END)
DRAIN PLUG
(FR END)
DRAIN PLUG
(PU END)
PULLEY END DETAIL
INSTALL DUBO-LOK
WASHER UNDER RET
RING SCREW HEAD
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYSS642
B
VERT 143-5TC TENV 35M WD2, INVERTER, RAISED LTR, .75 NPT
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYSS642
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG16
ENSTEK0
C
10 53 50 02/04/2019
-
000001098202
03
35LYSS642
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 9 of 10
