Product Information Packet
IDVSM4103T
25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Part Detail
Revision: D Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 10WGZ651 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 10H810 Layout: 10LYH810 Poles: 04 Created Date: 12-13-2017
Base: RG Eff. Date: 09-11-2019 Leads: 9#10
Specs
Catalog Number: IDVSM4103T
Enclosure: TEFC
Frame: 284TC
Frame Material: Iron
Output @ Frequency: 25.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Inverter Duty
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 10 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 1054M
Mounting Arrangement: F1
Power Factor: 81
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Double Shaft
Current @ Voltage: 31.000 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
62.000 A @ 230.0 V
64.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: Standard
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Nameplate NP3302L
CAT NO IDVSM4103T
SPEC. 10H810Z651G1
FRAME 284TC HP 25 TE
VOLTS 230/460
MAG CUR 27.2/13.6 FLA 62/31
RPM 1775 RPM MAX 2700
HZ 60 PH 3 CLASS F
SER.F. 1.00 SL HZ 0.8
NEMA-NOM-EFF 93.6 WK2 4.13
RATING 40C AMB-CONT
DE BRG 6311 ODE BRG 6309
CC 010A SN
1.5:1 CHP PWM
Page 4 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Parts List
Part Number Description Quantity
SA349122 SA 10H810Z651G1 1.000 EA
RA337720 RA 10H810Z651G1 1.000 EA
09FN3001D02 EXTERNAL FAN, PLASTIC 1.000 EA
10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA
19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA
10EP1104A01 FR ENDPLATE 1.000 EA
HA4017A11 1/8 X 2.75 GREASE EXT (F/S) 1.000 EA
10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA
10XN2520K32 1/4-20 X 2.00 HX HD SCRW GRADE 5, ZINC P 2.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA
10EP1305A01 PU ENDPLATE, MACH 1.000 EA
HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA
10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
10FH1007A21 FAN COVER, MACH FOR DBL SHF MTRS 1.000 EA
10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 3.000 EA
Page 5 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Parts List (continued)
Part Number Description Quantity
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 3.000 EA
HA6881 BEI HS35 THRU SHAFT ENCODER PROTECTIVE C 1.000 EA
10XN2520K12 1/4-20 X.75 GRD 5 2.000 EA
HW1000A25 1/4 SAE FLAT WASHER (FS) 2.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA
51XW2520A12 SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 4.000 EA
HW2501H28 KEY, 1/2 SQ X 3.250 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
MG1025N19 MUNSELL 8.5BG 3.57/2.0, GLOSS 30, B/G, 0.070 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0181 CONNECTION LABEL 1.000 EA
Page 6 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
NP3302L ALUM INV UL CSA CC (W/OUT DESIGN FIELD) 1.000 EA
12PA1000 PACKAGING GROUP PRINT PK1024A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 7 of 13
NP VOLTS MAX SAFE RPM 2700
NP AMPS Base Volt 460 R1 0.121 X1 0.578
HP
NL AMPS 13.60 R2 0.588 X2 0.512
BASE SPEED
1778 Slips(HZ) 0.74 R2B 0.086 X2B 0.790
PHASE/HZ 3/60 WK2 () 0.000 R2E 0.025 XM 16.600
RPM HP Torque Freq-Hz
RPM HP Torque Freq-Hz
Remarks: Calculated Data
Vector PWM Inverter Duty
DR BY USBRRAN1
CK BY
APP BY USBRRAN1
DATE
12/13/2017
A-C MOTOR
PERFORMANCE
CURVES
10WGZ651
CFM
Blower Data
Volts
Ph/Hz
FL Amps
LR Amps
Frame
Record: 68462
30.6
O/L
1753
50.1
150.0
460
60
59.4
Full Load
1777.8
25.1
74.0
460
60
19.3
3/4
1783.5
18.8
55.3
460
60
24.6
1/2
1789.3
12.6
36.9
460
60
13.6
1/4
1794.1
6.2
18.2
460
60
15.3
30.6
Load Performance at Base Speed
Volts
Amps
No Load
1798.9
0.0
0.0
460
60
Min Speed
0
0.0
74.0
15.59
0.74
230/460
WYE CONN EQ CKT OHMS PER PHASE (BASE RATING, 20C)
62/31
Rated Full Load Data
Volts
Amps
30.6
Max Speed
2666
25.1
49.4
460
90
27.9
Base Speed
1777.8
25.1
74.0
460
60
25 HP
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Page 8 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
NP VOLTS
MAX SAFE RPM 2700
NP AMPS
Base Volt 460 R1 0.121 X1 0.578HPNL AMPS 13.60 R2 0.588 X2 0.512
BASE SPEED
1777.80005 Slips(HZ) 0.74 R2B 0.086 X2B 0.790
PHASE/HZ
3/60 WK2 () 0.000 R2E 0.025 XM 16.600
Calculated Data
DR BY USBRRAN1
CK BY
APP BY USBRRAN1
DATE
12/13/2017

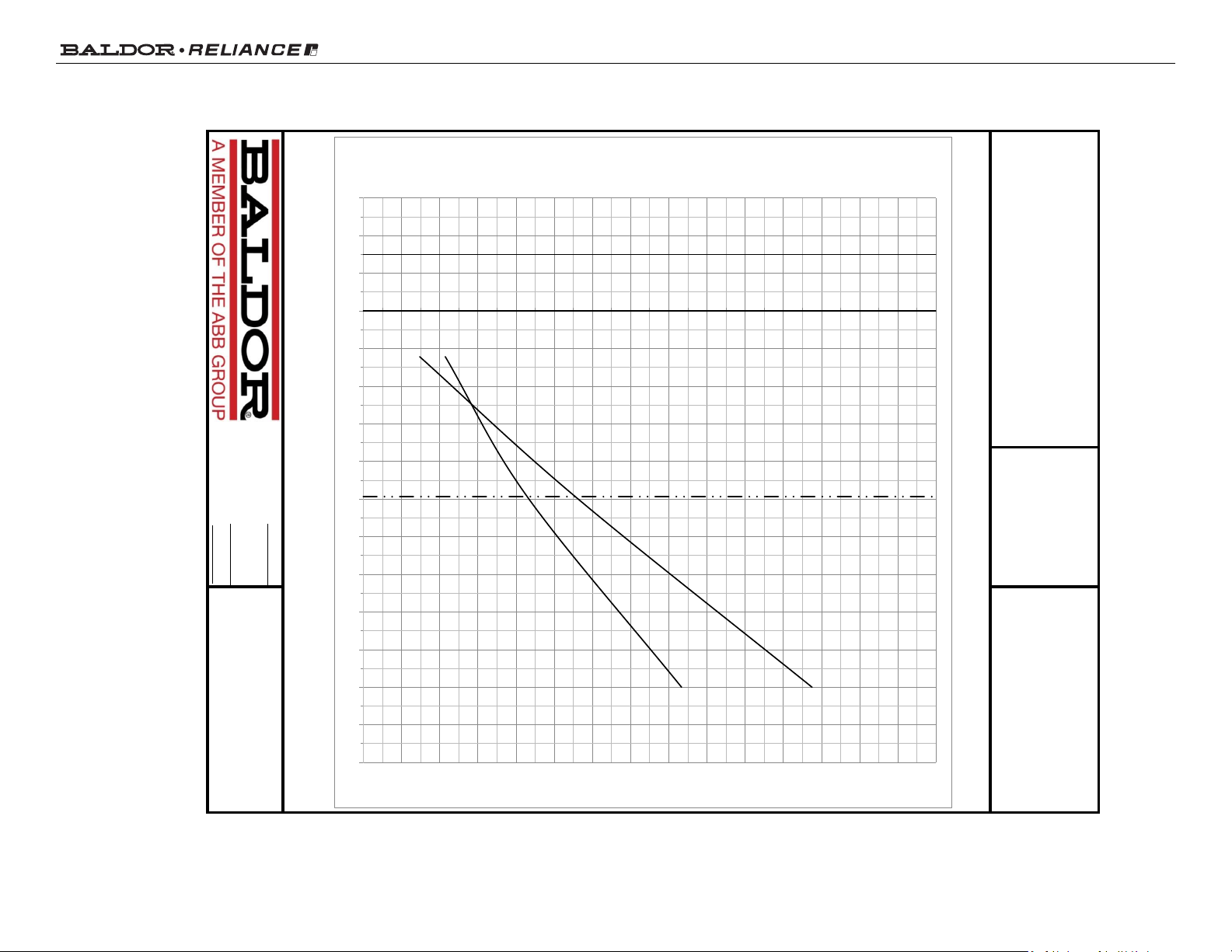

Variable Speed AC Motor Curves
Data Valid For Nameplate Speed Range only
A-C MOTOR
PERFORMANCE
CURVES
10WGZ651
Record: 68462
230/460
WYE CONN EQ CKT OHMS PER PHASE (BASE RATING, 20C)
62/31
Vector PWM Inverer Duty
25 HP
0.0 8.0 16.0 24.0 32.0 40.0 48.0 55.0 63.0 71.0 79.0 87.0 95.0 103.0 111.0119.0
0 34 67 101 135
169
202
236 270 304 337 371 405 439 472 506
0.0 12.0 23.0 35.0 46.0 58.0 69.0 81.0 92.0 104.0 115.0 127.0 138.0 150.0 161.0173.0
0 400 800 1200 1600 2000 2400 2800
Rated Speed at 60 Hz
2
5
4
1
3
Motor Shaft Speed in RPM
FUNDAMENTAL VOLTS AT RATED
RATED (2) & PEAK (3) TORQUE IN LB-FT
RATED (4) & PEAK (5) CURRENT IN AMPS
Page 9 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
NP VOLTS
MAX SAFE RPM 2700
NP AMPS
Base Volt 460 R1 0.121 X1 0.578HPNL AMPS 13.60 R2 0.588 X2 0.512
BASE SPEED 1777.800049 Slips(HZ) 0.74 R2B 0.086 X2B 0.790
PHASE/HZ 3/60 WK2 () 0.000 R2E 0.025 XM 16.600
DR BY USBRRAN1
CK BY
APP BY USBRRAN1
DATE
12/13/2017
62/31
Vector PWM Inverer Duty
Vaiable Speed AC Motor Curves
Calculated Data
Data Valid For Nameplate Speed Range only
A-C MOTOR
PERFORMANCE
CURVES
10WGZ651
230/460
WYE CONN EQ CKT OHMS PER PHASE (BASE RATING, 20C)
Record: 68462
25 HP
1
2
0
15.00
30.00
45.00 60.00 75.00 90.00 105.00
120.00
135.00 150.00165.00
0.00 7.13 14.26 21.39 28.53 35.66 42.79 49.92 57.05 64.18 71.32 78.45 85.58 92.71 99.84106.97
0 4 8 12 16 20 24 28 32 36 40
44
48 52 60 60
Rated Torque
Shaft Torque in Lb-Ft
SLIP RPM (2)
LINE AMPS (1)
Page 10 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Page 11 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Page 12 of 13
Product Information Packet: IDVSM4103T - 25HP,1775RPM,3PH,60HZ,284TC,1054M,TEFC,F
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 13 of 13
