Product Information Packet
IDNM3669T
2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 06WGX813 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 06F551 Layout: 06LYF551 Poles: 04 Created Date: 06-08-2016
Base: RG Eff. Date: 04-20-2020 Leads: 9#16
Specs
Catalog Number: IDNM3669T
Enclosure: TENV
Frame: 182TC
Frame Material: Iron
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Inverter Duty
IP Rating: NONE
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0624M
Mounting Arrangement: F1
Power Factor: 71
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Current @ Voltage: 3.000 A @ 460.0 V
Shaft Extension Location: Pulley End
Page 2 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
6.000 A @ 230.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Encoder/Feedback Device
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: H
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Nameplate NP1163L
CAT NO IDNM3669T
SPEC. 06F551X813G1
FRAME 182TC HP 2 TE
VOLTS 230/460
MAG CUR 3.8/1.9 FLA 6/3
RPM 1760 RPM MAX 6000
HZ 60 PH 3 CLASS H
SER.F. 1.00 DES B SL HZ 1.3
NEMA-NOM-EFF 88.5 WK2 0.22
BLWR V PH HZ A
RATING 40C AMB-CONT
DE BRG 6206 ODE BRG 6205
CC 010A SN
Page 4 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Parts List
Part Number Description Quantity
SA321747 SA 06F551X813G1 1.000 EA
RA309527 RA 06F551X813G1 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
06CB3000 BALDOR CONDUIT BOX CAST 1.000 EA
06GS1000 GASKET,CONDUIT BOX 1.000 EA
51XW2520A12 SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP1101B70 FR TENV 205 BRG W/ GRSR & THRU-SHAFT ENC 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36PE1300A01 PU ENDPLATE, MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A26 1/4-20X 1 5/8 HEX HD 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
HA3101A34 THRUBOLT- 1/4-20 X 10.375 4.000 EA
35FH4801G THRU-SHAFT ENCODER COVER INV/VECTOR F1 & 1.000 EA
WD4129 1.50 X 1.50 GRAY SNAP IN PLUG PROMOULD # 2.000 EA
10XN2520A08 1/4-20X1/2 HEX HEAD CAP 4.000 EA
10XN2520A08 1/4-20X1/2 HEX HEAD CAP 1.000 EA
06CB3500 BALDOR CONDUIT BOX LID 1.000 EA
06GS1001 BALDOR CONDUIT BOX GASKET 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
Page 5 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Parts List (continued)
Part Number Description Quantity
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
MJ5004A05 #242-21 LOCTITE GENERAL PURPOSE MED. STR 0.005 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.028 GA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1163L ALUM INV UL CSA CC 1.000 EA
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
AC Induction Motor Performance Data
Record # 58281 - Typical performance - not guaranteed values
Winding: 06WGX813-R001 Type: 0624M Enclosure: TENV
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 2 Full Load Torque 6.02 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 6/3 Breakdown Torque 24.49 LB-FT
R.P.M. 1760 Pull-up Torque 12.12 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 15.54 LB-FT
NEMA Design Code B KVA Code K Starting Current 22.2 A
Service Factor (S.F.) 1 No-load Current 1.85 A
NEMA Nom. Eff. 88.5 Power Factor 71 LinelineRes.@25ºC 6.28Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 57°C
Locked-rotor Power Factor 46.8
Rotor inertia 0.223 LB-FT2
Load Characteristics 460 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 30 49 63 71 76 80
Efficiency 79 86.1 88.3 88.5 88 86.9
Speed 1791 1782 1773 1762 1751 1738
Line amperes 1.95 2.21 2.54 2.99 3.48 4.08
Page 7 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 8 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
4 50
4 50
5 50
6 50
8 500
8 497
1 1250
1 1245
2 78
8 21
614-643 = 17 22
2 63
25
8 86
3 51
2 75
25 KEY
1 75 LONG
GREASE FITTING
(EACH END)
AUX NAMEPLATE
(WHEN REQ'D)
NAMEPLATE
8 HOLES
Ø 41
PLUG
(EA SIDE)
3 75 3 75
5 90
8 62
4 50
4 44
9 23
7 09 4 73
11 83
45° 45°
2 04
LEAD HOLE
Ø1 09
4 HOLES
50-13 TAP ON
Ø7 25 B C
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1

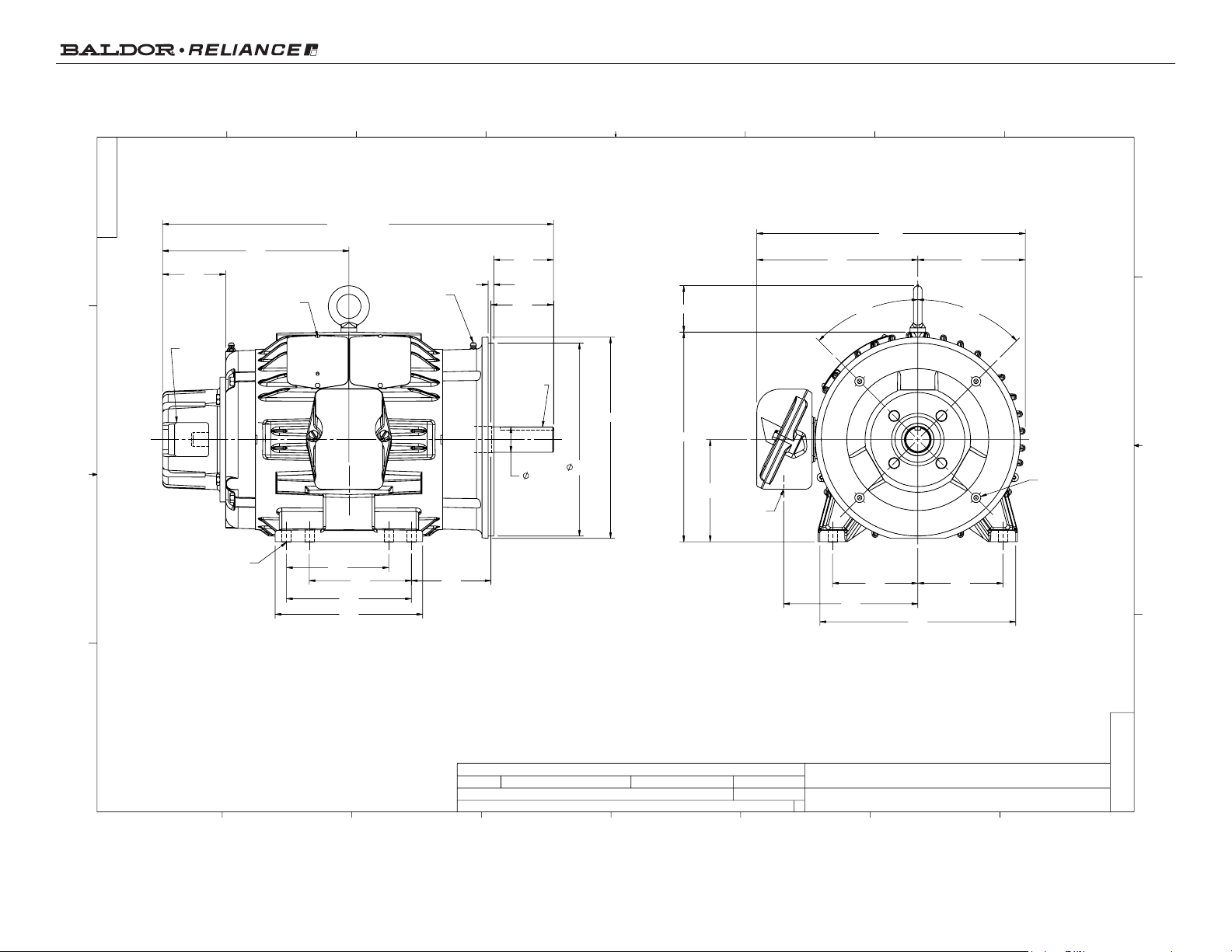

06LYF551
B
STD HORZ 182-4TC TENV INVERTER (THRU-SHAFT ENCODER)
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
06LYF551
LOADING OF INOPC SWD MODEL & DRAWING FOR PKG 37
ENALEM0
F
09 35 53 09/19/2019
-
000001120280
03
06LYF551
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 9 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Page 10 of 11
Product Information Packet: IDNM3669T - 2HP,1760RPM,3PH,60HZ,182TC,0624M,TENV,F1
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
