Baldor IDM4404T Product Information Sheet

Download
Product Information Packet
IDM4404T
75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Part Detail
Revision: Q Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 16WGW650 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 16M058 Layout: 16LYM058 Poles: 06 Created Date: Base: RG Eff. Date: 09-09-2013 Leads: 9#6
Specs
Catalog Number: IDM4404T Enclosure: TEBC Frame: 405T Frame Material: Iron Output @ Frequency: 75.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 176.000 A @ 230.0 V
Insulation Class: H Inverter Code: Inverter Duty KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 6 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1680M Mounting Arrangement: F1 Power Factor: 84 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
88.000 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Nameplate NP1163L
CAT NO IDM4404T
SPEC. 16M058W650G1
FRAME 405T HP 75 TE
VOLTS 230/460
MAG CUR 64.8/32.4 FLA 176/88
RPM 1185 RPM MAX 2800
HZ 60 PH 3 CLASS H
SER.F. 1.00 DES B SL HZ 0.8
NEMA-NOM-EFF 95 WK2 38.9
BLWR V PH HZ A RATING 40C AMB-CONT DE BRG 6316 ODE BRG 6313
CC SN
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Parts List
Part Number Description Quantity SA108801 SA 16M058W650G1 1.000 EA RA100322 RA 16M058W650G1 1.000 EA 18CB1006A10 KOBX W/3.62 LEAD HL, .44 MTG HLS & 3.88 1.000 EA 18GS1000 GASKET, CONDUIT BOX 1.000 EA 10XN3816K16 3/8-16 X 1 HEX HD CAP GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 10XN3118K08 5/16-18 X .50 GRADE #5, STL, ZINC PLATE 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA 16EP1102A41 FR E.P. W/THRU SHAFT ENCODER DESIGN 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN6311K44 5/8-11 X 2 3/4 HEX HD 6.000 EA HW1001A63 WASHER, 5/8 SPLIT LK, ZN 6.000 EA HA1005A26 SLINGER, OD 3.00, ID 1.75, 309 BRG 1.000 EA 10XN2520K12 1/4-20 X.75 GRD 5 1.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 1.000 EA HW5100A16 WAVY WASHER W5408-053 1.000 EA 10XN3816K44 3/8-16 X 2.75 HEX HD CAP SCREW, GRADE 5 2.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 2.000 EA 10XN3118K52 5/16-18 X 3-1/4 HEX HEAD CAP SCR,GR.5,Z/ 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 16EP1703A01 PU ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN6311K44 5/8-11 X 2 3/4 HEX HD 6.000 EA
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Parts List (continued)
Part Number Description Quantity HW1001A63 WASHER, 5/8 SPLIT LK, ZN 6.000 EA HA1005A09 316-48 SLINGER,NEOPRENE 3/8"THK,4"O.D. 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 6.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 6.000 EA 16FH4004 316 VECTOR DRIVE FAN HOUSING DUAL MTG (F 1.000 EA 10XN3816K16 3/8-16 X 1 HEX HD CAP GRADE 5 3.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 3.000 EA 33CB3002 CONDUIT BOX, CAST 1.000 EA 34CB4500SP CONDUIT BOX LID, STAMPED 1.000 EA 34GS1001 GASKET, STD CONDUIT BOX LID (LEXIDE) 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA RM1022A02 GROMMET .875 ID 1.00 OD .12 WALL,VENDOR# 1.000 EA 51XN0832A12 8-32 HEX SLOT WSHR HD MACH SC GRADE 2, Z 2.000 EA HW1001A08 WASHER, #8 SPLT LK, ZN 4.000 EA XY0832A02 8-32 HEX NUT 2.000 EA WD4101A09 STIMPSON D3560, .875 DIA. HOLE PLUG 1.000 EA WD4102A08 #1327 HEYCO STRAIN RELIEF(SR-11-2) 1.000 EA 18CB1506A01 CB LID 318 FOR 18CB1006 1.000 EA 18GS1013 18 GS FOR 18CB1506 LID - LEXIDE 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW2501K66 KEY, 3/4 SQ X 5.625 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1009N LABEL,ROTATION DIRECTION (ON ROLLS) 1.000 EA
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A05 .125 X 6.00 GR EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.400 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA WD4101A08 STIMPSON #D3557,1.188 DIA. HOLE PLUG 2.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.150 GA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA EF5091 VENTURI/GRILLE KIT FOR 316/318 TEBC MOTO 1.000 EA LB1119N WARNING LABEL 1.000 EA LB1172A01 CUSTOM MTR CARTON LABEL LASER PRINTER 4.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1163L ALUM INV UL CSA CC 1.000 EA 18PA2030 PKGP WOOD BASE 318 54 X 34-3/4 1.000 EA
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Load Characteristics at 460 Volts, 60 Hz, 75 HP
AC Induction Motor Performance Data
Record # 20771
Typical performance - not guaranteed values
Winding: 16WGW650 Type: 1680M Enclosure: TEBC
Nameplate Data
General Characteristics at 460 V, 60 Hz:
High Volt Connection
Rated Output (HP) 75
Full Load
Torque
331 LB-FT
Volts 230/460
Start
Configuration
DOL
Full Load Amps 176/88
Break Down
Torque
877 LB-FT
R.P.M. 1185
Pull-Up
Torque
435 LB-FT
Hz 60 Phase 3
Locked-rotor
Torque
514 LB-FT
NEMA Design
Code
B KVA Code G
Starting
Current
579 Amps
Service Factor 1.00
No-load
Current
32.4 Amps
NEMA Nom. Eff. 95.0 P.F. 84
Line-line Res. @ 25°C.
0.0796 Ohms
Rating - Duty 40C AMB-CONT
Temp. Rise
@ Rated Load
60°C
S.F. Amps
Temp. Rise
@ S.F. Load
% of Rated
Load
25 50 75 100 125 150 S.F.
Power Factor 50 72 80 84 85 85
Efficiency 91 94.3 95.1 95 94.5 93.8
Speed 1197 1195 1192 1189 1185 1181
Line Amperes 38.4 52 69 87.8 109.4 132.6
Baldor Electric Company Fort Smith, Arkansas
Page 1
of 1
AC Induction Motor Performance Data
3/1/2013
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Catalog IDM4404T NP VOLTS
230/460
ENCLOSURE TEBC
FRAME 405T NP AMPS
176/88
Base Volts
460 R1 0.040 X1 0.207
HP 75 HP DUTY Cont Base AMPS 87.8 R2 0.028 X2 0.350
BASE SPEED 1200 MAX SAFE RPM 2800 Slip Hz 0.55 XM 6.953
PHASE/HZ 3/60
AMB
0
C/INSUL
40/H
WK
2
(lb-ft
2
)
38.9
SingleCage
Remarks: Calculated Data
DR BY ENR
CK BY
APP BY ENR
DATE
3/1/2013
ISSUE DATE
WYE CONN EQ CKT OHMS PER PHASE (BASE RATING, 20C)

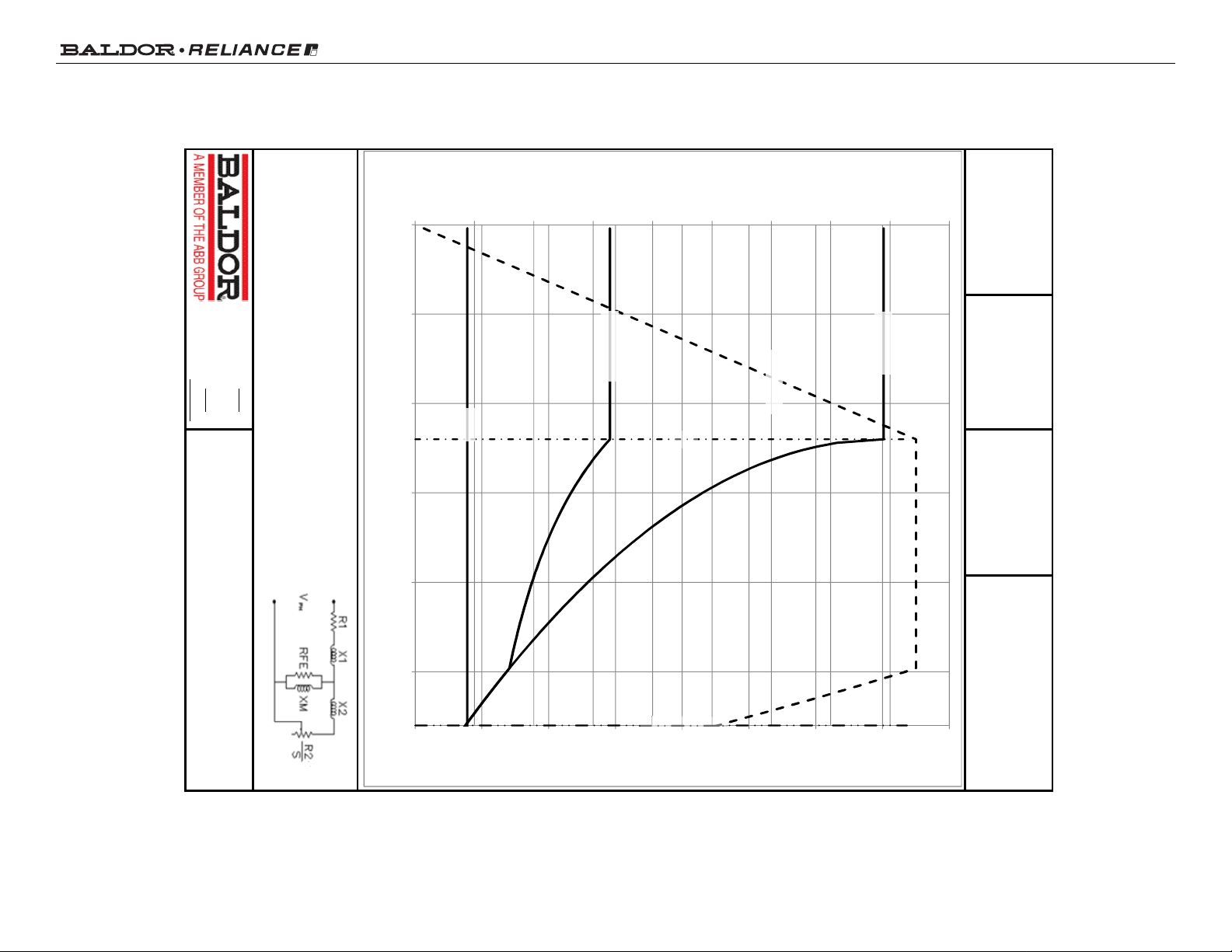

A-C MOTOR
PERFORMANCE CURVES
16M058W650G1
3/1/2013
Rated Torque
PeakTorque
Amps
Base
Maximum Rating
Horsepower
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
0.00
100.00
200.00
300.00
400.00
500.00
600.00
700.00
800.00
900.00
0 500 1000 1500 2000 2500
Horsepower & Amps
Torque (Lb-Ft)
Speed (RPM)
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Page 10 of 11
Product Information Packet: IDM4404T - 75HP,1185RPM,3PH,60HZ,405T,1680M,TEBC,F1
Page 11 of 11
