Baldor IDM3764T Product Information Sheet

Product Information Packet

IDM3764T

38M 6P TEBC HOR 215TC T'STATS INVERTER

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

Part Detail

Revision: A Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 07WGX822 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 07D515 Layout: 07LYD515 Poles: 06 Created Date: 03-18-2019
Base: RG Eff. Date: 07-11-2019 Leads: 9#14

Specs

Catalog Number: IDM3764T
Enclosure: TEBC
Frame: 215TC
Frame Material: Iron
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA

UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: BLOWER

Insulation Class: H
Inverter Code: Inverter Duty
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0738M
Mounting Arrangement: F1
Power Factor: 70
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT

Current @ Voltage: 4.500 A @ 460.0 V

Shaft Extension Location: Pulley End

Page 2 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

9.000 A @ 230.0 V

9.800 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Encoder/Feedback Device
Front Shaft Indicator: None
Heater Indicator: No Heater

Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible: Connected Standard
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None

Page 3 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

Nameplate NP1162L

CAT NO IDM3764T

SPEC. 07D515X822G1

FRAME 215TC HP 3 TE

VOLTS 230/460

MAG CUR 4.6/2.3 FLA 9/4.5

RPM 1165 RPM MAX 2300

HZ 60 PH 3 CLASS H

SER.F. 1.00 DES B SL HZ 1.7

NEMA-NOM-EFF 90.2 WK2 0.945

BLWR V PH HZ A
RATING 40C AMB-CONT
DE BRG 6307 ODE BRG 6206

CC 010A SN

Page 4 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

Parts List

Part Number Description Quantity
SA371175 SA 07D515X822G1 1.000 EA
RA360855 RA 07D515X822G1 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
59XW2520G07 .25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1.000 EA
37EP1100B61 FR TEBC 206 BRG W/ GRSR & THRU-SHAFT ENC 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP1300A01SP FACE MT ENDPLATE-ENCL-307 BRG-213TC-215T 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A30 HEX HD CAP SCREW-STD THD-.25 X 20 THD PE 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
10XN2520A08 1/4-20X1/2 HEX HEAD CAP 2.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HA1005A11 SLINGER, OD 2.00, ID 1.15, 1.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA

Page 5 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

Parts List (continued)

Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA
WD4101A08 STIMPSON #D3557,1.188 DIA. HOLE PLUG 1.000 EA
BLWM07-F 307 BLOWER ASSY. (07FH4015 & EF5100) F1, 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.036 GA
LB1119N WARNING LABEL 1.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
NP1162L SS INV UL CSA CC 1.000 EA
07PA1016 PACKAGING GROUP, STD -E (07 TALL CRATE) 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA

Page 6 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

AC Induction Motor Performance Data

Record # 36498 - Typical performance - not guaranteed values

Winding: 07WGX822-R014 Type: 0738M Enclosure: TEBC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection
Rated Output (HP) 3 Full Load Torque 13.46 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 9/4.5 Breakdown Torque 46.79 LB-FT
R.P.M. 1165 Pull-up Torque 30.52 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 34.44 LB-FT
NEMA Design Code B KVA Code K Starting Current 32 A
Service Factor (S.F.) 1 No-load Current 2.35 A
NEMA Nom. Eff. 90.2 Power Factor 70 LinelineRes.@25ºC 2.62Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 31°C

Locked-rotor Power Factor 22.7

Rotor inertia 0.945 LB-FT2

Load Characteristics 460 V, 60 Hz, 3 HP

% of Rated Load 25 50 75 100 125 150
Power Factor 33 51 62 69 73 75
Efficiency 83.1 88.7 90.7 90.3 89.4 87.7
Speed 1191 1184 1176 1170 1160 1147
Line amperes 2.62 3.11 3.75 4.51 5.38 6.39

Page 7 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values

Page 8 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

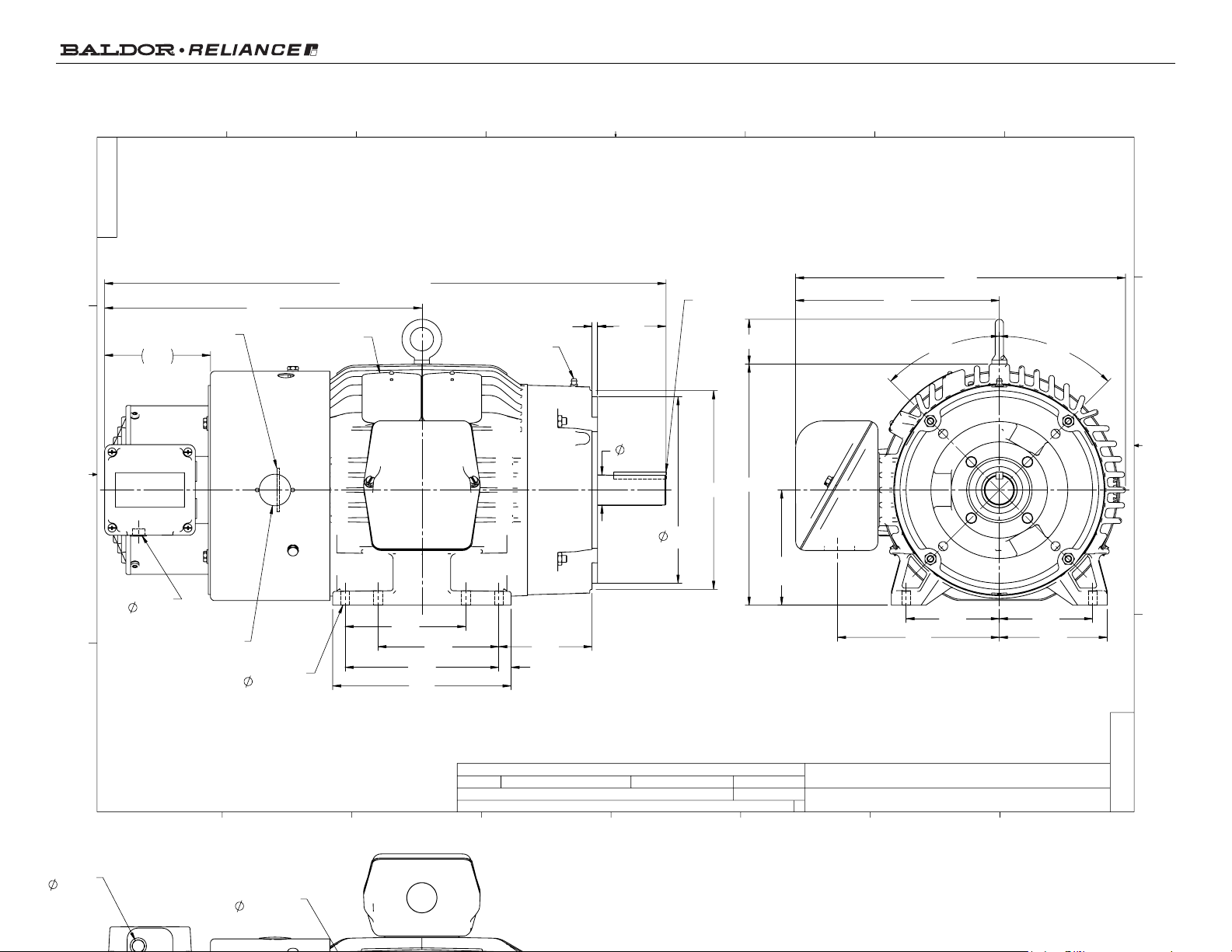

1.3750

1.3745

8.500

8.497

GREASE FITTING

(EACH END)

7.00

5 50

5.50

.56

.25

3.12

4.25

9.05

8.13

4 82

717 - 750 = 25.58

14.46

MILITARY CONNECTOR

(VECTOR MOTORS ONLY)

31 KEY

2.38 LONG

SLINGER

8X

.41 THRU

LEAD HOLE

57

AUX NP

(WHEN REQ'D)

45° 45°

5.25

-

.06

+

.00

4.25 4.25

10.99

2.04

9 28

7.37

4.92

15.03

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

07LYD515

B

STD HORZ 213-5TC TEBC 307M INVERTER/VECTOR (THRU-SHAFT ENC)

REV. DESC

REV

BY

REVISED

MODEL NO.

VERSION

TDR

REF

07LYD515

NEW

ENANGG0

A

11 33 41 06/19/2019

-

000001110778

01

07D515

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION

BALDOR - RELIANCE

®

Page 9 of 11

Product Information Packet: IDM3764T - 38M 6P TEBC HOR 215TC T'STATS INVERTER

Page 10 of 11
