Baldor HM9252T Product Information Sheet

Product Information Packet

HM9252T

50HP,1765RPM,3PH,60HZ,324T,4057M,OPSB,F1

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: HM9252T - 50HP,1765RPM,3PH,60HZ,324T,4057M,OPSB,F1

Part Detail

Revision: K Status: INA/A Change #: Proprietary: No

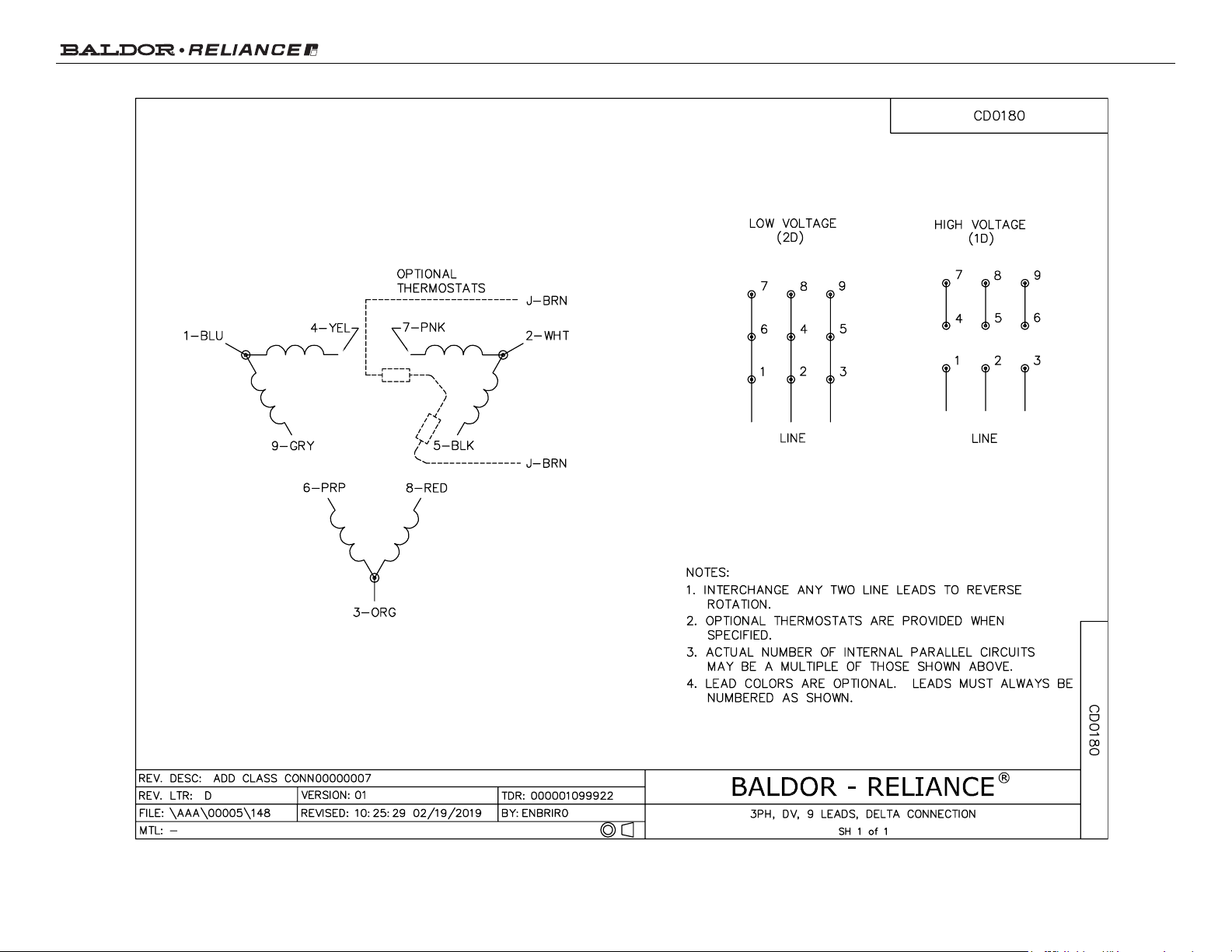

Type: AC Elec. Spec: 40WGW972 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 40J096 Layout: 40LYJ096 Poles: 04 Created Date:
Base: RG Eff. Date: 08-24-2010 Leads: 9#8

Specs

Catalog Number: HM9252T
Enclosure: ODP
Frame: 326T
Frame Material: Steel
Output @ Frequency: 50.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ

460.0 V @ 60 HZ
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 121.000 A @ 230.0 V

130.000 A @ 208.0 V

60.500 A @ 460.0 V
Design Code: B

Inverter Code: Not Inverter
KVA Code: F
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 8 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 4057M
Mounting Arrangement: F1
Power Factor: 84
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding

Drip Cover: No Drip Cover

Shaft Rotation: Reversible

Page 2 of 11

Product Information Packet: HM9252T - 50HP,1765RPM,3PH,60HZ,324T,4057M,OPSB,F1

Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B

Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor

Page 3 of 11

Product Information Packet: HM9252T - 50HP,1765RPM,3PH,60HZ,324T,4057M,OPSB,F1

Nameplate NP1888A02

CAT.NO.

SPEC. 40J096W972H1

HP 50

VOLTS 230/460

AMPS 121/60.5

RPM 1765

FRAME 326T HZ 60 PH 3

SER.F. 1.15 CODE F DES B CL B

NEMA-NOM-EFF 93 PF 84

RATING 40C AMB-CONT

CC 010A USABLE AT 208V 130
DE 6312 ODE 6309

AUTO MANUAL NONE

ENCL OPSB SN

BLANK

Page 4 of 11
