Product Information Packet
HM9246T
30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Part Detail
Revision: H Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 39WGW960 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 39P090 Layout: 39LYP090 Poles: 04 Created Date:
Base: RG Eff. Date: 08-24-2010 Leads: 9#10
Specs
Catalog Number: HM9246T
Enclosure: ODP
Frame: 286T
Frame Material: Steel
Output @ Frequency: 30.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Division: Not Applicable
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 36.000 A @ 460.0 V
72.000 A @ 230.0 V
77.000 A @ 208.0 V
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: H
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 10 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3952M
Mounting Arrangement: F1
Power Factor: 84
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Design Code: B
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Page 3 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Nameplate NP1888A02
CAT.NO.
SPEC. 39P090W960H1
HP 30
VOLTS 230/460
AMPS 72/36
RPM 1760
FRAME 286T HZ 60 PH 3
SER.F. 1.15 CODE H DES B CL B
NEMA-NOM-EFF 92.4 PF 84
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 77
DE 6311 ODE 6208
AUTO MANUAL NONE
ENCL OPSB SN
BLANK
Page 4 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Parts List
Part Number Description Quantity
SA075806 SA 39P090W960H1 1.000 EA
RA069440 RA 39P090W960H1 1.000 EA
S/P101-000-003 EPACT PROC-ZK 280FR & UP,LARGE KOBX,POLY 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA
39CB4000A01 CONDUIT BOX 39, STAMPED 1.000 EA
51XF2520A08 SCREW,1/4-20X1/2 TAPTITE-II OR ROLOC 91 2.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA
WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA
39EP3200A01SP FR/PU ENDPLATE, MACH 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
39EP3202A01 ENDPLATE MACH 1.000 EA
XY3816A12 3/8-16 FINISHED NUT 8.000 EA
39CB4500A01 CONDUIT BOX LID 39, STAMPED, W/ PRIMER 1.000 EA
51XF1032A08 10/32X1/2 HXWSHR HD, SL, TYPE F ,SERATED 2.000 EA
HW2501H28 KEY, 1/2 SQ X 3.250 1.000 EA
39AD2002A01 BAFFLE PLATE 39 OPEN, SLOTTED BAND MTRS 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.030 LB
39AD2002A01 BAFFLE PLATE 39 OPEN, SLOTTED BAND MTRS 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA
MG1000G55 PAINT,WILKO 682.62 LACQUER LIGHT GRAY 0.050 GA
HA3154A04 THRUBOLT STUD 3/8-16 X 18.750 4.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 5 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Parts List (continued)
Part Number Description Quantity
NP1888A02 NP LABEL W/CD0180 (FOR HVAC MOTOR) 1.000 EA
40PA1000 PACKAGING GROUP 1.000 EA
LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Page 6 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Accessories
Part Number Description Multiplier
39-1403 C FACE KIT A8
Page 7 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
AC Induction Motor Performance Data
Record # 13014 - Typical performance - not guaranteed values
Winding: 39WGW960-R001 Type: 3952M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 30 Full Load Torque 89.4 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 72/36 Breakdown Torque 280 LB-FT
R.P.M. 1760 Pull-up Torque 134 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 175 LB-FT
NEMA Design Code A KVA Code H Starting Current 244 A
Service Factor (S.F.) 1.15 No-load Current 15.16 A
NEMA Nom. Eff. 92.4 Power Factor 84 LinelineRes.@25ºC 0.292Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C
S.F. Amps Temp. Rise @ S.F. Load 72°C
Locked-rotor Power Factor 34
Rotor inertia 2.27 LB-FT2
Load Characteristics 460 V, 60 Hz, 30 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 47 69 79 84 87 87 86
Efficiency 87.9 92 92.7 92.4 91.7 90.5 92
Speed 1791 1782 1773 1763 1753 1741 1757
Line amperes 17.07 22.1 28.6 36.1 44.2 53.4 40.9
Page 8 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Performance Graph at 460V, 60Hz, 30.0HP Typical performance - Not guaranteed values
Page 9 of 11

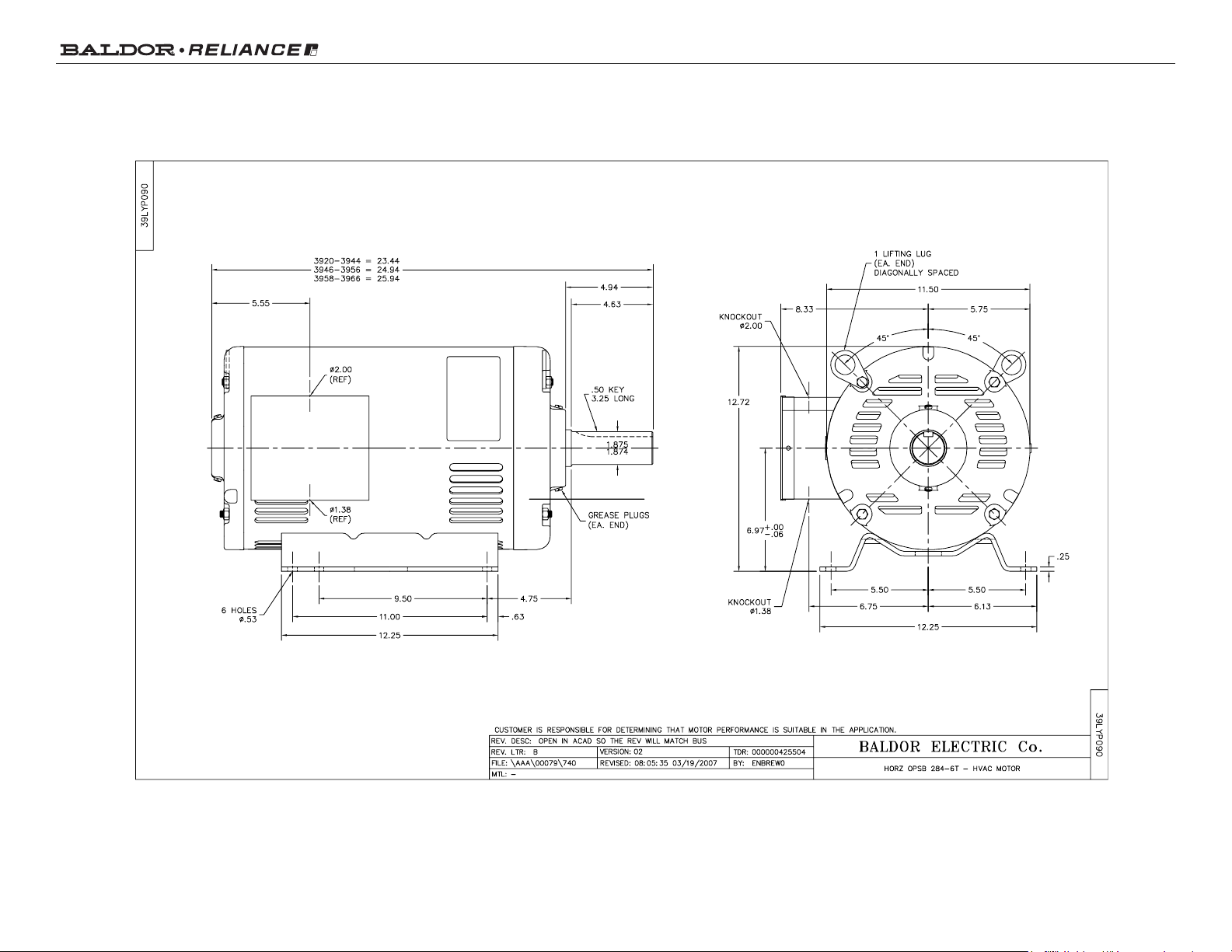

Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Page 10 of 11
Product Information Packet: HM9246T - 30HP,1760RPM,3PH,60HZ,286T,3952M,OPSB,F1
Page 11 of 11
