Baldor HM9242T Product Information Sheet

Product Information Packet

HM9242T

25HP,1760RPM,3PH,60HZ,284T,3942M,OPSB,F1

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: HM9242T - 25HP,1760RPM,3PH,60HZ,284T,3942M,OPSB,F1

Part Detail

Revision: J Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 39WGX114 CD Diagram: CD0005 Mfg Plant:

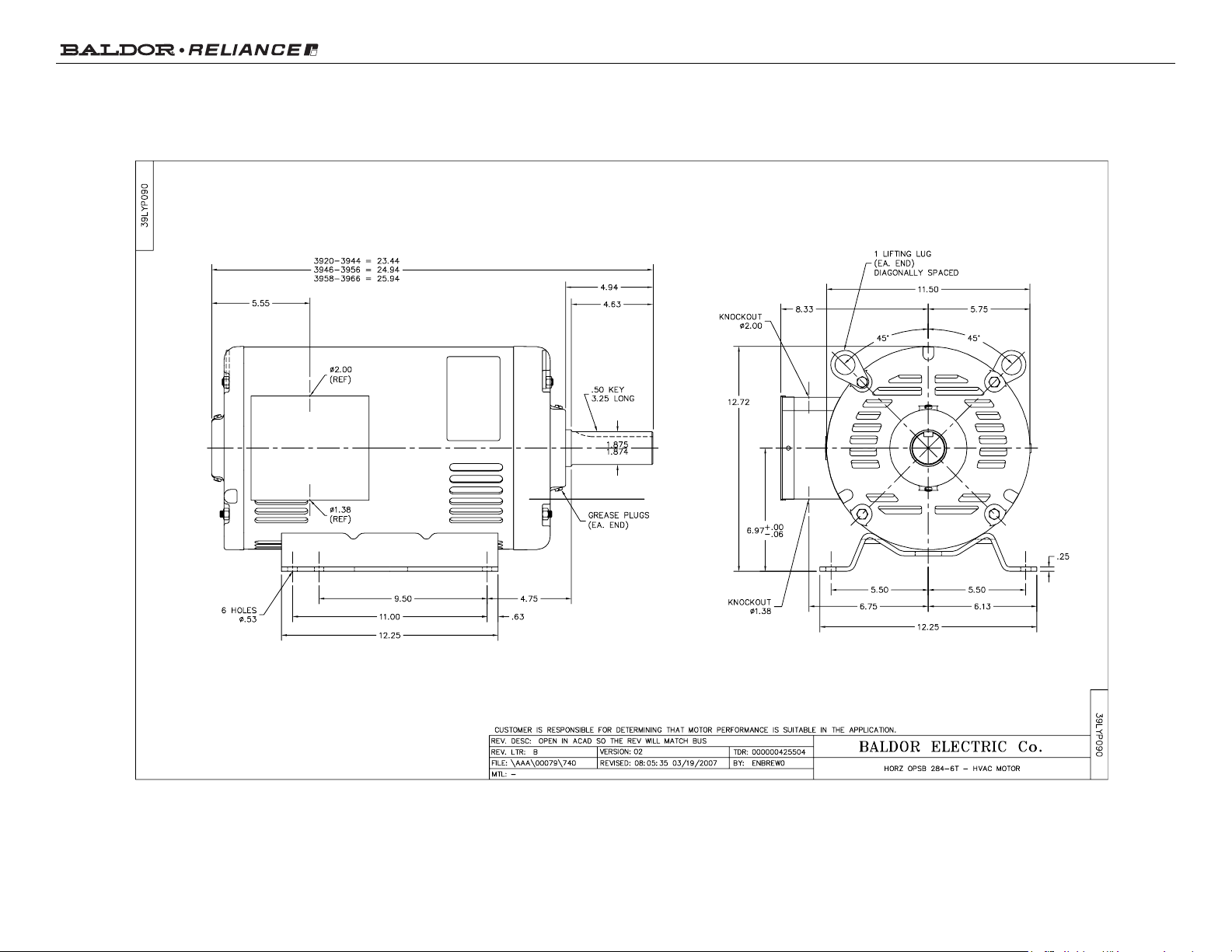

Mech. Spec: 39P090 Layout: 39LYP090 Poles: 04 Created Date:
Base: RG Eff. Date: 08-24-2010 Leads: 9#10

Specs

Catalog Number: HM9242T
Enclosure: ODP
Frame: 284T
Frame Material: Steel
Output @ Frequency: 25.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ

460.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: UR

CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 30.000 A @ 460.0 V

Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 10 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3942M
Mounting Arrangement: F1
Power Factor: 85
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None

60.000 A @ 230.0 V

Shaft Extension Location: Pulley End

Page 2 of 11

Product Information Packet: HM9242T - 25HP,1760RPM,3PH,60HZ,284T,3942M,OPSB,F1

65.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None

Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor

Page 3 of 11

Product Information Packet: HM9242T - 25HP,1760RPM,3PH,60HZ,284T,3942M,OPSB,F1

Nameplate NP2094C01B03

CAT.NO.

SPEC. 39P090X114H1

HP 25

VOLTS 230/460

AMPS 60/30

RPM 1760

FRAME 284T HZ 60 PH 3

SER.F. 1.15 CODE G DES B CL B

NEMA-NOM-EFF 91.7 PF 85

RATING 40C AMB-CONT

CC USABLE AT 208V 65
DE 6311 ODE 6208

AUTO MANUAL NONE

ENCL OPSB SN
