Product Information Packet
HM9126T
5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Part Detail
Revision: F Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGT846 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 36J561 Layout: 36LYJ561 Poles: 04 Created Date:
Base: RG Eff. Date: 08-24-2010 Leads: 9#16
Specs
Catalog Number: HM9126T
Enclosure: TEFC
Frame: 184T
Output @ Frequency: 5.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 14.200 A @ 230.0 V
15.400 A @ 208.0 V
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3633M
Mounting Arrangement: F1
Power Factor: 75
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
7.100 A @ 460.0 V
Shaft Rotation: Reversible
Page 2 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Nameplate NP2094C01B03
CAT.NO.
SPEC. 36J561T846H1
HP 5
VOLTS 230/460
AMPS 14.2/7.1
RPM 1750
FRAME 184T HZ 60 PH 3
SER.F. 1.15 CODE K DES B CL B
NEMA-NOM-EFF 87.5 PF 75
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 15.4
DE 6206 ODE 6205
AUTO N MANUAL N NONE Y
ENCL TEFC SN
Page 4 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Parts List
Part Number Description Quantity
SA122841 SA 36J561T846H1 1.000 EA
RA113400 RA 36J561T846H1 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3104A02 FREP MACH W/O GRSR, RAISED FH PADS 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP3100A04 PU ENDPLATE, MACH 1.000 EA
XY2520A12 1/4-20 HEX NUT, DIRECTIONAL SERRATIONS 4.000 EA
36FH4009A101 IEC FH NO GREASER, W/PRIMER 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
37GS1001SP GASKET, CONDUIT BOX LID, .06 THICK LEXID 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
MG1000G55 PAINT,WILKO 682.62 LACQUER LIGHT GRAY 0.022 GA
HA3101A25 THRUBOLT 1/4-20 X 11.000 OHIO ROD 4.000 EA
36FN3000C01SP EXFN, PLASTIC, 5.25 OD, .912 ID 1.000 EA
Page 5 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
NP2094C01B03 MYLAR HVAC UL CSA CC CD0005 INV READY 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Page 6 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Accessories
Part Number Description Multiplier
36-3403 C FACE KIT A8
36EP1304A62SP FLANGE MTD ENDPLATE 182-4TD -ENCL (LESS A8
Page 7 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
AC Induction Motor Performance Data
Record # 20858 - Typical performance - not guaranteed values
Winding: 36WGT846-R003 Type: 3634M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 5 Full Load Torque 14.89 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 14.2/7.1 Breakdown Torque 55.96 LB-FT
R.P.M. 1750 Pull-up Torque 32.54 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 39.07 LB-FT
NEMA Design Code B KVA Code K Starting Current 53.12 A
Service Factor (S.F.) 1.15 No-load Current 3.8 A
NEMA Nom. Eff. 87.5 Power Factor 75 LinelineRes.@25ºC 2.5Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 81°C
S.F. Amps Temp. Rise @ S.F. Load 97°C
Locked-rotor Power Factor 48.2
Rotor inertia 0.316 LB-FT2
Load Characteristics 460 V, 60 Hz, 5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 35 58 70 77 82 84 79
Efficiency 80.4 86.8 88.3 87.9 87.2 85.6 87.6
Speed 1788 1776 1764 1750 1736 1718 1742
Line amperes 4.02 4.72 5.7 6.83 8.23 9.72 7.72
Page 8 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1

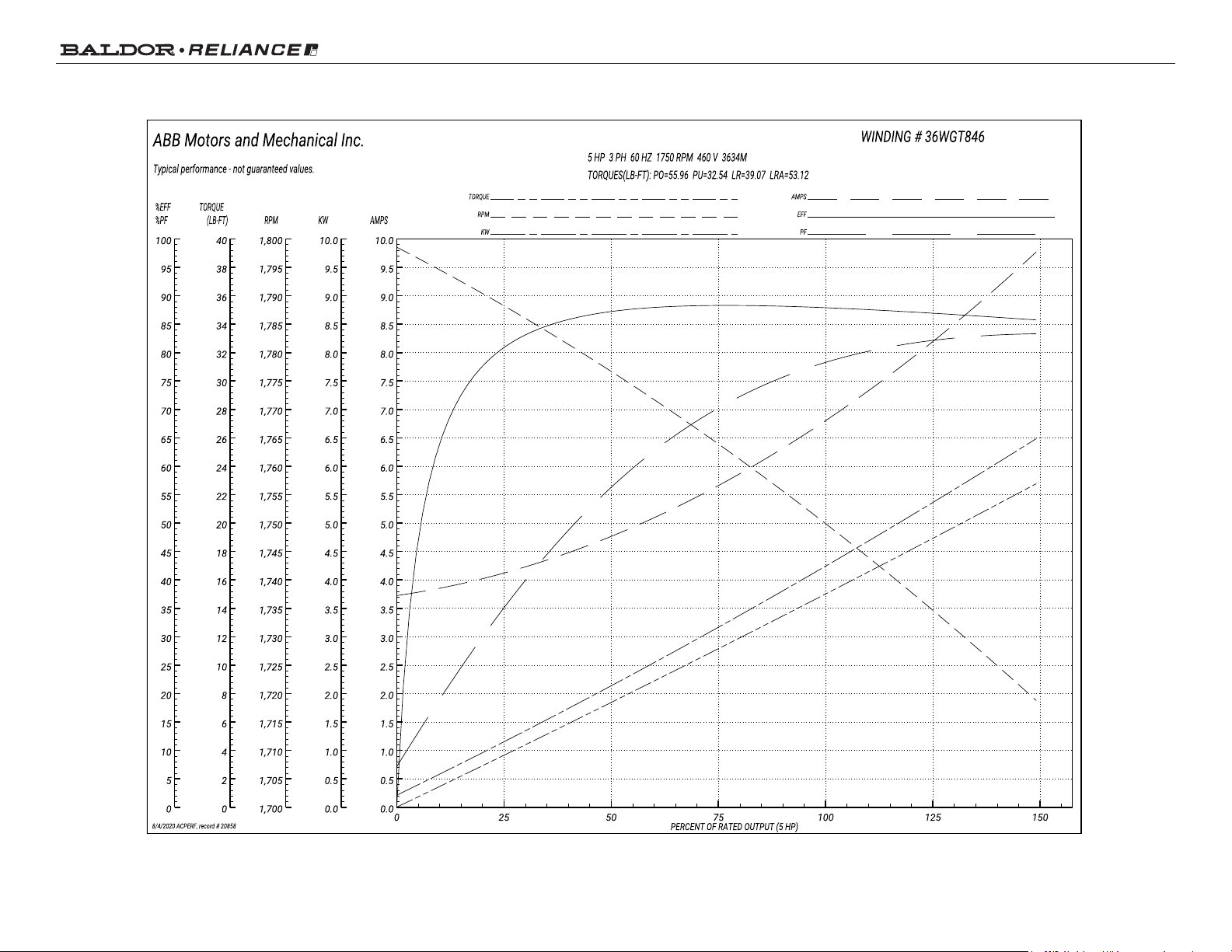

Performance Graph at 460V, 60Hz, 5.0HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Page 10 of 11
Product Information Packet: HM9126T - 5HP,1750RPM,3PH,60HZ,184T,3633M,TEFC,F1
Page 11 of 11
