Baldor HM3313T Product Information Sheet

Product Information Packet

HM3313T

10HP,1765RPM,3PH,60HZ,215T,3733M,OPSB,F1

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: HM3313T - 10HP,1765RPM,3PH,60HZ,215T,3733M,OPSB,F1

Part Detail

Revision: E Status: INA/A Change #: Proprietary: No

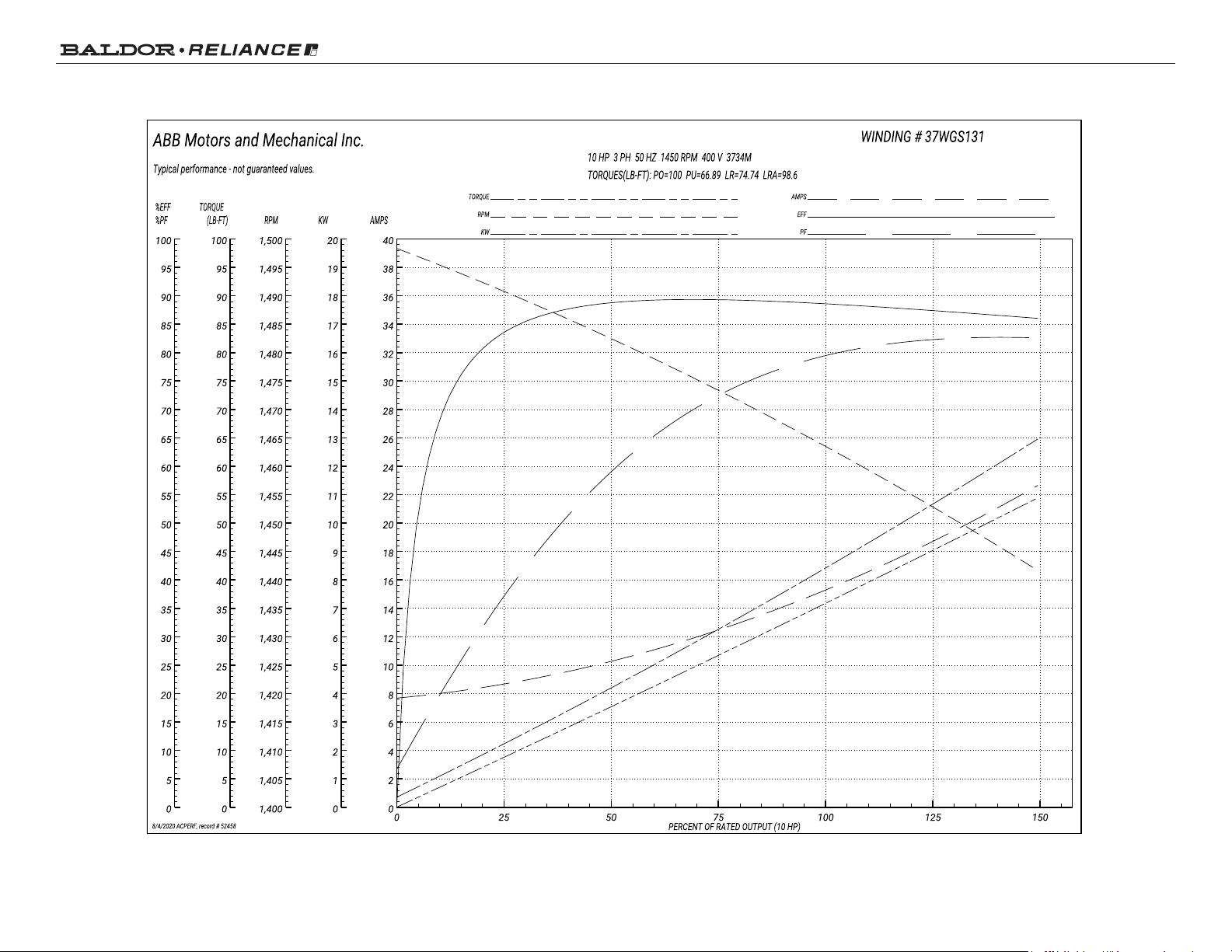

Type: AC Elec. Spec: 37WGS131 CD Diagram: CD0005 Mfg Plant:

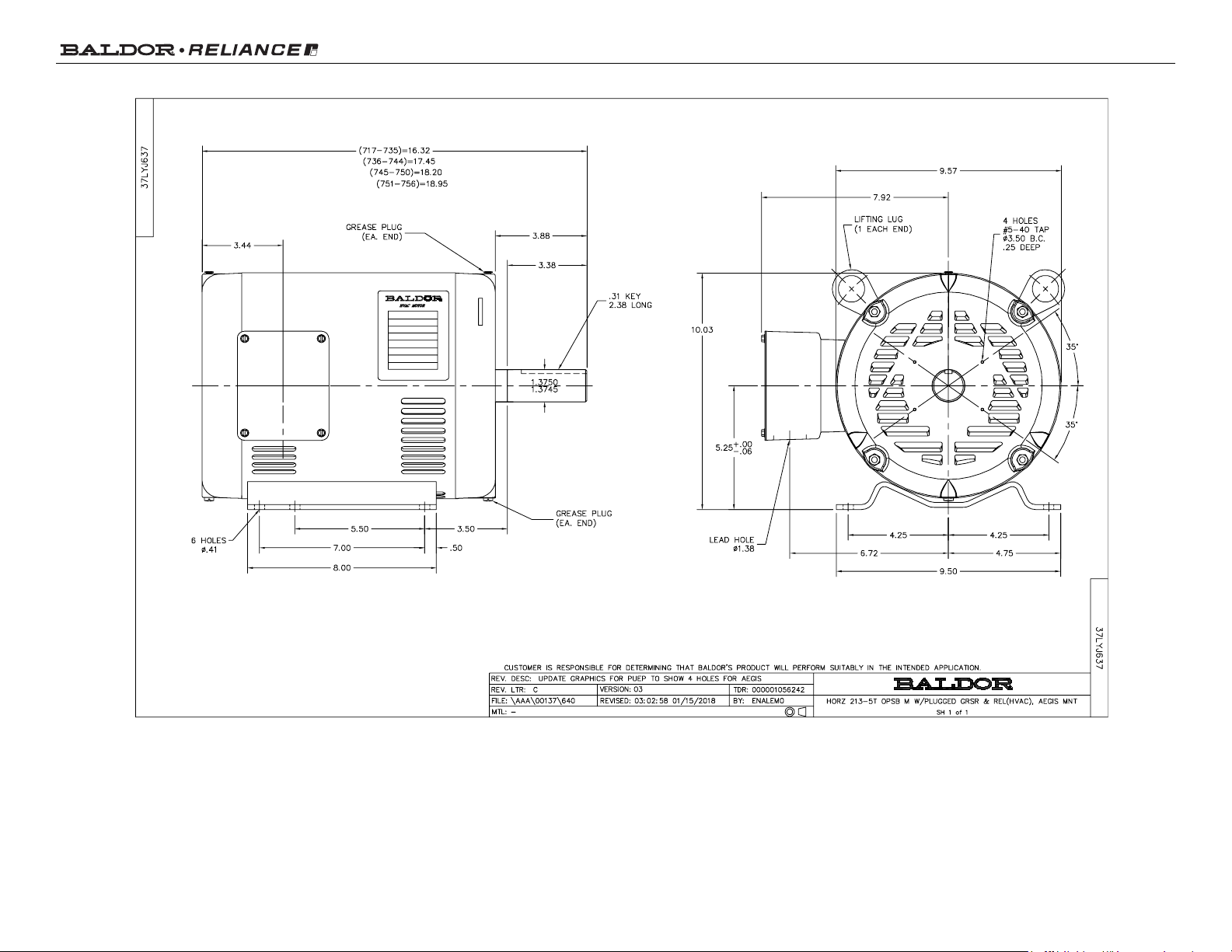

Mech. Spec: 37J637 Layout: 37LYJ637 Poles: 04 Created Date: 10-05-2006
Base: RG Eff. Date: 01-06-2010 Leads: 9#14

Specs

Catalog Number: HM3313T
Enclosure: ODP
Frame: 215T
Output @ Frequency: 10.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ

208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA

UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 13.400 A @ 460.0 V

Insulation Class: B
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3733M
Mounting Arrangement: F1
Power Factor: 78
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End

26.800 A @ 230.0 V

Shaft Ground Indicator: No Shaft Grounding

Page 2 of 10

Product Information Packet: HM3313T - 10HP,1765RPM,3PH,60HZ,215T,3733M,OPSB,F1

29.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater

Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None

Page 3 of 10
