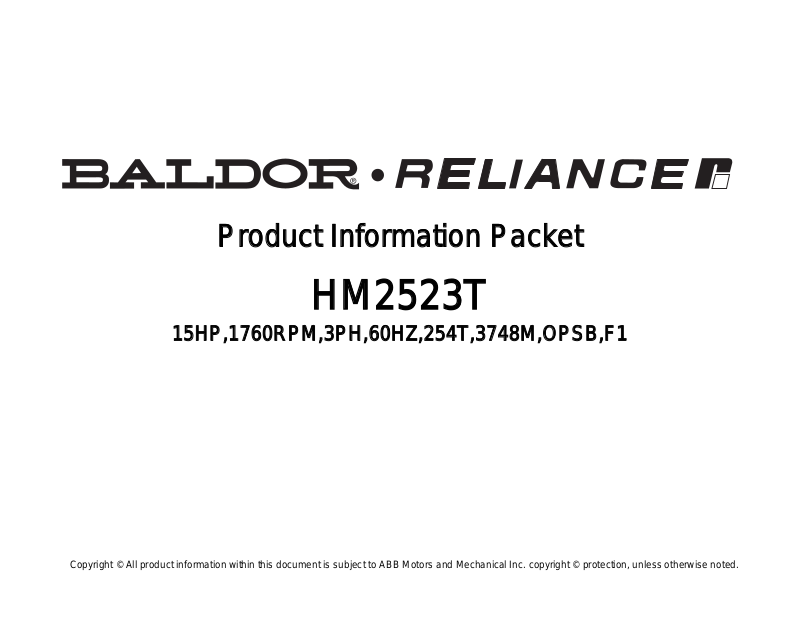

Product Information Packet
HM2523T
15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Part Detail
Revision: F Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGT867 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 37L725 Layout: 37LYL725 Poles: 04 Created Date: 06-28-2006
Base: RG Eff. Date: 01-14-2010 Leads: 9#12
Specs
Catalog Number: HM2523T
Enclosure: ODP
Frame: 254T
Output @ Frequency: 15.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 19.000 A @ 460.0 V
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3748M
Mounting Arrangement: F1
Power Factor: 81
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
38.000 A @ 230.0 V
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
41.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Page 3 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Nameplate NP2094C06B03
CAT.NO. HM2523T
SPEC. 37L725T867H1
HP 15
VOLTS 208-230/460
AMPS 41-38/19
RPM 1760
FRAME 254T HZ 60 PH 3
SER.F. 1.15 CODE J DES A CL F
NEMA-NOM-EFF 91 PF 81
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6309 ODE 6206
AUTO N MANUAL N NONE Y
ENCL OPSB SN
BLANK
Page 4 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Parts List
Part Number Description Quantity
SA145739 SA 37L725T867H1 1.000 EA
RA134868 RA 37L725T867H1 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA
37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA
51XW2520A10 .25-20 X .62, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA
37EP3203D00 FR ENDPLATE MACH 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP3202A05 PUEP OPEN 309 BRG GREASERS, RELIEF 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G55 PAINT,WILKO 682.62 LACQUER LIGHT GRAY 0.028 GA
HA3104A24 THRUBOLT- 5/16-18 X14.375 X 4.000 EA
37AD2001A01 BAFFLE PLATE, PLASTIC 0.63" WIDTH 2.000 EA
Page 5 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Parts List (continued)
Part Number Description Quantity
LC0005 CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
NP2094C06B03 NP LABEL W/BARCODE (FOR HVAC MOTOR) 1.000 EA
37PA1074 PALLET PACK GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
AC Induction Motor Performance Data
Record # 16633 - Typical performance - not guaranteed values
Winding: 37WGT867-R002 Type: 3748M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 15 Full Load Torque 44.67 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 41-38/19 Breakdown Torque 187.4 LB-FT
R.P.M. 1760 Pull-up Torque 63.3 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 90.4 LB-FT
NEMA Design Code A KVA Code J Starting Current 135.7 A
Service Factor (S.F.) 1.15 No-load Current 8.45 A
NEMA Nom. Eff. 91 Power Factor 81 LinelineRes.@25ºC 0.695Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C
S.F. Amps Temp. Rise @ S.F. Load 64°C
Locked-rotor Power Factor 36
Rotor inertia 1.18 LB-FT2
Load Characteristics 460 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 42 64 75 81 83 83 82
Efficiency 86.4 90.8 91.5 91 90 88.6 90.4
Speed 1791 1782 1773 1763 1752 1740 1756
Line amperes 9.73 12.12 15.3 19 23.57 28.66 21.7
Page 7 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Performance Graph at 460V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Page 9 of 10
Product Information Packet: HM2523T - 15HP,1760RPM,3PH,60HZ,254T,3748M,OPSB,F1
Page 10 of 10
