Product Information Packet
GDL3770T
7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Part Detail

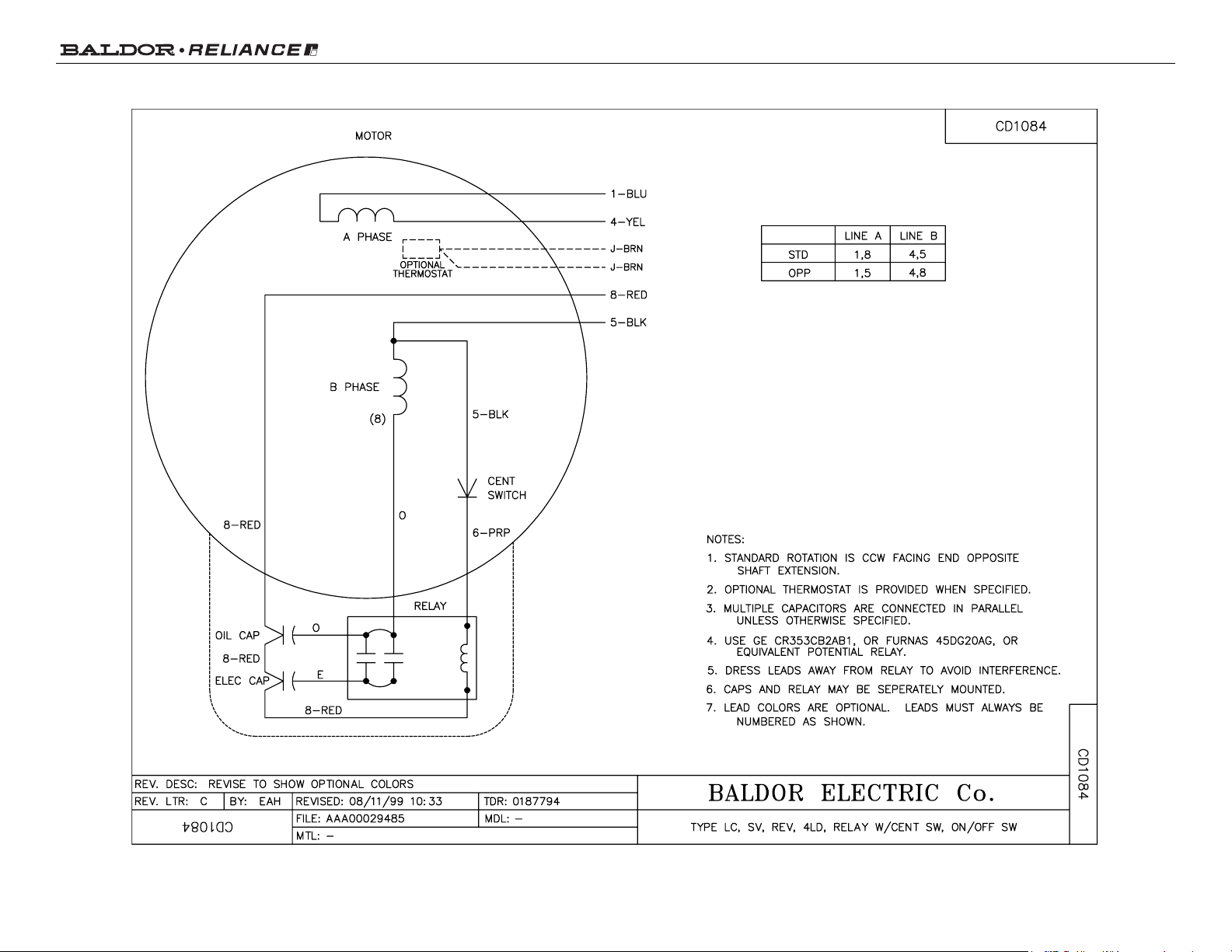

Revision: D Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 07WGR851 CD Diagram: CD1084 Mfg Plant: Mech. Spec: 07N243 Layout: Poles: 04 Created Date: 08-31-2015 Base: RG Eff. Date: 07-16-2019 Leads: 2#10 A PH,2#14 B PH
Specs
Catalog Number: GDL3770T Enclosure: TEFC Frame: 215TZ Frame Material: Iron Output @ Frequency: 7.500 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 29.600 A @ 230.0 V
Inverter Code: Not Inverter KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 2 @ 10 AWG, A PH Motor Lead Exit: Cap Box Motor Lead Termination: Flying Leads Motor Type: 0743LC Mounting Arrangement: F1 Power Factor: 96 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding
Design Code: L
Shaft Rotation: Reversible
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F
Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Nameplate NP1279L
CAT.NO. GDL3770T
SPEC. 07N243R851G1
HP 7.5
VOLTS 230
AMP 29.6 RPM 1750
FRAME 215TZ HZ 60 PH 1
SER.F. 1.15 CODE G DES L CL F
NEMA-NOM-EFF 85.5 PF 96
RATING 40C AMB-CONT
CC USABLE AT 208V DE 6307 ODE 6206
ENCL TEFC SN
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Parts List
Part Number Description Quantity SA306972 SA 07N243R851G1 1.000 EA RA294248 RA 07N243R851G1 1.000 EA OC3040F18SP 7YL OIL CAP 40MFD/370V 2.000 EA RE5029 MARS 91423 DOUBLE POLE 230-240V CONTACTO 1.000 EA EC1189C06SP ELEC CAP, 189-227 MFD, 250V, 2.06D X 4. 4.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 09CB3801A01 SPL CAPACITOR BOX ADAPTER 1.000 EA 09GS1003 ADAPTER GASKET MODEL 309 MOTORS 1.000 EA 19XW2520A16 SCREW,1/4-20X1 TAPTITE-II OR ROLOC 91 4.000 EA HA7010A02 LEAD WIRE RETENTION CLAMP 2.50" 1.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 37CB3804A57 CAPAC. BOX 37 MOTORS FOR 6-7 CAPAC. W/RE 1.000 EA 37GS3015 GASKET, CAPAC BOX 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 2.000 EA HA6003A47 CAPAC CLAMP 2.000 EA HA6003A45 CAPAC CLAMP - CLIP (WHITE ZINC PLATED) 1.000 EA 51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 4.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 37EP1100E09 SPL FR ENDPLATE -TEFC- L/LC 1.000 EA 13XF0832A08 8-32 X.50 PAN HD,SLTD, TYPE F SCREW, ZIN 2.000 EA NS2539 INSULATOR FOR 37 FRAMESWITCH (MH1011A10) 1.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Parts List (continued)
Part Number Description Quantity 37EP1101D15 PUEP 307 LOCKED BRG, SEAL NO DRAIN 1.000 EA HW4600B51 SEAL 1.375 X 2.125 X 0.313 SINGLE LIP DB 1.000 EA 10XN2520A28 1/4-20X 1 3/4 HEX HD 4.000 EA XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA 07FH4007A07 IEC FH NO GRSR, NOTCH @ 6:00 & 3 F/C HOL 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA 37CB4509 CAPAC BOX LID, STAMPED 1.000 EA 37GS3016 GASKET, CAPAC BOX LID 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 6.000 EA HA1005A02 SLINGER, OD 2.00, ID 1.14, 206 BRG, 1.000 EA HW4600B33 V-RING SLINGER 1.375 X 1.890 X .35 VITON 1.000 EA HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1025C02 WILKOFAST SG, 787.105, TAN 0.017 GA 37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA SP5172A06 37 TYPE L TORQ STAT SWITCH LEAD ASSEMBLY 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0017 CONN LABEL-1 PHASE-SINGLE VOLT-REV ROTNO 1.000 EA NP1279L ALUM FARM DUTY UL CSA CC 1.000 EA
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
07PA1099 PKGP CRATE OPEN 210T 28X22-1/2X17-1/2 1.000 EA 10XL3808A28 3/8 X 1 3/4" LAG SCREW 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
AC Induction Motor Performance Data
Record # 54919 - Typical performance - not guaranteed values
Winding: 07WGR851-R001 Type: 0743LC Enclosure: TEFC
Nameplate Data
230 V, 60 Hz:
Single Voltage Motor Rated Output (HP) 7.5 Full Load Torque 22.5 LB-FT Volts 230 Start Configuration direct on line Full Load Amps 29.6 Breakdown Torque 63 LB-FT R.P.M. 1750 Pull-up Torque 43.4 LB-FT Hz 60 Phase 1 Locked-rotor Torque 57.6 LB-FT NEMA Design Code L KVA Code G Starting Current 205 A Service Factor (S.F.) 1.15 No-load Current 6.5 A
NEMA Nom. Eff. 85.5 Power Factor 96 LinelineRes.@25ºC
0.25082ΩAPh
0.73066ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 72°C S.F. Amps Temp. Rise @ S.F. Load 89°C
Load Characteristics 230 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 86 93 95 96 96 95 96 Efficiency 70.5 82.3 85.7 85.9 84.4 81.4 85 Speed 1788.6 1778.5 1767.2 1754.5 1739.1 1719.1 1745 Line amperes 10.1 16 22.4 29.6 37.7 47.4 34.5
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Performance Graph at 230V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Product Information Packet: GDL3770T - 7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC,TEFC
Page 10 of 10
