Product Information Packet
FDEM4110T
40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Part Detail
Revision: M Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 12WGY276 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 12G994 Layout: 12LYG994 Poles: 04 Created Date: 12-13-2013
Base: RG Eff. Date: 09-16-2019 Leads: 9#8
Specs
Catalog Number: FDEM4110T
Enclosure: TEFC
Frame: 324T
Frame Material: Iron
Output @ Frequency: 40.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: H
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 8 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 1254M
Mounting Arrangement: F1
Power Factor: 82
Product Family: General Purpose
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Current @ Voltage: 102.000 A @ 208.0 V
48.000 A @ 460.0 V
96.000 A @ 230.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Nameplate NP3126L
CAT.NO. FDEM4110T
SPEC. 12G994Y276G1
HP 40
VOLTS 230/460
AMP 96/48
RPM 1775
FRAME 324T HZ 60 PH 3
SER.F. 1.15 CODE H DES A CL F
NEMA-NOM-EFF 94.1 PF 82
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 102
DE 6312 ODE 6311
ENCL TEFC SN
Page 4 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Parts List
Part Number Description Quantity
SA274127 SA 12G994Y276G1 1.000 EA
RA260715 RA 12G994Y276G1 1.000 EA
09FN3001B03SP EXTERNAL FAN, PLASTIC 1.000 EA
10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA
19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA
12EP1107A156 FREP W/"O" DRN & NO GRSR,RLF,DRN,RET HLS 1.000 EA
HA3400A13 STUD, 1/2-13 X 7" WELKER 4.000 EA
HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA
HW5100A13 W4627-047 WVY WSHER 1.000 EA
10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
12EP1106A85 PUEP, MACH FOR 3.00 LIP SEAL 1.000 EA
10XN5013K28 1/2-13 X 1.75 HEX HEAD MACH SCREW,GRAD 4.000 EA
HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA
HW4600B37 SEAL 2.250 X 3.000 X .375 SINGLE LIP 1.000 EA
HW4600B41 V-RING SLINGER 2.125 X 2.880 X 0.280 1.000 EA
12FH1002SP FAN COVER, CAST 1.000 EA
HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA
XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 4.000 EA
WD4100A02 DP-1000 HEYCO PLUG OR 62MP1000 MICRO PL 1.000 EA
Page 5 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
HW2501H33 KEY, 1/2 SQ X 3.875 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
HA4066A01 PUSH IN T-DRAIN FITTING (BLACK) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB
HA4066A01 PUSH IN T-DRAIN FITTING (BLACK) 1.000 EA
HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
MG1025C02 WILKOFAST SG, 787.105, TAN 0.080 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0181 CONNECTION LABEL 1.000 EA
NP3126L ALUM FARM DUTY SUPER-E UL CSA-EEV PREM 1.000 EA
12PA1000 PACKAGING GROUP PRINT PK1024A06 1.000 EA
Page 6 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
AC Induction Motor Performance Data
Record # 31673 - Typical performance - not guaranteed values
Winding: 12WGY276-R001 Type: 1254M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 40 Full Load Torque 119 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 96/48 Breakdown Torque 396 LB-FT
R.P.M. 1775 Pull-up Torque 198 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 222 LB-FT
NEMA Design Code A KVA Code H Starting Current 347 A
Service Factor (S.F.) 1.15 No-load Current 21.03 A
NEMA Nom. Eff. 94.1 Power Factor 82 LinelineRes.@25ºC 0.139Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C
S.F. Amps Temp. Rise @ S.F. Load 66°C
Locked-rotor Power Factor 27.1
Rotor inertia 7.19 LB-FT2
Load Characteristics 460 V, 60 Hz, 40 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 45 67 77 82 84 85 83
Efficiency 89.8 93.4 94.1 94.4 93.9 93.1 94.1
Speed 1794 1788 1783 1777 1771 1765 1773
Line amperes 23.93 30.4 39.12 48.68 59.71 71.22 55.3
Page 7 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Performance Graph at 460V, 60Hz, 40.0HP Typical performance - Not guaranteed values
Page 8 of 11

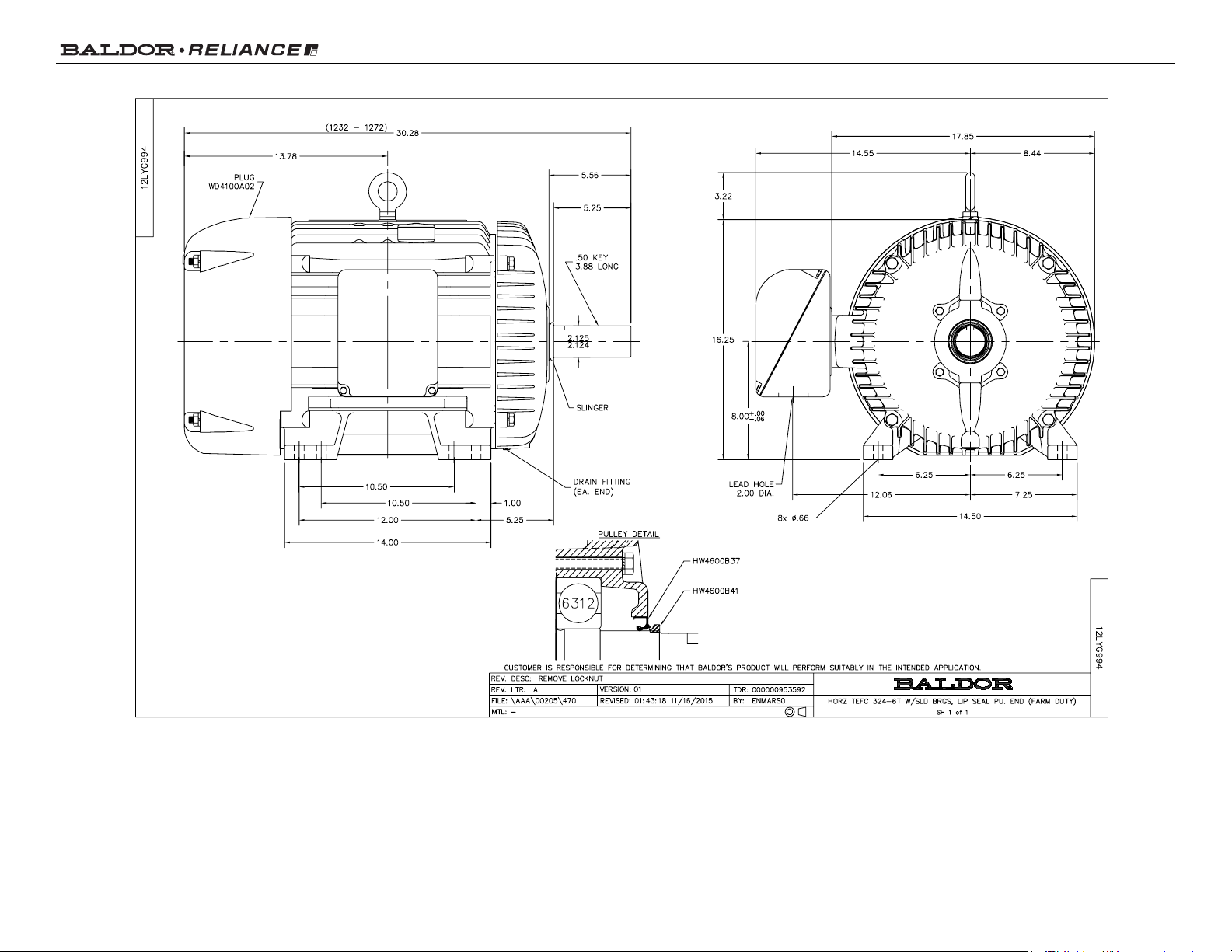

Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Page 9 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Page 10 of 11
Product Information Packet: FDEM4110T - 40HP,1775RPM,3PH,60HZ,324T,1254M,TEFC,F1
Marketing maintained PDF of MN416:
MN416?ManNumber=MN416
Page 11 of 11
