Product Information Packet
EWCM3314T
15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGS867 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 37F978 Layout: 37LYF978 Poles: 02 Created Date: 05-28-2015
Base: RG Eff. Date: 07-17-2019 Leads: 9#12
Specs
Catalog Number: EWCM3314T
Enclosure: OPSB
Frame: 215TCZ
Frame Material: Steel
Output @ Frequency: 15.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3734M
Mounting Arrangement: F1
Power Factor: 89
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Current @ Voltage: 17.500 A @ 460.0 V
35.000 A @ 230.0 V
36.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Nameplate NP1259L
CAT.NO. EWCM3314T
SPEC. 37F978S867G2
HP 15
VOLTS 230/460
AMP 35/17.5
RPM 3475
FRAME 215TCZ HZ 60 PH 3
SER.F. 1.15 CODE G DES B CL F
NEMA-NOM-EFF 90.2 PF 89
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 36
DE 6309 ODE 6206
ENCL OPSB SN
Page 4 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Parts List
Part Number Description Quantity
SA302311 SA 37F978S867G2 1.000 EA
RA289405 RA 37F978S867G2 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA
37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA
51XW2520A10 .25-20 X .62, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
37EP3203D00 MASTER,ODE,206 BRG,GREASER,RELIEF 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA1104A01 RODENT SCREEN 37 FRAME 206 BRG FRONT END 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP3401A08 PUEP 309 BRG NO BAFF, W/METAL SLINGER 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HA1222 RODENT SCREEN - 37 C-FACE MOTORS 4.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
10XN2520A36 1/4-20X 2 1/4 HEX HD X 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
Page 5 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Parts List (continued)
Part Number Description Quantity
HA2009A02 SLINGER MODEL 37 PUMP MOTORS-2.75 DIA. A 1.000 EA
80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA
HW2501D14 KEY, 3/16 SQ X 1.500 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.028 GA
HA3104A39 THRUBOLT-5/16-18 X 12.250 4.000 EA
37AD2001A01 BAFFLE PLATE, PLASTIC 0.63" WIDTH 2.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1259L ALUM SUPER-E UL CSA-EEV CC NEMA PREMIUM 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
AC Induction Motor Performance Data
Record # 53403 - Typical performance - not guaranteed values
Winding: 37WGS867-R013 Type: 3734M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 15 Full Load Torque 22.6 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 35/17.5 Breakdown Torque 92 LB-FT
R.P.M. 3500 Pull-up Torque 28.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 37.5 LB-FT
NEMA Design Code B KVA Code G Starting Current 109.3 A
Service Factor (S.F.) 1.15 No-load Current 5.49 A
NEMA Nom. Eff. 90.2 Power Factor 79 LinelineRes.@25ºC 0.7163Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 46°C
S.F. Amps Temp. Rise @ S.F. Load 59°C
Locked-rotor Power Factor 33
Rotor inertia 0.31 LB-FT2
Load Characteristics 460 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 58 78 86 89 89 88 89
Efficiency 90.3 92.5 92.2 90.9 89.2 87.1 89.9
Speed 3572 3545.3 3514.9 3479.7 3441.4 3398.7 3457
Line amperes 6.69 9.59 13.2 17.3 22 27.3 20.1
Page 7 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB

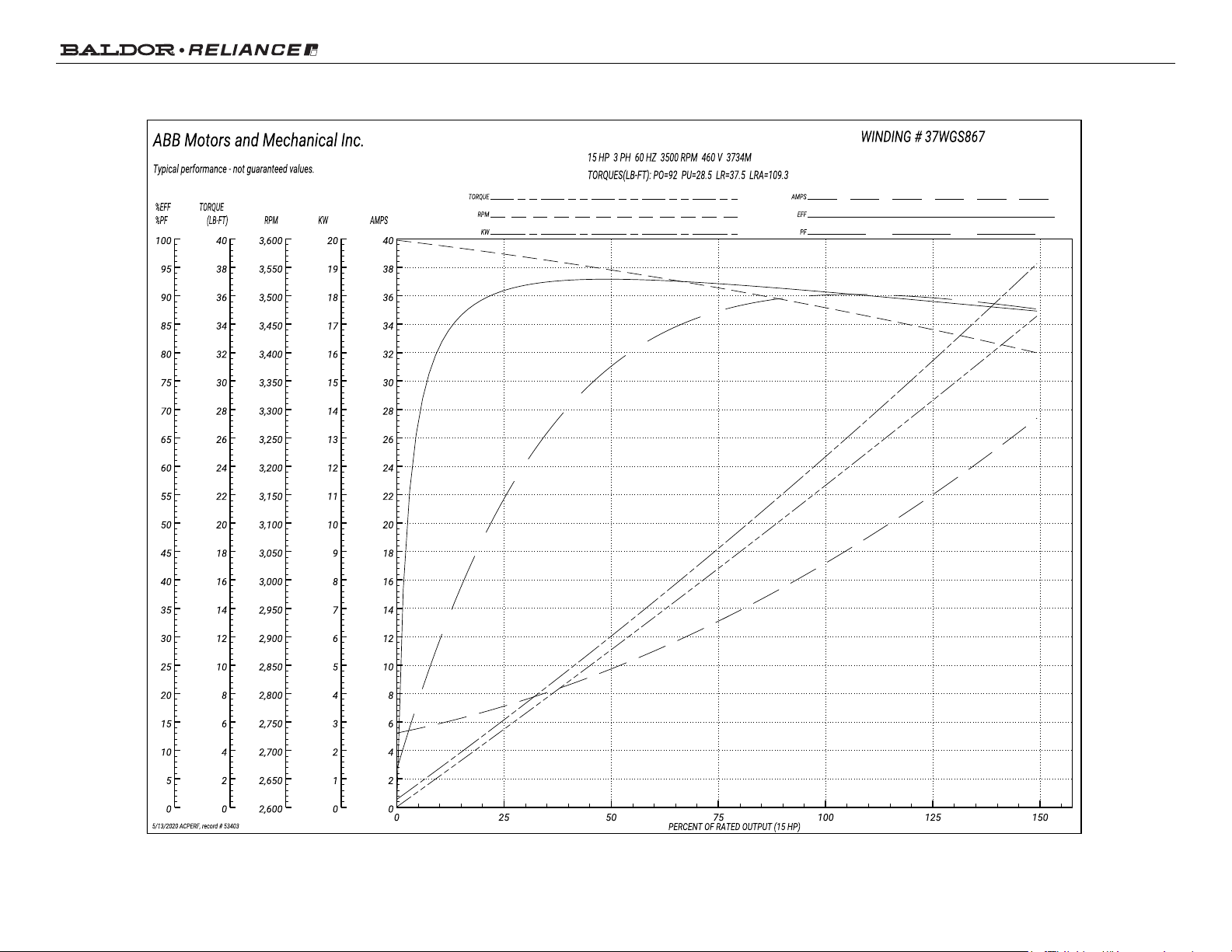

Performance Graph at 460V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Page 9 of 10
Product Information Packet: EWCM3314T - 15HP,3475RPM,3PH,60HZ,215TCZ,3734M,OPSB
Page 10 of 10
