Baldor EMM4103 Product Information Sheet

Product Information Packet

EMM4103

18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

Part Detail

Revision: T Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 10WGY546 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 10E377 Layout: 10LYE377 Poles: 04 Created Date: 03-22-2010 Base: RG Eff. Date: 09-11-2019 Leads: 9#8

Specs

Catalog Number: EMM4103 Enclosure: TEFC Frame: D180M Frame Material: Iron Output @ Frequency: 18.500 KW @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ

208.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: CSA

UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: RG Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None

Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 8 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1050M Mounting Arrangement: B3 Power Factor: 81 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None

Current @ Voltage: 31.000 A @ 460.0 V

Shaft Extension Location: Pulley End

Page 2 of 12

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

62.000 A @ 230.0 V

64.000 A @ 208.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Frame Prefix: D Front Face Code: Standard Front Shaft Indicator: None

Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: IEC Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None

Page 3 of 12

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

Nameplate NP1159L

CAT.NO.

SPEC. 10E377Y546G1

IEC FRAME D180M KW 18.5

VOLTS 230/460

AMP 62/31 RPM 1775 ENCL TEFC

HZ 60 PH 3 CL F

SER.F. 1.15 DES A CODE H

NEMA-NOM-EFF 93.6 I.P. 54

RATING 40C AMB-CONT

CC 010A USABLE AT 208V 64 DE 6311 ODE 6309

SER. #

Page 4 of 12

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

Parts List

Part Number Description Quantity SA192589 SA 10E377Y546G1 1.000 EA RA180225 RA 10E377Y546G1 1.000 EA 09FN3001C02 EXTERNAL FAN, PLASTIC 1.000 EA 10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA 10EP1106A01 FR ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN3816K32 BOLT, 3/8-16X2 HH YZ(5) 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA 10XN2520K32 1/4-20 X 2.00 HX HD SCRW GRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10EP1105A01 PU ENDPLATE 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10FH4000 310 FAN HOUSING STAMPED 1.000 EA

Page 5 of 12

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

Parts List (continued)

Part Number Description Quantity 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HW2505D27 KEY, 14 X 9MM 3.125 IN AUTOMATED 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.125 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1119N WARNING LABEL 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA LC0005 CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING 1.000 EA NP1159L SS SUPER-E IEC UL CSA CC 1.000 EA 10PA1000 PACKAGING GROUP COMBINED PRINT PK1023A06 1.000 EA

Page 6 of 12

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

FE-0000022 ZRTG FE ASSEMBLY 1.000 EA PE-0000013 ZRTG PE ASSEMBLY 1.000 EA

Page 7 of 12

Product Information Packet: EMM4103 - 18.5KW,1760RPM,3PH,60HZ,D180M,1050M,TEFC

AC Induction Motor Performance Data

Record # 35487 - Typical performance - not guaranteed values

Winding: 10WGY546-R002 Type: 1050M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (KW) 18.5 Full Load Torque 72.9 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 64-62/31 Breakdown Torque 275 LB-FT R.P.M. 1760 Pull-up Torque 119 LB-FT Hz 60 Phase 3 Locked-rotor Torque 138 LB-FT NEMA Design Code A KVA Code H Starting Current 212 A Service Factor (S.F.) 1.15 No-load Current 13.6 A NEMA Nom. Eff. 93.6 Power Factor 81 LinelineRes.@25ºC 0.242Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 52°C S.F. Amps Temp. Rise @ S.F. Load 61°C

Locked-rotor Power Factor 31

Rotor inertia 3.99 LB-FT2

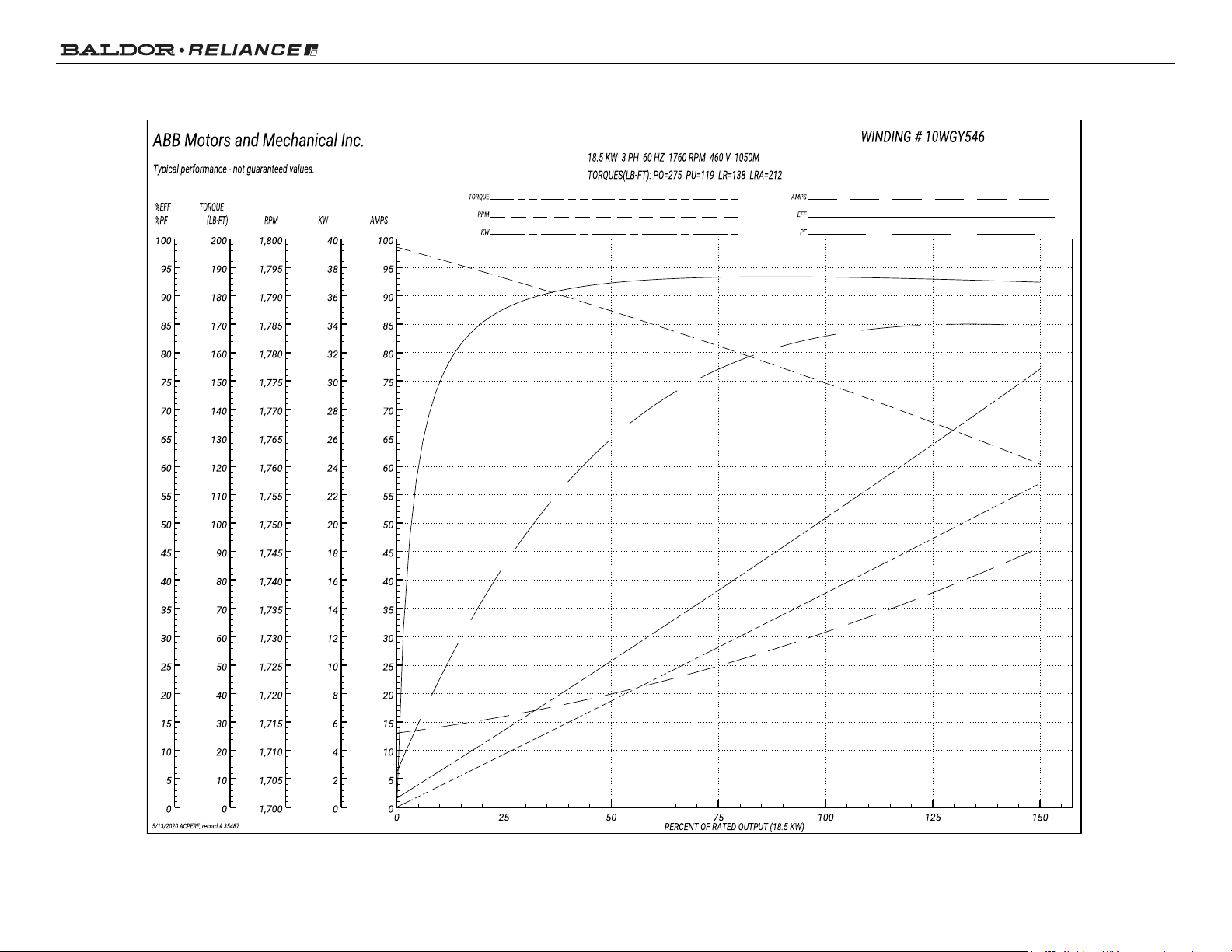

Load Characteristics 460 V, 60 Hz, 18.5 KW

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 43 65 76 81 84 85 83 Efficiency 87.3 91.8 93.1 93.7 93.3 92.3 93.4 Speed 1793 1787 1782 1776 1769 1760 1772 Line amperes 15.3 19.1 24.4 30.6 36.9 45.4 34.3
