Product Information Packet
EM7310T-I
60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM7310T-I - 60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Part Detail
Revision: L Status: PRD/A Change #: Proprietary: No

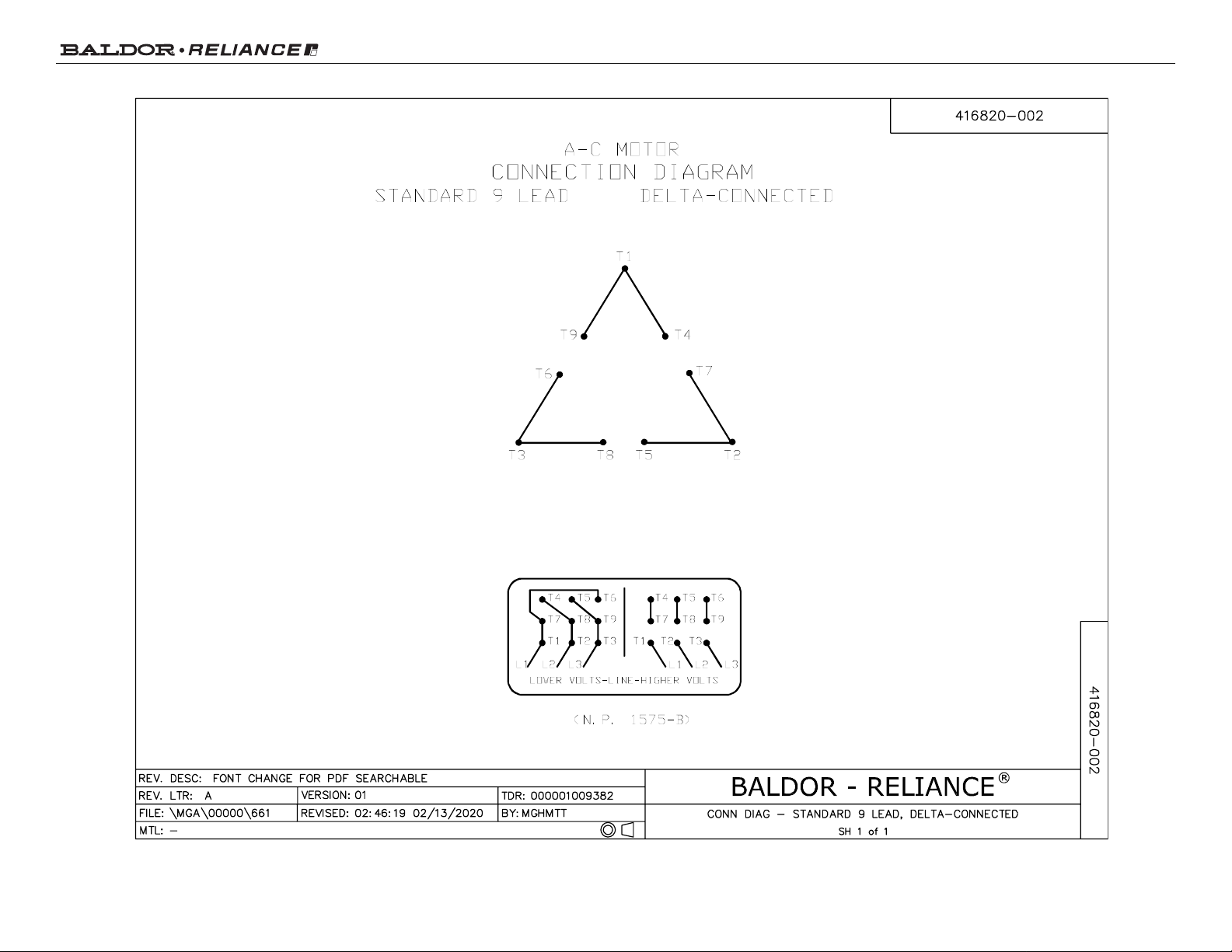

Type: AC Elec. Spec: A36WG0796 CD Diagram: 416820-002 Mfg Plant:

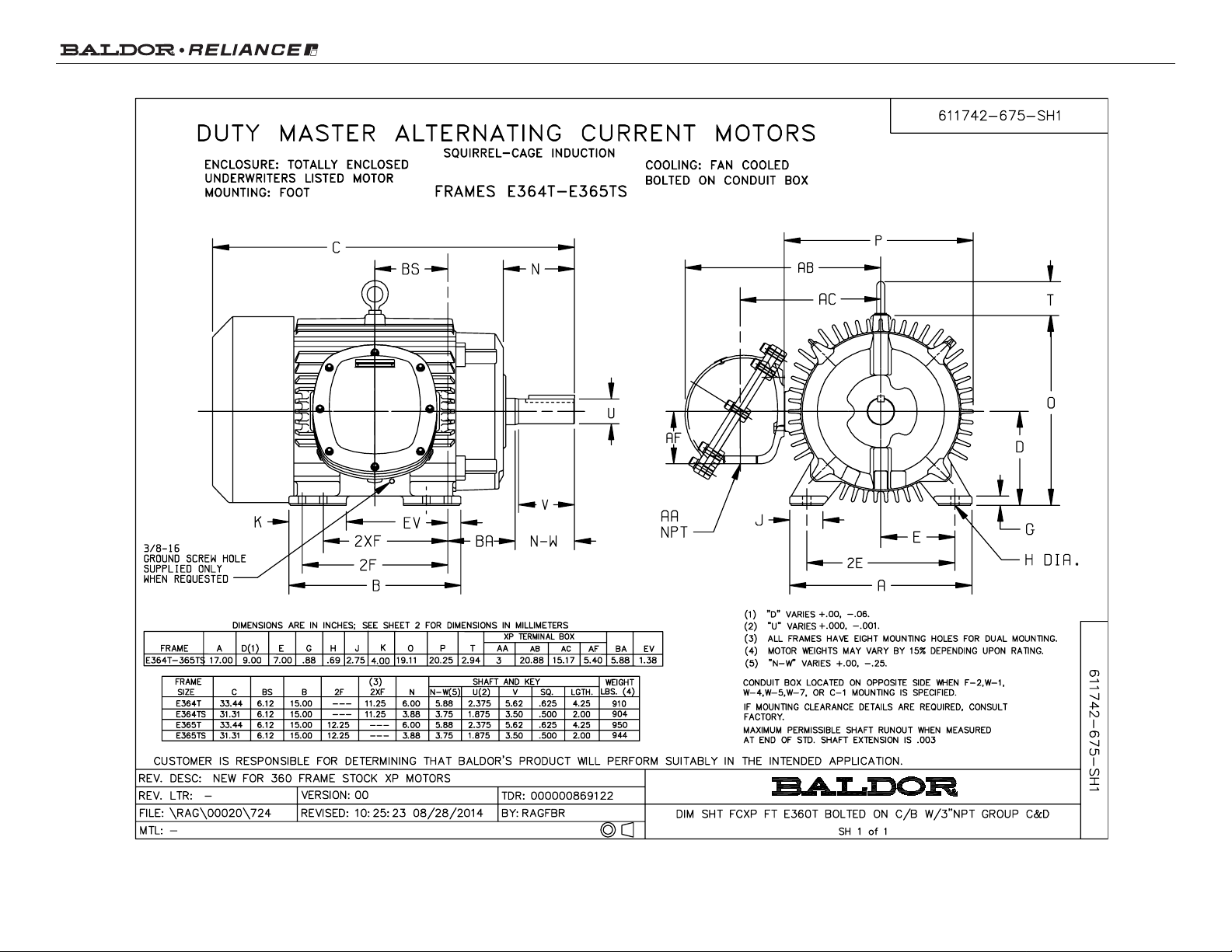

Mech. Spec: Layout: 611742-675-SH1 Poles: 02 Created Date: 04-09-2014
Base: Eff. Date: 09-14-2017 Leads: 3#4,6#6
Specs
Catalog Number: EM7310T-I
Enclosure: TEFC
Frame: 364TS
Frame Material: Iron
Output @ Frequency: 50.000 HP @ 50 HZ
60.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 380.0 V @ 50 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
190.0 V @ 50 HZ
XP Class and Group: CLI GP C,D
XP Division: Division I
Agency Approvals: CCSA US
CSA
CSA EEV
UL
Drip Cover: No Drip Cover
Duty Rating: CONT
Feedback Device: NO FEEDBACK
Frame Prefix: X
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
IP Rating: NONE
KVA Code: F
Lifting Lugs: Standard Lifting Lugs
Motor Lead Quantity/Wire Size: 3 @ 4 AWG
Motor Type: A36048M
Mounting Arrangement: F1
Power Factor: 89
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Shaft Ground Indicator: No Shaft Grounding
Auxillary Box: No Auxillary Box
Shaft Rotation: Reversible
Page 2 of 13
Product Information Packet: EM7310T-I - 60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Current @ Voltage: 68.300 A @ 380.0 V
67.300 A @ 460.0 V
137.000 A @ 190.0 V
135.000 A @ 230.0 V
Design Code: B
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
XP Temp Code: T3C
Page 3 of 13
Product Information Packet: EM7310T-I - 60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Nameplate 000613006PC
CLASS I GROUP C D X NO.
CLASS II GROUP X X X
OPERATING TEMP CODE T3C
Page 4 of 13
Product Information Packet: EM7310T-I - 60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Nameplate NP2293L
CAT.NO. EM7310T-I SPEC NO. P36G4708 FRAME 364TS
HP 60//50 PHASE 3 DESIGN B TYPE P
RPM 3560//2960 HZ 60//50 AMB 40 SF 1.15
VOLTS 230/460//190/380 DUTY CONT INSUL.CLASS F
AMPS 135/67.3//137/68.3 ENCL TEFC CODE F
DRIVE END BEARING 65BC03JPP30A NEMA-NOM-EFFICIENCY 93.6
OPP D.E. BEARING 65BC03JPP30A
SER.NO. NEMA MG-1 PT 5, IP55
SUIT FOR 208V/147 AMPS, 55C AMB @ 1.0SF MOTOR WEIGHT
Page 5 of 13
Product Information Packet: EM7310T-I - 60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Parts List
Part Number Description Quantity
SA279193 SA P36G4708 1.000 EA
RA265718 RA P36G4708 1.000 EA
000613006PC N/P U/L (REL QTY 500) 1.000 EA
NP2293L BALDOR RELIANCE INDUST. MTR,SS,CSA-C US, 1.000 EA
000692000VD LABEL WARNING 1.000 EA
421948032 LABEL, MYLAR 1.000 EA
603284001S SLGR - 360 1.000 EA
609158001B SLGR - 360 1.000 EA
004824015A GREASE POLYREX EM 0.544 LB
032018008AK HHCS 1/4-20X1 PLATED 4.000 EA
032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA
032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA
034017012AB LCKW 1/4 STD. PLATED 034017012AF 4.000 EA
034017014AB LCKW 3/8 STD. PLATED 2.000 EA
034017016AB LCKW 1/2" PLATED 4.000 EA
034180012DA KEY 1X4X1/4X1-1/2 L 1.000 EA
034530056AC P/NIP 1/8X7L GALV-365 1.000 EA
034690001AB 1/8" NPT SQHDPLG 1.000 EA
034690002AB PPLG 1/4" PLTD. 1.000 EA
078559001A +FANCV - 360 1.000 EA
087793050B BRKT 360 087793050WCB 1.000 EA
410700004F WSHR 1.000 EA
415072001B CLAMP 1.000 EA
415096002A CPLG 1/8 HEX TYPE 1.000 EA
Page 6 of 13
Product Information Packet: EM7310T-I - 60//50HP,3560//2960RPM,3PH,60//50HZ364TS
Parts List (continued)
Part Number Description Quantity
702675001C FAN 360 1.000 EA
032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA
032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA
034017014AB LCKW 3/8 STD. PLATED 2.000 EA
415045002E SLGR 1.000 EA
034017016AB LCKW 1/2" PLATED 4.000 EA
034690001AB 1/8" NPT SQHDPLG 1.000 EA
034690002AB PPLG 1/4" PLTD. 1.000 EA
087793050A BRKT 360 087793050WCB 1.000 EA
032018008DK HHCS 1/2-13X1 PLATED 1.000 EA
032130012EB HSHCS 5/8-11X1-1/2 PLTD. 8.000 EA
032130014CB HSHCS 3/8-16X1-3/4 PLTD. 4.000 EA
034017018AB LCKW 5/8" 034017018AF 8.000 EA
LB1073 ALUM XP CAUTION LABEL 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1073 ALUM XP CAUTION LABEL 1.000 EA
406099000A PLUG - FAN COVER 320-440 1.000 EA
MG1025G05 WILKOFAST, 789.227, MED. GRAY CHAR. MET. 0.250 GA
033775004EA DRSCR #6-1/4 304 S.S. 8.000 EA
034180016GA KEY 1/2X1/2X2 L 1.000 EA
14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA
034017014AB LCKW 3/8 STD. PLATED 4.000 EA
16CB1501A01 CONDUIT BOX LID MACH.GRP C MTRS 16CB1501 1.000 EA
16CB1001A01 CONDUIT BOX MACH GRP C MTRS 16CB1001 1.000 EA
