Baldor EM7083T Product Information Sheet

Product Information Packet

EM7083T

42M 2P XPFC HOR 286TS T'STATS SE

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

Part Detail

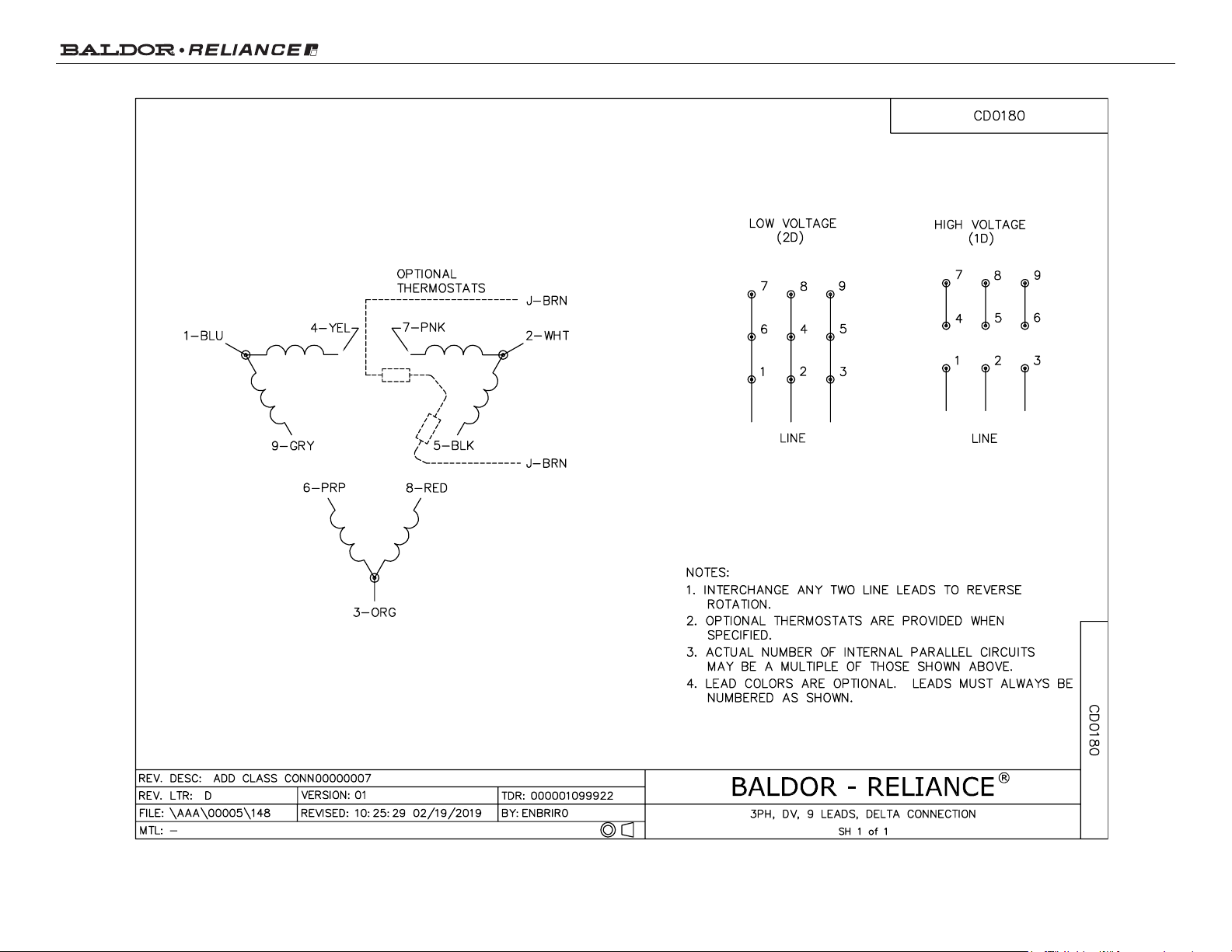

Revision: - Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 10WGZ035 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 10E128 Layout: 10LYE128 Poles: 02 Created Date: 04-18-2019 Base: RG Eff. Date: 04-24-2019 Leads: 9#10

Specs

Catalog Number: EM7083T Enclosure: XPFC Frame: 286TS Frame Material: Iron Output @ Frequency: 25.000 HP @ 50 HZ

30.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ

190.0 V @ 50 HZ

460.0 V @ 60 HZ

380.0 V @ 50 HZ XP Class and Group: CLI GP D; CLII GP F,G XP Division: Division I Agency Approvals: CSA

CSA EEV UR

Auxillary Box: No Auxillary Box

Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: X1046M Mounting Arrangement: F1 Power Factor: 90 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard

Auxillary Box Lead Termination: None

Rodent Screen: None

Page 2 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 72.000 A @ 208.0 V

68.000 A @ 190.0 V

66.000 A @ 230.0 V

34.000 A @ 380.0 V

33.000 A @ 460.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard

RoHS Status: ROHS COMPLIANT Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C

Page 3 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

Nameplate NP1426XPSLEV

NO. CC 010A

SER.

SPEC. 10E128Z035G1

CAT.NO. EM7083T

HP 30//25 T. CODE T3C

VOLTS 230/460//190/380

AMPS 66/33//68/34

RPM 3520//2920

HZ 60//50 PH 3 CL F

SER.F. 1.00 DES B CODE G

RATING 40C AMB-CONT

FRAME 286TS NEMA-NOM-EFF 91.7

USABLE AT 208V 72 PF 90

BLANK

Page 4 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

Parts List

Part Number Description Quantity SA368677 SA 10E128Z035G1 1.000 EA RA358197 RA 10E128Z035G1 1.000 EA 37FN3002B03 EXFN, PLASTIC, 7.50 OD, 1.690 ID 1.000 EA 12CB1001A01 K.O.BOX, MACH X-PROOF, 1.50 NPT HOLE 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA 10EP1701A01 FR ENDPLATE, MACH 1.000 EA HA3050A03 3/8-16 X 2.25" GRADE 8 BOLT 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA 10XN2520K40 1/4-20 X 2-1/2 HEX HD CAPSCREW,GRADE 5,Z 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA 10EP1709A08 PU ENDPLATE, X-PROOF W/LABYRINTH SHAFT G 1.000 EA HA3050A03 3/8-16 X 2.25" GRADE 8 BOLT 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10FH1008A01 310 FAN HOUSING X-PROOF MACH. 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 3.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 3.000 EA 12CB1501A01 COND.BOX LID, MACH., X-PROOF, 310,312 1.000 EA 10XN3816K20 3/8-16 X 1.25 HEX HD CAP GRADE 5 6.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 6.000 EA

Page 5 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

Parts List (continued)

Part Number Description Quantity HW2501G17 KEY, 3/8 SQ X 1.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1073 ALUM XP CAUTION LABEL 1.000 EA WD4100A03 DE-750 HEYCO PLUG 62MP0750 MICRO PLASTIC 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025G05 WILKOFAST, 789.227, MED. GRAY CHAR. MET. 0.125 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1426XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA 12PA1000 PACKAGING GROUP PRINT PK1024A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA

Page 6 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

AC Induction Motor Performance Data

Record # 79271 - Typical performance - not guaranteed values

Winding: 10WGZ035-R004 Type: 1046M Enclosure: XPFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 30//25 Full Load Torque 44.4 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 66/33//68/34 Breakdown Torque 169 LB-FT R.P.M. 3520//2920 Pull-up Torque 60.8 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 80 LB-FT NEMA Design Code B KVA Code G Starting Current 223 A Service Factor (S.F.) 1 No-load Current 8.85 A NEMA Nom. Eff. 91.7 Power Factor 90 LinelineRes.@25ºC 0.239Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 58°C S.F. Amps Temp. Rise @ S.F. Load 72°C

Locked-rotor Power Factor 23.5

Rotor inertia 1.97lbft²

Load Characteristics 460 V, 60 Hz, 30 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 64 83 89 91 92 91 Efficiency 89.6 92.9 93.5 92.7 92.4 91.4 Speed 3580 3561 3544 3525 3504 3480 Line amperes 12 18.3 25.2 33 41.5 50.5

Page 7 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

Performance Graph at 460V, 60Hz, 30.0HP Typical performance - Not guaranteed values

Page 8 of 13

Product Information Packet: EM7083T - 42M 2P XPFC HOR 286TS T'STATS SE

AC Induction Motor Performance Data

Record # 79272 - Typical performance - not guaranteed values

Winding: 10WGZ035-R004 Type: 1046M Enclosure: XPFC

Nameplate Data

380 V, 50 Hz:

High Voltage Connection Rated Output (HP) 30//25 Full Load Torque 44.55 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 66/33//68/34 Breakdown Torque 164 LB-FT R.P.M. 3520//2920 Pull-up Torque 64.66 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 85.07 LB-FT NEMA Design Code B KVA Code G Starting Current 219 A Service Factor (S.F.) 1 No-load Current 8.71 A NEMA Nom. Eff. 91.7 Power Factor 90 LinelineRes.@25ºC 0.239Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 59°C S.F. Amps Temp. Rise @ S.F. Load 74°C

Locked-rotor Power Factor 26.5

Rotor inertia 1.97lbft²

Load Characteristics 380 V, 50 Hz, 25 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 64 83 89 91 92 91 Efficiency 90.9 93.3 93.5 92.5 91.9 90.6 Speed 2981 2963 2946 2927 2907 2883 Line amperes 11.87 18.29 25.38 33.31 42.09 51.47

Page 9 of 13
