Product Information Packet
EM7075T
3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Part Detail
Revision: L Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGQ060 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35J363 Layout: 35LYJ363 Poles: 02 Created Date: 06-11-2010
Base: RG Eff. Date: 06-11-2018 Leads: 9#18
Specs
Catalog Number: EM7075T
Enclosure: XPFC
Frame: 145T
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: CLI GP D
XP Division: Division I
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: X3532M
Mounting Arrangement: F1
Power Factor: 92
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Blower: None
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Current @ Voltage: 3.600 A @ 460.0 V
7.200 A @ 230.0 V
7.900 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Nameplate NP0015XPSLEV
NO. CC 010A
SER.
SPEC. 35J363Q060G1
CAT.NO. EM7075T
HP 3 T. CODE T3C
VOLTS 230/460
AMPS 7.2/3.6
RPM 3450
HZ 60 PH 3 CL B
SER.F. 1.00 DES B CODE L
RATING 40C AMB-CONT
FRAME 145T NEMA-NOM-EFF 86.5
USABLE AT 208V 7.9 PF 92
BLANK
Page 4 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Parts List
Part Number Description Quantity
SA198580 SA 35J363Q060G1 1.000 EA
RA185947 RA 35J363Q060G1 1.000 EA
35CB3001A02SP EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35EP3700A01SP FR ENDPLATE, XPFC 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3701A01 PU ENDPLATE, XPFC - 205 BRG 1.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A01SP IEC FH NO GREASER W/PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB3500A01SP CONDUIT BOX LID, MACH 1.000 EA
51XN2520A16 SCREW, HEX WS SLT, ZN, 1/4-20 X 1.00 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA
NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.017 GA
HA3104A10 THRUBOLT, 5/16-18 X 10.25 4.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1119N WARNING LABEL 1.000 EA
Page 5 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Parts List (continued)
Part Number Description Quantity
LC0145B01 CONNECTION LABEL 1.000 EA
NP0015XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA
G7PA1000 PKG GRP, PRINT PK1034A06 1.000 EA
Page 6 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
AC Induction Motor Performance Data
Record # 35668 - Typical performance - not guaranteed values
Winding: 35WGQ060-R003 Type: 3532M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 3 Full Load Torque 4.5 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 7.2/3.6 Breakdown Torque 18 LB-FT
R.P.M. 3450 Pull-up Torque 11 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 16 LB-FT
NEMA Design Code B KVA Code L Starting Current 33 A
Service Factor (S.F.) 1 No-load Current 1.2 A
NEMA Nom. Eff. 86.5 Power Factor 92 LinelineRes.@25ºC 4.72Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 61°C
S.F. Amps Temp. Rise @ S.F. Load 73°C
Locked-rotor Power Factor 47
Rotor inertia 0.0885 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 57 77 85 88 89 90
Efficiency 84.1 87.9 88.4 87.2 85.7 83.5
Speed 3562 3531 3498 3462 3421 3375
Line amperes 1.5 2.1 2.8 3.6 4.5 5.4
Page 7 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1

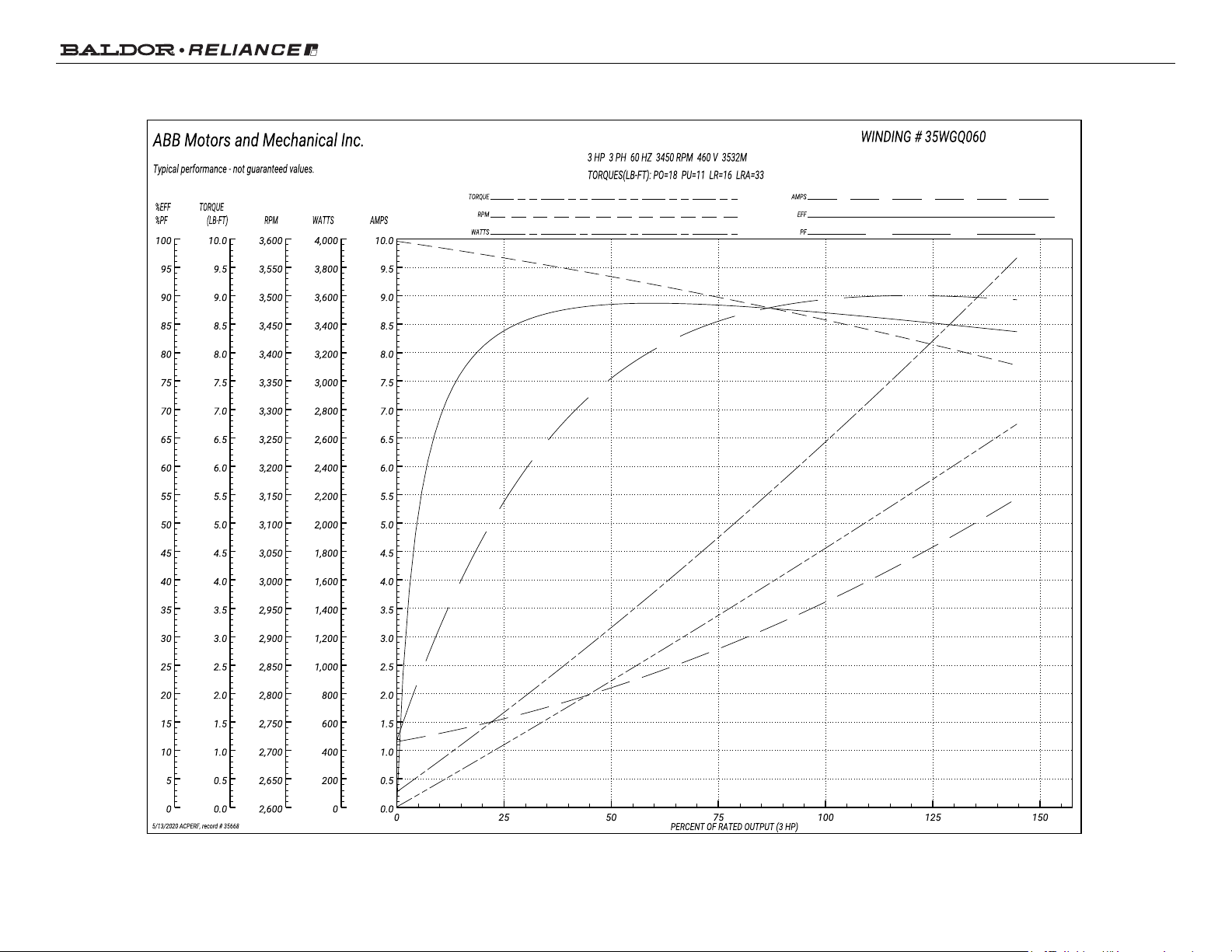

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Page 9 of 10
Product Information Packet: EM7075T - 3HP,3450RPM,3PH,60HZ,145T,3532M,XPFC,F1
Page 10 of 10
