Baldor EM7067T Product Information Sheet

Product Information Packet

EM7067T

30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Part Detail

Revision: Q Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGY292 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 12M049 Layout: 12LYM049 Poles: 02 Created Date: 06-28-2010 Base: RG Eff. Date: 12-19-2017 Leads: 9#8

Specs

Catalog Number: EM7067T Enclosure: XPFC Frame: 324TS Frame Material: Iron Output @ Frequency: 30.000 HP @ 50 HZ

40.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

380.0 V @ 50 HZ

230.0 V @ 60 HZ

190.0 V @ 50 HZ XP Class and Group: CLI GP D; CLII GP F,G XP Division: Division I Agency Approvals: CSA

UL Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None

Heater Indicator: No Heater Insulation Class: B Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 8 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: X1240M Mounting Arrangement: F1 Power Factor: 88 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None

Base Indicator: Rigid

RoHS Status: ROHS COMPLIANT

Page 2 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 92.000 A @ 230.0 V

84.000 A @ 190.0 V

46.000 A @ 460.0 V

42.000 A @ 380.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None

Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C

Page 3 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Nameplate NP1426XPSLEV

NO. CC 010A

SER.

SPEC. 12M049Y292G1

CAT.NO. EM7067T

HP 40//30 T. CODE T3C

VOLTS 230/460//190/380

AMPS 92/46//84/42

RPM 3530//2940

HZ 60//50 PH 3 CL B

SER.F. 1.00 DES A CODE H

RATING 40C AMB-CONT

FRAME 324TS NEMA-NOM-EFF 92.4

USABLE AT 208V PF 88

BLANK

Page 4 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Parts List

Part Number Description Quantity SA198986 SA 12M049Y292G1 1.000 EA RA186337 RA 12M049Y292G1 1.000 EA 09FN3001D03 EXTERNAL FAN, PLASTIC 1.000 EA 12CB1001A01 K.O.BOX, MACH X-PROOF, 1.50 NPT HOLE 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA 12EP1705A01 ENDPLATE, MACH. 312 - EXPLOSION PROOF 31 1.000 EA HA3051A03 1/2-13X2.75 BLT GR8 1.75 TO E NC F/S 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HW5100A13 W4627-047 WVY WSHER 1.000 EA 12EP1706A01 ENDPLATE, MACH. 312 - EXPLOSION PROOF 31 1.000 EA 10XN3118K44 5/16-18 X 2.75" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HA3051A03 1/2-13X2.75 BLT GR8 1.75 TO E NC F/S 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA 12FH1001A01 FAN HOUSING 312 EXPLOSION PROOF MOTORS 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 3.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 3.000 EA 12CB1501A01 COND.BOX LID, MACH., X-PROOF, 310,312 1.000 EA 10XN3816K20 3/8-16 X 1.25 HEX HD CAP GRADE 5 6.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 6.000 EA

Page 5 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Parts List (continued)

Part Number Description Quantity HW2501H18 KEY, 1/2 SQ X 2.000 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025G05 WILKOFAST, 789.227, MED. GRAY CHAR. MET. 0.125 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA LB1073 ALUM XP CAUTION LABEL 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1426XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA 14PA1036 PKGP 360 FRAME NO CARTON 1.000 EA

Page 6 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

AC Induction Motor Performance Data

Record # 31685 - Typical performance - not guaranteed values

Winding: 12WGY292-R002 Type: 1240M Enclosure: XPFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 40//30 Full Load Torque 59.2 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 92/46//84/42 Breakdown Torque 230 LB-FT R.P.M. 3530//2940 Pull-up Torque 78.7 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 108 LB-FT NEMA Design Code A KVA Code H Starting Current 305 A Service Factor (S.F.) 1 No-load Current 13.7 A NEMA Nom. Eff. 92.4 Power Factor 88 LinelineRes.@25ºC 0.15743Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 65°C

Locked-rotor Power Factor 21.5

Rotor inertia 3.13 LB-FT2

Load Characteristics 460 V, 60 Hz, 40 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 61 79 86 88 89 89 Efficiency 87.1 91.6 92.6 92.6 92.1 91.3 Speed 3585.4 3571.9 3557.9 3543.1 3526.6 3509.7 Line amperes 18 26.1 35.6 46 57.4 69.2

Page 7 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

Performance Graph at 460V, 60Hz, 40.0HP Typical performance - Not guaranteed values

Page 8 of 13

Product Information Packet: EM7067T - 30//40HP,2950//3530RPM,3PH,50//60HZ,324T

AC Induction Motor Performance Data

Record # 31686 - Typical performance - not guaranteed values

Winding: 12WGY292-R002 Type: 1240M Enclosure: XPFC

Nameplate Data

380 V, 50 Hz:

High Voltage Connection Rated Output (HP) 40//30 Full Load Torque 53.3 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 92/46//84/42 Breakdown Torque 222 LB-FT R.P.M. 3530//2940 Pull-up Torque 84 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 115 LB-FT NEMA Design Code A KVA Code H Starting Current 299 A Service Factor (S.F.) 1 No-load Current 13.4 A NEMA Nom. Eff. 92.4 Power Factor 88 LinelineRes.@25ºC 0.145Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 57°C S.F. Amps Temp. Rise @ S.F. Load 69°C

Locked-rotor Power Factor 24.4

Rotor inertia 3.13 LB-FT2

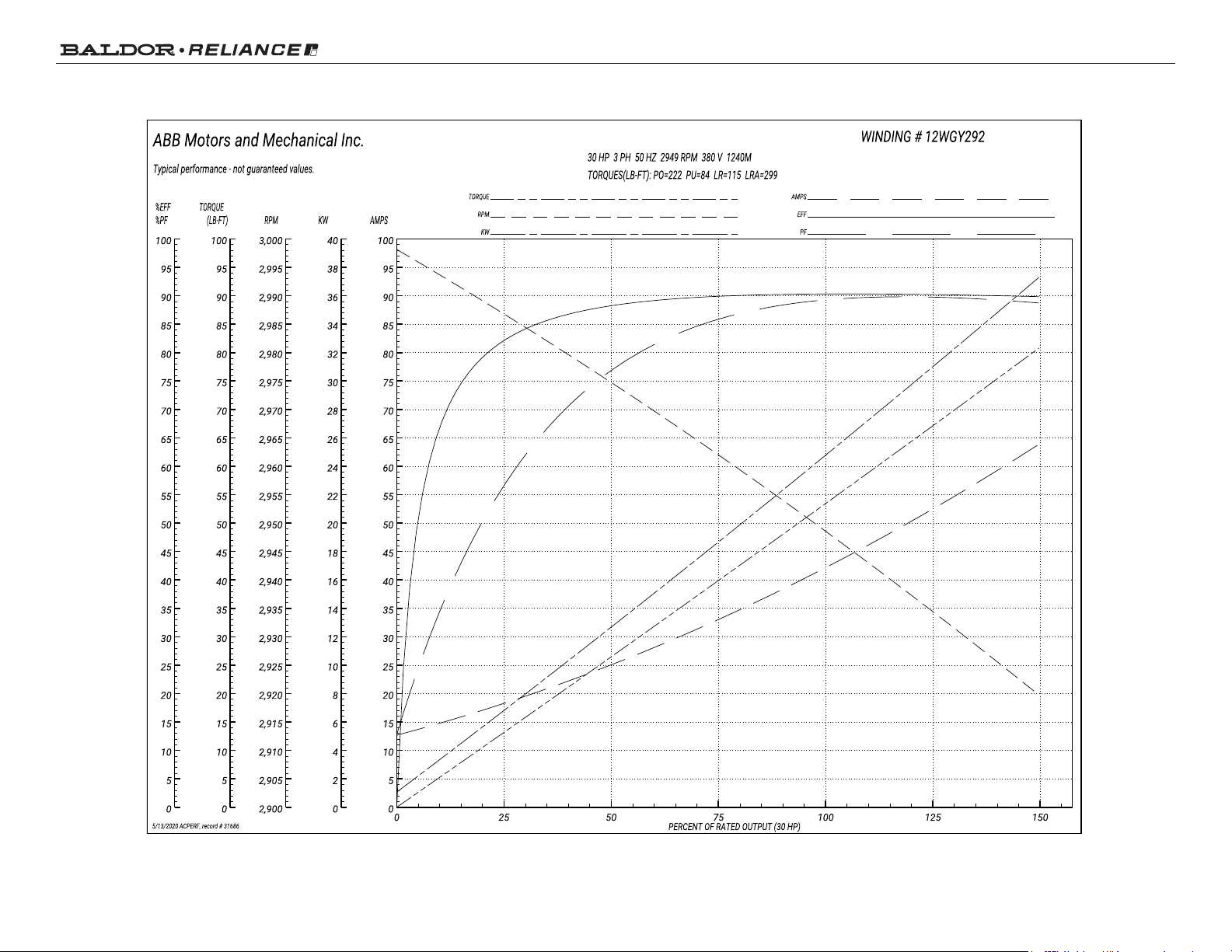

Load Characteristics 380 V, 50 Hz, 30 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 61 78 85 88 89 90 Efficiency 80.4 88.1 89.8 90.7 90.3 89.7 Speed 2987 2975 2962 2949 2934 2920 Line amperes 17.3 24.6 33.2 42.5 52.8 63.4

Page 9 of 13
