Product Information Packet
EM7020T-I
1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Part Detail
Revision: L Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGS916 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 36J694 Layout: 36LYJ694 Poles: 06 Created Date: 05-16-2012
Base: RG Eff. Date: 05-23-2017 Leads: 9#16
Specs
Catalog Number: EM7020T-I
Enclosure: XPFC
Frame: 182T
Frame Material: Steel
Output @ Frequency: 1.000 HP @ 50 HZ
1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1000 RPM @ 50 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
XP Class and Group: CLI GP C,D
XP Division: Division I
Agency Approvals: CSA
UL
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: X3632M
Mounting Arrangement: F1
Power Factor: 67
Product Family: General Purpose
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Base Indicator: Rigid
RoHS Status: ROHS COMPLIANT
Page 2 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 4.800 A @ 230.0 V
4.200 A @ 190.0 V
2.400 A @ 460.0 V
2.100 A @ 380.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Nameplate NP0977XPSL
NO. CC 010A
SER. TEMP CODE T3C
SPEC. 36J694S916G1
CAT.NO. EM7020T-I
HP 1.5//1
VOLTS 230/460//190/380
AMPS 4.8/2.4//4.2/2.1
RPM 1165//970 75C RISE MOTOR WEIGHT 108
HERTZ 60//50 PH 3 CL F DE BRG 6206
SER.F. 1.15 DES B CODE K ODE BRG 6205
FRAME 182T GREASE POLYREX EM
RATING 40C AMB-CONT
USABLE AT 208V NEMA-NOM-EFF 87.5 PF 67
NEMA MG-1 PT 5,IP55
Page 4 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Parts List
Part Number Description Quantity
SA245063 SA 36J694S916G1 1.000 EA
RA231950 RA 36J694S916G1 1.000 EA
36FN3000C01SP EXFN, PLASTIC, 5.25 OD, .912 ID 1.000 EA
35CB1005A01 CONDUIT BOX,MACH - GROUP "C" MTRS 1.000 EA
06EP1709A05 FRONT XPFC 205 BRG GRP C W/ DRAIN (HW450 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA
HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA
HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP1718A03 36 PU EP XPFC 206 BRG W/METAL SLINGER 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA
HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA
HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA
XY3816A12 3/8-16 FINISHED NUT 4.000 EA
36FH3003A05 FAN COVER XP W/(2) GRSR HOLES, DRAIN 1.000 EA
51XN1032A08 10-32 X 0.500 HX WS SL SR ZN 4.000 EA
35CB1501A01 CONDUIT BOX LID, MACH. - GROUP "C"MTRS 1.000 EA
RM1020A41 O-RING, -150 BUNA-N, .103 CS X 2.862 ID 1.000 EA
HA2065A01 SLINGER, ALUM (AUTO) 1.000 EA
80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA
LB1359F ALUM XP CAUTION LABEL 1.000 EA
Page 5 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Parts List (continued)
Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA
HA3105A09 THRUBOLT 3/8-16 X 12.000 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
NP0977XPSL SS XP UL CSA CC CL-I GP-C&D 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
AC Induction Motor Performance Data
Record # 38402 - Typical performance - not guaranteed values
Winding: 36WGS916-R003 Type: 3632M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5//1 Full Load Torque 6.86 LB-FT
Volts 230/460//190/380 Start Configuration direct on line
Full Load Amps 4.8/2.4//4.2/2.1 Breakdown Torque 23.8 LB-FT
R.P.M. 1165//970 Pull-up Torque 12.5 LB-FT
Hz 60//50 Phase 3 Locked-rotor Torque 15.3 LB-FT
NEMA Design Code B KVA Code K Starting Current 15.8 A
Service Factor (S.F.) 1.15 No-load Current 1.47 A
NEMA Nom. Eff. 87.5 Power Factor 67 LinelineRes.@25ºC 7.3716Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 34°C
S.F. Amps Temp. Rise @ S.F. Load 41°C
Locked-rotor Power Factor 30
Rotor inertia 0.301 LB-FT2
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 30 48 59 67 71 74 69
Efficiency 79.1 86 87.5 87.5 86.5 85.2 86.9
Speed 1192.2 1184.8 1176.8 1168.1 1158.2 1147.5 1162
Line amperes 1.57 1.77 2.07 2.43 2.88 3.36 2.7
Page 7 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5

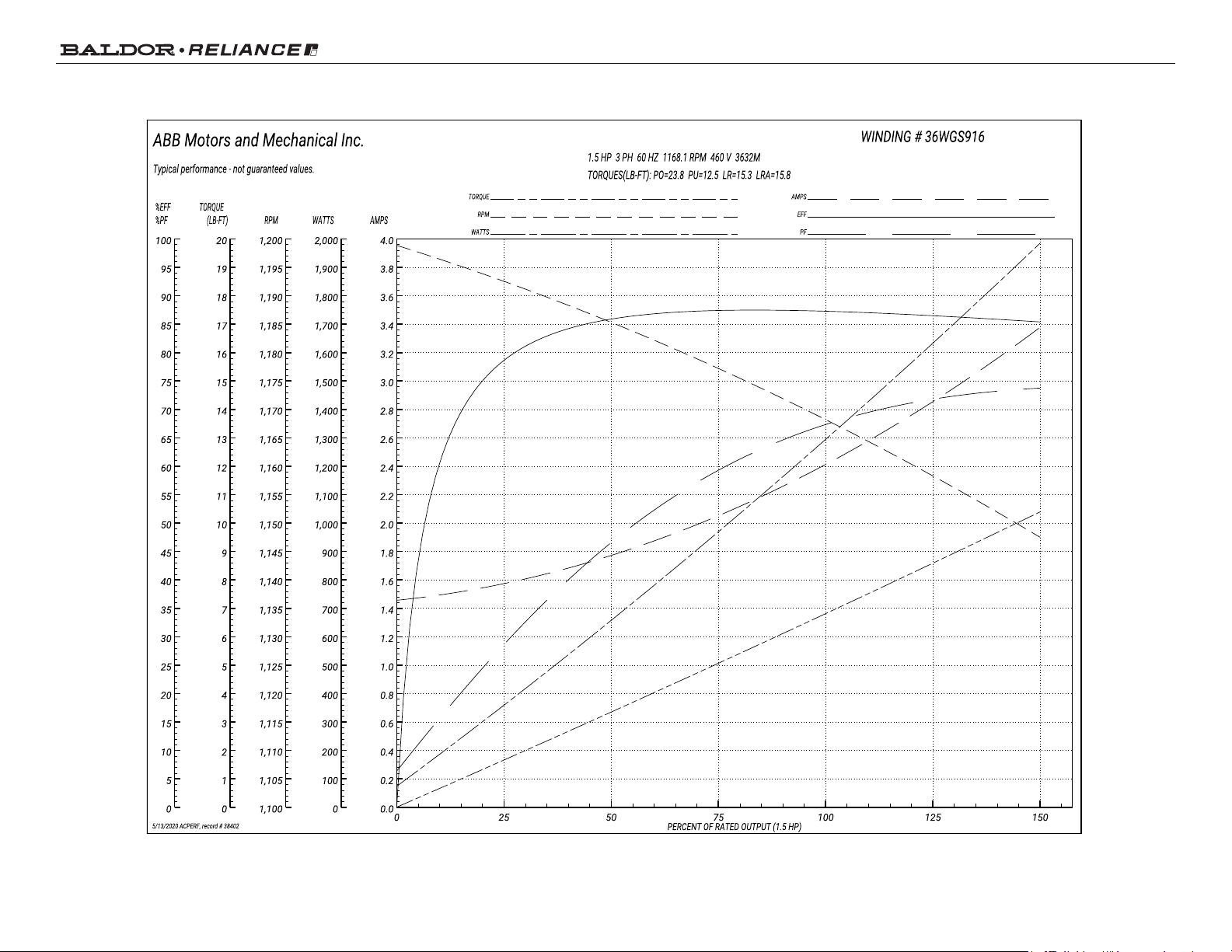

Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
AC Induction Motor Performance Data
Record # 38405 - Typical performance - not guaranteed values
Winding: 36WGS916-R003 Type: 3632M Enclosure: XPFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection
Rated Output (HP) 1.5//1 Full Load Torque 5.48 LB-FT
Volts 230/460//190/380 Start Configuration direct on line
Full Load Amps 4.8/2.4//4.2/2.1 Breakdown Torque 22.8 LB-FT
R.P.M. 1165//970 Pull-up Torque 13.2 LB-FT
Hz 60//50 Phase 3 Locked-rotor Torque 16.1 LB-FT
NEMA Design Code B KVA Code K Starting Current 15.4 A
Service Factor (S.F.) 1.15 No-load Current 1.45 A
NEMA Nom. Eff. 87.5 Power Factor 67 LinelineRes.@25ºC 7.12Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 27°C
S.F. Amps Temp. Rise @ S.F. Load 32°C
Locked-rotor Power Factor 34
Rotor inertia 0.301 LB-FT2
Load Characteristics 380 V, 50 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 26 42 54 63 68 72 66
Efficiency 75.7 83.8 86.2 86.5 85.9 85.1 86.1
Speed 994 988 981 974 966 958 969
Line amperes 1.53 1.67 1.88 2.13 2.46 2.81 2.33
Page 9 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Performance Graph at 380V, 50Hz, 1.0HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Page 11 of 12
Product Information Packet: EM7020T-I - 1.5//1HP,1165//970 75C RISERPM,3PH,60//5
Page 12 of 12
