Product Information Packet
EM7020T
1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 36WGS916 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 36N004 Layout: 36LYN004 Poles: 06 Created Date: 05-14-2012 Base: RG Eff. Date: 09-22-2017 Leads: 9#16
Specs
Catalog Number: EM7020T Enclosure: XPFC Frame: 182T Frame Material: Steel Output @ Frequency: 1.000 HP @ 50 HZ
1.500 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ XP Class and Group: CLI GP D; CLII GP F,G XP Division: Division I Agency Approvals: CSA
UL Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None
Heater Indicator: No Heater Insulation Class: B Inverter Code: Not Inverter KVA Code: K Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: No Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 16 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: X3632M Mounting Arrangement: F1 Power Factor: 67 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None
Base Indicator: Rigid
RoHS Status: ROHS COMPLIANT
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 4.800 A @ 230.0 V
4.200 A @ 190.0 V
2.400 A @ 460.0 V
2.100 A @ 380.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Nameplate NP1426XPSLEV
NO. CC 010A
SER.
SPEC. 36N004S916G1
CAT.NO. EM7020T
HP 1.5//1 T. CODE T3C
VOLTS 230/460//190/380
AMPS 4.8/2.4//4.2/2.1
RPM 1165//970
HZ 60//50 PH 3 CL B
SER.F. 1.00 DES B CODE K
RATING 40C AMB-CONT
FRAME 182T NEMA-NOM-EFF 87.5
USABLE AT 208V PF 67
BLANK
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Parts List
Part Number Description Quantity SA245059 SA 36N004S916G1 1.000 EA RA231946 RA 36N004S916G1 1.000 EA 36FN3000C01SP EXFN, PLASTIC, 5.25 OD, .912 ID 1.000 EA 35CB3001A02SP EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA 1.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 36EP3700A01 FR ENDPLATE, MACH 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA 36EP3701A01 PU ENDPLATE, MACH 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA 51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA 36FH4009A02 FAN COVER FOR VM7042T,PRIMER 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 35CB3500A01SP CONDUIT BOX LID, MACH 1.000 EA 51XN2520A16 SCREW, HEX WS SLT, ZN, 1/4-20 X 1.00 4.000 EA HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA HA3105A06 THRUBOLT- 3/8-16 X 10.500 X 4.000 EA
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Parts List (continued)
Part Number Description Quantity LB1119N WARNING LABEL 1.000 EA LC0145B01 CONNECTION LABEL 1.000 EA NP1426XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA 36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
AC Induction Motor Performance Data
Record # 49237 - Typical performance - not guaranteed values
Winding: 36WGS916-R001 Type: 3632M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 1.5//1 Full Load Torque 6.864 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 4.8/2.4//4.2/2.1 Breakdown Torque 23.8 LB-FT R.P.M. 1165//970 Pull-up Torque 12.5 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 15.3 LB-FT NEMA Design Code B KVA Code K Starting Current 15.8 A Service Factor (S.F.) 1 No-load Current 1.47 A NEMA Nom. Eff. 87.5 Power Factor 67 LinelineRes.@25ºC 7.3716Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 34°C
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 30 48 59 67 71 74 Efficiency 79.1 86 87.5 87.5 86.5 85.2 Speed 1192.2 1184.8 1176.8 1168.1 1158.2 1147.5 Line amperes 1.57 1.77 2.07 2.43 2.88 3.36
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F

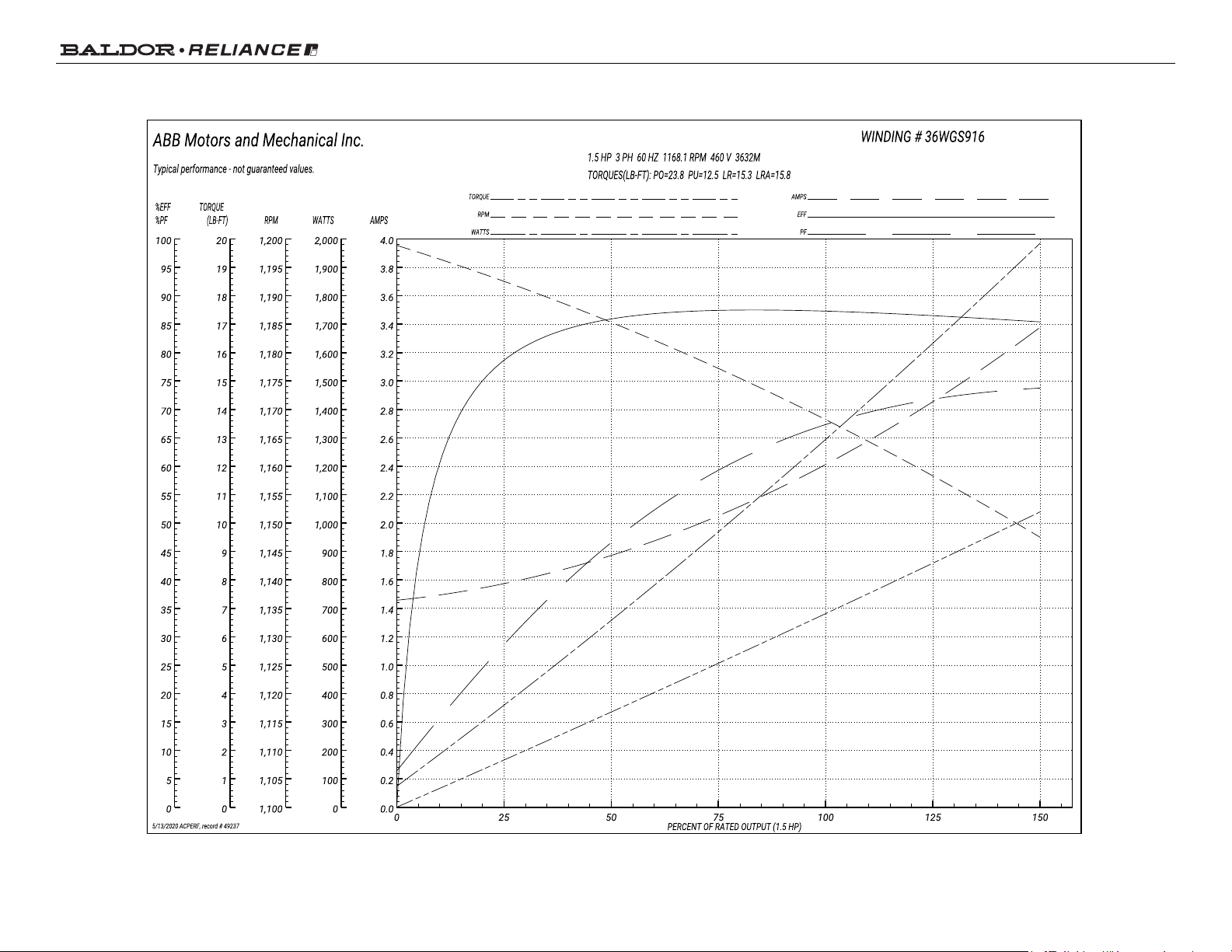

Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
AC Induction Motor Performance Data
Record # 80499 - Typical performance - not guaranteed values
Winding: 36WGS916-R001 Type: 3632M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 1.5//1 Full Load Torque 6.867 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 4.8/2.4//4.2/2.1 Breakdown Torque 23.8 LB-FT R.P.M. 1165//970 Pull-up Torque 12.5 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 15.3 LB-FT NEMA Design Code B KVA Code K Starting Current 15.8 A Service Factor (S.F.) 1 No-load Current 1.47 A NEMA Nom. Eff. 87.5 Power Factor 67 LinelineRes.@25ºC 7.3716Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 34°C
Locked-rotor Power Factor 30.1
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 30 48 59 67 71 74 Efficiency 79.1 85.9 87.5 87.5 86.5 85.2 Speed 1192.2 1184.8 1176.8 1168.1 1158.2 1147.5 Line amperes 1.57 1.77 2.07 2.43 2.88 3.36
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Page 11 of 12
Product Information Packet: EM7020T - 1.5HP,1170RPM,3PH,60HZ,182T,3632M,XPFC,F
Page 12 of 12
