Product Information Packet
EM4338T
30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Part Detail
Revision: L Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: A36WG0431 CD Diagram: 416820-002 Mfg Plant:
Mech. Spec: Layout: 617431-412 Poles: 08 Created Date: 01-13-2015
Base: Eff. Date: 04-24-2020 Leads: 3#6,6#8
Specs
Catalog Number: EM4338T
Enclosure: TEFC
Frame: 364T
Frame Material: Iron
Output @ Frequency: 30.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 900 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CCSA US
CSA EEV
Auxillary Box: No Auxillary Box
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Current @ Voltage: 39.300 A @ 460.0 V
78.600 A @ 230.0 V
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
IP Rating: NONE
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Motor Lead Quantity/Wire Size: 3 @ 6 AWG
Motor Type: A36050M
Mounting Arrangement: F1
Power Factor: 77
Product Family: General Industrial
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Design Code: B
Motor Standards: NEMA
Page 2 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Drip Cover: No Drip Cover
Duty Rating: CONT
Feedback Device: NO FEEDBACK
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Page 3 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Nameplate NP2496L
MOBIL POLYREX EM
Page 4 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Nameplate NP2383L
CAT.NO. EM4338T SPEC NO. A36-6049-0999
HP 30 AMPS 78.6/39.3 VOLTS 230/460 DESIGN B
FRAME 364T RPM 890 HZ 60 AMB 40 SF 1.15
DRIVE END BEARING 65BC03J30X PHASE 3 DUTY CONT INSUL.CLASS F
OPP D.E. BEARING 65BC03J30X TYPE P ENCL TEFC CODE G
SER.NO. POWER FACTOR 77 NEMA-NOM-EFFICIENCY 92.4
MAX CORR KVAR 10 GUARANTEED EFFICIENCY 91
NEMA NOM/CSA QUOTED EFF
MOTOR WEIGHT
Page 5 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Parts List
Part Number Description Quantity
SA292076 SA A36-6049-0999 1.000 EA
RA278195 RA A36-6049-0999 1.000 EA
421948032 LABEL, MYLAR 1.000 EA
NP2496L MOTOR LUBE NAMEPLATE 1.000 EA
000613006PU N/P (RELEASE QTY 10,000) UL CSA LABEL 1.000 EA
000692000VD LABEL WARNING 1.000 EA
NP2383L SUPER-E ,SS, CC, CSA-C US, CSA EEV 1.000 EA
085922073B BRKT 360 085922072WCC KB 1.000 EA
415072001B CLAMP 1.000 EA
078559001A +FANCV - 360 1.000 EA
034180012DA KEY 1X4X1/4X1-1/2 L 1.000 EA
412118006A DRAIN 1.000 EA
078557001F FAN KB 110/50 (60) 360 1.000 EA
004824015A GREASE POLYREX EM 0.540 LB
032018012DK HHCS 1/2-13X1-1/2 PLTD. 4.000 EA
032018008AK HHCS 1/4-20X1 PLATED 4.000 EA
032018024CK HHCS 3/8-16X3 PLTD. 3.000 EA
415096002A CPLG 1/8 HEX TYPE 1.000 EA
410700004F WSHR 1.000 EA
035000001G GREASE RELIEF FITTING, ALEMITE 317400 1.000 EA
034530052AB P/NIP 1/8X6-1/2 GALV. 1.000 EA
034600001AA BUSH 1/4TO1/8 BLACK 1.000 EA
034600001AA BUSH 1/4TO1/8 BLACK 1.000 EA
085922073B BRKT 360 085922072WCC KB 1.000 EA
Page 6 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Parts List (continued)
Part Number Description Quantity
032018012DK HHCS 1/2-13X1-1/2 PLTD. 4.000 EA
032018024CK HHCS 3/8-16X3 PLTD. 3.000 EA
415045002E SLGR 1.000 EA
412118006A DRAIN 1.000 EA
035000001G GREASE RELIEF FITTING, ALEMITE 317400 1.000 EA
077176000L C/BOX, 360-400 1.000 EA
077176001A CBOXC, PAINTED 360-400 1.000 EA
043292000AJ GASK 320-400 1.000 EA
402731001A GASK 360-440 1.000 EA
418150003A GREASE FITTING CAP 1.000 EA
032018005AK HHCS 1/4-20X5/8 PLATED 4.000 EA
032018008CK HHCS 3/8-16X1L PLATED 4.000 EA
035000001A ALFTG 1/8" 1610-BL 1.000 EA
415000103D T/LUG #4AWG-1/0AWG W/HOLE FOR .250 BOLT 1.000 EA
406099000A PLUG - FAN COVER 320-440 1.000 EA
033512004LB HHTTS 1/4-20X1/2 PLTD. 1.000 EA
035000001A ALFTG 1/8" 1610-BL 1.000 EA
418150003A GREASE FITTING CAP 1.000 EA
033775004EA DRSCR #6-1/4 304 S.S. 2.000 EA
034180034HA KEY 5/8X5/8X4-1/4 L 1.000 EA
HW1000A32 5/16 FL WASHER WIDE,ID=.344,OD=1.125 3.000 EA
032509020C CARRIAGE BOLT - 360 3.000 EA
MG1025Y17 WILKOFAST, 789.701, SUPER E PEARL GOLD 0.375 GA
14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA
Page 7 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
A36WG0431-R001
DATE ISSUED 08/28/18
AC MOTOR
PERFORMANCE
DATA
P.B. GREENE
K.W. KANOUFF
E.J.CHRISTIAN
06/04/93
DRAWN BY:
CHECKED BY:
APPROVED BY:
DATE:
AMPERES SHOWN FOR 460 VOLT CONNECTION. IF OTHER CONNECTIONS ARE AVAILABLE, THE AMPERES WILL VARY
INVERSELY WITH THE RATED VOLTAGE.
XE MOTOR-TYPICAL DATA-NEMA NOM. EFF. 93.0 PCT.
GUARTANTEED MIN. EFF. 92.4 PCT.
39.3
177
100
888
FULL LOAD
119
406
229
841
BREAKDOWN
198
231
130
213
PULL UP
210
244
138
0
LOCKED ROTOR
AMPERES
LB.-FT.
TORQUE
TORQUE
% FULL LOAD
RPM
SPEED TORQUE
91.9
80.0
884
47.8
37.5
5/4
92.7
77.0
888
39.3
30.0
4/4
92.9
70.7
891
32.0
22.5
3/4
92.3
59.1
894
25.8
15.0
2/4
88.3
37.2
897
21.5
7.52
1/4
0
4.34
900
19.7
0
NO LOAD
% EFFICIENCY
% POWER FACTOR
RPM
AMPERES
HP
LOAD
PERFORMANCE
.0676/.270
---
---
418141-73-AE
591745
STATOR RES. @25 °C
OHMS (BETWEEN LINES)
TEST
DATE
TEST
S.O.
ROTOR
E/S
TEFC
G
B
1.15
40/B
CONT
78.6/39.3
ENCLOSURE
CODE
LETTER
NEMA
DESIGN
S.F.
AMB °C/
INSUL
DUTY
AMPS
230/460
890
3/60
P
30
364T
VOLTS
RPM
PHASE/
HERTZ
TYPE
HP
FRAME
S/O
Printed on 08/28/2018 7:15 AM
USERCHR1
Page 8 of 14
Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
OHMS (BETWEEN LINES)
591745
E/S
40/B
AMB °C / INSUL
3/60
PHASE / HERTZ
.0676/.270
STATOR RES. @ 25°C
TEFC
ENCLOSURE
CONT
DUTY
P
TYPE
---
TEST DATE
G
CODE LETTER
78.6/39.3
AMPS
30
HP
---
TEST S.O.
B
NEMA DESIGN
230/460
VOLTS
364T
FRAME
418141-73-AE
ROTOR
1.15
S.F.
890
RPM
REL S.O.
0 100 200 300 400 500 600 700 800 900
SPEED IN RPM,(FLT = 177 LB. FT.)
0 40 80 120 160 200 240
AMPS AT 460 VOLTS (1)
0 100 200 300 400 500 600
TORQUE IN LB. FT. (2)
1
2
0 4 8 12 16 20 24 28 32 36 40 44
HORSEPOWER
0 10 20 30 40 50 60 70 80
AMPS AT 460 VOLTS (1)
0 20 40 60 80 100
P.F.(2) & EFF.(3) IN %
884 886 888 890 892 894 896 898 900
SPEED IN RPM (4)
1
2
3
4
FL
XE MOTOR-TYPICAL DATA-NEMA NOM. EFF. 93.0 PCT.
GUARTANTEED MIN. EFF. 92.4 PCT.
A36WG0431-R001
08/28/18
ISSUE DATE
AC MOTOR
PERFORMANCE
DATA
P.B. GREENE
K.W. KANOUFF
06/04/93
E.J.CHRISTIAN
DATE:
APPROVED BY:
CHECKED BY:
DRAWN BY:
AMPERES SHOWN FOR 230/460 VOLT CONNECTION, IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE AMPERES WILL VARY
INVERSELY WITH THE RATED VOLTAGE.
Printed on 08/28/2018 7:15 AM
USERCHR1
Page 9 of 14

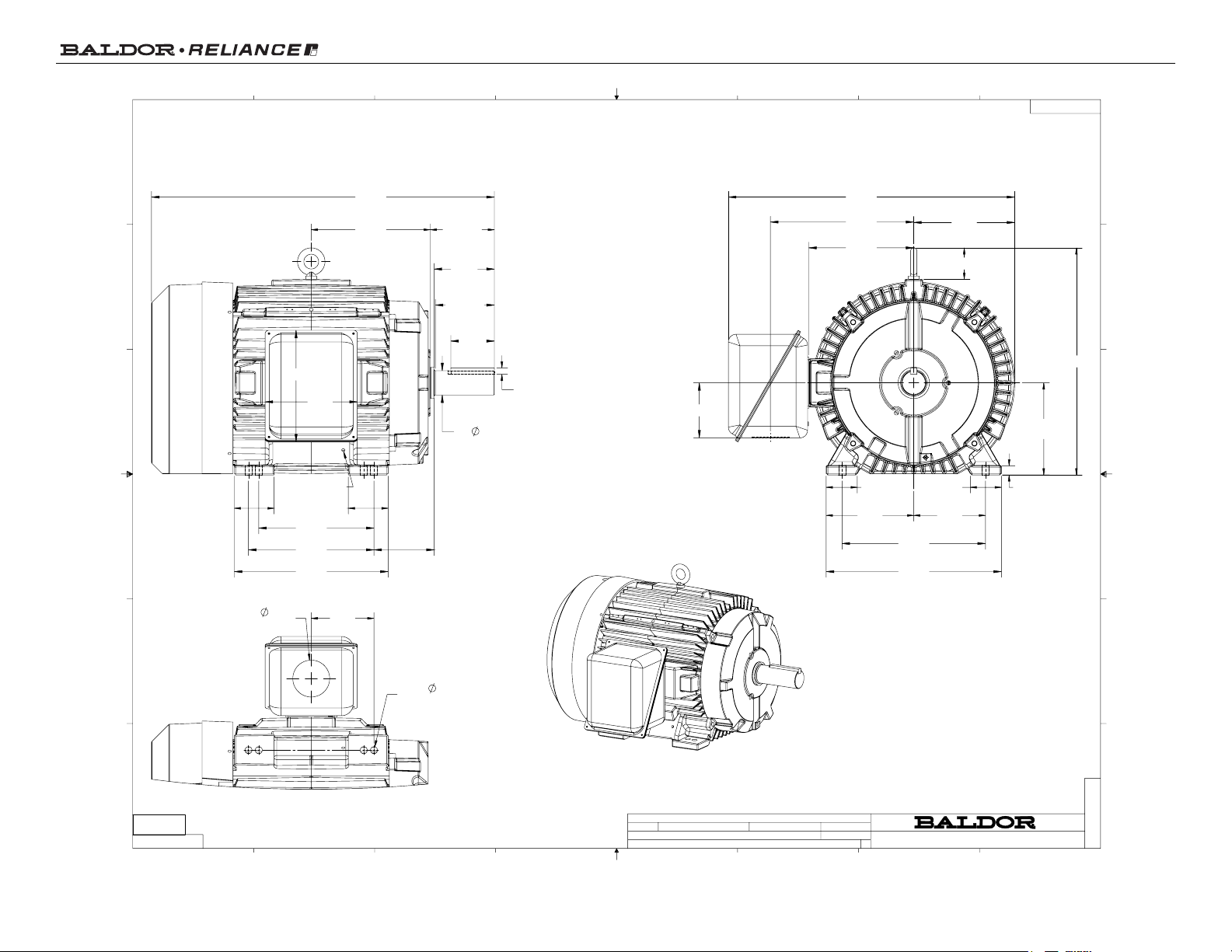

Product Information Packet: EM4338T - 30HP,890RPM,3PH,60HZ,364T,TEFC,F1
1 OF 1
SHEET NUMBER
12.25
15.00
BA=5.88
33.48
U=
2.375
+-.000
.001
9.00
10.90
N-W=
5.88
V=5.76
4.25
K'WAY
11.25
.625
SQ. KEY
N=6.27
11 62
3/8-16 UNC
(GROUND TAP)
3.88 3.88
14.00
17.00
10.25
14.00
5.38
7.00 8.55
3.03 3.03
8.99
+-.01
.05
.88
9 85
27.96
3 06
22.17
6.13
3.60
THRU
8X
69 THRU
(FOOT MOUNTING)
DUTY MASTER ALTERNATING CURRENT MOTORS
SQUIRREL-CAGE INDUCTION
E365T/E364T FRAME MOUNTING
STEEL CONDUIT BOX
IF MOUNTING CLEARANCE DETAILS ARE REQUIRED CONSULT FACTORY
MAX PERMISSIBLE SHAFT RUNOUT WHEN MEASURED AT END OF STANDARD SHAFT EXTENSION IS 003 T I R
DIMENSIONS ARE IN INCHES
WEIGHT (LBS ) 800 / MOTOR WEIGHT MAY VARY 15% DEPENDING ON RATING
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT MOTOR PERFORMANCE IS SUITABLE IN THE APPLICATION
ENCLOSURE: TOTALLY ENCLOSED
MOUNTING: FOOT, F-1 SIDE
COOLING: FAN COOLED
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
C
617431-412
617431-412
02
000001089873
617 31- 12
10 09 2 11 05/2018
B
USJEDIL
1089873 UPDATE DS TO DISPLAY GROUND TAP
617431-412
TDR
VERSION
MODEL NO.
REVISED
BY
REV
REV. DESC
E365/36 T TEFC FOOT F1 STEEL CONDUIT BOX
Page 10 of 14
