Product Information Packet
EM3303T
2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Part Detail
Revision: G Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGR734 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 37B101 Layout: 37LYB101 Poles: 08 Created Date: 04-30-2015
Base: RG Eff. Date: 07-02-2019 Leads: 9#14
Specs
Catalog Number: EM3303T
Enclosure: OPSB
Frame: 213T
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 900 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3744M
Mounting Arrangement: F1
Power Factor: 61
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Bearing Grease Type: Polyrex EM (-20F +300F)
RoHS Status: ROHS COMPLIANT
Page 2 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Blower: None
Current @ Voltage: 7.200 A @ 208.0 V
7.000 A @ 230.0 V
3.500 A @ 460.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Nameplate NP2116L
CAT.NO. EM3303T
SPEC. 37B101R734G1
HP 2
VOLTS 208-230/460
AMP 7.2-7/3.5
RPM 865
FRAME 213T HZ 60 PH 3
SER.F. 1.15 CODE J DES B CL F
NEMA-NOM-EFF 86.5 PF 61
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6206
ENCL OPSB SN
Page 4 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Parts List
Part Number Description Quantity
SA299900 SA 37B101R734G1 1.000 EA
RA286936 RA 37B101R734G1 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA
37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA
51XW2520A10 .25-20 X .62, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
37EP3203A00 MASTER,ODE,206 BRG,GREASER 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP3204D00 MASTER,DE,307 BRG,GREASER 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.028 GA
37AD2001A01 BAFFLE PLATE, PLASTIC 0.63" WIDTH 2.000 EA
HA3104A35 THRUBOLT .31-18 X 13.687 4.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP2116L ALUM SUPER-E UL CSA CC 1.000 EA
Page 5 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Parts List (continued)
Part Number Description Quantity
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
AC Induction Motor Performance Data
Record # 61392 - Typical performance - not guaranteed values
Winding: 37WGR734-R004 Type: 3744M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 2 Full Load Torque 12.2 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 7.2-7/3.5 Breakdown Torque 36.2 LB-FT
R.P.M. 865 Pull-up Torque 20.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 22.2 LB-FT
NEMA Design Code B KVA Code J Starting Current 18.7 A
Service Factor (S.F.) 1.15 No-load Current 2.25 A
NEMA Nom. Eff. 86.5 Power Factor 61 LinelineRes.@25ºC 4.59Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 22°C
S.F. Amps Temp. Rise @ S.F. Load 25°C
Locked-rotor Power Factor 32.5
Rotor inertia 1.09 LB-FT2
Load Characteristics 460 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 26 42 53 61 65 69 63
Efficiency 77.6 84.9 86.8 87.3 85.9 83.9 86.5
Speed 892 885 877 868 857 846 861
Line amperes 2.37 2.65 3.06 3.57 4.16 4.86 3.92
Page 7 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N

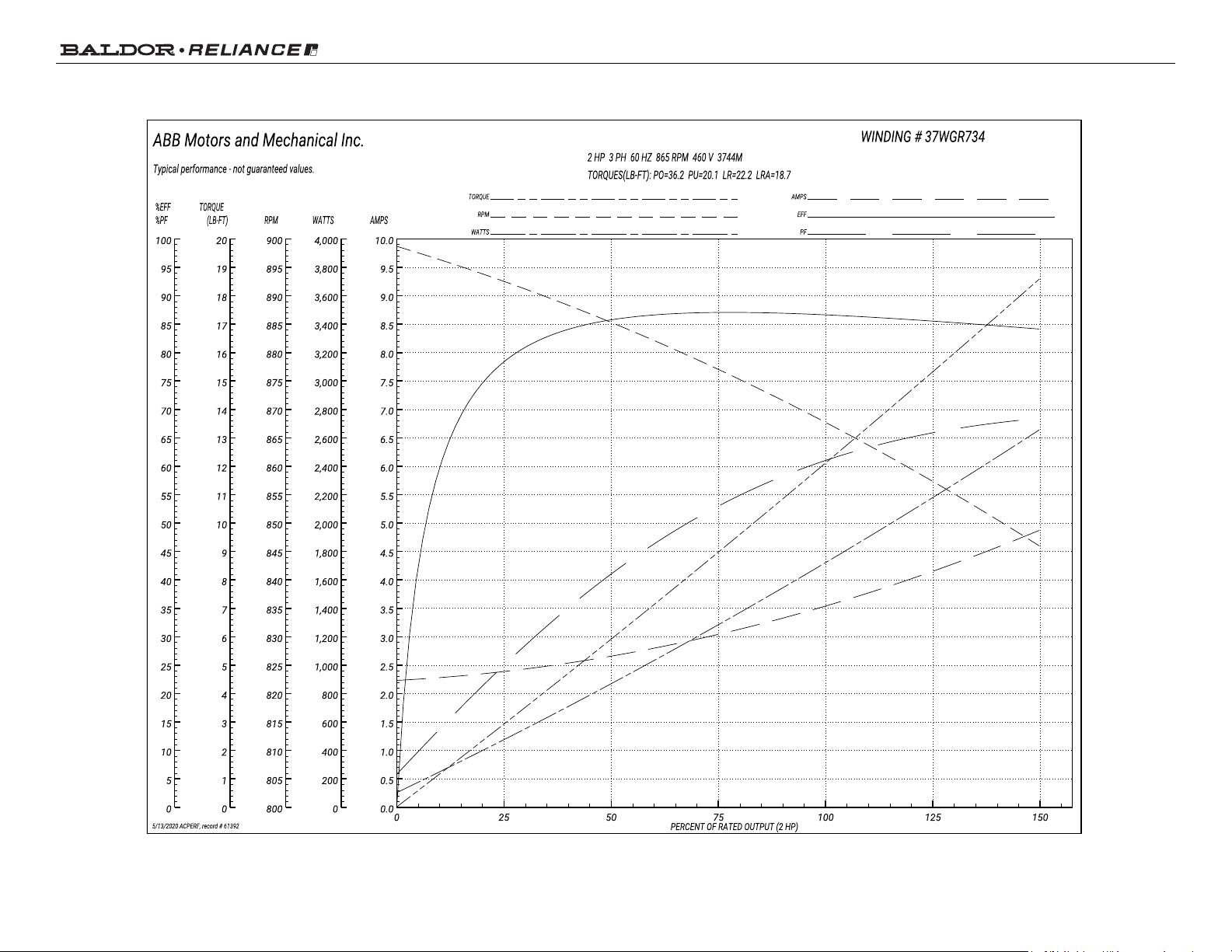

Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Page 9 of 10
Product Information Packet: EM3303T - 2HP,865RPM,3PH,60HZ,213T,3744M,OPSB,F1,N
Page 10 of 10
