Baldor EM2548T Product Information Sheet

Download

Product Information Packet

EM2548T

60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

Product Information Packet: EM2548T - 60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

Part Detail

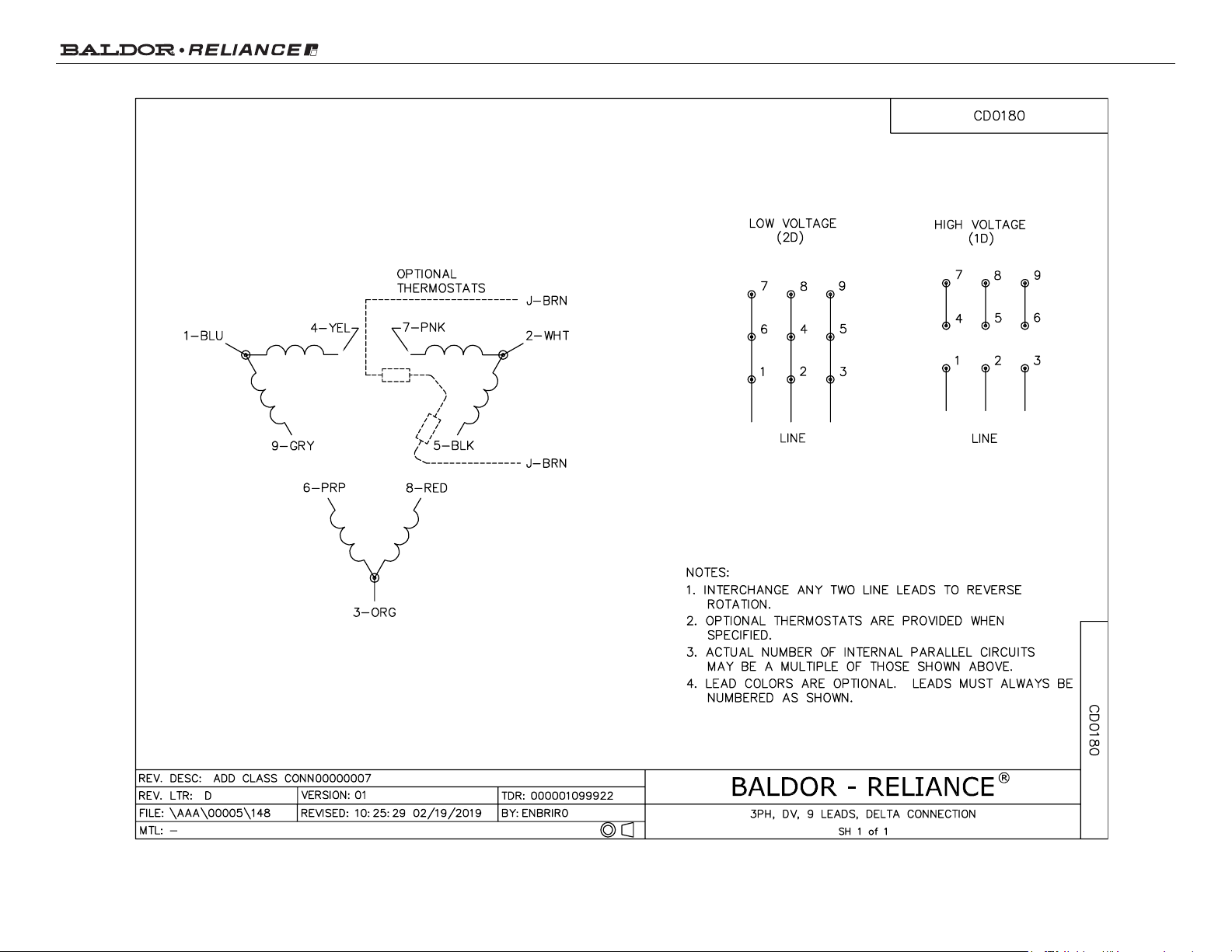

Revision: P Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 44WGW300 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 44E057 Layout: 44LYE057 Poles: 06 Created Date: 05-07-2010 Base: RG Eff. Date: 04-08-2019 Leads: 9#6

Specs

Catalog Number: EM2548T Enclosure: OPSB Frame: 404T Frame Material: Steel Output @ Frequency: 60.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ

Agency Approvals: CSA

CSA EEV

UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 76.000 A @ 460.0 V

Insulation Class: F Inverter Code: Inverter Ready KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 6 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 4480M Mounting Arrangement: F1 Power Factor: 79 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End

160.000 A @ 208.0 V

Shaft Ground Indicator: No Shaft Grounding

Page 2 of 11

Product Information Packet: EM2548T - 60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

152.000 A @ 230.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater

Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None

Page 3 of 11

Product Information Packet: EM2548T - 60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

Nameplate NP2138LUA

CAT.NO. EM2548T P/N ENCLOSURE OPSB

SPEC. 44E057W300G1 CC 010A FRAME 404T S/N

HP 60 CLASS F HZ 60

RPM 1185 PH 3 DES A

VOLT 230/460 KVA-CODE H ODE BRG 6312 DE BRG 6316

AMP 152/76 USABLE AT 208V 160

RATING 40C AMB-CONT GREASE POLYREX EM

NEMA-NOM-EFF 94.5 PF 79 SER.F. 1.15

50Hz 60Hp 190/380V 178/89A SF 1.0

HTR-VOLTS HTR-AMPS

Page 4 of 11

Product Information Packet: EM2548T - 60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

Parts List

Part Number Description Quantity SA194477 SA 44E057W300G1 1.000 EA RA182064 RA 44E057W300G1 1.000 EA HA6731 LIFTING LUG FOR 44 FRAME MOTORS. 2.000 EA HA6648A01 CAST ADAPTER, 44 FRAME - NEMA 404-5 - MA 1.000 EA 19XW3816A12 .38-16 X .75 HEX WASHER HEAD TAPTITE II 2.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 2.000 EA 18CB1006A04 CB 318 3.62 LD HOLE, .38 MTG HOLE & 3.88 1.000 EA 19XW3118A16 .31-18 HEX WASHER HEAD TAPTITE II 1.00 L 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 10XN3118K08 5/16-18 X .50 GRADE #5, STL, ZINC PLATE 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA 44EP1203A02 FREP, MACH 1.000 EA HW5100A15 W4997-050 WVY WSHR (WB) 1.000 EA 10XN3816K48 3/8-16 X 3 HEX HD CAP SCREW,Z/P 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 44EP1202A01 PU ENDPLATE, MACH. 1.000 EA XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 8.000 EA 18CB1506A01 CB LID 318 FOR 18CB1006 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW2501K66 KEY, 3/4 SQ X 5.625 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA

Page 5 of 11

Product Information Packet: EM2548T - 60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

Parts List (continued)

Part Number Description Quantity HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.030 LB HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.080 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA 44AD2003B01 BAFFLE PLATE 44 OPSB, "X" = .030. "Y" = 1.000 EA HA3175A03 THRUBOLT STUD 1/2-13 X 24.250 - GRADE 2 4.000 EA 44AD2003B01 BAFFLE PLATE 44 OPSB, "X" = .030. "Y" = 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP2138LUA ALUM SUPER-E UL CSA-EEV PREM CC (300SER) 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA 44PA1000 PK GP COMB PRINT 39-3/8X31X23-7/8 1.000 EA

Page 6 of 11

Product Information Packet: EM2548T - 60HP,1185RPM,3PH,60HZ,404T,4476M,OPSB,F1

AC Induction Motor Performance Data

Record # 32127 - Typical performance - not guaranteed values

Winding: 44WGW300-R001 Type: 4480M Enclosure: OPSB

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 60 Full Load Torque 266 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 152/76 Breakdown Torque 843 LB-FT R.P.M. 1185 Pull-up Torque 384 LB-FT Hz 60 Phase 3 Locked-rotor Torque 526 LB-FT NEMA Design Code A KVA Code H Starting Current 520 A Service Factor (S.F.) 1.15 No-load Current 33.2 A NEMA Nom. Eff. 94.5 Power Factor 79 LinelineRes.@25ºC 0.084913Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 42°C S.F. Amps Temp. Rise @ S.F. Load 50°C

Locked-rotor Power Factor 29

Rotor inertia 22.8 LB-FT2

Load Characteristics 460 V, 60 Hz, 60 HP

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 42 63 74 79 81 82 80 Efficiency 91.5 94.3 94.8 94.6 94.2 93.4 94.4 Speed 1195.3 1192.1 1188.9 1184.8 1180.9 1176 1182 Line amperes 37.6 47.6 60.7 75.5 92.2 110 85.5

Page 7 of 11
