Product Information Packet
EM2334T-58
20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Part Detail
Revision: N Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGZ534 CD Diagram: CD0382 Mfg Plant: Mech. Spec: 09F103 Layout: 09LYF103 Poles: 04 Created Date: 12-05-2014 Base: RG Eff. Date: 03-09-2020 Leads: 6#12
Specs
Catalog Number: EM2334T-58 Enclosure: TEFC Frame: 256T Frame Material: Iron Output @ Frequency: 20.000 HP @ 50 HZ Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ Voltage @ Frequency: 400.0 V @ 50 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
WEEE CSA
CE Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 6 @ 12 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0956M Mounting Arrangement: F1 Power Factor: 84 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT Shaft Extension Location: Pulley End
Blower: None
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Current @ Voltage: 28.000 A @ 400.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Wye Start - Delta Run Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Nameplate NP3444L
CAT NO EM2334T-58
SPEC. 09F103Z534G1
HP 20 PH 3
VOLTS 400
AMP 28 RPM 1465
FRAME 256T HZ 50 I.P. 54
SER.F. 1.15 CODE H DES A CL F
NOM.EFF. 92.1
PF 84 USABLE AT 208V RATING 40C AMB-CONT CC DE BRG 6309 ODE 6208
ENCL TEFC SN
VPWM INVERTER READY
CT5-50(10:1)VT2.5-50(20:1
BLANK IE3-92.3(75%)91.5(50%)
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Parts List
Part Number Description Quantity SA290869 SA 09F103Z534G1 1.000 EA RA277020 RA 09F103Z534G1 1.000 EA 09FN3001C01 EXTERNAL FAN, PLASTIC 1.000 EA 09CB3000SP CONDUIT BOX CAST 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 10XN2520K12 1/4-20 X.75 GRD 5 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 09EP1101A11SP PU ENDPLATE, MACH 1.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 59XW2520G07 .25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1.000 EA 09FE1100A14 FREP ASSEMBLY, 09EP1100A14 1.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 09FH1000 BALDOR MOTOR FAN COVER 1.000 EA HW4600B44 V-RING SLINGER 1.500 X 1.810 X .28 VITON 1.000 EA 10XN2520K36 1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA HA3113A05 THRUBOLT 3/8 - 16 X 17.250 4.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HA2081A05 SPACER TUBE, 309 FAN HSG, 2.00 LONG 4.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Parts List (continued)
Part Number Description Quantity HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 09CB3500SP CONDUIT BOX LID, CAST 1.000 EA 09GS1001SP GASKET-CONDUIT BOX LID, 1/16 THICK LEXID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.050 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1119N WARNING LABEL 1.000 EA LC0382 CONNECTION LABEL 1.000 EA NP3444L ALUM SUPER-E VPWM INV READY NEMA IE3 UL 1.000 EA 09PA1000 PACKAGING GROUP COMBINED PRINT 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
LB1594 MYLAR WEEE WHEELIE BIN SYMBOL FOR CE MOT 1.000 EA PE-0000003 ZRTG PE ASSEMBLY 1.000 EA
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
AC Induction Motor Performance Data
Record # 48443 - Typical performance - not guaranteed values
Winding: 09WGZ534-R009 Type: 0956M Enclosure: TEFC
Nameplate Data
400 V, 50 Hz:
Single Voltage Motor Rated Output (HP) 20 Full Load Torque 71.9 LB-FT Volts 400 Start Configuration direct on line Full Load Amps 28 Breakdown Torque 369 LB-FT R.P.M. 1465 Pull-up Torque 111 LB-FT Hz 50 Phase 3 Locked-rotor Torque 168 LB-FT NEMA Design Code A KVA Code H Starting Current 203 A Service Factor (S.F.) 1.15 No-load Current 12.8 A NEMA Nom. Eff. 92.1 Power Factor 84 LinelineRes.@25ºC 0.324Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 78°C S.F. Amps Temp. Rise @ S.F. Load 96°C
Locked-rotor Power Factor 36.6
Rotor inertia 2.44 LB-FT2
Load Characteristics 400 V, 50 Hz, 20 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 43 66 77 84 86 87 85 Efficiency 87.2 91.5 92.3 92.2 91.3 89.8 91.7 Speed 1493 1485 1476 1468 1458 1445 1462 Line amperes 14.2 17.8 22.9 28.1 34.4 42.7 31.9
Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1

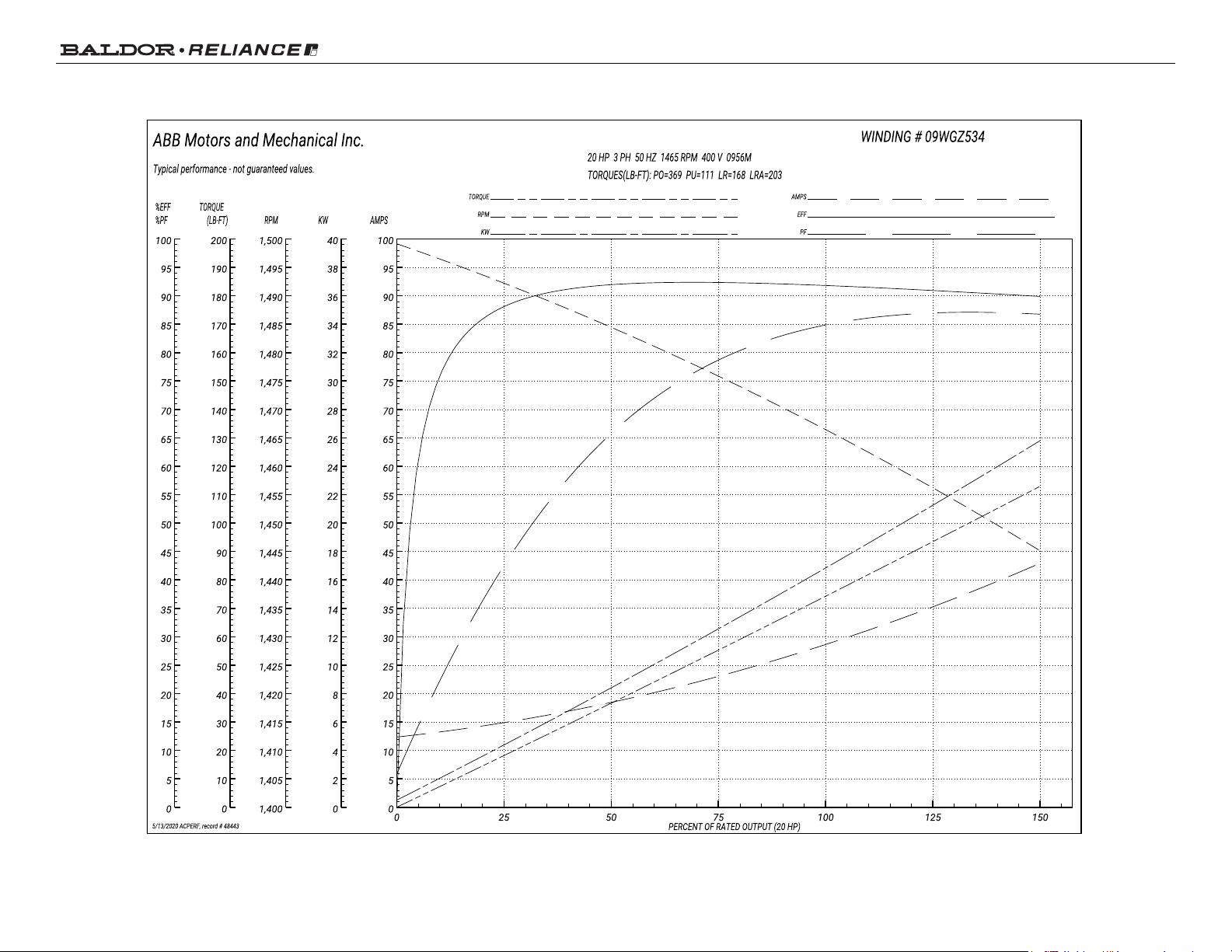

Performance Graph at 400V, 50Hz, 20.0HP Typical performance - Not guaranteed values

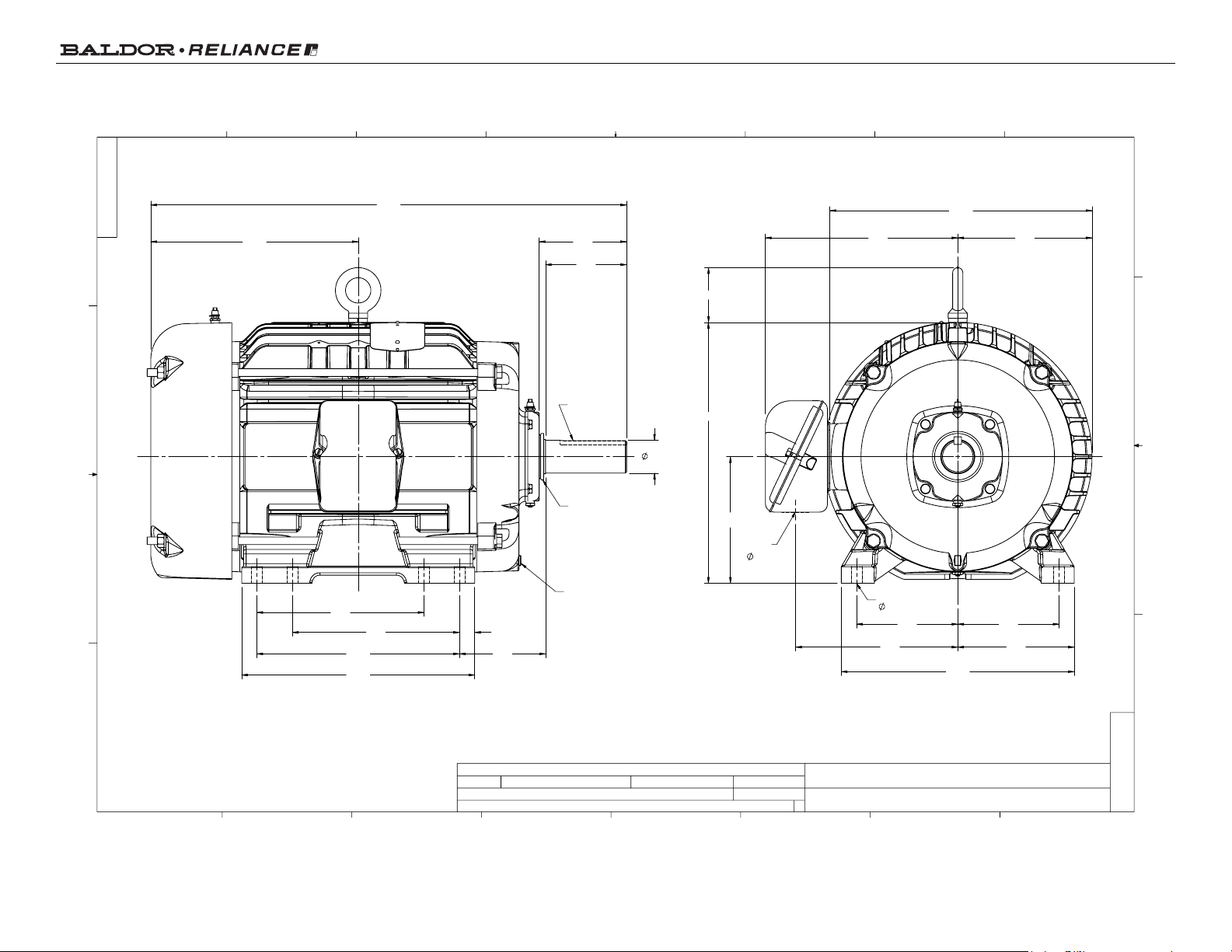

Product Information Packet: EM2334T-58 - 20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
23 48
10 24 4 31
11 50
10 00
8 25
8 25
4 25
4 00
75
1 625 1 624
38 KEY
2 88 LONG
SLINGER
AUTO DRAIN (EA END)
(920 - 952)
(954 - 960 4 6 8 PL ONLY)
NAMEPLATE
9 49
12 88
11 50
5 00 5 00
8 00 5 75
6 25 6 19
12 94
6 63
2 70
8 HOLES
53
LEAD HOLE
1 38
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
09LYF103
B
HORZ TEFC 254-6T W/C.I. FAN COVER
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
09LYF103
LOAD DRAWING TO SOLIDWORKS
ENALEM0
E
06 51 18 02/12/2020
-
000001132140
05
09LYF103
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 10 of 12
