Product Information Packet
EL3515T
2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Part Detail
Revision: R Status: PRD/A Change #: Proprietary: No

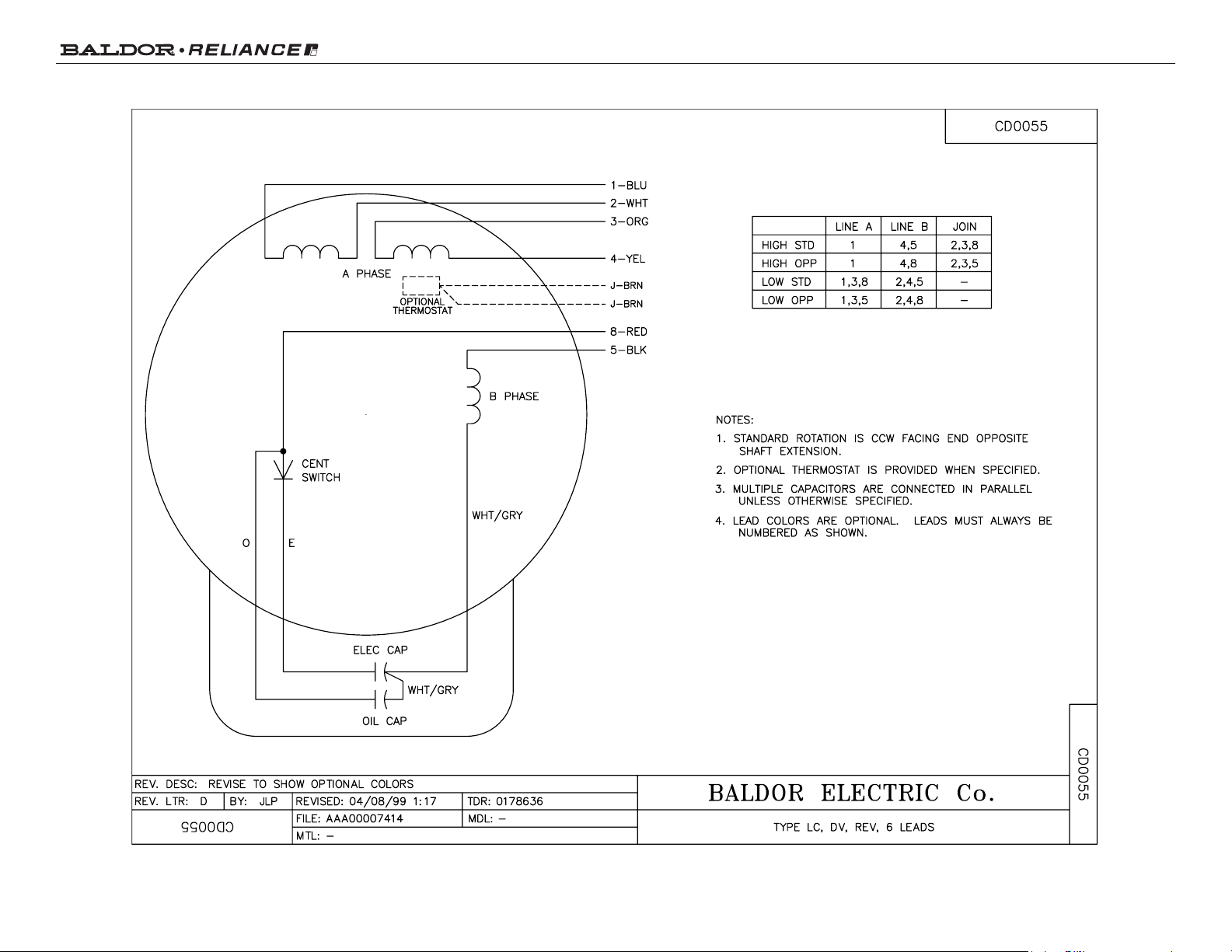

Type: AC Elec. Spec: 35WGY963 CD Diagram: CD0055 Mfg Plant:
Mech. Spec: 35U807 Layout: 35LYU807 Poles: 02 Created Date: 11-10-2008
Base: RG Eff. Date: 05-31-2018 Leads: 4#16 A PH,2#18 B PH
Specs
Catalog Number: EL3515T
Enclosure: TEFC
Frame: 143T
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 115.0 V @ 60 HZ
208.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 4 @ 16 AWG, A PH
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3535LC
Mounting Arrangement: F1
Power Factor: 96
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Current @ Voltage: 16.800 A @ 115.0 V
8.300 A @ 230.0 V
9.100 A @ 208.0 V
Design Code: L
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Nameplate NP2116L
CAT.NO. EL3515T
SPEC. 35U807Y963G1
HP 2
VOLTS 115/208-230
AMP 16.8/9.1-8.3
RPM 3450
FRAME 145T HZ 60 PH 1
SER.F. 1.15 CODE G DES L CL F
NEMA-NOM-EFF 77 PF 96
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6205 ODE 6203
ENCL TEFC SN
Page 4 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Parts List
Part Number Description Quantity
SA177140 SA 35U807Y963G1 1.000 EA
RA165192 RA 35U807Y963G1 1.000 EA
OC3050C09 CYL OIL CAP 50MFD/240V 1.000 EA
EC1540A06SP ELEC CAP, 540-648 MFD, 125V, 2.06D X 4. 1.000 EA
WD3006A01 RSS-2-103JT 2W 10K RES. METAL OXIDE 5% 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122A00 MASTER ODE,203 BRG,.683SH,#26 DRN,GRSR,F 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
35CB3801 CAPACITOR COVER, CAST 1.000 EA
34GS3002 GASKET, CAPACITOR BOX 1.000 EA
HA7010 CAPACITOR RETENTION CLAMP 1.000 EA
NS2501A02 INSULATOR, CAPACITOR BOX 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3123F00 MASTER DE,205 BRG,.998SH,#26 DRN,GRSR 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
Page 5 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Parts List (continued)
Part Number Description Quantity
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521GX CONDUIT BOX LID KIT **ORDER INDIV PARTS 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
WD1000A15 3-520132-2 AMP FLAG (4M/RL NON-CANC/NON- 4.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
HA3100A22 THRUBOLT 10-32 X 10.125 4.000 EA
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.017 GA
SP5181A28 MODEL 35 LC TORQ STAT SWITCH LEAD ASSY 1.000 EA
LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA
NP2116L ALUM SUPER-E UL CSA CC 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
No performance data has been
assigned to this product.
Page 7 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
4 00 2 25
50 5 00
5 94
3 76
7 19
8750
8745
2 25
2 50
510-528 = 13 29
529-535 = 14 16
536-546 = 15 54
6 HOLES
Ø 38
NAMEPLATE
19 KEY
1 38 LONG
GREASE FITTING
(EACH END)
2 75 2 75
4 63 3 25
6 50
3 50
3 44
6 81
2 27
5 75
6 61
LEAD HOLE
Ø 88
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYU807
B
HORZ 143-5T TEFC LC (2 POLE BASE)
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYU807
LOAD INOPC CREATED SWD DRG INTO BUS - PACKAGE 17
USBUFRA
B
10 07 05 02/11/2019
-
000001098865
02
35LYU807
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 8 of 9
Product Information Packet: EL3515T - 2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
