Baldor EL3506 Product Information Sheet

Download
Product Information Packet
EL3506
.75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Part Detail

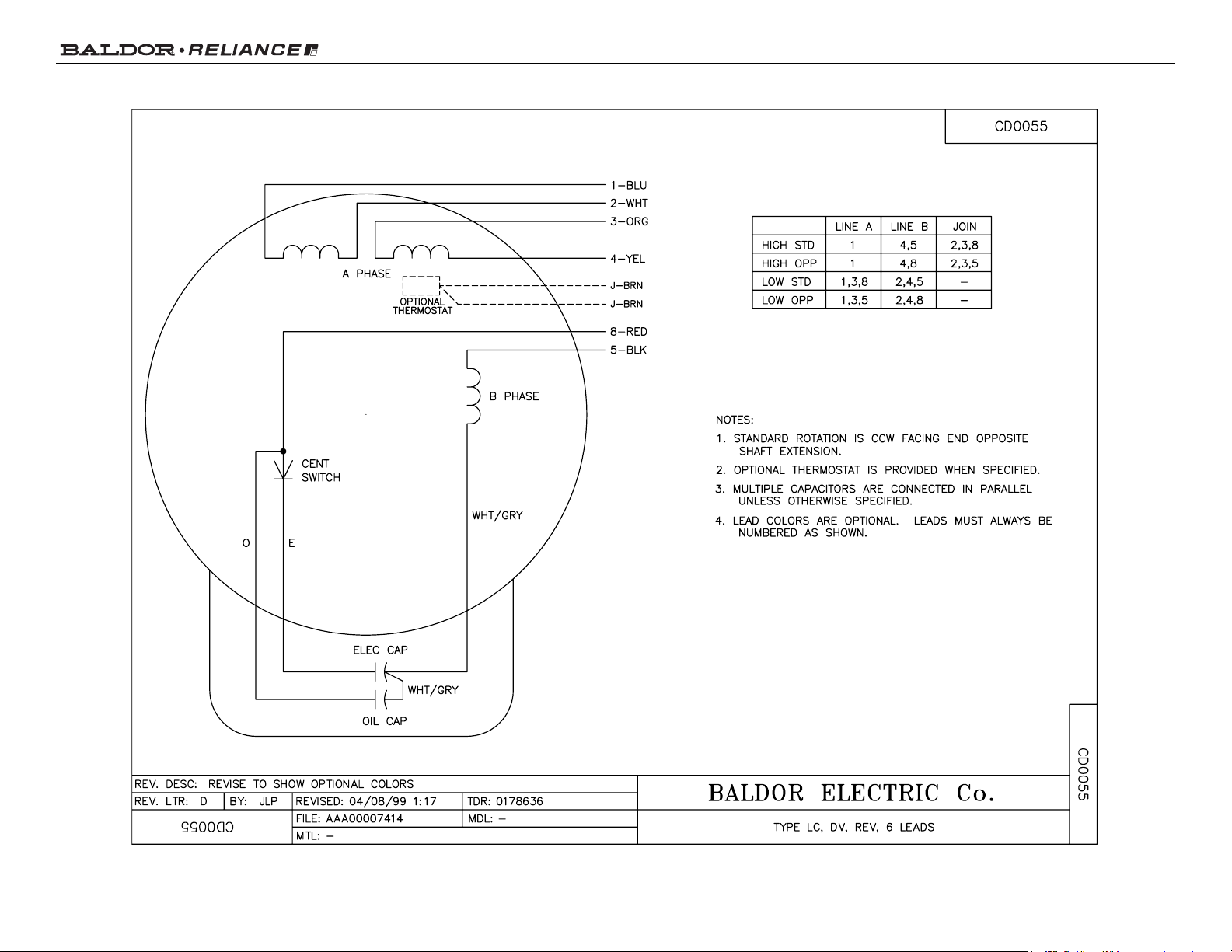

Revision: M Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 34WGS432 CD Diagram: CD0055 Mfg Plant: Mech. Spec: 34G375 Layout: 34LYG375 Poles: 02 Created Date: 11-10-2008 Base: RG Eff. Date: 01-30-2020 Leads: 6#18
Specs
Catalog Number: EL3506 Enclosure: TEFC Frame: 56 Frame Material: Steel Output @ Frequency: .750 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: CSA
CSA EEV
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Inverter Code: Not Inverter IP Rating: NONE KVA Code: K Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: No Locked Bearing Motor Lead Quantity/Wire Size: 6 @ 18 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3424LC Mounting Arrangement: F1 Power Factor: 86 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Current @ Voltage: 3.900 A @ 230.0 V
7.800 A @ 115.0 V Design Code: N Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: B
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Nameplate NP2116L
CAT.NO. EL3506
SPEC. 34G375S432G1
HP .75
VOLTS 115/230
AMP 7.8/3.9 RPM 3450
FRAME 56 HZ 60 PH 1
SER.F. 1.25 CODE K DES N CL B
NEMA-NOM-EFF 72 PF 86
RATING 40C AMB-CONT
CC USABLE AT 208V DE 6203 ODE 6203
ENCL TEFC SN
SFA 9.2/4.6
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Parts List
Part Number Description Quantity SA177265 SA 34G375S432G1 1.000 EA RA165308 RA 34G375S432G1 1.000 EA OC3030F11SP CAPACITOR 30 MFD 370 VAC 1.000 EA EC1400A03 ELEC CAP, 400-480 MFD, 125V, 1.81D X 3. 1.000 EA NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA 34CB3002A CB CAST W/.88 DIA HOLE 1.000 EA 34GS1029A01 GASKET, CONDUIT BOX 1.000 EA 51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 3.000 EA 34EP3102A01SP FR ENDPLATE, MACH 1.000 EA 34CB3801 CAPACITOR BOX, DIE CAST 1.000 EA 34GS3002 GASKET, CAPACITOR BOX 1.000 EA 51XB1214A08 12-14 X 1/2HX WS SL SR TYBX 2.000 EA HW5100A03 WAVY WASHER (W1543-017) 1.000 EA 34EP3102A02SP FR/PU ENDPLATE, MACH 1.000 EA XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA 34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA 34FH4002A01SP IEC FH NO GREASER PRIMED 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 34CB4517 CB LID 4 MTG HOLES .22 DIA STAMPED, FOR 1.000 EA 34GS1031A01 GASKET, FLAT CONDUIT BOX LID (LEXIDE) 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Parts List (continued)
Part Number Description Quantity HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA 34GS5003A01 FOAM SLEEVE, ID = 2 1/16" X 4 3/8" 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA SP5051B11 MODEL 34/35 TYPE LC STATIONARY SWITCH 1.000 EA HA3100A44 THRUBOLT 10-32 X 8.000 4.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.014 GA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA NP2116L ALUM SUPER-E UL CSA CC 1.000 EA 35PA1000 PKG GRP, PRINT PK1008A06 1.000 EA
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
AC Induction Motor Performance Data
Record # 36358 - Preliminary Data Sheet
Winding: 34WGS432-R001 Type: 3424LC Enclosure: TEFC
Nameplate Data
115 V, 60 Hz:
Low Voltage Connection Rated Output (HP) .75 Full Load Torque 1.15 LB-FT Volts 115/230 Start Configuration direct on line Full Load Amps 7.8/3.9 Breakdown Torque 3.77 LB-FT R.P.M. 3450 Pull-up Torque 2.87 LB-FT Hz 60 Phase 1 Locked-rotor Torque 3.94 LB-FT NEMA Design Code N KVA Code K Starting Current 57.5 A Service Factor (S.F.) 1.25 No-load Current 4.01 A
NEMA Nom. Eff. 72 Power Factor 86 LinelineRes.@25ºC
0.612ΩAPh
2.38ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 60°C S.F. Amps 9.2/4.6 Temp. Rise @ S.F. Load 70°C
Load Characteristics 115 V, 60 Hz, 0.75 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 72 81 86 89 89 89 Efficiency 50.1 64.9 70.4 73.1 73 71.3 73 Speed 3565 3540 3508 3475 3435 3383 3435 Line amperes 4.49 5.34 6.5 7.84 9.31 11.3 9.31
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1

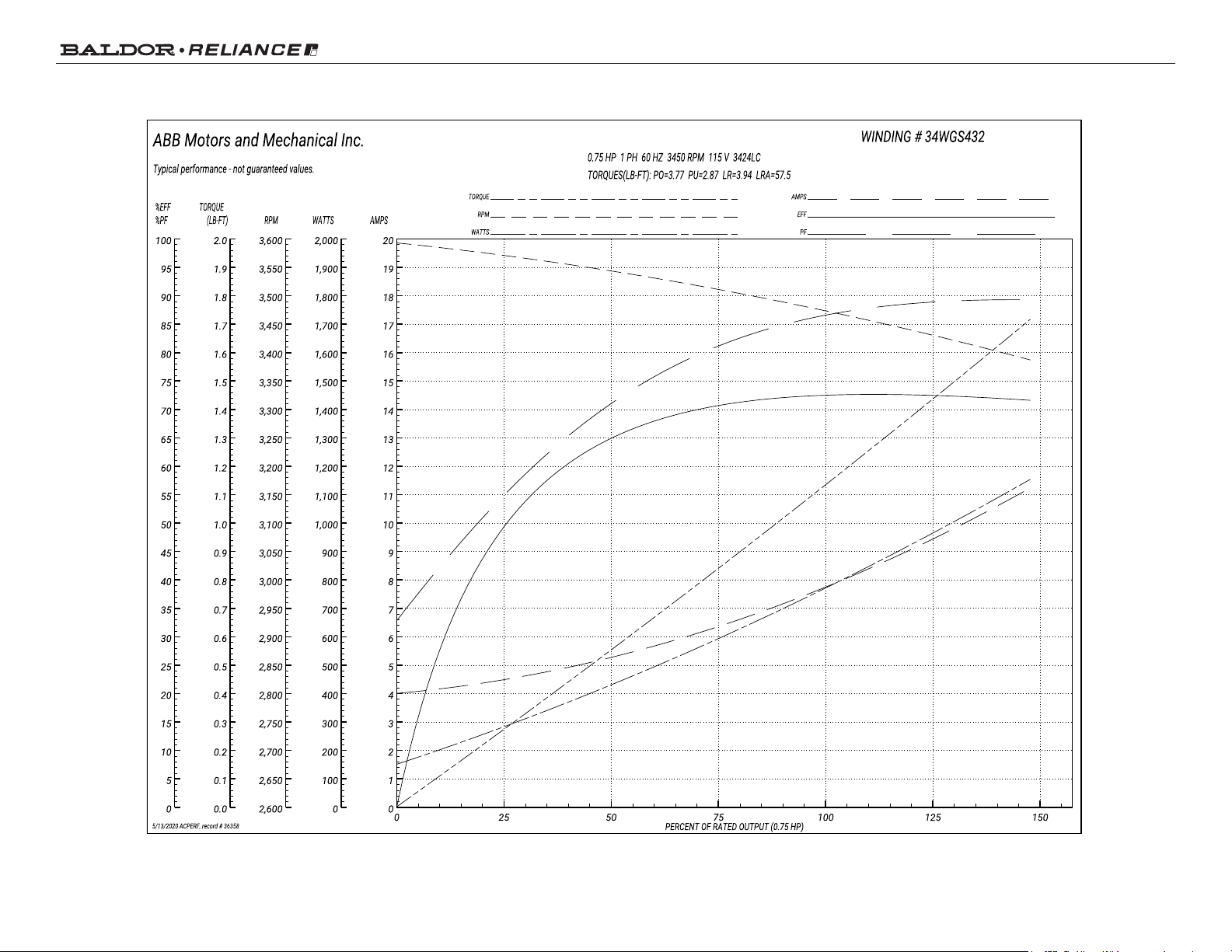

Performance Graph at 115V, 60Hz, 0.75HP Typical performance - Not guaranteed values
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Product Information Packet: EL3506 - .75HP,3450RPM,1PH,60HZ,56,3424LC,TEFC,F1
Page 10 of 10
