Baldor EL11318 Product Information Sheet

Product Information Packet

EL11318

1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Part Detail

Revision: E Status: PRD/A Change #: Proprietary: No

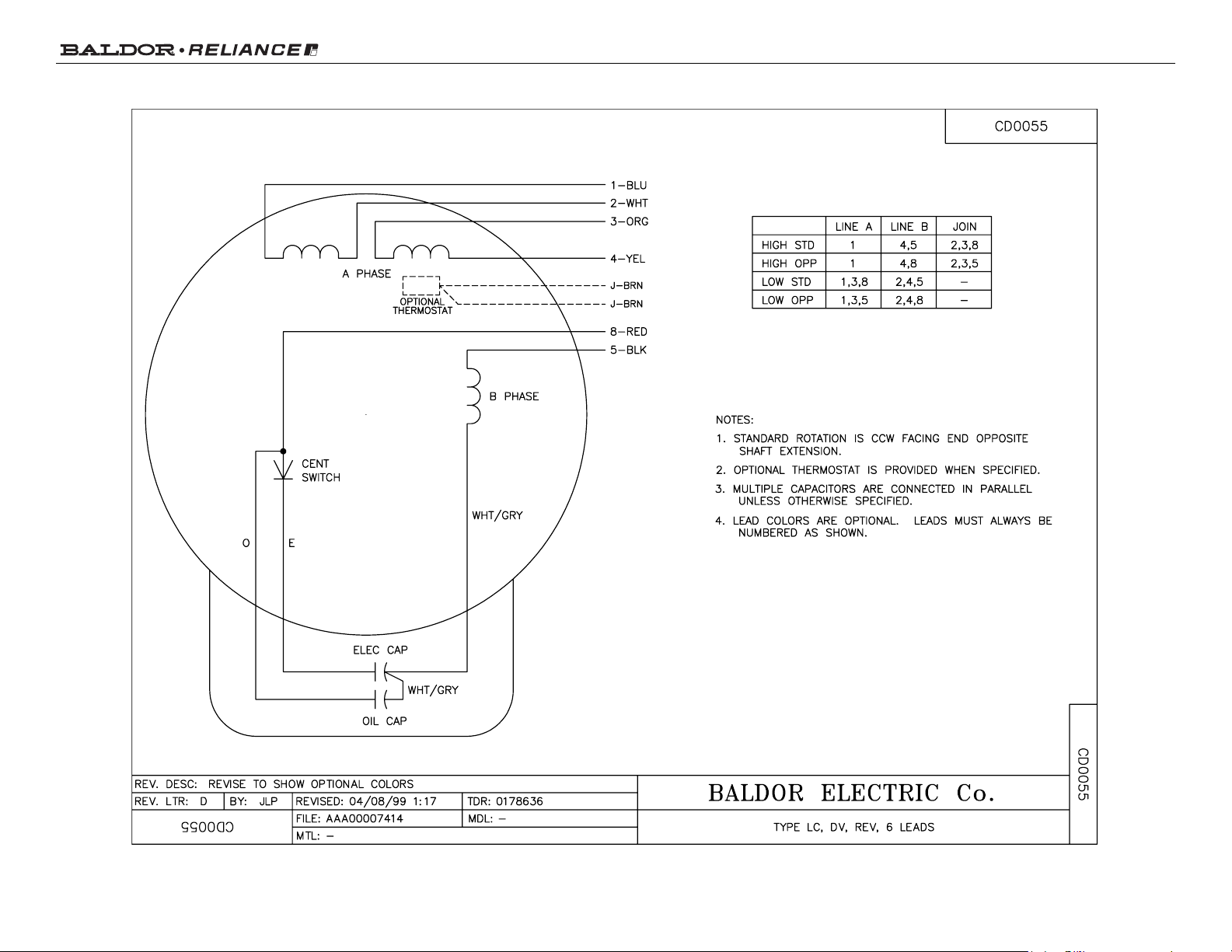

Type: AC Elec. Spec: 35WGN264 CD Diagram: CD0055 Mfg Plant:
Mech. Spec: 35E007 Layout: 35LYE007 Poles: 04 Created Date: 09-30-2014
Base: RG Eff. Date: 03-02-2018 Leads: 6#18

Specs

Catalog Number: EL11318
Enclosure: OPEN
Frame: 56H
Frame Material: Steel
Output @ Frequency: 1.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 115.0 V @ 60 HZ

230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR

CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None

Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3528LC
Mounting Arrangement: F1
Power Factor: 93
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End

Current @ Voltage: 4.200 A @ 230.0 V

Shaft Ground Indicator: No Shaft Grounding

Page 2 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

8.400 A @ 115.0 V
Design Code: L
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater

Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None

Page 3 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Nameplate NP3155L

CAT.NO. EL11318

SPEC. 35E007N264G1

HP 1

VOLTS 115/230

AMP 8.4/4.2
RPM 1750

FRAME 56H HZ 60 PH 1

SER.F. 1.15 CODE K DES L CL F

F.L. AVG. EFF. 82.6 PF 93

RATING 40C AMB-CONT

CC USABLE AT 208V
DE 6205 ODE 6203

ENCL OPEN SN

Page 4 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Parts List

Part Number Description Quantity
SA287871 SA 35E007N264G1 1.000 EA
RA274074 RA 35E007N264G1 1.000 EA
OC3040F18SP 7YL OIL CAP 40MFD/370V 1.000 EA
EC1460A05SP ELEC CAP, 460-552 MFD, 125V, 2.06D X 3. 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3209G00 MASTER ODE,203 BRG 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
NS2501A02 INSULATOR, CAPACITOR BOX 1.000 EA
35CB3801 CAPACITOR COVER, CAST 1.000 EA
HA7010 CAPACITOR RETENTION CLAMP 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3210B00 MASTER DE,205 BRG,1.000SH 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
WD1000A15 3-520132-2 AMP FLAG (4M/RL NON-CANC/NON- 4.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB

Page 5 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Parts List (continued)

Part Number Description Quantity
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.017 GA
HA3100A18 THRUBOLT 10-32 X 9.250 4.000 EA
34GS5003 FOAM SLEEVE, ID = 2 1/16" X 3 3/8" 1.000 EA
SP5181A01 MODEL 35 LC TORQ STAT SWITCH LEAD ASSY 1.000 EA
LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
NP3155L ALUM SUPER-E UL CSA CC "SEMS" 1.000 EA
35PA1066 PKG GRP, PRINT PK1008A06 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA

Page 6 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

AC Induction Motor Performance Data

Record # 45906 - Typical performance - not guaranteed values

Winding: 35WGN264-R001 Type: 3528LC Enclosure: OPEN

Nameplate Data

115 V, 60 Hz:

Low Voltage Connection
Rated Output (HP) 1 Full Load Torque 2.97 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 8.4/4.2 Breakdown Torque 8.18 LB-FT
R.P.M. 1750 Pull-up Torque 7.24 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 9.05 LB-FT
NEMA Design Code L KVA Code K Starting Current 73.1 A
Service Factor (S.F.) 1.15 No-load Current 2.55 A

NEMA Nom. Eff. 82.6 Power Factor 93 LinelineRes.@25ºC

0.6104ΩAPh

1.9969ΩBPh

Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 17°C
S.F. Amps Temp. Rise @ S.F. Load 20°C

Load Characteristics 115 V, 60 Hz, 1 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 78 87 91 93 94 94 94
Efficiency 57.8 74.5 81.2 83.8 84 82.8 83.9
Speed 1788.2 1779.2 1769.2 1758.2 1744.4 1729.3 1750
Line amperes 3.65 4.96 6.55 8.27 10.3 12.5 9.49

Page 7 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Performance Graph at 115V, 60Hz, 1.0HP Typical performance - Not guaranteed values

Page 8 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

AC Induction Motor Performance Data

Record # 49416 - Typical performance - not guaranteed values

Winding: 35WGN264-R003 Type: 3528LC Enclosure: ODTF

Nameplate Data

230 V, 60 Hz:

High Voltage Connection
Rated Output (HP) 1 Full Load Torque 2.97 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 8.4/4.2 Breakdown Torque 8.18 LB-FT
R.P.M. 1750 Pull-up Torque 6.2 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 7.75 LB-FT
NEMA Design Code L KVA Code K Starting Current 35.99 A
Service Factor (S.F.) 1.15 No-load Current 1.31 A

NEMA Nom. Eff. 82.6 Power Factor 93 LinelineRes.@25ºC

2.442ΩAPh

2.15ΩBPh

Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 18°C
S.F. Amps Temp. Rise @ S.F. Load 21°C

Rotor inertia 0.166 LB-FT2

Load Characteristics 230 V, 60 Hz, 1 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 78 87 91 93 94 94 94
Efficiency 56.6 73.7 80.4 83.3 83.7 82.6 83.5
Speed 1788 1779 1769 1758 1744 1729 1750
Line amperes 1.86 2.51 3.3 4.16 5.17 6.27 4.77

Page 9 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

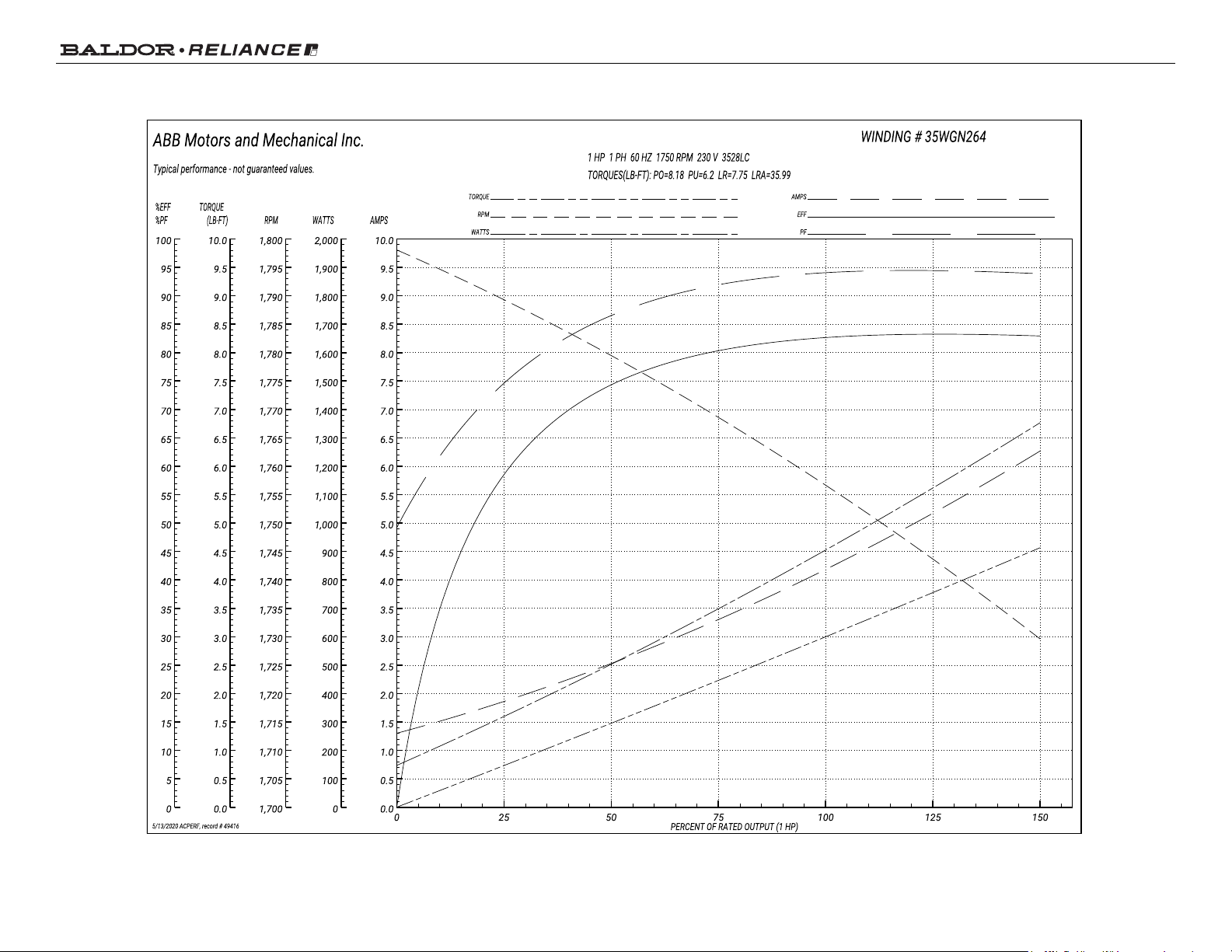

Performance Graph at 230V, 60Hz, 1.0HP Typical performance - Not guaranteed values

Page 10 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

3 00 2 745

5 00 1 00

6 50

6250
6245

1 88

2 12

521-528 = 11 75
529-535 = 12 63
536-546 = 14 00

6 SLOTS

Ø 34

NAMEPLATE

19 KEY

1 38 LONG

2 44 2 44

4 55 3 25

6 50

3 50
3 44

6 78

2 19

5 61

6 62

LEAD HOLE

Ø 88

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

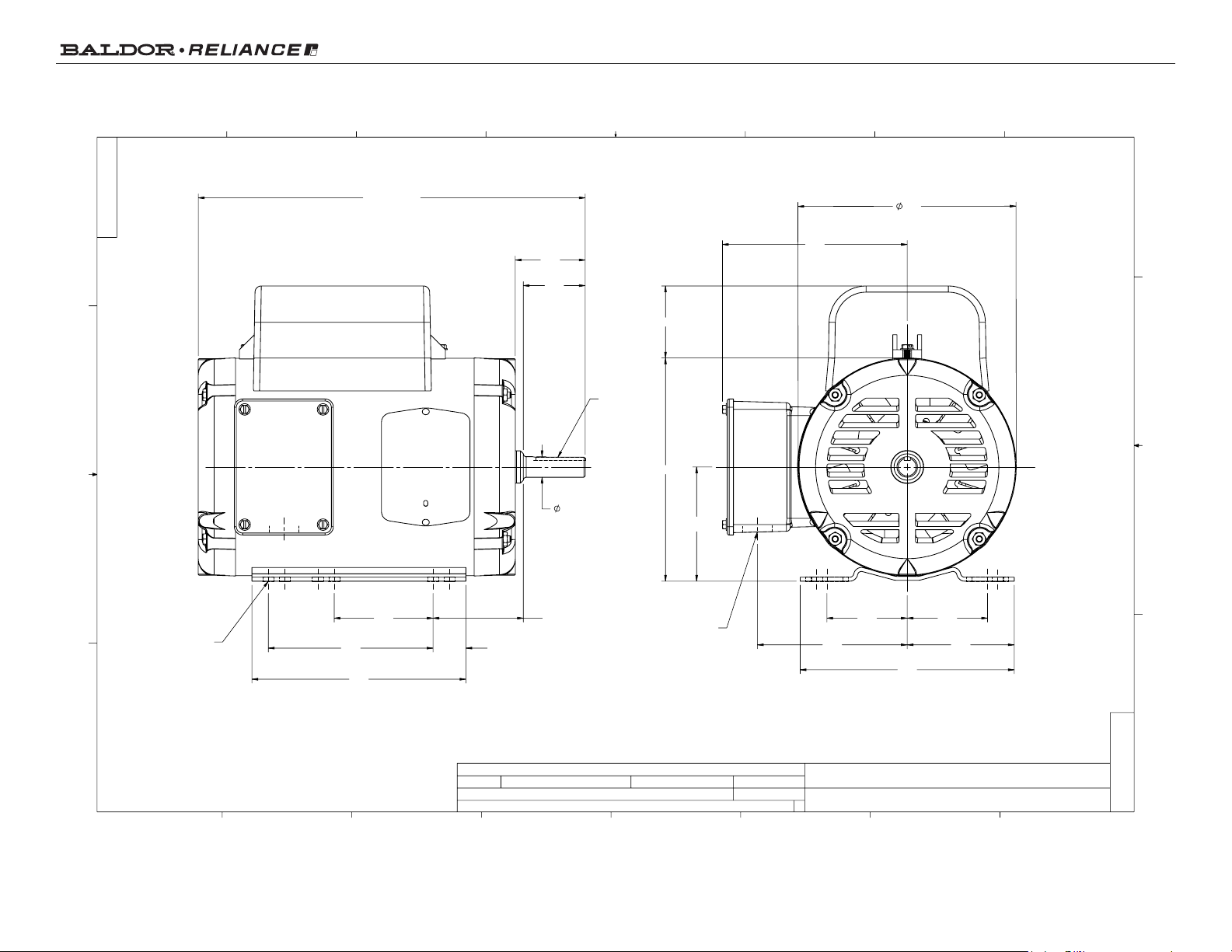

35LYE007

B

STD HORZ 56/56H OPEN 35LC

REV. DESC

REV

BY

REVISED

MODEL NO.

VERSION

TDR

REF

35LYE007

LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG12

ENALEM0

P

02 39 00 12/14/2018

-

000001093440

04

35LYE007

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION

BALDOR - RELIANCE

®

SH 1 OF 1

Page 11 of 12

Product Information Packet: EL11318 - 1HP,1750RPM,1PH,60HZ,56H,3528LC,OPEN,F1

Page 12 of 12
