Product Information Packet
EL11317
2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
Part Detail
Revision: G Status: PRD/A Change #: Proprietary: No

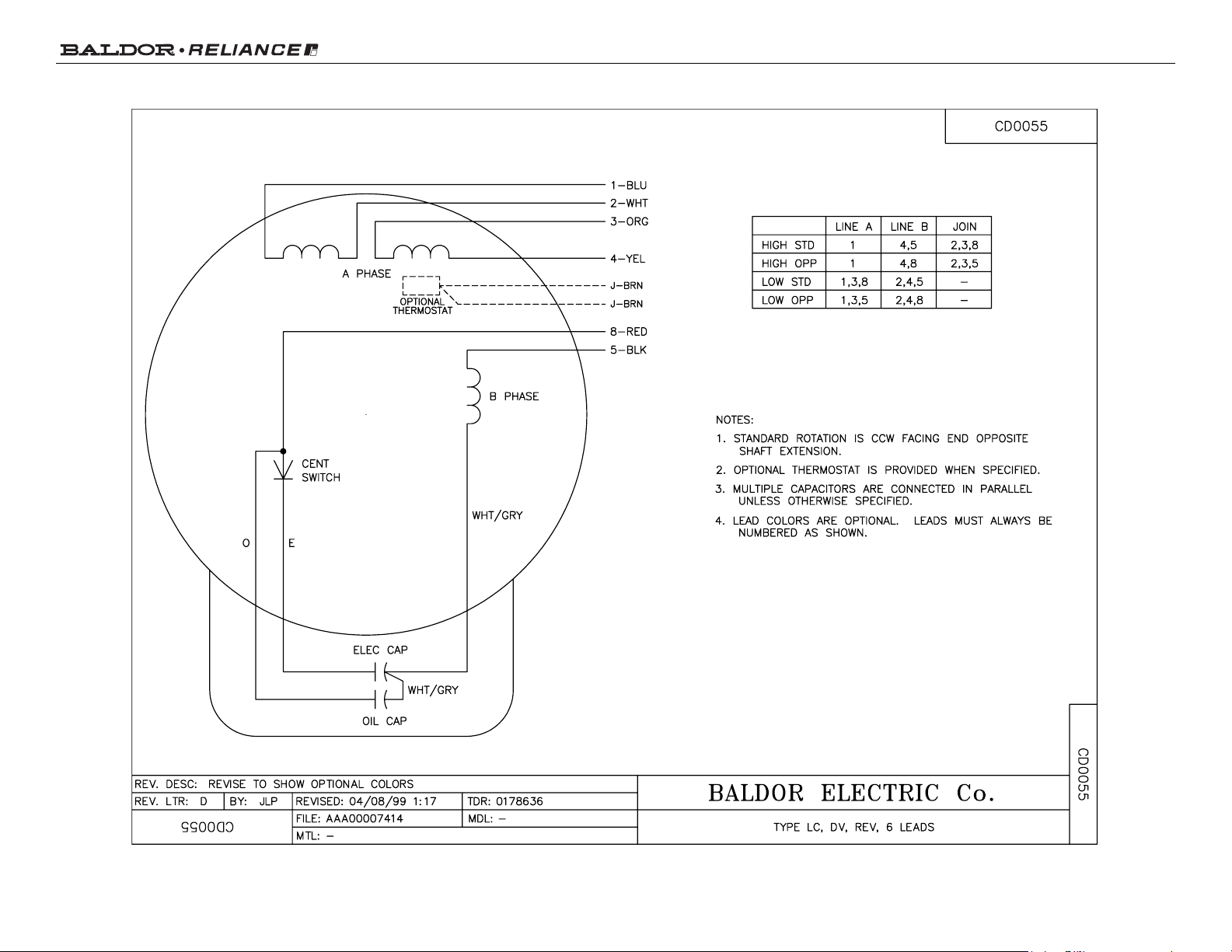

Type: AC Elec. Spec: 35WGN674 CD Diagram: CD0055 Mfg Plant:
Mech. Spec: 35E007 Layout: 35LYE007 Poles: 02 Created Date: 03-14-2014
Base: RG Eff. Date: 09-25-2018 Leads: 6#16
Specs
Catalog Number: EL11317
Enclosure: OPEN
Frame: 56H
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 115.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3540LC
Mounting Arrangement: F1
Power Factor: 99
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Current @ Voltage: 15.600 A @ 115.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
7.800 A @ 230.0 V
Design Code: L
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
Nameplate NP3155L
CAT.NO. EL11317
SPEC. 35E007N674G1
HP 2
VOLTS 115/230
AMP 15.6/7.8
RPM 3470
FRAME 56H HZ 60 PH 1
SER.F. 1.15 CODE G DES L CL F
F.L. AVG. EFF. 82.9 PF 99
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6205 ODE 6203
ENCL OPEN SN
Page 4 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
Parts List
Part Number Description Quantity
SA278104 SA 35E007N674G1 1.000 EA
RA264649 RA 35E007N674G1 1.000 EA
OC3070C09 AEROVOX #Z24P247OM22A1 OIL CAP 70MFD/240 1.000 EA
EC1645B06 ELEC CAP 165V 2.0 X 4.3 1.000 EA
WD3006A01 RSS-2-103JT 2W 10K RES. METAL OXIDE 5% 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3209G00 MASTER ODE,203 BRG 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
NS2501A02 INSULATOR, CAPACITOR BOX 1.000 EA
35CB3801 CAPACITOR COVER, CAST 1.000 EA
HA7010 CAPACITOR RETENTION CLAMP 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3210B00 MASTER DE,205 BRG,1.000SH 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
Page 5 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
Parts List (continued)
Part Number Description Quantity
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.017 GA
HA3100A26 THRUBOLT 10-32 X 11.500 4.000 EA
34GS5003 FOAM SLEEVE, ID = 2 1/16" X 3 3/8" 1.000 EA
WD1000A15 3-520132-2 AMP FLAG (4M/RL NON-CANC/NON- 4.000 EA
SP5181A01 MODEL 35 LC TORQ STAT SWITCH LEAD ASSY 1.000 EA
LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA
NP3155L ALUM SUPER-E UL CSA CC "SEMS" 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
No performance data has been
assigned to this product.
Page 7 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
3 00 2 745
5 00 1 00
6 50
6250
6245
1 88
2 12
521-528 = 11 75
529-535 = 12 63
536-546 = 14 00
6 SLOTS
Ø 34
NAMEPLATE
19 KEY
1 38 LONG
2 44 2 44
4 55 3 25
6 50
3 50
3 44
6 78
2 19
5 61
6 62
LEAD HOLE
Ø 88
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYE007
B
STD HORZ 56/56H OPEN 35LC
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYE007
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG12
ENALEM0
P
02 39 00 12/14/2018
-
000001093440
04
35LYE007
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 8 of 9
Product Information Packet: EL11317 - 2HP,3470RPM,1PH,60HZ,56H,3540LC,ODP,F1,N
