Product Information Packet
EL11306
.75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 34WGS943 CD Diagram: CD0055 Mfg Plant:

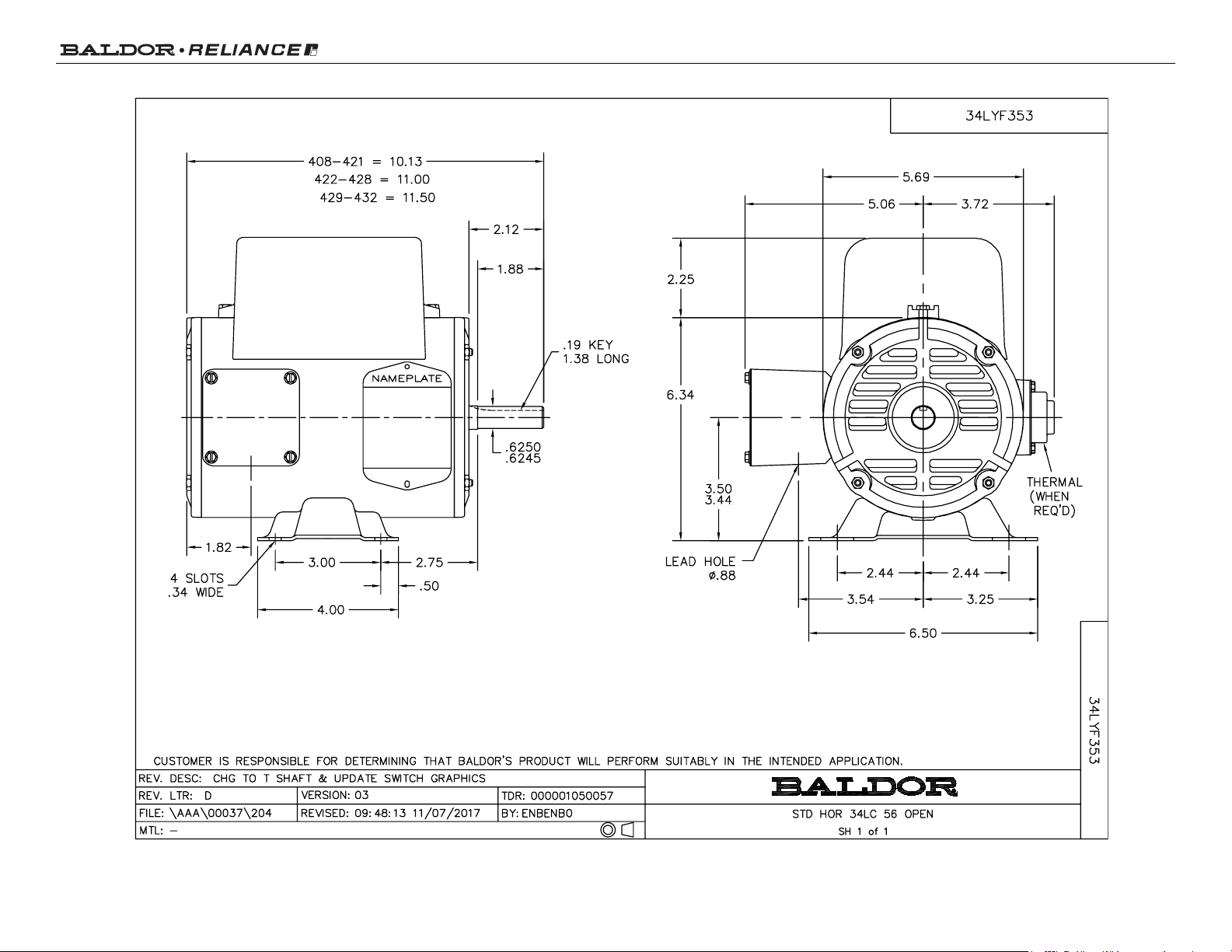

Mech. Spec: 34F353 Layout: 34LYF353 Poles: 02 Created Date: 02-28-2014
Base: RG Eff. Date: 02-27-2018 Leads: 6#18
Specs
Catalog Number: EL11306
Enclosure: ODP
Frame: 56
Frame Material: Steel
Output @ Frequency: .750 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 115.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3428LC
Mounting Arrangement: F1
Power Factor: 95
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Current @ Voltage: 3.300 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
6.300 A @ 115.0 V
Design Code: N
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Nameplate NP3155L
CAT.NO. EL11306
SPEC. 34F353S943G1
HP .75
VOLTS 115/230
AMP 6.3/3.3
RPM 3450
FRAME 56 HZ 60 PH 1
SER.F. 1.25 CODE J DES N CL F
F.L. AVG. EFF. 76.2 PF 95
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6203 ODE 6203
ENCL ODP SN
SFA 8.4/4.2
Page 4 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Parts List
Part Number Description Quantity
SA277366 SA 34F353S943G1 1.000 EA
RA263917 RA 34F353S943G1 1.000 EA
OC3030F11SP CAPACITOR 30 MFD 370 VAC 1.000 EA
EC1400A03 ELEC CAP, 400-480 MFD, 125V, 1.81D X 3. 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
34CB3002A CB CAST W/.88 DIA HOLE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
SP1006A01 TERM. BOARD, MODE 35 SW X H-23655 1.000 EA
34EP3210A01SP FR ENDPLATE, MACH 1.000 EA
34CB3801 CAPACITOR BOX, DIE CAST 1.000 EA
51XB1214A08 12-14 X 1/2HX WS SL SR TYBX 2.000 EA
34GS5003A01 FOAM SLEEVE, ID = 2 1/16" X 4 3/8" 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
34EP3212A02 PU ENDPLATE, MODEL 34 OPEN 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
34CB4517 CB LID 4 MTG HOLES .22 DIA STAMPED, FOR 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.014 GA
SP5051B17 MDL 34 TORQ STAT SW,TYPE LC, STD F1 & F2 1.000 EA
Page 5 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Parts List (continued)
Part Number Description Quantity
HA3100A45 THRUBOLT 10-32 X 8.875 4.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA
NP3155L ALUM SUPER-E UL CSA CC "SEMS" 1.000 EA
35PA1000 PKG GRP, PRINT PK1008A06 1.000 EA
Page 6 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
AC Induction Motor Performance Data
Record # 44911 - Typical performance - not guaranteed values
Winding: 34WGS943-R001 Type: 3428LC Enclosure: OPEN
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) .75 Full Load Torque 1.14 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 6.6/3.3 Breakdown Torque 3.88 LB-FT
R.P.M. 3450 Pull-up Torque 2.07 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 3.92 LB-FT
NEMA Design Code N KVA Code J Starting Current 24.8 A
Service Factor (S.F.) 1.25 No-load Current 0.961 A
NEMA Nom. Eff. 76.2 Power Factor 95 LinelineRes.@25ºC
2.4012ΩAPh
2.118ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 12°C
S.F. Amps 8.4/4.2 Temp. Rise @ S.F. Load 16°C
Load Characteristics 230 V, 60 Hz, 0.75 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 77 89 93 95 95 95 95
Efficiency 62.6 74.2 78.2 77.5 76.1 74.7 76.1
Speed 3567.6 3537.1 3504.2 3465 3419.8 3372.1 3420
Line amperes 1.23 1.84 2.51 3.32 4.21 5.14 4.21
Page 7 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Performance Graph at 230V, 60Hz, 0.75HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Page 9 of 10
Product Information Packet: EL11306 - .75HP,3450RPM,1PH,60HZ,56,3428LC,ODP,F1
Page 10 of 10
