Product Information Packet
EJPM71170T-I-5
10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Part Detail
Revision: G Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 07WGY787 CD Diagram: CD0006 Mfg Plant: Mech. Spec: 07K202 Layout: 07LYK202 Poles: 04 Created Date: 09-05-2012 Base: RG Eff. Date: 03-09-2020 Leads: 3#14
Specs
Catalog Number: EJPM71170T-I-5 Enclosure: XPFC Frame: 215TCZ Frame Material: Iron Output @ Frequency: 10.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 575.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: UL
UR CSA EEV
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Inverter Code: Not Inverter KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 3 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: X0750M Mounting Arrangement: F1 Power Factor: 80 Product Family: General Purpose Pulley End Bearing Type: Sealed Bearing Pulley Face Code: C-Face Pulley Shaft Indicator: Tapped & Key Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding
Blower: None
Shaft Rotation: Reversible
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Current @ Voltage: 10.100 A @ 575.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F
Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Nameplate NP0977XPSLEV
NO. CC
SER. TEMP CODE T3C
SPEC. 07K202Y787G1
CAT.NO. EJPM71170T-I-5
HP 10
VOLTS 575
AMPS 10.1
RPM 1765 MOTOR WEIGHT 252
HERTZ 60 PH 3 CL F DE BRG 6307
SER.F. 1.15 DES A CODE J ODE BRG 6206
FRAME 215TCZ GREASE POLYREX EM
RATING 40C AMB-CONT
USABLE AT 208V NEMA-NOM-EFF 92.4 PF 80
55C AMB AT 1.0SF
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Parts List
Part Number Description Quantity SA250559 SA 07K202Y787G1 1.000 EA RA237413 RA 07K202Y787G1 1.000 EA 37FN3002B01 EXFN, PLASTIC, 7.50 OD, 1.155 ID 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 07CB1000A01 CONDUIT BOX MACH 1.000 EA 10XN3118A16 5/16-18X1 HEX HD CAP 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA 07EP1707A17 FREP XP GR C W/DRAINS, GRSRS 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 07EP1708A12 PUEP 213-5TC 307M "DRILL RIG DUTY" SLING 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10XN2520A32 1/4 X 2 HEX HEAD CAP SCR,GRADE 2 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Parts List (continued)
Part Number Description Quantity HA6059A05 ADAPTER FOR 8.50" RABBET TO 4.50" RABBET 1.000 EA 84XN5013J16S 1/2-13 X 1 LOW HEAD HEX SOC HD, GRADE 8 4.000 EA 07FH1003A05 FAN HOUSING 307 EXPLOSION PROOF W/ GREAS 1.000 EA 10XN2520A12 1/4-20 X 3/4 HEX HEAD CAP 4.000 EA 07CB1502A01 CONDUIT BOX LID MACH (DUCTILE IRON) 1.000 EA 84XN2520J16 1/4-20 X 1 SOC HD CAP SCREW 4.000 EA HA2065A02 SLINGER, ALUM MODLE 36 & 37 DRILL RIG MT 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA HW2501D14 KEY, 3/16 SQ X 1.500 1.000 EA HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA LB1081F ALUM XP CAUTION LABEL (FS PLANT ONLY- 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.036 GA LB1119N WARNING LABEL 1.000 EA LC0006 CONNECTION LABEL 1.000 EA NP0977XPSLEV SS XP UL CSA-EEV CC CL-I GP-C&D 1.000 EA 07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
AC Induction Motor Performance Data
Record # 32082 - Typical performance - not guaranteed values
Winding: 07WGY787-R001 Type: 0750M Enclosure: XPFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor Rated Output (HP) 10 Full Load Torque 29.7 LB-FT Volts 575 Start Configuration direct on line Full Load Amps 10.1 Breakdown Torque 95.8 LB-FT R.P.M. 1765 Pull-up Torque 57.3 LB-FT Hz 60 Phase 3 Locked-rotor Torque 63.5 LB-FT NEMA Design Code A KVA Code J Starting Current 78 A Service Factor (S.F.) 1.15 No-load Current 4.63 A NEMA Nom. Eff. 92.4 Power Factor 80 LinelineRes.@25ºC 1.35Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 59°C S.F. Amps Temp. Rise @ S.F. Load 72°C
Locked-rotor Power Factor 35
Rotor inertia 1.23 LB-FT2
Load Characteristics 575 V, 60 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 40 62 75 80 83 85 82 Efficiency 90.5 93.6 92.9 92.4 91.6 90.4 91.9 Speed 1790 1782 1772 1764 1754 1744 1758 Line amperes 5.16 6.41 8.1 10.1 12.3 14.7 11.4
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Performance Graph at 575V, 60Hz, 10.0HP Typical performance - Not guaranteed values

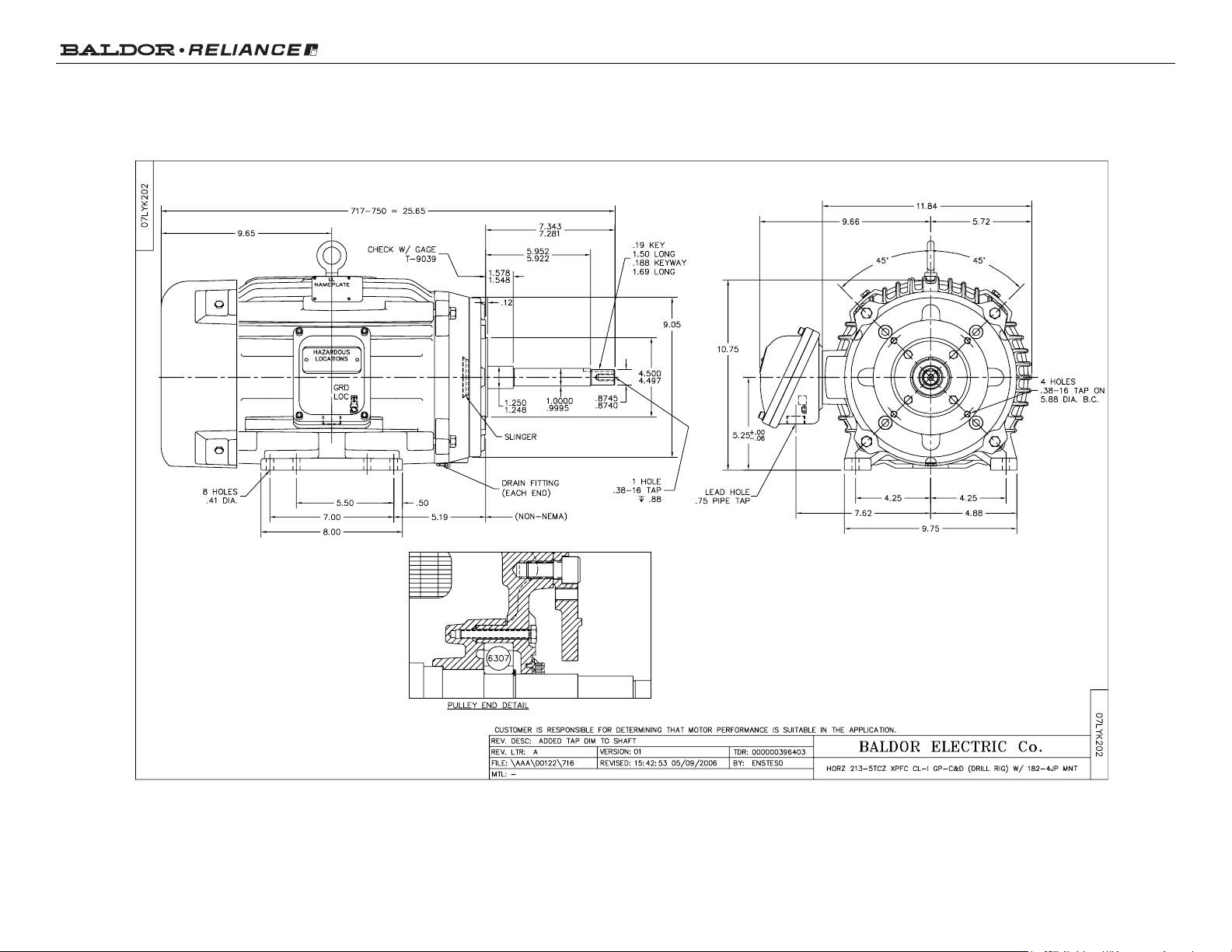

Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Product Information Packet: EJPM71170T-I-5 - 10HP,1765RPM,3PH,60HZ,215TCZ,0750M,XPFC
Page 10 of 10
