Product Information Packet
EJPM3713T
15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Part Detail

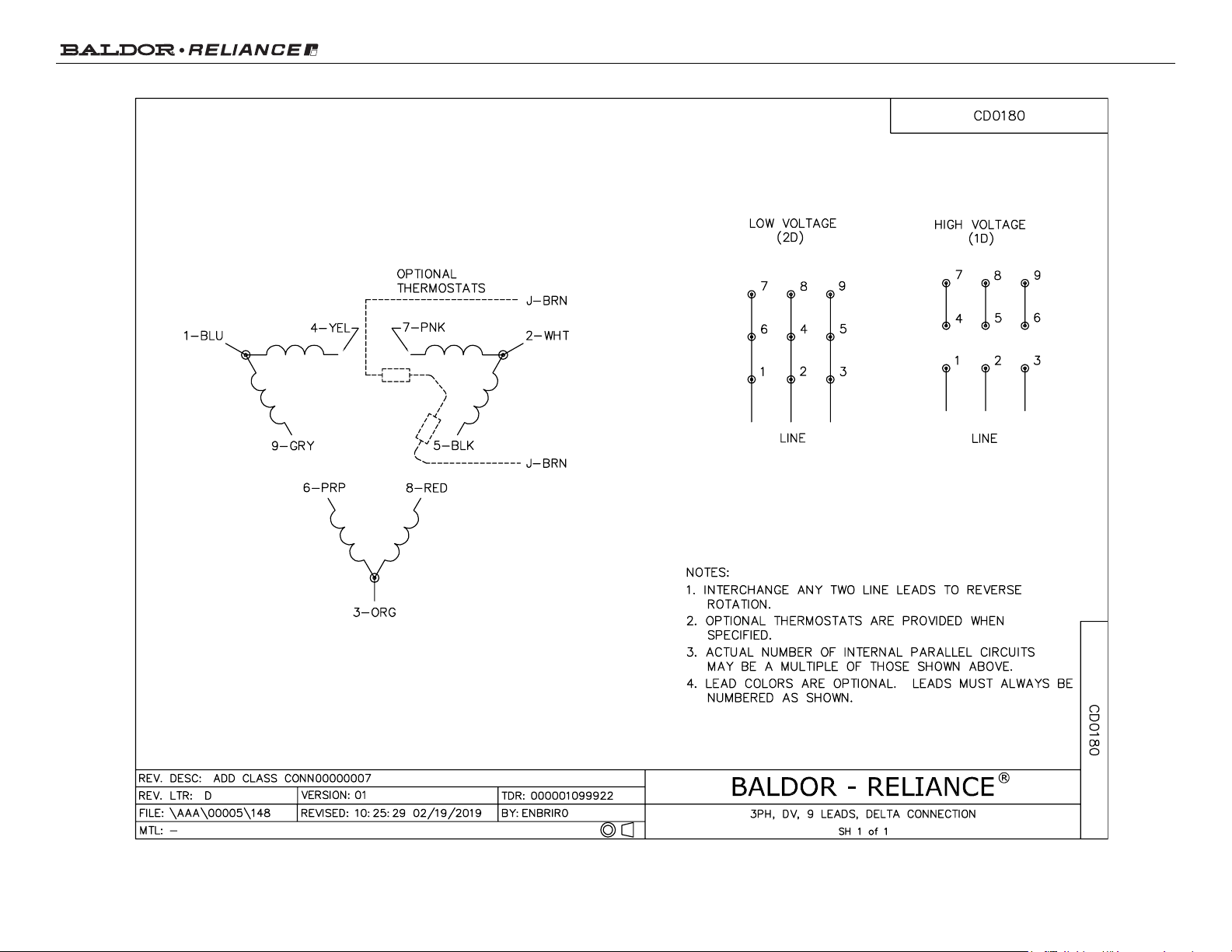

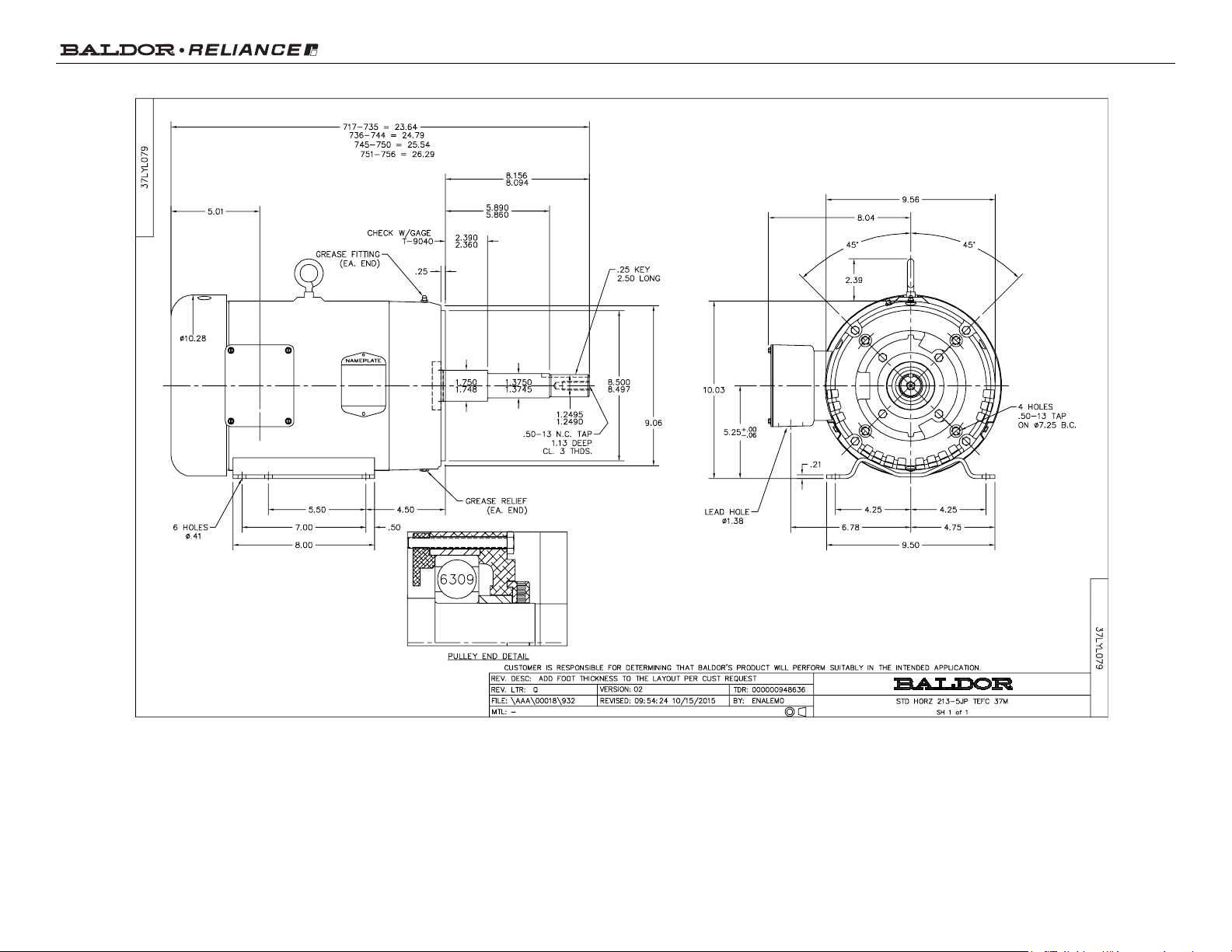

Revision: G Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 37WGR228 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 37L079 Layout: 37LYL079 Poles: 02 Created Date: 05-19-2015 Base: RG Eff. Date: 09-06-2019 Leads: 9#14
Specs
Catalog Number: EJPM3713T Enclosure: TEFC Frame: 215JP Frame Material: Steel Output @ Frequency: 15.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA EEV
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3752M Mounting Arrangement: F1 Power Factor: 89 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Tapped & Key Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Current @ Voltage: 17.000 A @ 460.0 V
34.000 A @ 230.0 V
36.800 A @ 208.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Nameplate NP3441LUA
CAT.NO. EJPM3713T
SPEC 37L079R228G2
HP 15
VOLTS 230/460
AMPS 34/17
RPM 3500
FRAME 215JP HZ 60 PH 3
SF 1.15 CODE J DES A CLASS F
NEMA NOM. EFF 91 PF 89
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 36.8
ENCL TEFC SER
DE 6309 ODE 6206
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 15HP 190/380V 40.8/20.4A SF1.0
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Parts List
Part Number Description Quantity SA301062 SA 37L079R228G2 1.000 EA RA288133 RA 37L079R228G2 1.000 EA 37FN3002B01 EXFN, PLASTIC, 7.50 OD, 1.155 ID 1.000 EA HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA 37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA 37GS1000SP GASKET, CONDUIT BOX STD., .06 THICK LEXI 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 37EP3101A29 FR ENDPLATE, FOR ROUTING PURPOSES 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 37EP3401T10 EP PU ENCL 309 BRG W/GRSR & RELIEF, META 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA 10XN2520A36 1/4-20X 2 1/4 HEX HD X 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA 07FH4007SP PRIMED 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA 37GS1008 37 GS FOR CB LID - LEXIDE 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HA2009A02 SLINGER MODEL 37 PUMP MOTORS-2.75 DIA. A 1.000 EA
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Parts List (continued)
Part Number Description Quantity 80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA HW2501E22 KEY, 1/4 SQ X 2.500 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA HA3104A25 THRUBOLT .31-18 X 14.75 4.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.028 GA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP3441LUA ALUM SUPER-E VPWM INV READY UL CSA-EEV C 1.000 EA 37PA1039 PALLET PACK GROUP, BLANK PK1148 1.000 EA PK3085X FOAM SHAFT SUPPORT PRECUT 4-1/4 X 6-3/4 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 53380 - Typical performance - not guaranteed values
Winding: 37WGR228-R023 Type: 3752M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 22.12 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 103 LB-FT R.P.M. 3500 Pull-up Torque 40.16 LB-FT Hz 60 Phase 3 Locked-rotor Torque 57.59 LB-FT NEMA Design Code A KVA Code J Starting Current 150 A Service Factor (S.F.) 1.15 No-load Current 5.55 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.47Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 68°C S.F. Amps Temp. Rise @ S.F. Load 79°C
Locked-rotor Power Factor 30.9
Rotor inertia 0.474 LB-FT2
Load Characteristics 460 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 78 85 89 90 90 89 Efficiency 86.8 91 91.9 91.4 90.8 89.8 91.3 Speed 3579 3557 3534 3500 3484 3456 3495 Line amperes 6.7 9.57 13.19 17.03 21.12 25.61 19.5
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F

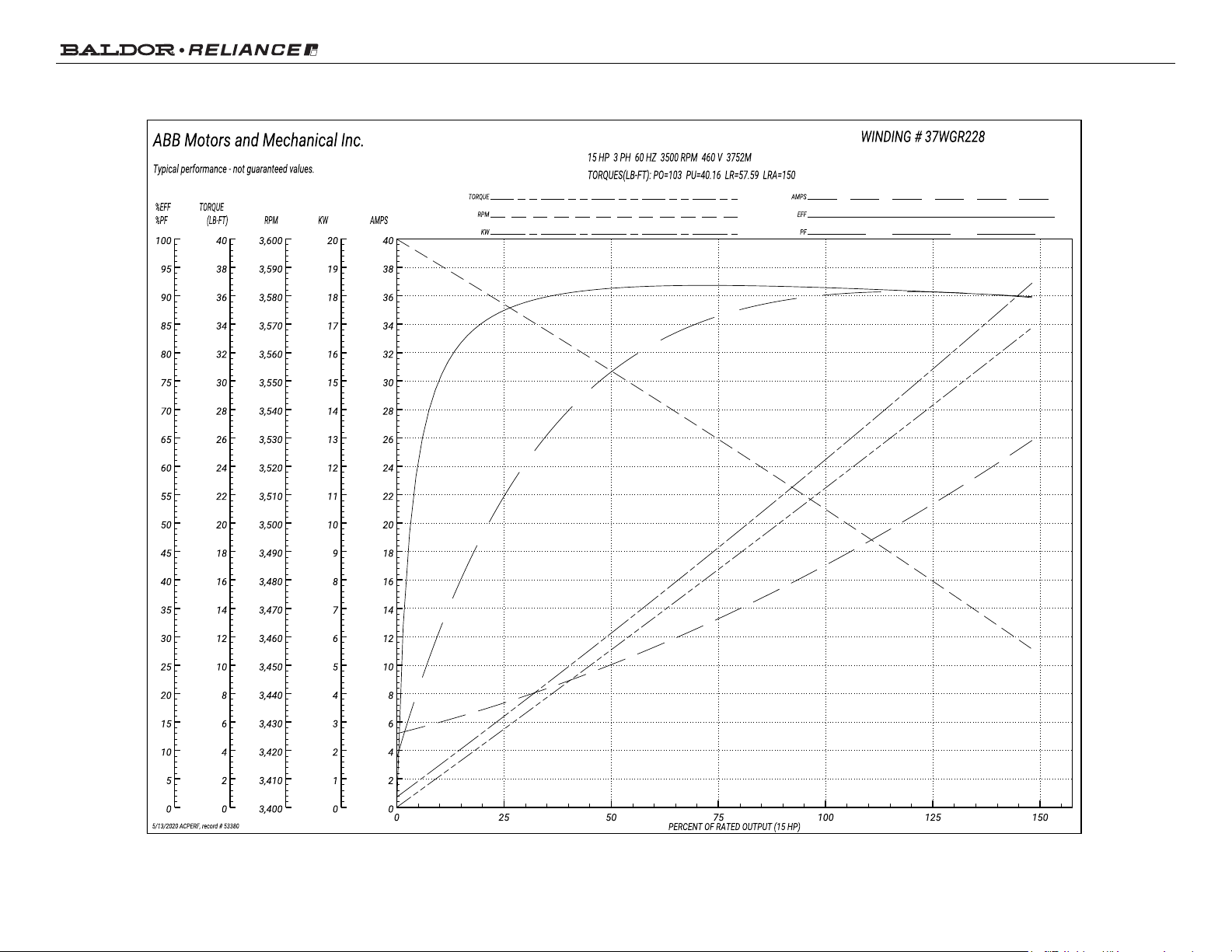

Performance Graph at 460V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 57899 - Typical performance - not guaranteed values
Winding: 37WGR228-R023 Type: 3752M Enclosure: TEFC
Nameplate Data
230 V, 60 Hz:
Low Voltage Connection Rated Output (HP) 15 Full Load Torque 22.1 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 104 LB-FT R.P.M. 3500 Pull-up Torque 40.3 LB-FT Hz 60 Phase 3 Locked-rotor Torque 57.8 LB-FT NEMA Design Code A KVA Code J Starting Current 300 A Service Factor (S.F.) 1.15 No-load Current 11.1 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.111Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 67°C S.F. Amps Temp. Rise @ S.F. Load 82°C
Locked-rotor Power Factor 30.3
Rotor inertia 0.474 LB-FT2
Load Characteristics 230 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 77 85 89 90 90 90 Efficiency 86.8 91.1 92 91.8 91 90 91.3 Speed 3579 3558 3534 3510 3485 3456 3495 Line amperes 13.4 19.1 26.4 34 42.2 51.2 38.9
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Performance Graph at 230V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 10 of 16
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 70097 - Typical performance - not guaranteed values
Winding: 37WGR228-RXXX Type: 3752M Enclosure: TEFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 17.68 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 98.71 LB-FT R.P.M. 3500 Pull-up Torque 42.31 LB-FT Hz 60 Phase 3 Locked-rotor Torque 60.68 LB-FT NEMA Design Code A KVA Code J Starting Current 146 A Service Factor (S.F.) 1.15 No-load Current 5.43 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.47Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 52°C S.F. Amps Temp. Rise @ S.F. Load 63°C
Locked-rotor Power Factor 34.6
Rotor inertia 0.474 LB-FT2
Load Characteristics 380 V, 50 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 51 73 82 87 89 90 88 Efficiency 81.7 88 89.8 89.9 89.6 88.9 89.7 Speed 2982 2964 2945 2918 2905 2883 2910 Line amperes 6.27 8.45 11.29 14.27 17.46 20.98 16.2
Page 11 of 16
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Performance Graph at 380V, 50Hz, 10.0HP Typical performance - Not guaranteed values
Page 12 of 16
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
AC Induction Motor Performance Data
Record # 73419 - Typical performance - not guaranteed values
Winding: 37WGR228-RXXX Type: 3752M Enclosure: TEFC
Nameplate Data
480 V, 60 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 22.12 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 34/17 Breakdown Torque 113 LB-FT R.P.M. 3500 Pull-up Torque 44.76 LB-FT Hz 60 Phase 3 Locked-rotor Torque 64.18 LB-FT NEMA Design Code A KVA Code J Starting Current 159 A Service Factor (S.F.) 1.15 No-load Current 6.32 A NEMA Nom. Eff. 91 Power Factor 89 LinelineRes.@25ºC 0.47Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 67°C S.F. Amps Temp. Rise @ S.F. Load 83°C
Locked-rotor Power Factor 31.2
Rotor inertia 0.474 LB-FT2
Load Characteristics 480 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 50 72 82 86 88 89 87 Efficiency 86.2 90.7 91.8 91.5 90.9 90.1 91.1 Speed 3580 3560 3538 3506 3491 3465 3497 Line amperes 7.28 9.85 13.18 16.77 20.58 24.75 19.1
Page 13 of 16
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Performance Graph at 480V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 14 of 16
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Page 15 of 16
Product Information Packet: EJPM3713T - 15HP,3500RPM,3PH,60HZ,215JP,3752M,TEFC,F
Page 16 of 16
