Product Information Packet
EJPM3211T
3HP/1760RPM/3PH/OPSB/NEMA 182JP
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Part Detail
Revision: C Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGS658 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 36J514 Layout: 36LYJ514 Poles: 04 Created Date: 05-27-2015
Base: RG Eff. Date: 08-27-2019 Leads: 9#16
Specs
Catalog Number: EJPM3211T
Enclosure: OPSB
Frame: 182JP
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F
Inverter Code: Inverter Ready
IP Rating: NONE
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3630M
Mounting Arrangement: F1
Power Factor: 74
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Current @ Voltage: 4.200 A @ 460.0 V
8.400 A @ 230.0 V
8.500 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Nameplate NP3553LUA
CAT.NO. EJPM3211T
SPEC. 36J514S658G1
HP 3
VOLTS 230/460
AMPS 8.4/4.2
RPM 1765
FRAME 182JP HZ 60 PH 3
SF 1.15 CODE K DES B CLASS F
NEMA NOM. EFF 89.5 PF 74
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 8.5
DE 6207 ODE 6205
ENCL OPSB SN
VPWM INVERTER READY
CT30-60(2:1) VT3-60(20:1)
USABLE AT 50Hz 3HP 190/380V 9.8/4.9A SF1.0
Page 4 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Parts List
Part Number Description Quantity
SA302033 SA 36J514S658G1 1.000 EA
RA289116 RA 36J514S658G1 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3204D00 MASTER ODE,205 BRG,GRSR,RLF 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA1103A08 RODENT SCREEN, 36 FRAME, OPEN, FRONT END 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP3405A06 PUEP 182-4C OPEN 207 BRG W/ TSLV, GRSR 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA1102A07 RODENT SCREEN 36 OPEN FACE 2.000 EA
11XF1032A04 10-32X1/4HXWSHR HDSLTDTYF 4.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
10XN2520A24 1/4-20X 1 1/2 HEX HD X 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HA2009A01 36-4613 SL ANOD. ALUM (STER 1.000 EA
Page 5 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Parts List (continued)
Part Number Description Quantity
80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 1.000 EA
HW2501D15 KEY, 3/16 X 1.625 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.022 GA
36AD2004A01 BAFFLE PLATE,MOD 36-SLTD BAND MTRS DELTA 2.000 EA
HA3101A26 THRUBOLT- 1/4-20 X 11.375 4.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP3553LUA ALUM SUPER-E VPWM INVERTER READY UL 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
AC Induction Motor Performance Data
Record # 33604 - Typical performance - not guaranteed values
Winding: 36WGS658-R001 Type: 3630M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 3 Full Load Torque 8.87 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 8.4/4.2 Breakdown Torque 37.4 LB-FT
R.P.M. 1765 Pull-up Torque 17.3 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 21.2 LB-FT
NEMA Design Code B KVA Code K Starting Current 32.3 A
Service Factor (S.F.) 1.15 No-load Current 2.43 A
NEMA Nom. Eff. 89.5 Power Factor 74 LinelineRes.@25ºC 3.8716Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 24°C
S.F. Amps Temp. Rise @ S.F. Load 28°C
Locked-rotor Power Factor 43
Rotor inertia 0.279 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 33 53 66 73 79 81 77
Efficiency 80.2 87.5 89.5 89.7 89.5 88.7 89.6
Speed 1791.1 1783 1774.5 1765.5 1755.7 1744.8 1760
Line amperes 2.6 2.99 3.54 4.25 4.97 5.83 4.68
Page 7 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP

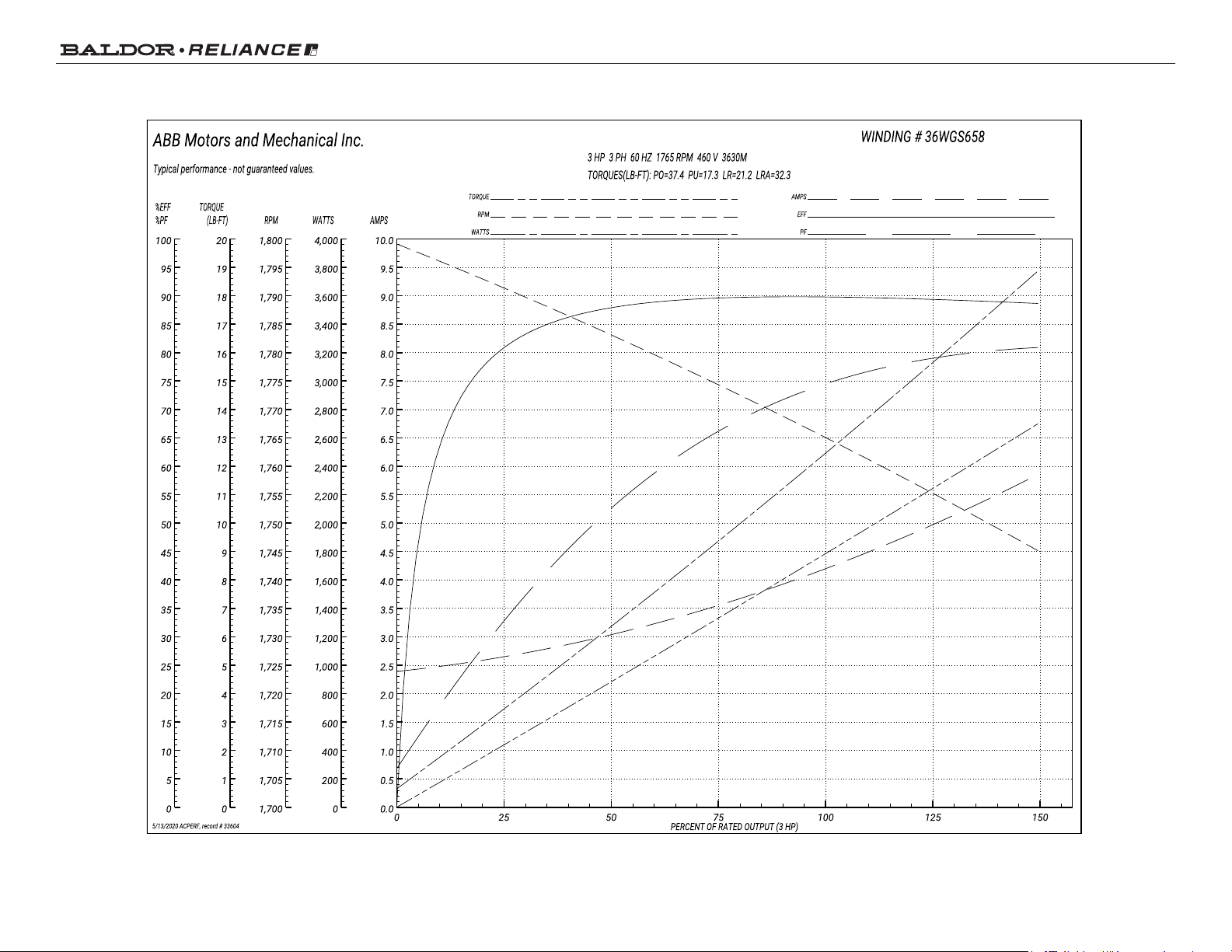

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Page 9 of 10
Product Information Packet: EJPM3211T - 3HP/1760RPM/3PH/OPSB/NEMA 182JP
Page 10 of 10
