Product Information Packet
EJMM3120T
1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Part Detail
Revision: N Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM761 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35N833 Layout: 35LYN833 Poles: 02 Created Date: 05-28-2015
Base: RG Eff. Date: 05-08-2020 Leads: 9#18
Specs
Catalog Number: EJMM3120T
Enclosure: OPSB
Frame: 143JM
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F
Inverter Code: Inverter Ready
IP Rating: NONE
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3518M
Mounting Arrangement: F1
Power Factor: 83
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included
Blower: None
RoHS Status: ROHS COMPLIANT
Page 2 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Current @ Voltage: 2.000 A @ 460.0 V
4.000 A @ 230.0 V
4.200 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Nameplate NP3553LUA
CAT.NO. EJMM3120T
SPEC. 35N833M761G2
HP 1.5
VOLTS 230/460
AMPS 4/2
RPM 3490
FRAME 143JM HZ 60 PH 3
SF 1.15 CODE L DES B CLASS F
NEMA NOM. EFF 84 PF 83
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 4.2
DE 6206 ODE 6203
ENCL OPSB SN
VPWM INVERTER READY
CT30-60(2:1) VT3-60(20:1)
USABLE AT 50HZ 1.5HP 190/380V 4.6/2.3A SF1.0
Page 4 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Parts List
Part Number Description Quantity
SA301448 SA 35N833M761G2 1.000 EA
RA288529 RA 35N833M761G2 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3000SP CONDUIT BOX, CAST, W/.88 DIA. LEAD HOLE 1.000 EA
51XB1016A06 10-16X3/8 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3209A00 MASTER ODE,203 BRG,GRSR 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HA1100A03 SCREEN, RODENT 1.000 EA
51XT1032A04 10-32X1/4 HX WA SL SR TYT (F/S) 4.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3401A03 PU ENDPLATE -OPEN W/SCREENS & GREASER W/ 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HA1102A08 RODENT SCREEN 35 OPEN FACE MTD 1.000 EA
51XT1032A04 10-32X1/4 HX WA SL SR TYT (F/S) 4.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
35CB4514 35 LIPPED CB LID 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HA1005A02 SLINGER, OD 2.00, ID 1.14, 206 BRG, 1.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
HW1000A10 #10 FLAT WASHER (SAE) 4.000 EA
Page 5 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Parts List (continued)
Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.017 GA
HA3100A14 THRUBOLT 10-32 X 7.875 4.000 EA
35AD2005B01 BAFFLE PLATE,MOD 35-SLTD BAND MTR GL.F. 1.000 EA
35AD2005B01 BAFFLE PLATE,MOD 35-SLTD BAND MTR GL.F. 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP3553LUA ALUM SUPER-E VPWM INVERTER READY UL 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
AC Induction Motor Performance Data
Record # 53126 - Typical performance - not guaranteed values
Winding: 35WGM761-R007 Type: 3518M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 2.26 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 4/2 Breakdown Torque 9.32 LB-FT
R.P.M. 3490 Pull-up Torque 4.18 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 6.79 LB-FT
NEMA Design Code B KVA Code L Starting Current 17.2 A
Service Factor (S.F.) 1.15 No-load Current 1.05 A
NEMA Nom. Eff. 84 Power Factor 83 LinelineRes.@25ºC 12.7Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 24°C
S.F. Amps Temp. Rise @ S.F. Load 28°C
Locked-rotor Power Factor 64
Rotor inertia 0.0493 LB-FT2
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 43 64 77 83 87 89 85
Efficiency 73.9 82.4 85.1 85.1 84.3 83.1 84.6
Speed 3574 3550 3524 3496 3465 3430 3477
Line amperes 1.14 1.35 1.63 1.99 2.41 2.84 2.24
Page 7 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
8745
8740
1 0000
9995
1 156
1 154
4 500
4 497
6 51
13
640
610
2 890
2 860
4 281
4 219
510-524 = 13 75
525 -528 = 14 25
529-535 = 15 13
536-546 = 16 50
4 00 2 88
50 5 00
5 94
2 60
19 KEY
1 38 LONG
38-16 UNC
CL 3 R H TAP
88 DEEP
CHECK WITH
GAUGE T-9038
NAMEPLATE
6 HOLES
Ø 38
GREASE FITTING
(EACH END)
45° 45°
5 11
6 63
3 50
3 44
6 78
4 12
2 75 2 75
3 25
6 50
4 HOLES
38-16 TAP
ON Ø5 88 B C
LEAD HOLE
Ø 88
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1

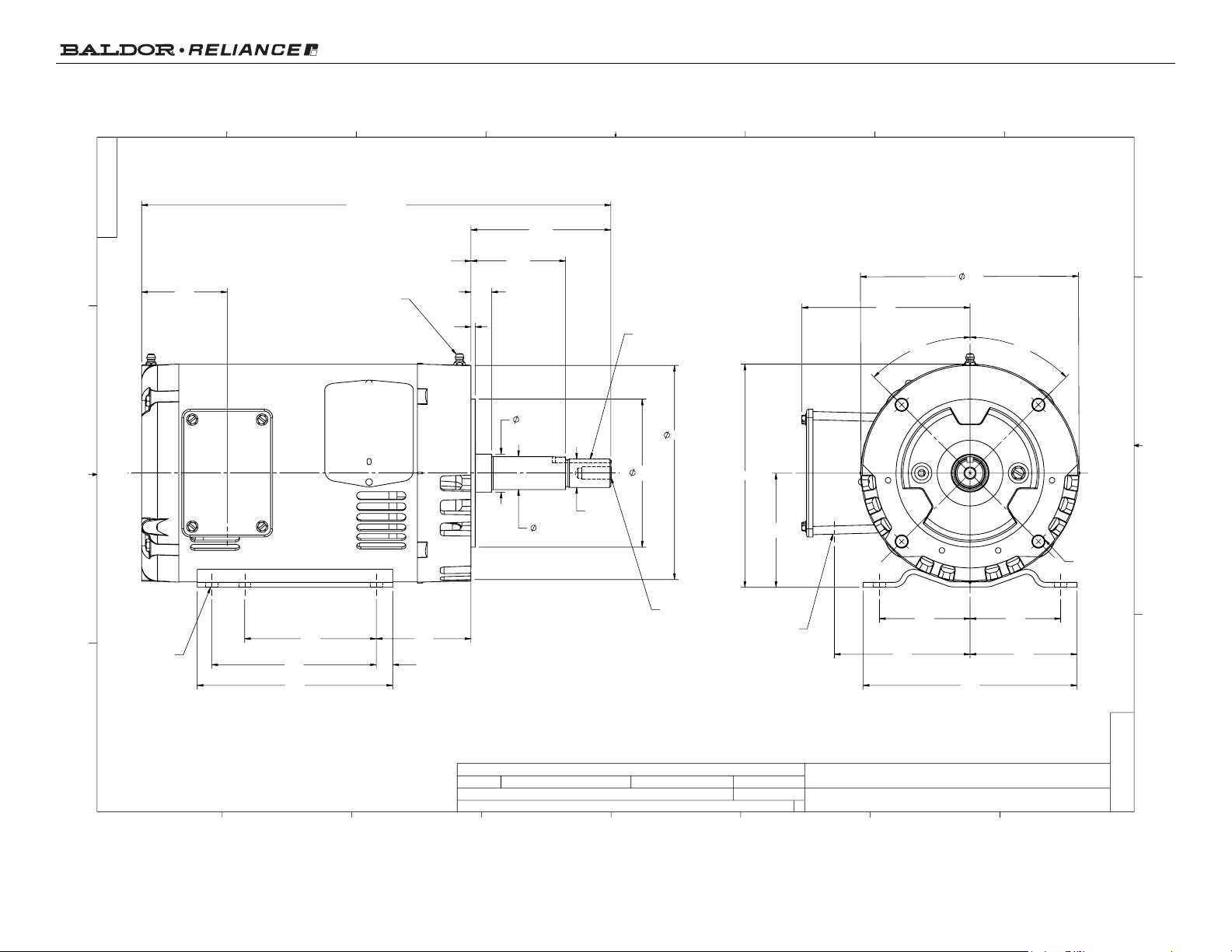

35LYN833
B
HORZ 143-5JM OPSB 35M W/SCREENS
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYN833
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION PKG 17
ENALEM0
J
01 57 31 02/11/2019
-
000001098865
06
35LYN833
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 9 of 10
Product Information Packet: EJMM3120T - 1.5HP,3490RPM,3PH,60HZ,143JM,3518M,OPSB
Page 10 of 10
