Baldor EJMM2511T Product Information Sheet

Product Information Packet

EJMM2511T

10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Part Detail

Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 39WGW950 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 39K62 Layout: 39LYK062 Poles: 06 Created Date: 06-05-2015
Base: RG Eff. Date: 04-11-2019 Leads: 9#12

Specs

Catalog Number: EJMM2511T
Enclosure: OPSB
Frame: 256JM
Frame Material: Steel
Output @ Frequency: 10.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR

CSA EEV

CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)

Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3954M
Mounting Arrangement: F1
Power Factor: 71
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: Included

Blower: None

Shaft Extension Location: Pulley End

Page 2 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Current @ Voltage: 14.300 A @ 460.0 V

28.600 A @ 230.0 V

30.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None

Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None

Page 3 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Nameplate NP1259LUA

CAT.NO. EJMM2511T

SPEC. 39K062W950G4

HP 10

VOLTS 230/460

AMPS 28.6/14.3

R.P.M. 1180

FRAME 256JM HZ 60 PH 3

SER.F. 1.15 CODE J DES A CLASS F

NEMA NOM. EFF. 91.7 P.F. 71

RATING 40C AMB-CONT

CC 010A USABLE AT 208V 30
DE 6309 ODE 6208

ENCL OPSB SN

USABLE AT 50HZ 10HP 190/380V 33.4/16.7A SF1.0

Page 4 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Parts List

Part Number Description Quantity
SA302188 SA 39K062W950G4 1.000 EA
RA289274 RA 39K062W950G4 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA
HA6016 ADAPTER, CAST CONDUIT BOX 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA
WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA
59XW2520G07 .25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1.000 EA
39EP3400A01 STD FACE MTD ENDPLATE 309 BRG 1.000 EA
39EP3200A01SP FR/PU ENDPLATE, MACH 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HA1101A01 RODENT SCREEN, 39 MTR 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 4.000 EA
HW4600B67 V-RING SLINGER 1.770 X 2.170 X .28 VITON 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HA1101A03 RODENT SCREEN, 39 FACE MTD.E.P. 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 4.000 EA
XY3816A12 3/8-16 FINISHED NUT 8.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA

Page 5 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Parts List (continued)

Part Number Description Quantity
HW2501E18 KEY, 1/4 SQ X 2.000 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.030 LB
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.050 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
39AD2002A01 BAFFLE PLATE 39 OPEN, SLOTTED BAND MTRS 1.000 EA
39AD2002A01 BAFFLE PLATE 39 OPEN, SLOTTED BAND MTRS 1.000 EA
HA3154A03 STUD, 3/8-16 X 17.75 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0181 CONNECTION LABEL 1.000 EA
NP1259LUA ALUM SUPER-E UL CSA-EEV CC NEMA PREMIUM 1.000 EA
39PA1000 PACKAGING GROUP 39 PRINT 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA

Page 6 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

AC Induction Motor Performance Data

Record # 13008 - Typical performance - not guaranteed values

Winding: 39WGW950-R001 Type: 3954M Enclosure: OPSB

Nameplate Data

460 V, 60 Hz:

High Voltage Connection
Rated Output (HP) 10 Full Load Torque 44.4 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 28.6/14.3 Breakdown Torque 132 LB-FT
R.P.M. 1180 Pull-up Torque 53 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 69.8 LB-FT
NEMA Design Code A KVA Code J Starting Current 91.8 A
Service Factor (S.F.) 1.15 No-load Current 7.16 A
NEMA Nom. Eff. 91.7 Power Factor 71 LinelineRes.@25ºC 0.746Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 22°C
S.F. Amps Temp. Rise @ S.F. Load 29°C

Locked-rotor Power Factor 25.9

Rotor inertia 4.34 LB-FT2

Load Characteristics 460 V, 60 Hz, 10 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 34 54 65 71 74 75 73
Efficiency 85.7 91 92 92 91.4 90.5 91.6
Speed 1196 1192 1187 1182 1177 1172 1179
Line amperes 8.04 9.52 11.7 14.25 17.29 20.7 16.07

Page 7 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

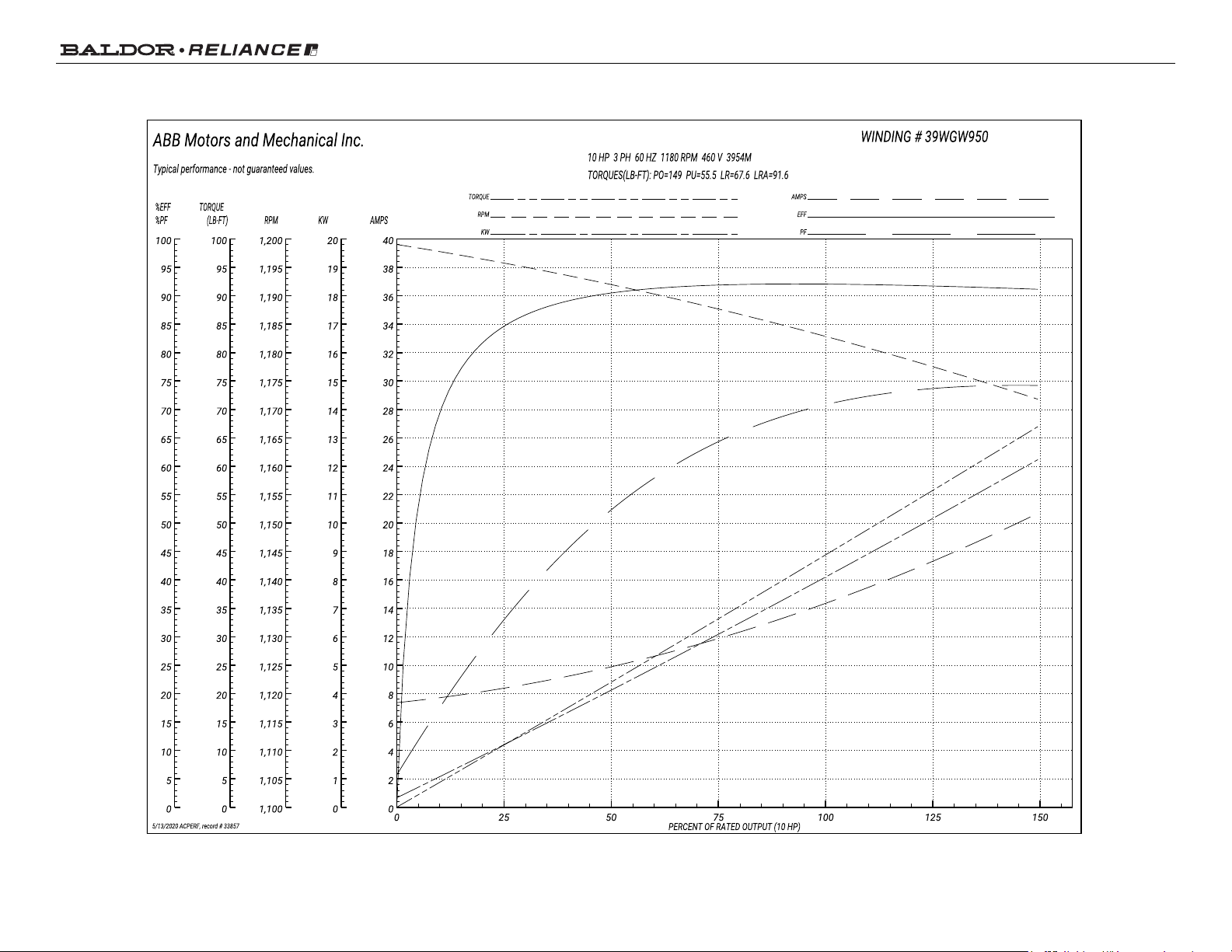

Performance Graph at 460V, 60Hz, 10.0HP Typical performance - Not guaranteed values

Page 8 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

AC Induction Motor Performance Data

Record # 33857 - Typical performance - not guaranteed values

Winding: 39WGW950-R001 Type: 3954M Enclosure: OPSB

Nameplate Data

460 V, 60 Hz:

High Voltage Connection
Rated Output (HP) 10 Full Load Torque 44.1 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 28.6/14.3 Breakdown Torque 149 LB-FT
R.P.M. 1180 Pull-up Torque 55.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 67.6 LB-FT
NEMA Design Code A KVA Code J Starting Current 91.6 A
Service Factor (S.F.) 1.15 No-load Current 7.51 A
NEMA Nom. Eff. 91.7 Power Factor 71 LinelineRes.@25ºC 0.72568Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 18°C
S.F. Amps Temp. Rise @ S.F. Load 22°C

Locked-rotor Power Factor 25.9

Rotor inertia 4.34 LB-FT2

Load Characteristics 460 V, 60 Hz, 10 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 34 53 64 70 73 74 72
Efficiency 84.5 90.2 91.8 92.1 91.8 91.1 91.9
Speed 1195.9 1191.9 1187.8 1182.8 1177.7 1171.6 1180
Line amperes 8.2 9.72 11.9 14.4 17.5 20.6 16.3

Page 9 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Performance Graph at 460V, 60Hz, 10.0HP Typical performance - Not guaranteed values

Page 10 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

3 91

3920-3944 = 23 19
3946-3956 = 24 69
3958-3964 = 25 69

5 248

2 998± 015

623± 015

25

CHECK W/GAUGE

T-9041

1 750
1 748

1 3750
1 3745

1 2495
1 2490

8 500
8 497

9 45

8 25 63

10 00 4 76

11 25

NAMEPLATE

UNDERCUT
R 054- 043

250 KEYWAY
2 62 LONG
(ENDMILLED)

25 KEY
2 00 LONG

6 HOLES
Ø 53

RODENT SCREENS
(EA END)
WHEN REQUIRED

50-13 R H

CL 3 TAP

1 25 DEEP

SLINGER

5 01 5 00

7 69

5 58

11 15

25

6 25
6 19

11 98

9 64

5 75

11 51

45°

45°

1 LIFTING LUG
(EA END)
DIAGONALLY SPACED

4 HOLES

50-13 TAP

ON Ø7 25 B C

LEAD
HOLE

Ø1 38

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

39LYK062

B

HORZ OPSB 254-6JM W/SCREENS WHEN REQ

REV. DESC

REV

BY

REVISED

MODEL NO.

VERSION

TDR

REF

39LYK062

LOAD DRAWING TO SOLIDWORKS

ENALEM0

N

03 04 14 02/11/2020

-

000001132140

07

39LYK062

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION

BALDOR - RELIANCE

®

Page 11 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F

Page 12 of 13

Product Information Packet: EJMM2511T - 10HP,1180RPM,3PH,60HZ,256JM,3954M,OPSB,F
