Product Information Packet
EJM7018
1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM760 CD Diagram: CD0005 Mfg Plant:

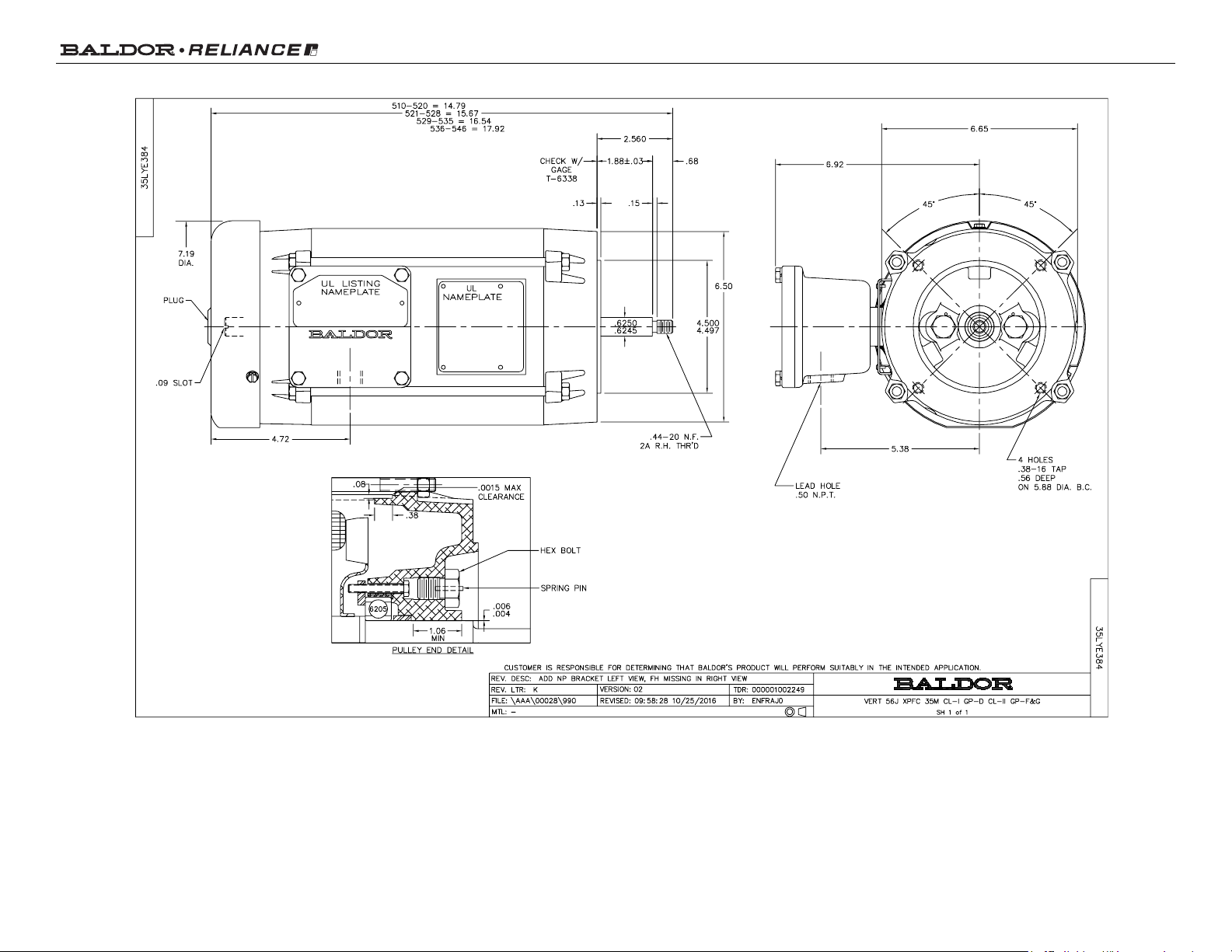

Mech. Spec: 35E384 Layout: 35LYE384 Poles: 02 Created Date: 10-14-2015
Base: N Eff. Date: 02-27-2019 Leads: 9#18
Specs
Catalog Number: EJM7018
Enclosure: XPFC
Frame: 56J
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: CLI GP D; CLII GP F,G
XP Division: Division I
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: X3520M
Mounting Arrangement: F1
Power Factor: 85
Product Family: Hazardous Location Motor
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Ext Thread
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Current @ Voltage: 1.900 A @ 460.0 V
3.800 A @ 230.0 V
4.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Nameplate NP1426XPSLEV
NO. CC 010A
SER.
SPEC. 35E384M760G1
CAT.NO. EJM7018
HP 1.5 T. CODE T3C
VOLTS 230/460
AMPS 3.8/1.9
RPM 3500
HZ 60 PH 3 CL B
SER.F. 1.00 DES B CODE L
RATING 40C AMB-CONT
FRAME 56J NEMA-NOM-EFF 84
USABLE AT 208V 4 PF 85
BLANK
Page 4 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Parts List
Part Number Description Quantity
SA308966 SA 35E384M760G1 1.000 EA
RA296303 RA 35E384M760G1 1.000 EA
34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
35CB3001A01SP EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35EP3700A01SP FR ENDPLATE, XPFC 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3702A01SP PU EP-205 BRG-35X-56C-143-5TC 1.000 EA
84XN1032J20 SCREW, SOC 10-32 X 1 1/4"BMH4602 2.000 EA
HA3013A01 1/2-20X5/8 SPL.HX BOLT 2.000 EA
HW3021C06 3/32 DI X .625 PIN (F/S) 2.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A04 IEC FH NO GRSR W/1.09 SHAFT HOLE, W/ 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
WD4100A10 465 NIAGARA PLUG (SO ELEC),FOR 1.093 DIA 1.000 EA
35CB3500A01SP CONDUIT BOX LID, MACH 1.000 EA
51XN2520A16 SCREW, HEX WS SLT, ZN, 1/4-20 X 1.00 4.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA
NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.014 GA
Page 5 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Parts List (continued)
Part Number Description Quantity
HA3104A06 THRUBOLT 5/16-18 X 8.50 OHIO ROD 4.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
LB1119N WARNING LABEL 1.000 EA
NP1426XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
PK3083 STYROFOAM PACKING CRADLE 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
PK3088 MICROFOAM, 8"X"8 PERF. SHEETS 5,400/RL 1.000 EA
Page 6 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
AC Induction Motor Performance Data
Record # 53544 - Typical performance - not guaranteed values
Winding: 35WGM760-R058 Type: 3520M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 2.22 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 3.8/1.9 Breakdown Torque 9.49 LB-FT
R.P.M. 3500 Pull-up Torque 3.61 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 7.35 LB-FT
NEMA Design Code B KVA Code L Starting Current 17.9 A
Service Factor (S.F.) 1 No-load Current 0.932 A
NEMA Nom. Eff. 84 Power Factor 85 LinelineRes.@25ºC 12.2Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C
Locked-rotor Power Factor 60.1
Rotor inertia 0.0553 LB-FT2
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 45 67 79 85 89 90
Efficiency 72.3 82.2 84.4 84.8 84.3 82.8
Speed 3575 3551 3526 3498 3466 3433
Line amperes 1.03 1.25 1.55 1.91 2.31 2.79
Page 7 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Page 9 of 10
Product Information Packet: EJM7018 - 1.5HP,3500RPM,3PH,60HZ,56J,3520M,XPFC,F1
Page 10 of 10
